10~30L HDPE/PE/PP Jerry Can High Speed Extrusion Blow Molding Machine
The Automatic plastic HDPE open head 30L barrel blow molding machine is used to make abs car hollow products , A wide variety of materials can be used for the machine, which are suitable for producing 10-30L PE bottle. Extrusion system using a hard gear reducer and inverter. The die head system adop......
Send Inquiry
Product Description
The Automatic plastic HDPE open head 30L barrel blow molding machine is used to make abs car hollow products , A wide variety of materials can be used for the machine, which are suitable for producing 10-30L PE bottle. Extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical parts.
Blow molding machine parameter

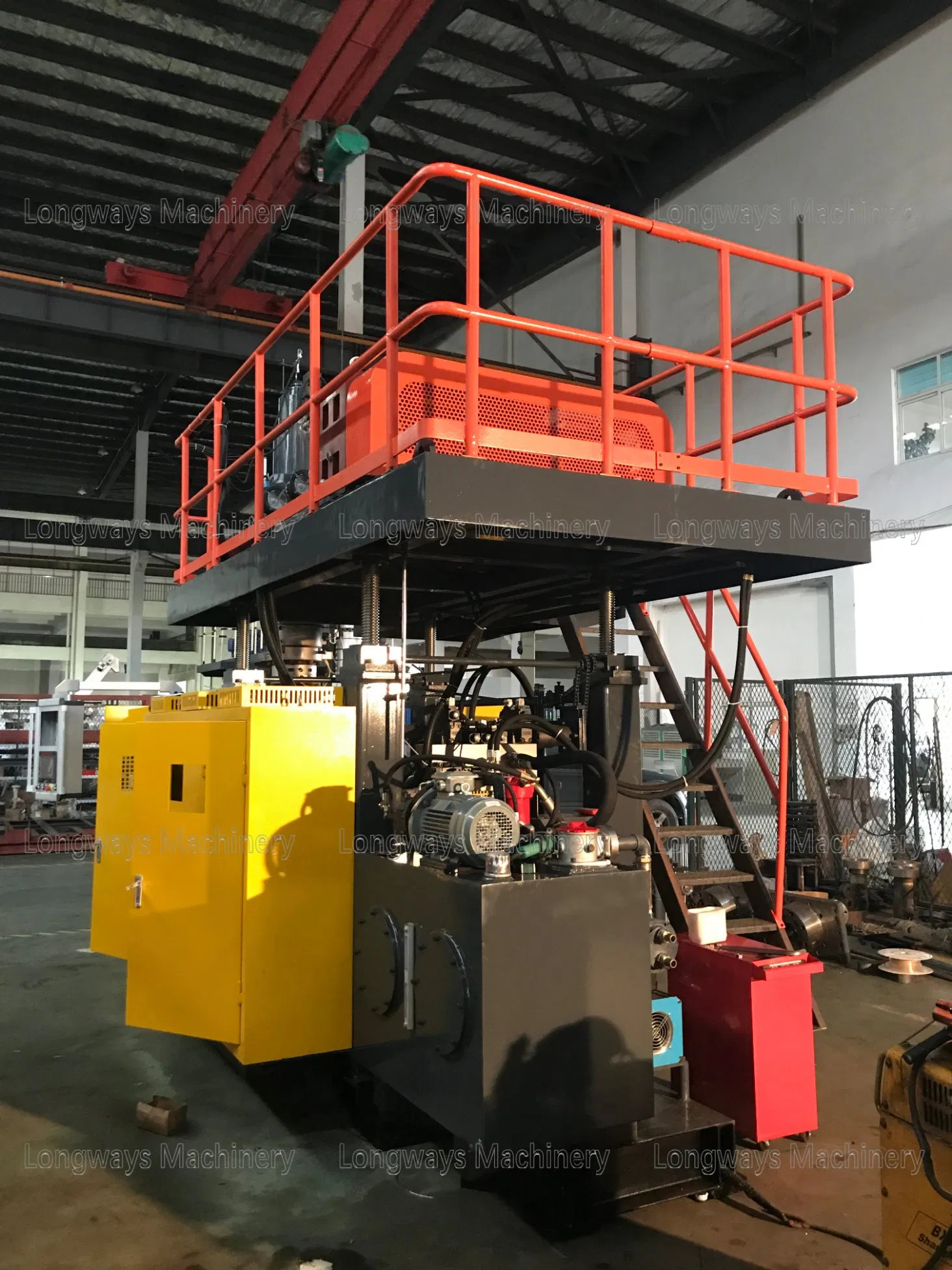

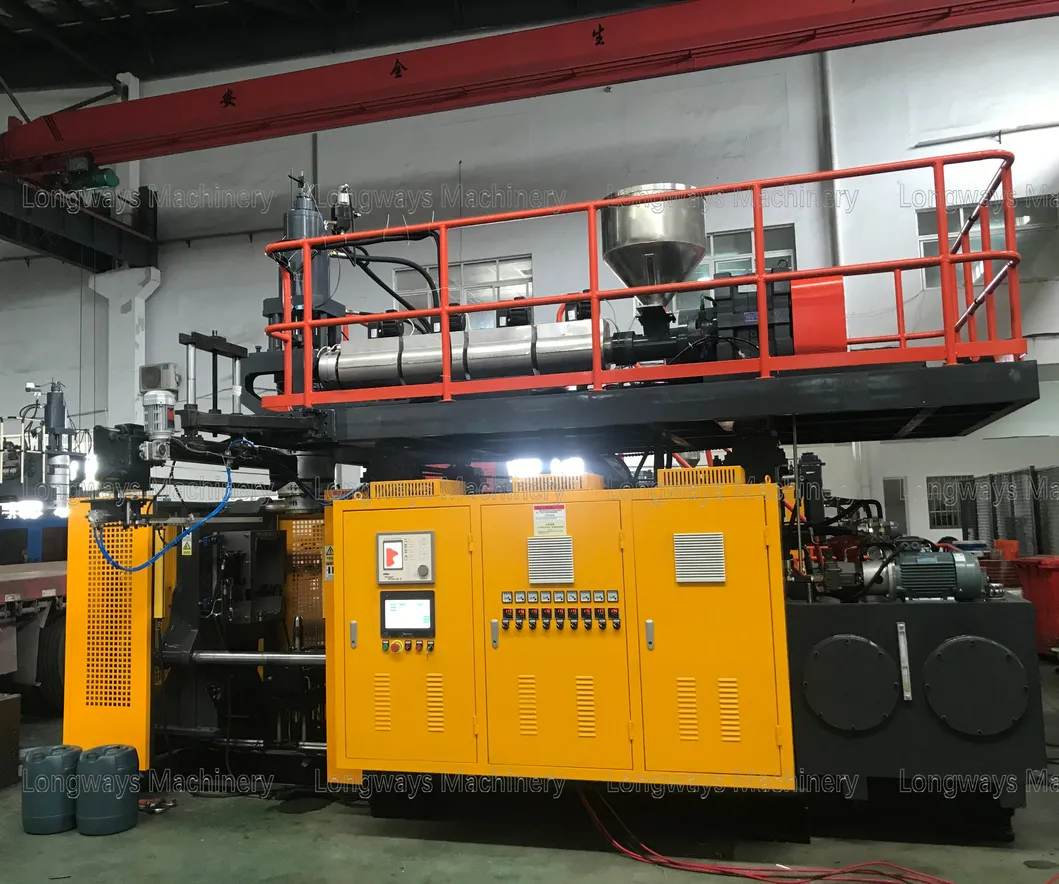

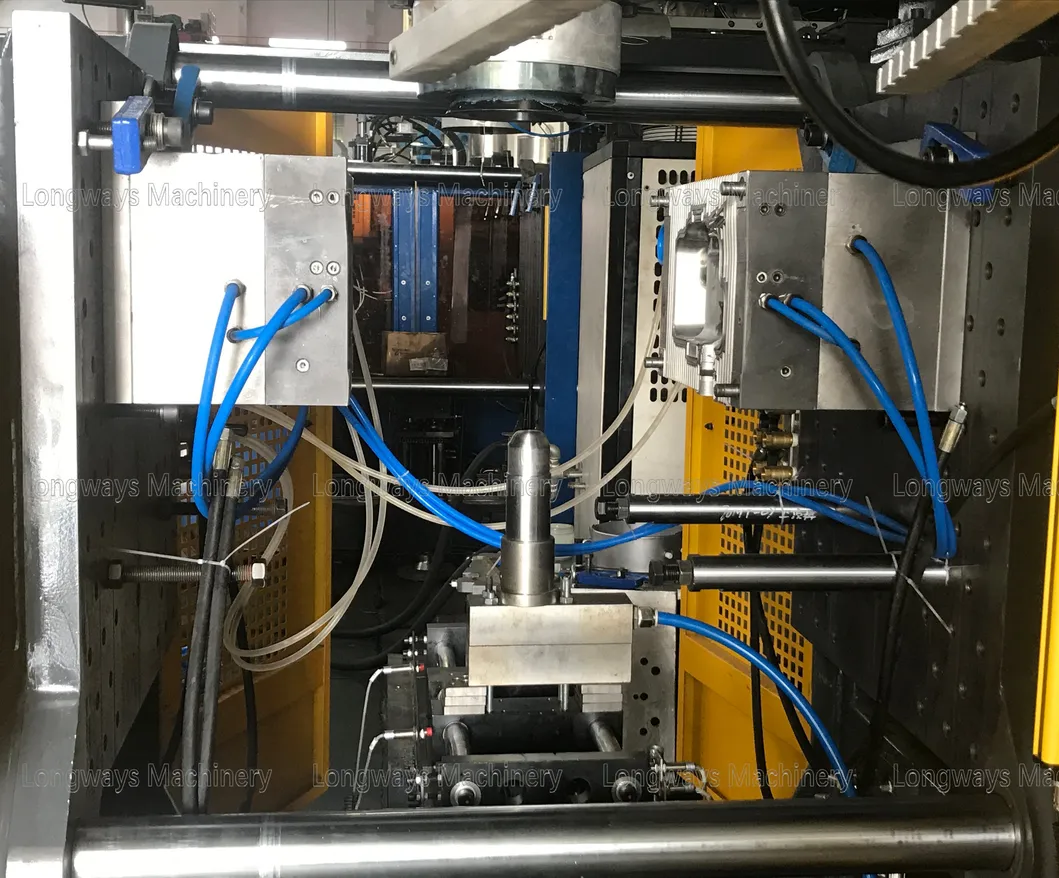

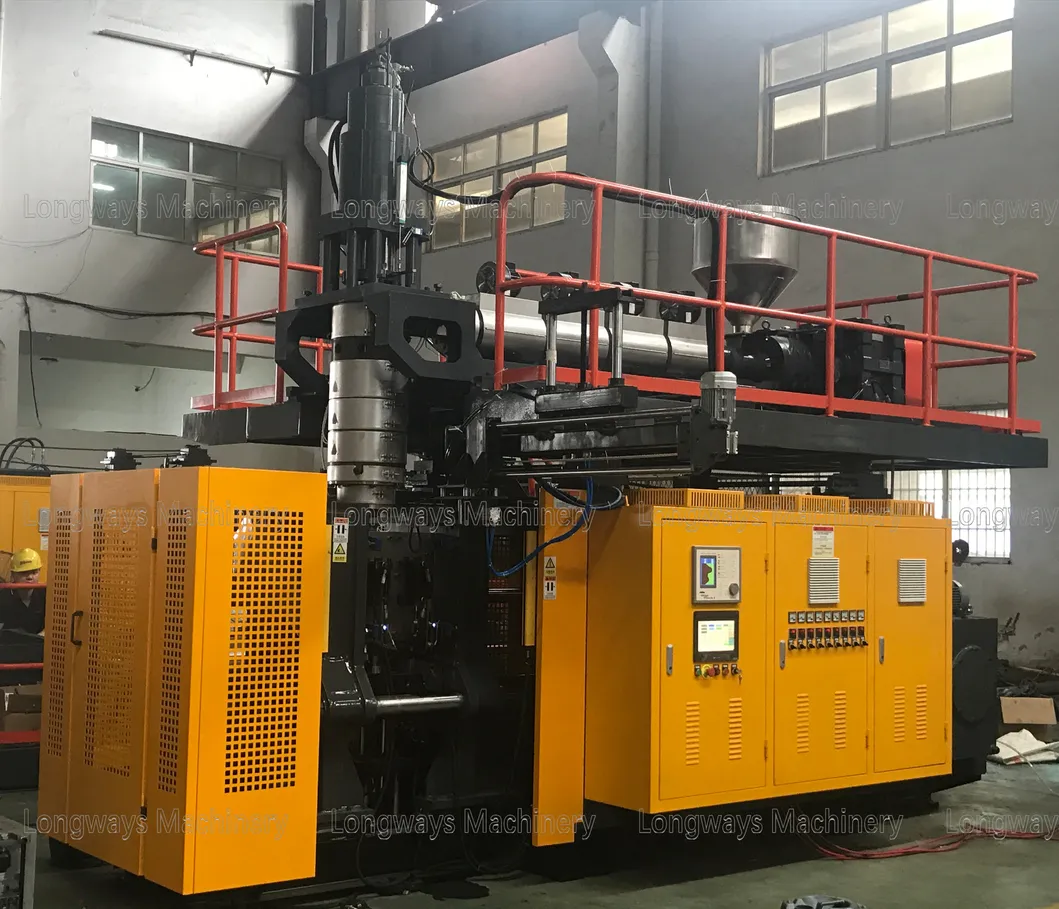

Blow molding machine photo
Welcome you contact us for more machine details.
Blow molding machine parameter
| LWB80N-30L Accumulator type | |
| BASIC EQUIPMENT | |
| Clamping system | Diagonal double rod + linear guide clamping system |

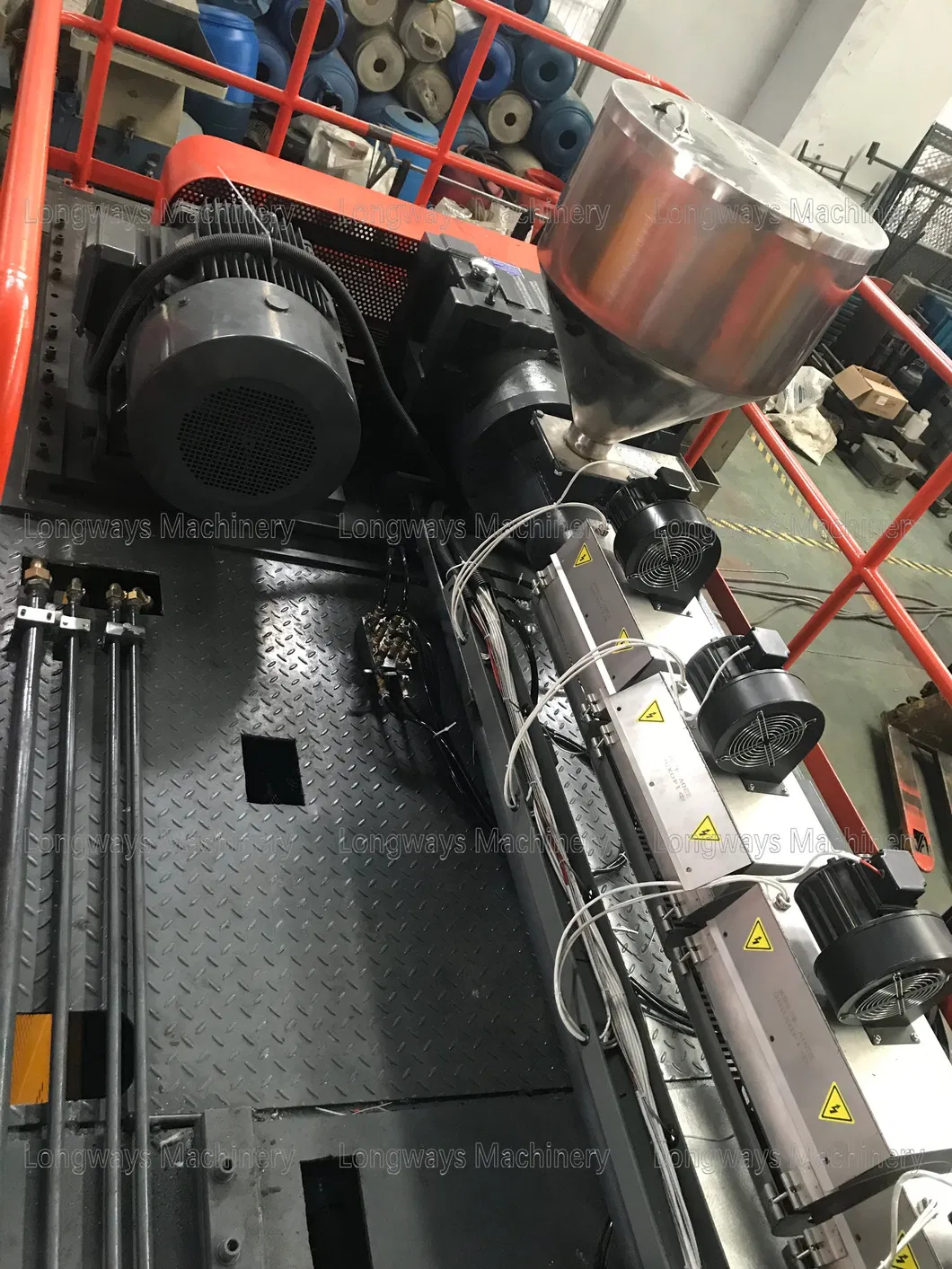

| Extruder system | Hard tooth surface gear box + inverter |

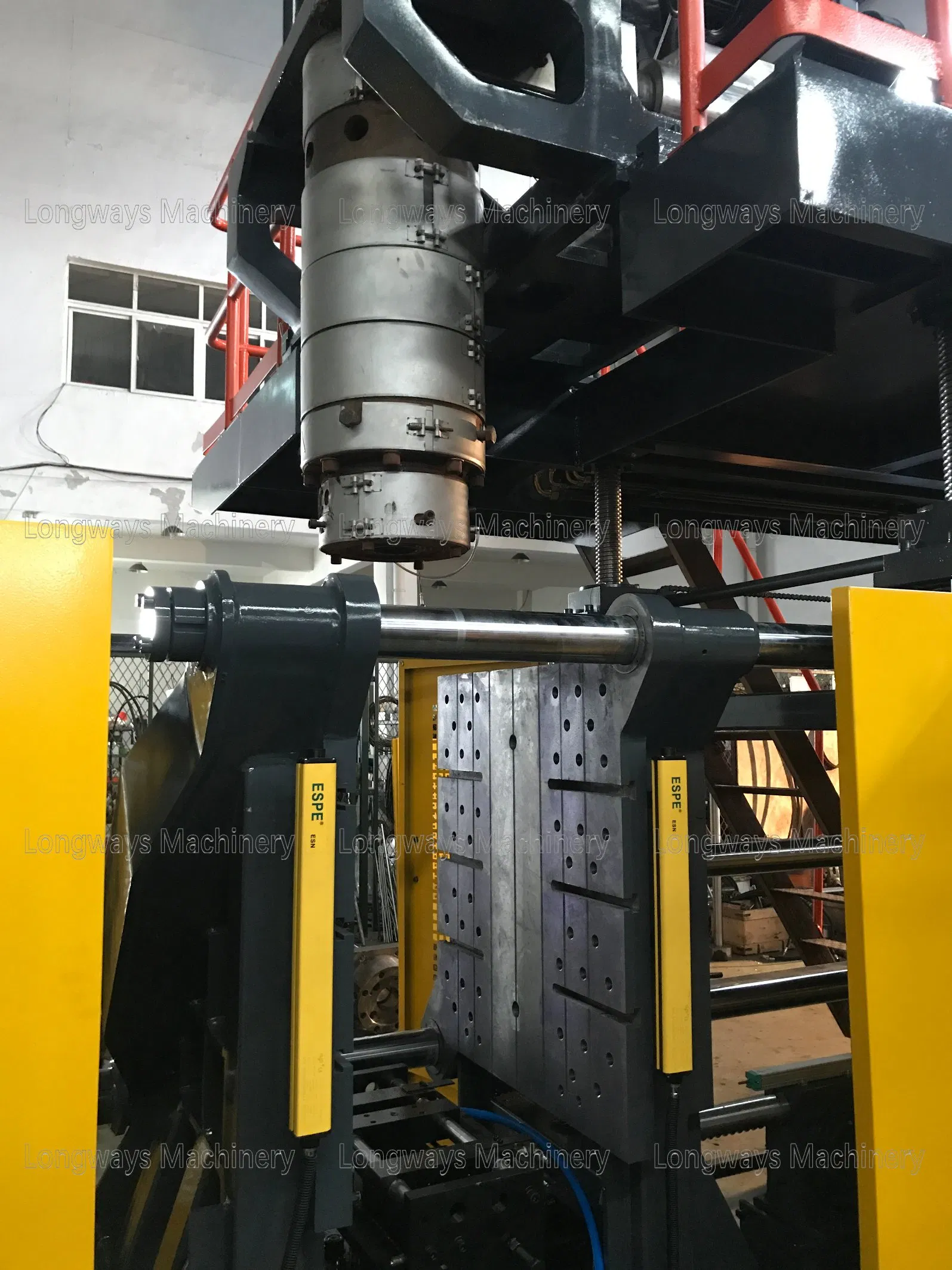

| Die head system | Special steel center feeding extrusion die |

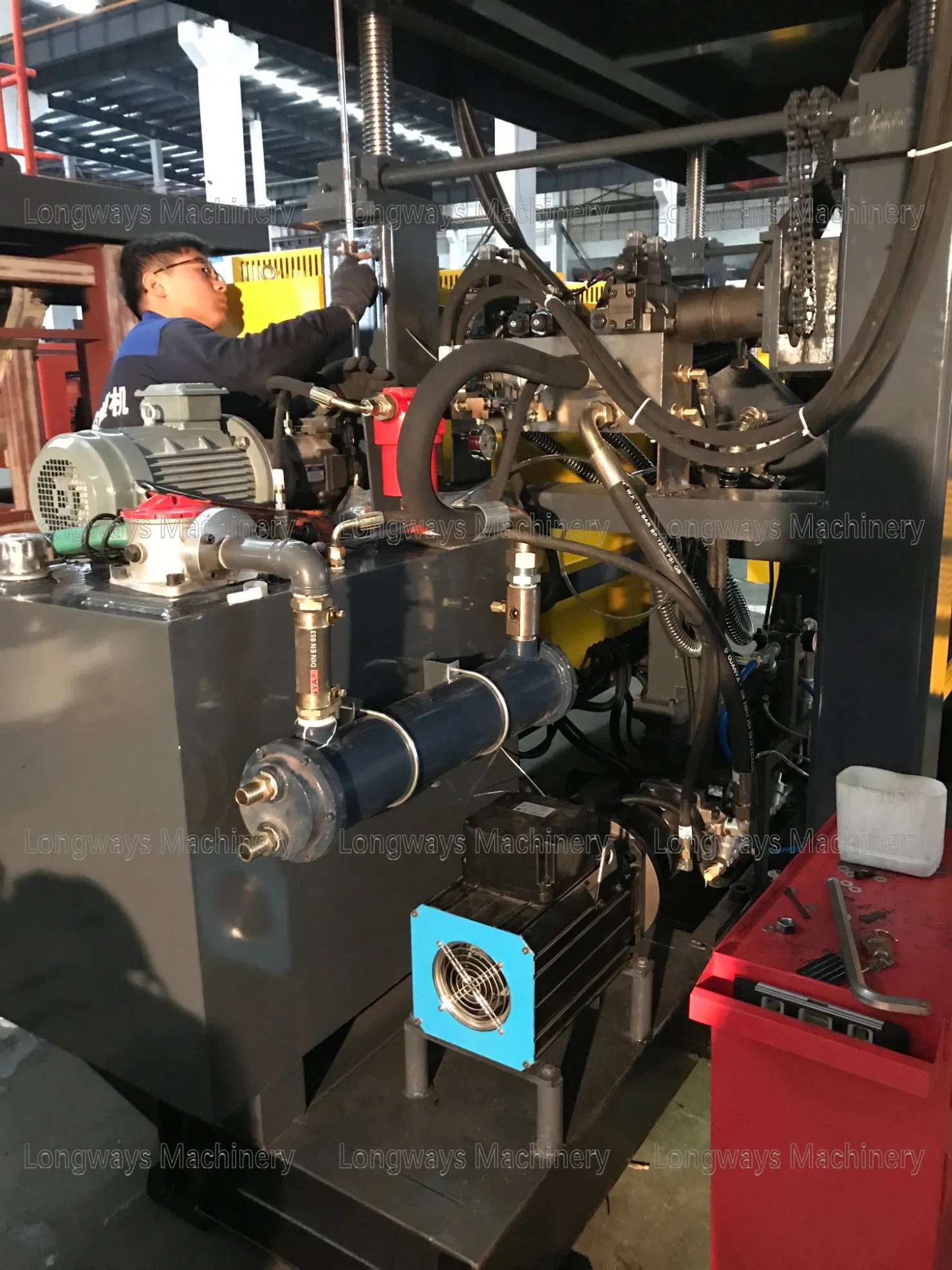

| Hydraulic system | Imported hydraulic valve and seal |
| Control system | Wise Tech 15 Inch microcomputer or Mitsubishi PLC |
| Parison controller | Wise Tech 100 points or MOOG 100 points or GEFRAN 300 points (optional) |
| Parameters | |
| Max die capacity | 3.5L |
| Max die pin diameter | 300mm |
| Screw diameter | 80mm |
| Screw L/D ratio | 24 |
| Screw RPM(50HZ) | 10-60 r/min |
| Extrusion capacity per hour(PE) | 110kg/h |
| Number of heaters | 4 |
| Platen size | 750mm x800mm |
| Clamping stoke | 450mm-1000mm |
| Clamping force | 230KN |
| Dry cycle time | 13S |
| Cooling water pressure | 0.2-0.3MPa |
| Cooling water consumption | 60L/min |
| Air pressure | 0.8MPa |
| Compressed air consumption | 0.8m³/min |
| Machine dimension(L x W x H) | 5000mmX2800mmX3900mm |
| Machine net weight | 12T |
| Power consumption parameter | |
| Inverter motor | 30kw |
| Extruder heating power | 16kw |
| power of die heating zone | 6kw |
| Wall thickness hydraulic motor | 4KW |
| Hydraulic motor | 13kw |
| Maximum Electrical power rating | 69kw |
Welcome you contact us for more machine details.
