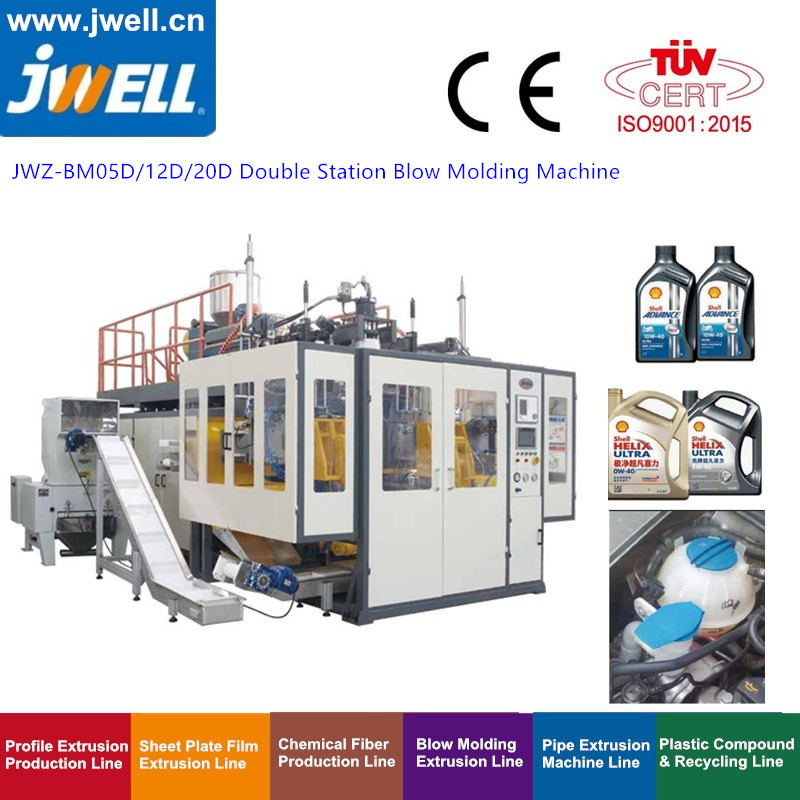

100ml-20L HDPE Plastic Oil Bottle Blow Molding Machine
Performance and advantagesSuitable for producing 100ml-5000ml different size of Milk bottle,soy sauce bottle, yellow wine bottle. 200ml-5000ml different size of shampoo bottle,body wash bottle,detergent bottles and others Toiletries and different children's toys.Optional pearly luster......
Send Inquiry
Product Description
Performance and advantages
Technical parameters
Note: Information listed above are for reference only, the production line can be designed by
customer's requirements.
Control system
Control system
SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

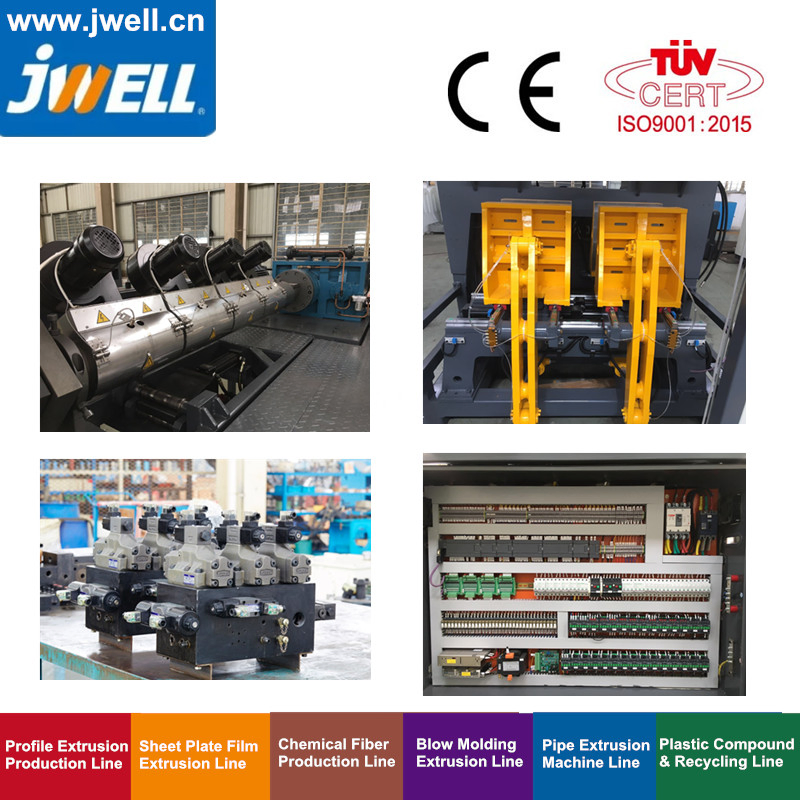

Extrution & Die head
The extruder uses screw and barrel, which is a famous brand
all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Open&Closing system
Common three platen and three tie bar struction
Toggle struction
Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system
- Suitable for producing 100ml-5000ml different size of Milk bottle,soy sauce bottle, yellow wine bottle. 200ml-5000ml different size of shampoo bottle,body wash bottle,detergent bottles and others Toiletries and different children's toys.
- Optional pearly luster layer co-extrusion system
- According to the product size. Select different cavity of die head
- According to the different material, optional JW-DB single station hydraulic screen-exchanger system
- According to customer's requirement. Optional auto-deflating online, scrap conveying on line, finished product conveying on line and others.
Technical parameters
| Model | Unit | BM02D | BM05D | BM12D | BM20D |
| Max product volume | L | 5 | 2 | 12 | 20 |
| Dry cycle | Pc/h | 700*2 | 900*2 | 600*2 | 600*2 |
| Die head structure | Continuous type | ||||
| Main screw diameter | mm | 75 | 65 | 90 | 90 |
| Max plasticizing capacity (PE) | kg/h | 90 | 70 | 160 | 160 |
| Driving motor | Kw | 30 | 22 | 45 | 45 |
| Oil pump motor power | Kw | 11 | 7.5 | 15 | 15 |
| Clamping force | KN | 70 | 40 | 120 | 160 |
| Space between platen | mm | 150-510 | 138-368 | 240-640 | 280-680 |
| Platen size W*H | mm | 350*400 | 286*330 | 450*500 | 500*520 |
| Max. mold size | mm | 360*400 | 300*350 | 500*520 | 560*520 |
| Platen moving stroke | mm | 450/520 | 420 | 600/650 | 650 |
| Heating power of die head | Kw | 7.5 | 6 | 10 | 12.5 |
| Machine dimension L*W*H | m | 3.7*3.1*2.7 | 3.0*1.9*2.4 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 8.5 | 5 | 12 | 14 |
| Total power | Kw | 60 | 45 | 90 | 93 |
customer's requirements.
Control system
Control system
SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head
The extruder uses screw and barrel, which is a famous brand
all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Open&Closing system
Common three platen and three tie bar struction
Toggle struction
Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system
- SIEMENS CPU unit
- SIEMENS temperature-control unit
- SIEMENS digital-output unit
- SIEMENS analog-output unit
- MITSUBISHI CPU unit
- JWELL invertor revolving speed-control
- Schneider electric components
