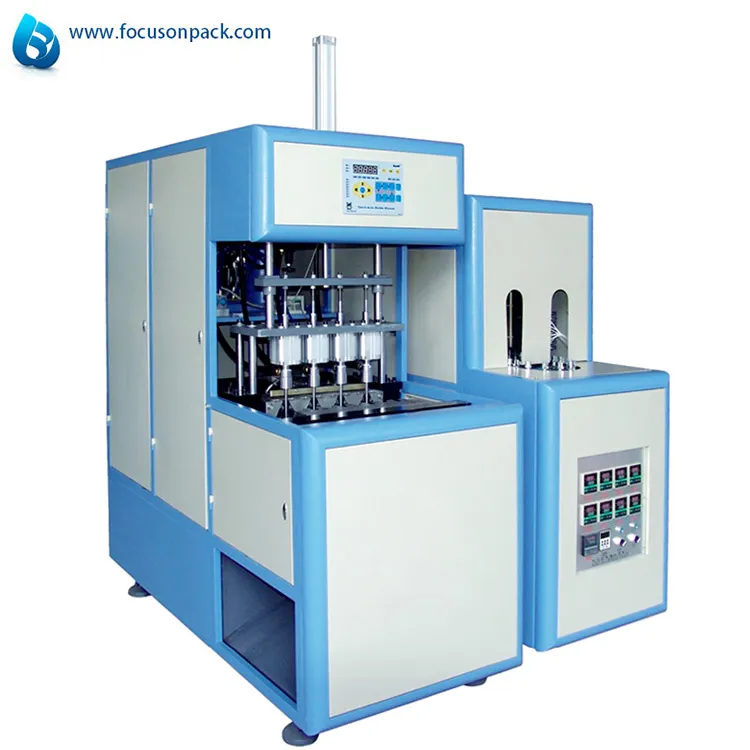

1500bph Semi Automatic Pet Stretch Blow Molding Machine Plastic Bottle Making Machine
1500bph Semi Automatic Pet Stretch Blow Molding MachineThis machine is specially designed and upgraded based on our 2-cavity(SBM-4-1800S),its capacity has increased from 800BPH(SBM-4-1800S) to 1400BPH. Features:Minimize your initial investment by starting small.Add additional systems economically as......
Send Inquiry
Product Description
1500bph Semi Automatic Pet Stretch Blow Molding Machine
This machine is specially designed and upgraded based on our 2-cavity(SBM-4-1800S),
its capacity has increased from 800BPH(SBM-4-1800S) to 1400BPH.
Features:
Minimize your initial investment by starting small.
Add additional systems economically as your business grows.
Bottles of different sizes can be produced simultaneously to meet your exact requirements.
Change over from one size to another can be completed simply and quickly.
The tooling costs (molds) are low since the design of the system is simple.
Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design.
Maintenance costs are kept to a minimum and highly-trained personnel are not required.
FESTO pneumatic air cylinder
Taiwan Bothfit microprocessor.
This machine is specially designed and upgraded based on our 2-cavity(SBM-4-1800S),
its capacity has increased from 800BPH(SBM-4-1800S) to 1400BPH.
Features:
Minimize your initial investment by starting small.
Add additional systems economically as your business grows.
Bottles of different sizes can be produced simultaneously to meet your exact requirements.
Change over from one size to another can be completed simply and quickly.
The tooling costs (molds) are low since the design of the system is simple.
Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design.
Maintenance costs are kept to a minimum and highly-trained personnel are not required.
FESTO pneumatic air cylinder
Taiwan Bothfit microprocessor.
| Item | 3-cavity |
| Material | PET/PP |
| Volume | 0.1-1.5L |
| Theoritical output | 1300-1500Pcs/h |
| Max.length | 360mm |
| Max.diameter | 100mm |
| Max.mould plate dimension (L×H) | 420×500mm |
| Max.mould thickness | 120-250mm |
| Clamping force | 200KN |
| Power | 12KW |
| Voltage/Frequency | 220-380/50-60V/HZ |
| Main body dimension(L×W×H) | 1.7×0.7×2.2M |
| Main body weight | 0.7T |
| Pre-heater dmension(L×W×H) | 1.46×0.71×1.58M |
| Pre-heater weight | 0.3T |
