              15L HDPE Jerry Cans Double Station Blow Molding Machine
              • 15L HDPE Jerry Cans Double Station Blow Molding Machine15L HDPE Jerry Cans Double Station Blow Molding Machine
              • 15L HDPE Jerry Cans Double Station Blow Molding Machine15L HDPE Jerry Cans Double Station Blow Molding Machine
              • 15L HDPE Jerry Cans Double Station Blow Molding Machine15L HDPE Jerry Cans Double Station Blow Molding Machine
              • 15L HDPE Jerry Cans Double Station Blow Molding Machine15L HDPE Jerry Cans Double Station Blow Molding Machine

              15L HDPE Jerry Cans Double Station Blow Molding Machine

              DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT***Our customers are all around the world. Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Ken......

              Send Inquiry

              Product Description

              DAWSON MACHINERY & MOULD GROUP
              ***EXTRUSION BLOW MOLDING MACHINE EXPERT***

              Our customers are all around the world.

              Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

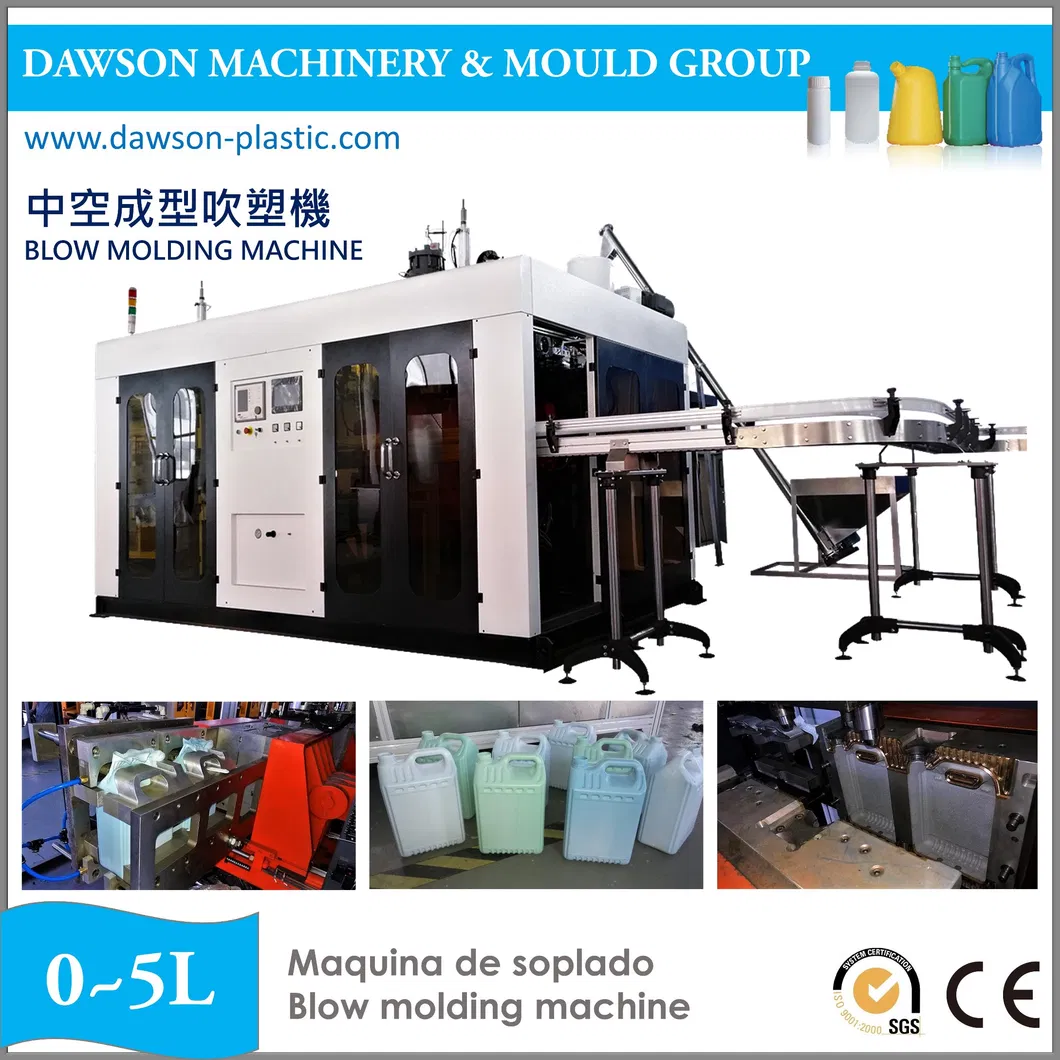

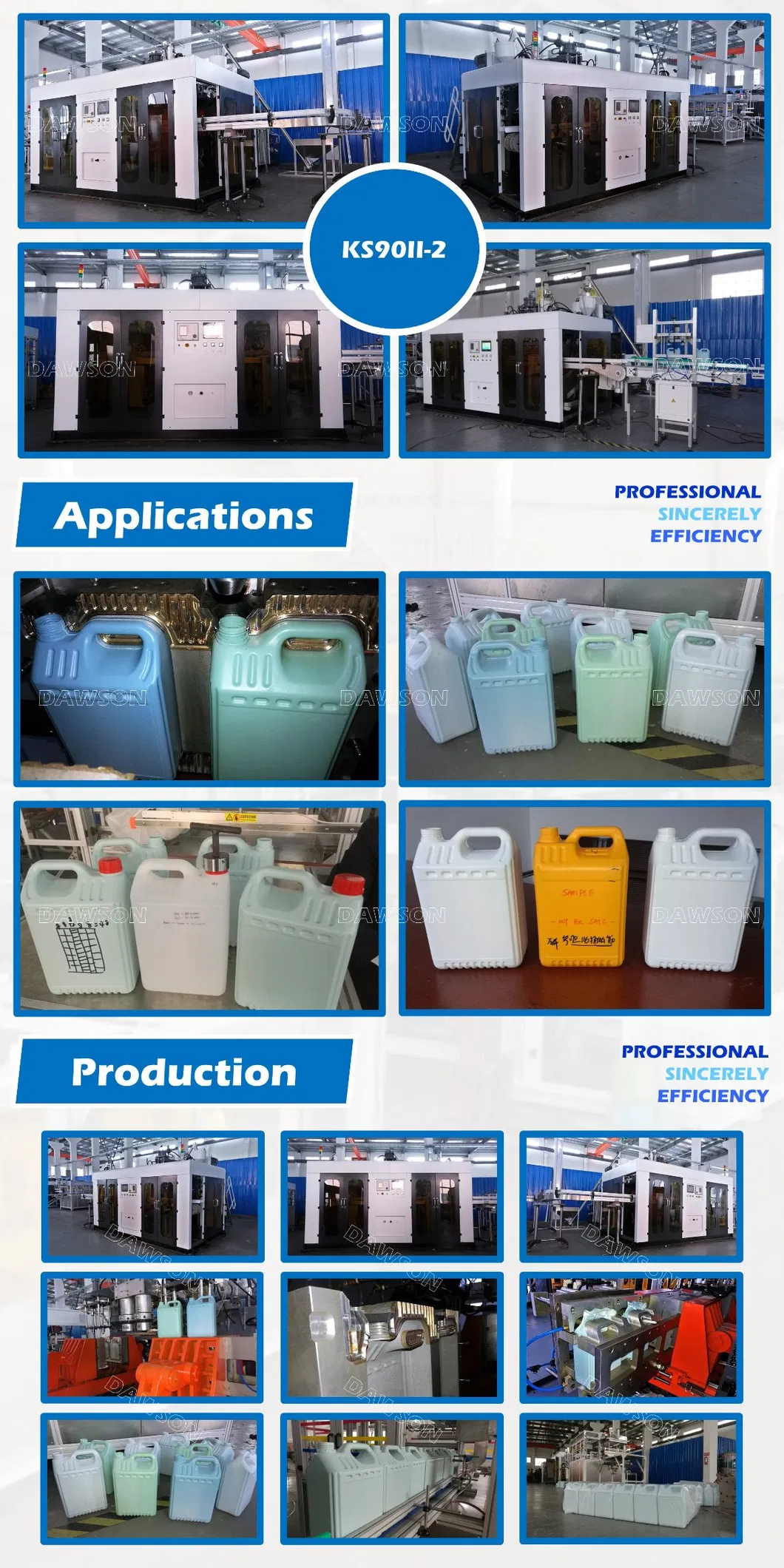

              Double station blow molding machine KS90II series

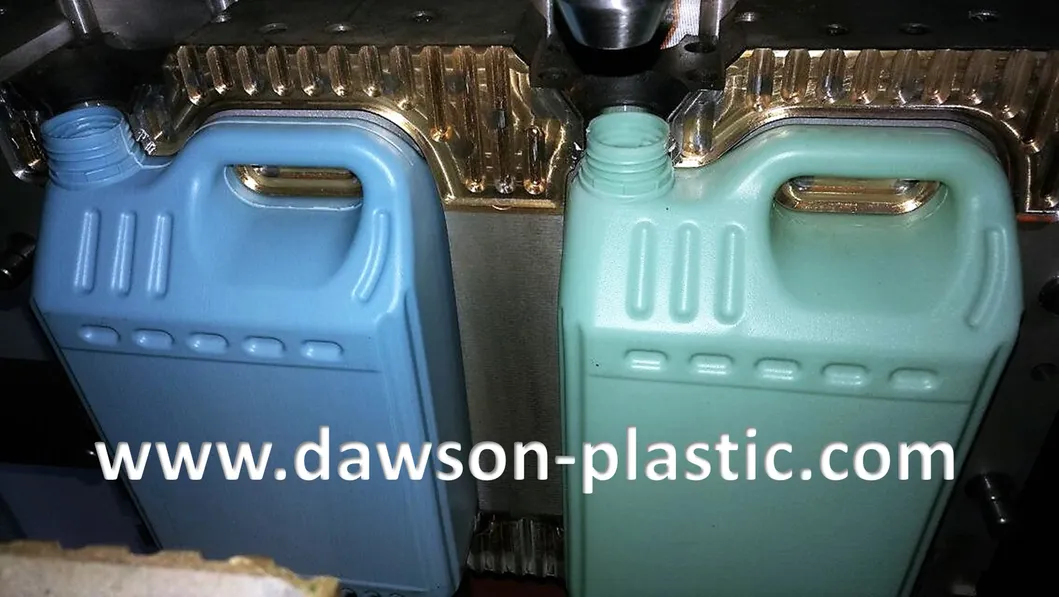

              Suitable for making 2-15L HDPE Jerry cans, bottles, gallons, jars...

              KS90II-3    3 head suitable for 2L & 3L bottles
              KS90II-2    Double head for making 5L bottles
              KS90II-1    Single head can making 8-15L bottles

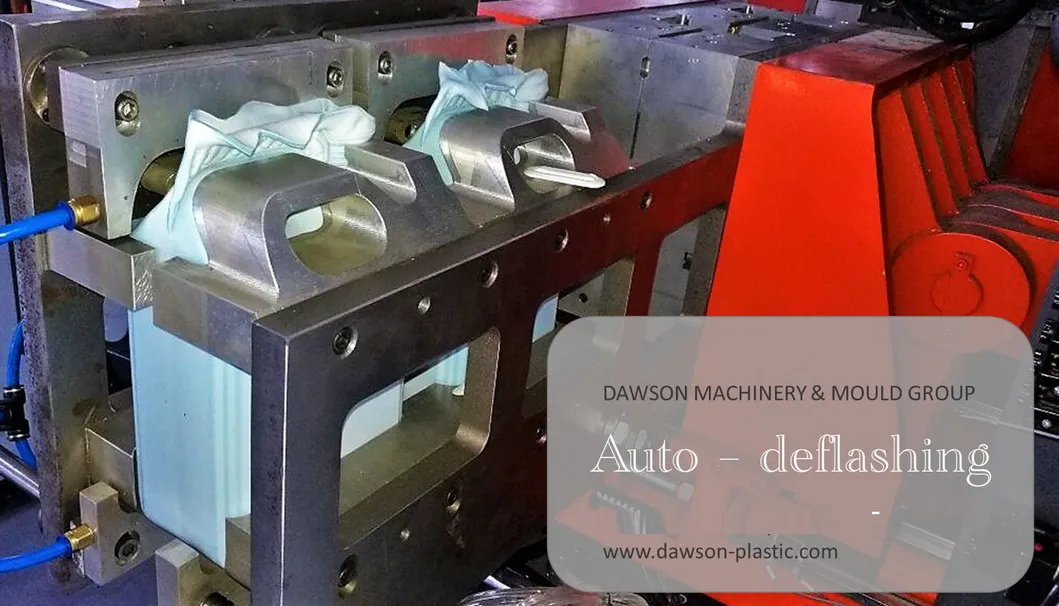

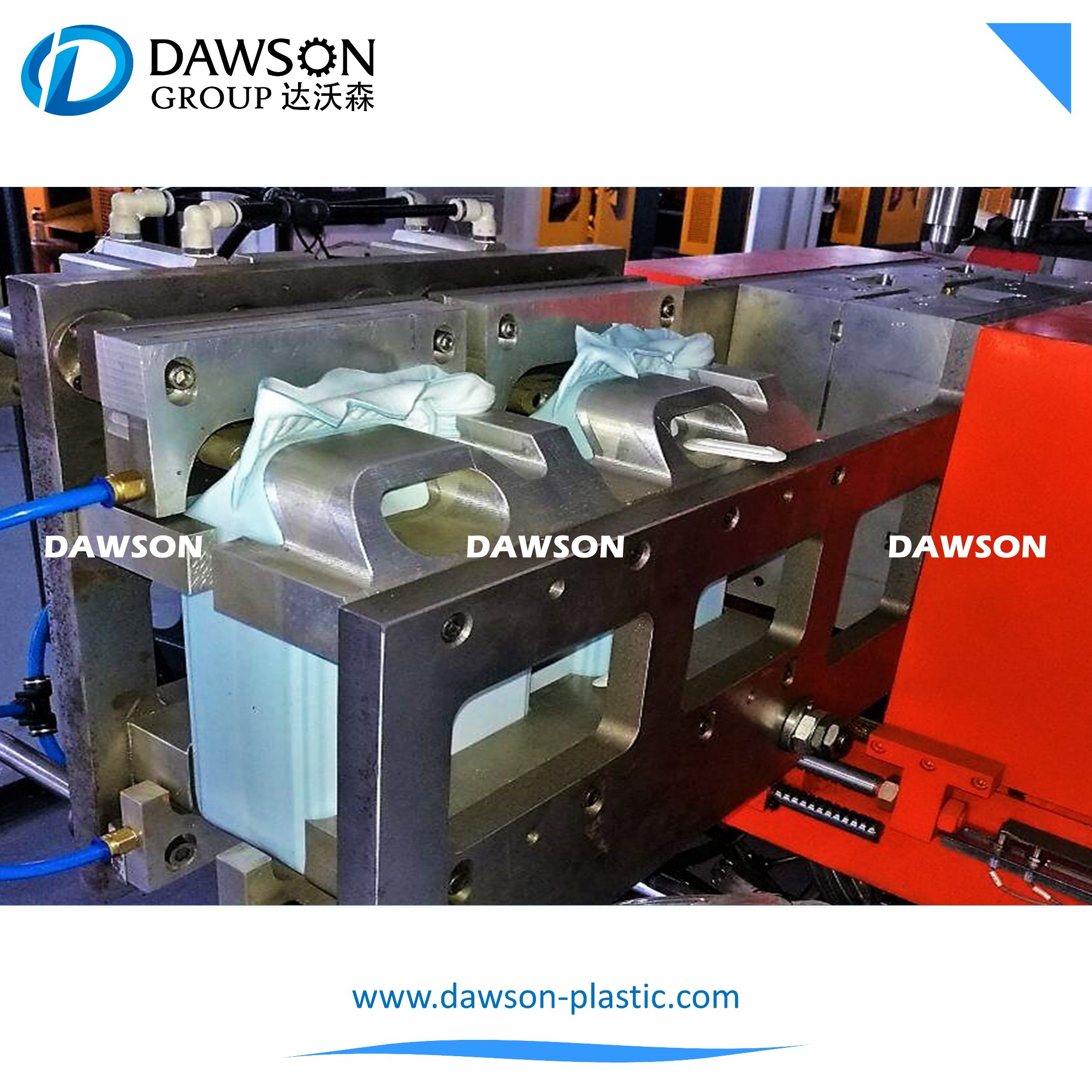

              Auto-deflashing system

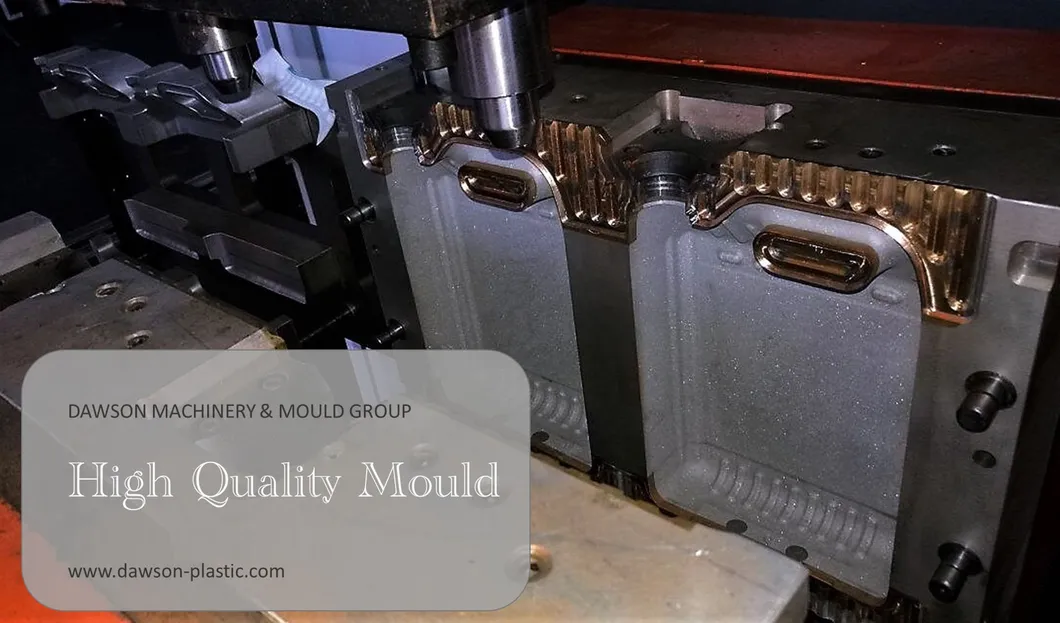

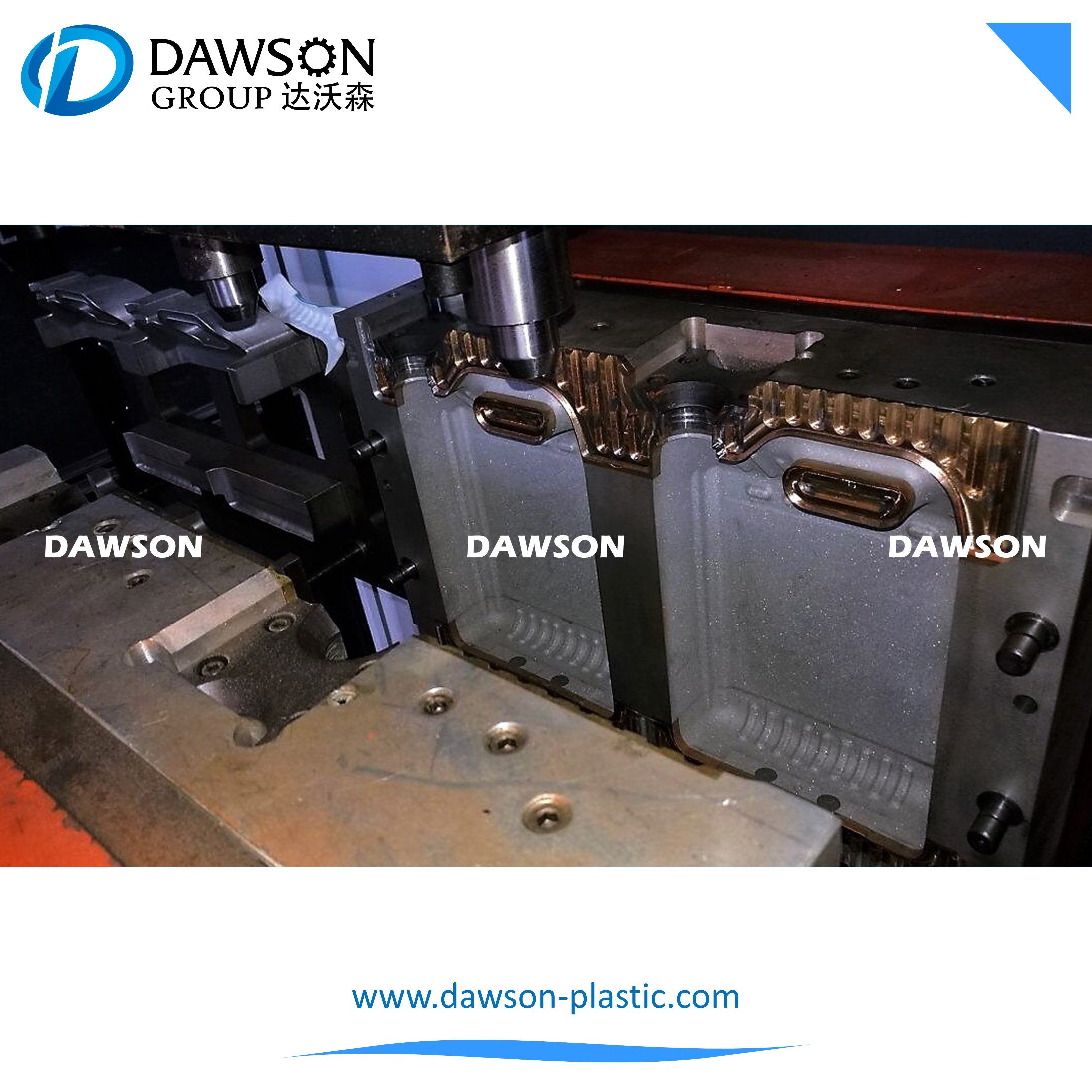

              Aluminium with Beryllium Copper Mould

              Equiped with MOOG parison controller for thickness control

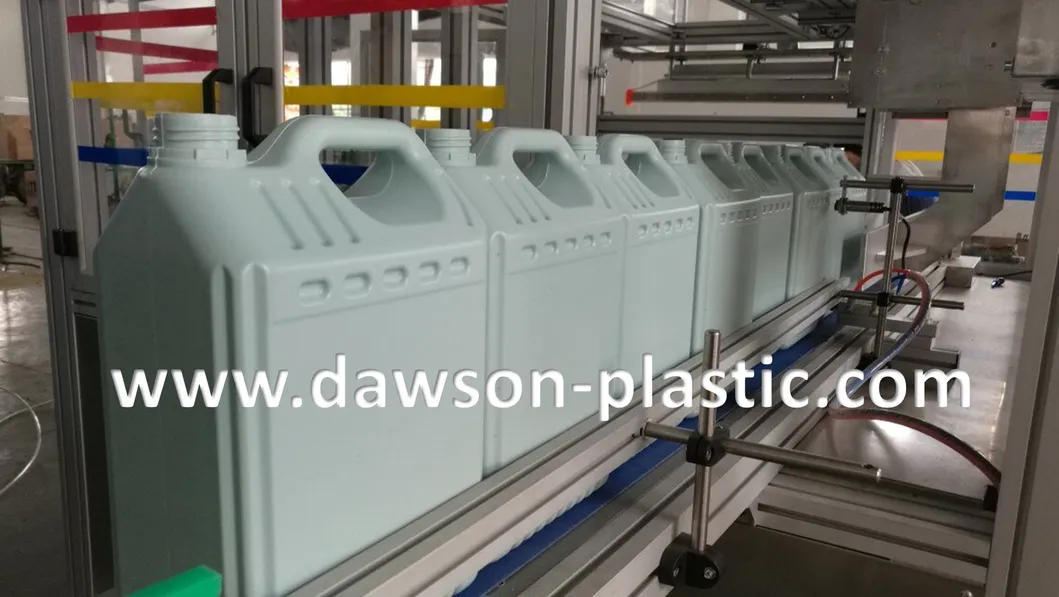

              Available to connect with conveyors , leak tester and auto bagging machine for fully automatic system





              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine



              Technical Parameters

              Basic parametersSuitable materialHDPE,PP
              Max volume5L
              Output capacity280~300  pcs/h
              Size3.4×5×2.6(M)
              Weight8.3T
              systemSpecificationParametersNote
              Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
              ReducerHard finishing,High intension,Low noise reducer
              Screw ∮80mm,L/D ratio 25,110kg/h 38CrMoALA Cooling system available
               Heating Zone4 Aluminum HeaterAutomatic heating
                Heating power16KW/H
              Cooling FanSeparate cooling system for heaters          Automatic cooling
              Extrusion systemSingle Die Head System
              SummarizeHigh-grade alloy steel, center feeding
              Accumulation head,2.5L capacity of head
              Die head number1
              Center distance of die heads/
              Max die mouth320
              Extruder Motor30kw SIEMENS MOTOR
              Clamping system       The most advanced clamping system -- Bend arm translational type mould closing mechanism. The utility model technical problem to be solved: to design a bent pan-type clamping mechanism, the use of open, the role of the clamping cylinder and control, through the rational allocation of torque bent to promote pan rail template horizontal movement, complete open mold, mold, clamping the plastic molding process; make rational allocation of maximum clamping force.

              Summarize
                             		High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
              Clamping force 220 KN
              Distance between platens450~900mm
              Mould template650× 550
              Mould materialSteel S136H or Aluminium with beryllium copper
              Electric system
              Summarize       PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)


              Operate interfaceTouch screen, automatic self-diagnose alarm system
              Parison controlMOOG 100 points controller
              Parison control valve: MOOG servo valve
              Temperature controlAutomatic temperature control module
              Movement controlJapanese Mitsubishi, Chinese/English
              Version
              Motor : SIEMENS motor
              Electric protectionAmpere overload, electric short circuit self-protection function
              TOTAL rated power63 kw
              Average power consumption40 kw
              InverterDELTA (TAIWAN)
              Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient
              Oil pump motorThree phase asynchronous motor 11kw servo  motor (380V/220V,50/60HZ)
              Oil pumpdouble vane pump
              ValvesImported oil pump valves and connections
              YUKEN
              YUKEN Hydrulic valve
              Precision control
              More safe and easy to operate and maintenance
              Also YUKEN series avoid any leakage problem both inner or outter, which makes the all operation reliable and safe.
              Oil pipesDouble layer overpressure resistant
              System pressureLP 100 bar / HP 130 bar
                 Threads of hydraulic block use of screw joint GE(ISO 1179)
              Cooling system  Post cooling by cooling air and cooling water with Aluminum Mask
              Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system
              Air pressure0.6~0.8Mpa
              Air displacement2.2 M3/min
              Electromagnetic valve Taiwan AIRTAC
              Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system
              Cooling mediumWater
              Water flow100L/min
              Water pressure0.4-0.6MPa

              CONFIGURATION

              COMPONENTSBRANDORIGIN
              PARISION CONTROL SYSTEMMOOGJAPAN
              PARISON CONTROL VALVEMOOGJAPAN
              PARISON CONTROL TRANSDUCERMOOGJAPAN
              TEMPERATURE CONTROL MODULEMITSUBISHIJAPAN
              PLCMITSUBISHIJAPAN
              COLORFUL TOUCH SCREENHITECHTAIWAN
              HYDRAULIC PUMPHYTEKTAIWAN
              HYDRAULIC VALVEHYTEKTAIWAN
              OIL TUBE & JOINTPACKERU.S.A
              OIL FILTERPACKERU.S.A
              HYDRAULIC OIL SEALVALQUAJAPAN
              INTERMEDIATE RELAYOMRONJAPAN
              CONTACTORSCHNEIDERFRANCE
              INVERTERDELTATAIWAN
              AIR SWITCHSCHNEIDERFRANCE
              PNEUMATIC VALVEAIRTACTAIWAN
              PNEUMATIC SWITCH & CONTACTORLGKOREA
              LINEAR GUIDE RAILSHIWINTAIWAN
              HYDRAULIC MOTOR & SCREW MOTORSIEMENSGERMAN
              HARD GEAR BOXGUOMAOTAIWAN/CHI

              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              15L HDPE Jerry Cans Double Station Blow Molding Machine
              Type of Blow Molding Machine

              Extrusion blow molding
              In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected.
              EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows:
              1. Continuous Extrusion Equipment
              • Rotary wheel blow molding systems
              • Shuttle machinery
              2. Intermittent Extrusion Machinery
              • Reciprocating screw machinery
              • Accumulator head machinery
              Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums.
              Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers.
              Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking.
              Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.
              Plastic machines we provide ....

              Extrusion Blow Molding Machine

              Injection Blow Molding Machine

              PET Blow Molding Machine

              Injeciton Molding Machine

              Injection Stretch Blow Molding Machine
              Applictions ....

              Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets.

              Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields.

              House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life.

              Indoor & outdoor :  Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere.

              Food & Beverage :  The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications.

              Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.

               Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
