              Product Description

              200 litre 55Gallon blue plastic HDPE drum blowing Molding  blow mould Making Machine

              Plastic Extrusion Blow Moulding Machine for 120L-160L-200L-250L Big Barrel (TDY120)

              Good quality and best price can make your needs

              TCY120 series, this is a blow molding machine with single accumulator die-head.

              Voltage: 380V/50Hz
              ItemCode ItemStandard CodeManualNote
              Extruder
              (Main extruder)
                             		Max. Capacity250L
              Main screwφ 120mmHigh efficiency of mixing
              Screw L/D32: 1
              Screw material 38CrMoALA
              Max. Extruder consumption350KG/HrTake EHMWDPE for example, change with material density
              Twisting transition methodElectrical machinery, Gear box, DC MotorHard gear with DC motor
              Driving motor132KW
              Screw rotate speed5---60r/min
              Ahead/back adjustingYes
              Up/down adjustingYes
              Temperature control zone5Japan MTSUBISHI
              Heating power5φ 10KW
              Cooling for blower5
              Cooling functionYesCooling water
              Clamping unit    (Mold opening/closing unit)Structure With patented two-bar timing clamping structure in high speed and high force, to achieve quality products.
              Clamping directionsBall railFor high precise location for longer service life.
              Clamping speed250mm/sce; 15m/min
              Platen dimension1320*1650 mm(W*H)
              Max. Mold dimension1100*1720 mm(W*H)
              Mold opening stroke1000 mm
              Platen distance800~1800 mmMin. ~Max.
              Clamping force770 KN
              Mould thickness scope810~1000 mm
              Fixing pattern of moldMold press platen
              Mold opening/closing stroke controlInducing Switch+movingDiscriminate mold opening/ closing end, mold opening/ closing slow speed,

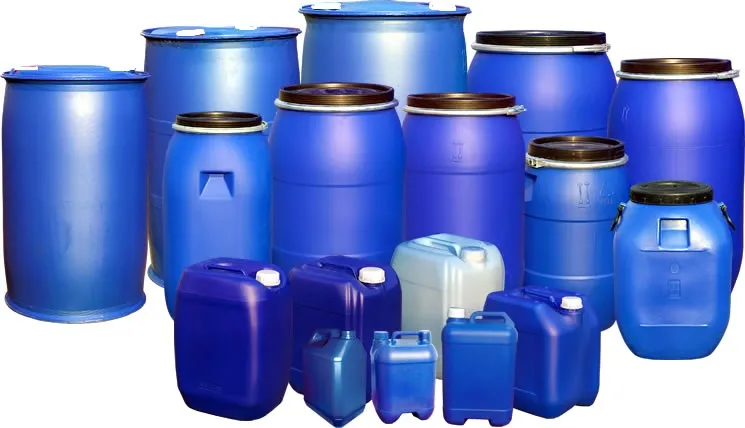

              Processing Machine200 Litre 55gallon Blue Plastic HDPE Drum Blowing Molding Blow Mould Making Machine
              200 Litre 55gallon Blue Plastic HDPE Drum Blowing Molding Blow Mould Making Machine
