20L 25L30L Chemicals Jerry Cans Plastic Blow Moulding Machine/Made in China
Performance and advantagesIt's suitable for the product of all kinds of blowing molding products from 10 to 30L,the using of accumulate type head, under blowing structure, the second air-cooling unit,automatic online deflashing, online weighing of products, leakage testing, transportation.It can......
Send Inquiry
Product Description
Performance and advantages
Technical parameters
Note: Information listed above are for reference only, the production
line can be designed by customer's requirements.
Control system
1.Control system
SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
2.Extrution & Die head
The extruder uses screw and barrel, which is a famous brand
all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
3.Blowpin system
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
4.Output system
5.Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Hydraulic system adopts Servo motor-oil pump control technology, Servo controller, SUMITOMO low-noise gear pump, it has the features of quick response and energy saving. This controller can save more than 50% energy than common ones.
6.Open&Closing system
7.Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
8.Electric system
It's suitable for the product of all kinds of blowing molding products from 10 to 30L,
the using of accumulate type head, under blowing structure, the second air-cooling unit,
automatic online deflashing, online weighing of products, leakage testing, transportation.
It can reduce labor costs and increase production efficiency.
the using of accumulate type head, under blowing structure, the second air-cooling unit,
automatic online deflashing, online weighing of products, leakage testing, transportation.
It can reduce labor costs and increase production efficiency.
Technical parameters

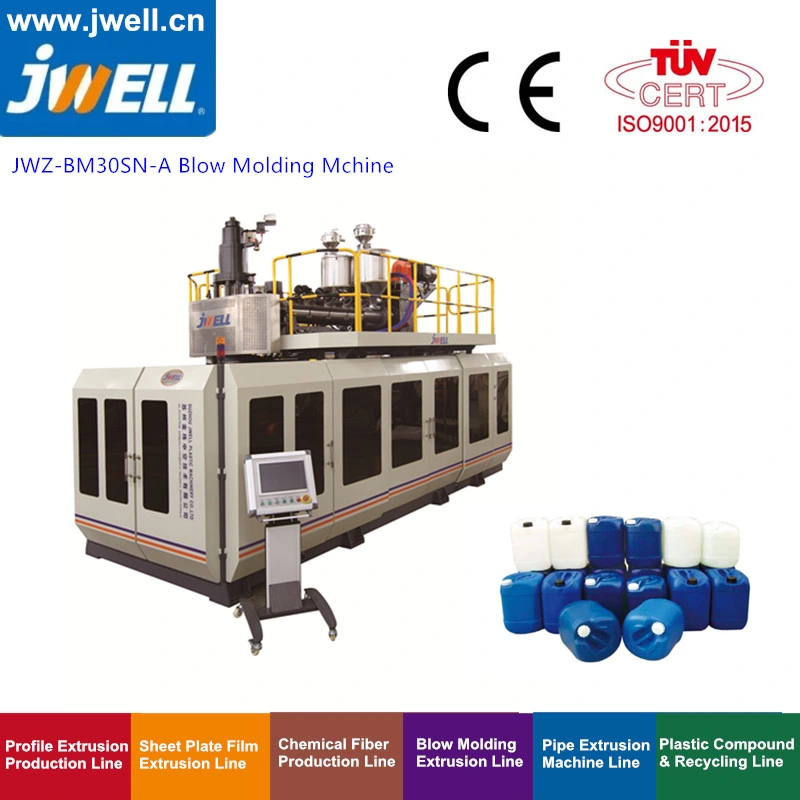

| Model | Unit | JWZ-BM 30SN-A |
| Max product volume | L | 30 |
| Dry cycle | pc/h | 240 |
| Number of working station | Single | |
| Parison mould structure | Accumulate type Die head | |
| Screw diameter | MM | 65*2 |
| Screw L/D ratio | 30 | |
| Capacity | Kg/h | 220 |
| Driving motor | KW | 30KW*2 |
| Number of barrel heating zone | Zone | 4*2 |
| Heating power of main barrel | KW | 13.2*2 |
| Oil pump motor power | KW | 22 |
| Clamping force | KN | 280 |
| Max space between platens | MM | 350-880 |
| Platen size W*H | MM | 600*640 |
| Heating number of diehead | Zone | 5 |
| Heating power of diehead | KW | 24 |
| Max die pin diameter | MM | 260 |
| Overall dimension L*W*H | M | 7.0*3.7*4.2 |
| Total weight | ton | 18 |
| Total power | KW | 140 |
Note: Information listed above are for reference only, the production
line can be designed by customer's requirements.
Control system
| rts name | country | Brand |
| PLC and touch screen | Germany/Austria | SIEMENS/B&R |
| Contactor | France | Schneider |
| Inverter | China/Germany | JWELL/Rexroth |
| Parison control system | Japan/Austria | MOOG100/B&R 300 |
| Pneumatic valve | China | Air TAC |
| Hydraulic Control System | China | Famous brand |
| hydraulic valve | China | Taiwai Yuken |
| Take out robot | China | JWELL |
| Accumulate type Die head | China | JWELL |
| Driving motor | Germany | SIEMENS-Beide MADE IN CHINA |
| Gearbox | China | Famous brand |
| Screw and Barrel | China |
1.Control system
SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.

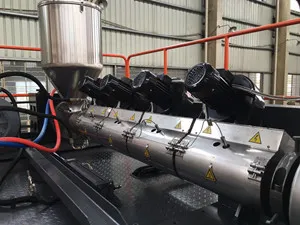

2.Extrution & Die head
The extruder uses screw and barrel, which is a famous brand
all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.

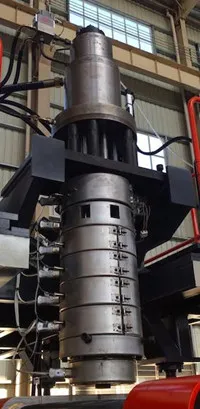

JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
3.Blowpin system
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
4.Output system

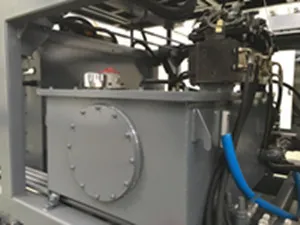

5.Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.

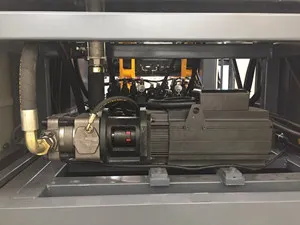

Hydraulic system adopts Servo motor-oil pump control technology, Servo controller, SUMITOMO low-noise gear pump, it has the features of quick response and energy saving. This controller can save more than 50% energy than common ones.
6.Open&Closing system
7.Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.

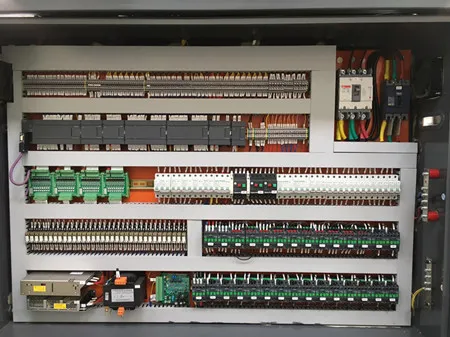

8.Electric system
- SIEMENS CPU unit
- SIEMENS temperature-control unit
- SIEMENS digital-output unit
- SIEMENS analog-output unit
- MITSUBISHI CPU unit
- JWELL invertor revolving speed-control
- Schneider electric components
