              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              • Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing MachineEasy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              • Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing MachineEasy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              • Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing MachineEasy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              • Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing MachineEasy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine

              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine

              Easy To Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity pet bottle blowing machineModel type: J2 J series blow moulding machine is a specialized equipment designed for large-diameter PET bottles,with features of high automation,wide versatility,and easy operation.it is especially suitable fo......

              Send Inquiry

              Product Description

              Easy To Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity pet bottle blowing machine

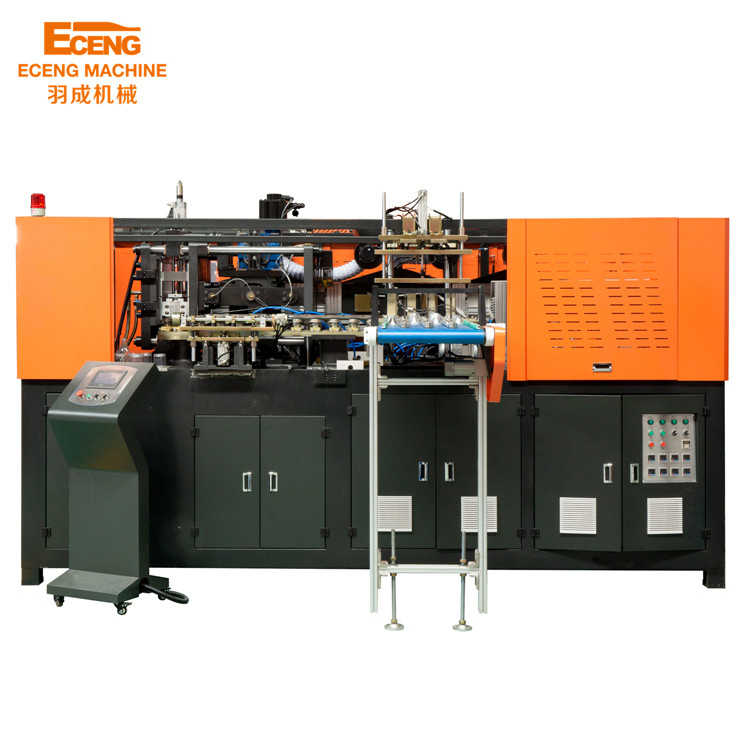

              Model type: J2
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
                 J series blow moulding machine is a specialized equipment designed for large-diameter PET bottles,with features of high automation,wide versatility,and easy operation.it is especially suitable for the production and processing of large-diameter neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which can be more stable.strong versatility,suitable for preform loading of jar bottle,automatically unloading the bottle.

              one worker can controll two to three machines,high output,can be equipped with all-electric stretching and mould clamping.
              Machine parameter:

                             		itemJ2

              Bottle type specification



                             		cavity2
              theoryoutput(PCS/HR)1500
              Max. volume (L)5L
              Bottle mouth maximum overall diameter (mm)150mm
              Bottle biggest diameter180mm
              Bottle maximum height400mm

              Power specifications

                             		Light tube quantity32pcs
              Light tube power1.5kw
              Maximum heating power48kw
              All electric machine installation51kw
               actural consumption35.7kw

              Air pressure specification

                             		Work pressure7-9kg/cm2
              Low-pressure gas consumption1600Ltr/min
              Blow bottle pressure25-35kg/cm2
              Higher -pressure gas consumption3400Ltr/min

              Frozen water specification

                             		Work pressure5-6 kg/cm2
              Temperature range10 C
              Consumption6000kcal/hr
              Frozen water flow50Ltr/min
              Machine specification
                             		Size of the machine4.7x1.6x1.9 (m)
              Weight of the machine3.0ton

              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing MachineEasy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine

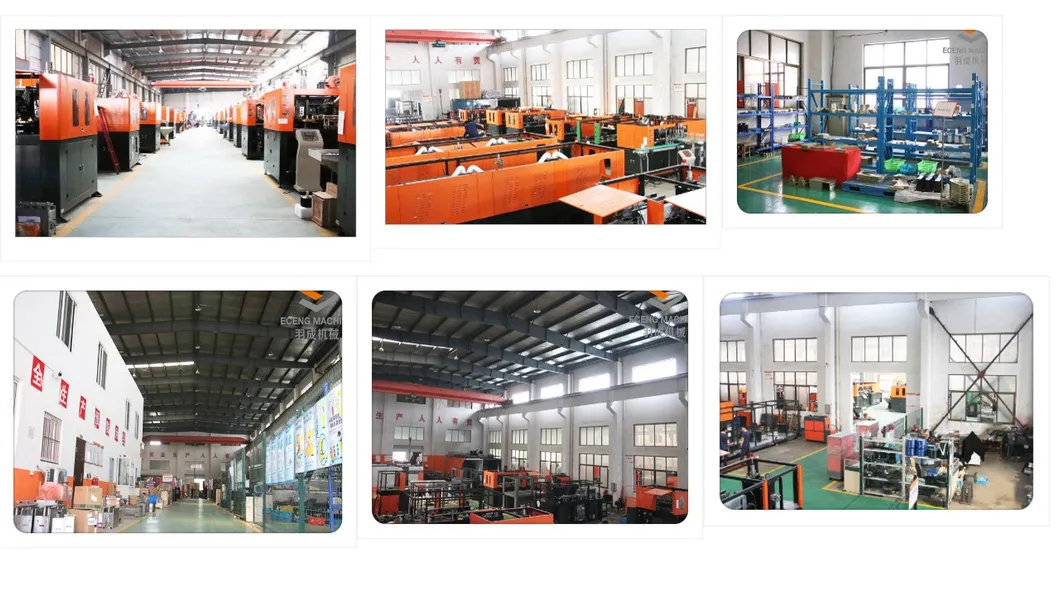

              ECENG FACTORY
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              ECENG EXHIBITION:
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              CUSTOMER VISITING
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              Easy to Blowing Big Mouth Jar Automatic Blow Machine 2 Cavity Pet Bottle Blowing Machine
              FAQ:
              Q1:Are you a trading company or a manufacturer?

              A1:We have our own factory for 10 years,will try our best to provide you service .

              Q2:What's your guarantee or the warranty of the quality if we buy your machines?

              A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
              Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition.we also have a technical team support for after service.

              Q3:When can I get my machine after I paid?
              A3:We will deliver the machines on time as the date we agreed both side.

              Q4:How can I install my machine when it arrives?
              A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

              Q5:What's the delivery time?
              A5:45 days after the T/T deposit or L/C.

              Q6: Where is your factory located?
              A6: Our factory,near Shanghai & Ningbo port, is located in Zhangjiagang,Jiangsu.

              Q7: How about quality control in your factory?
              A7: " Quality is the key point, do what customers need"
              Eceng machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.

              Q8: Do you provide bottle blow mould and air compresor ?
              A8: Yes , we provide  complete system and you will no need to find the suitable air compressor and chiller...etc..

              Q9: What is the language of the PLC and touch panel?
              A9: Don't worry, we will translate the language in English,Spanish or any other language, to make sure you will have an easy operation .
              Q10: Do you have reference project?
              A10: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory.
              And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
              Contact our sales people you can get video of our reference running machine

              Q11: Do you have agent and after-service stations?
              A11: So far we have agent in Thailand,Vietnam,Columbia,Indonesia. welcome to join us!

              Q12: Do you provide customized service
              A12: We can design the machines according to your requirements(material ,power,filling drink,different bottle neck and bottle design,logo design and so on),give you suggestions for your unique needs.

              ATTE:ZOE XU



              warmly welcome to visit our factory!
