PET Bottle Blowing Machine

Description and Advantage

PET Bottle Blowing Machine

This automatic system is upgraded from semi automatic stretch blowing molder, The bottle making process is done fully-automatically eliminating costly labors and reducing cost of power consumption. Speed is three times of semi-automatic and cost is only double of it. A wide variety of high quality P.E.T. bottles for many industries can be produced with this system. Bottles for water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items are just a few examples.

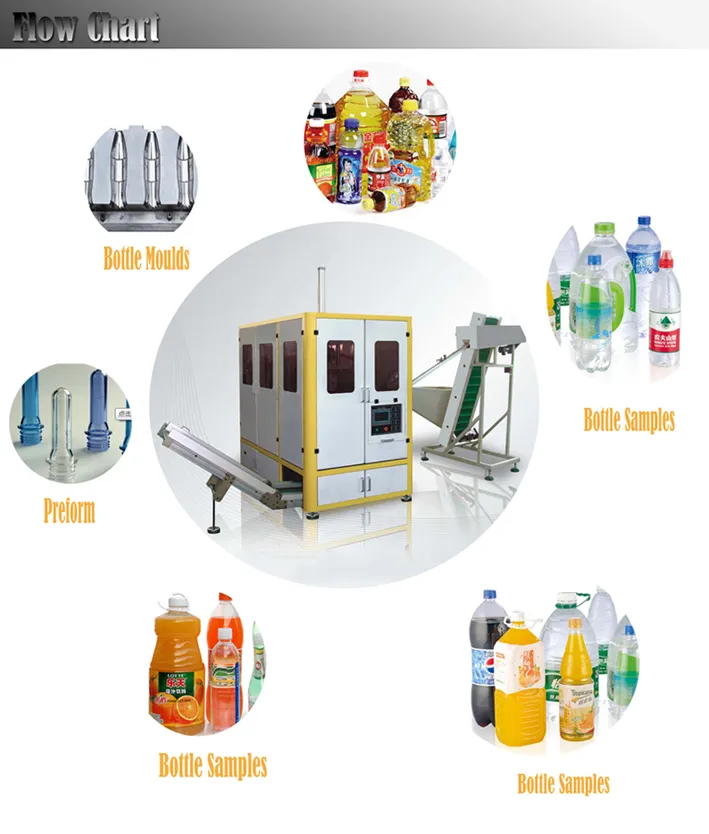

How pet bottle blowing machine works
1. Preforms are loaded into the hopper, which holds up to 3000 preforms at a time.
2. An elevator moves preforms up to a gravity-based sorter, which aligns preforms on a conveyor.
3. Preforms are then aligned and loaded onto a chute, where they are gravity-fed into the preform holders.
4. The preforms move through the heat tunnels, where they are heated to the optimal blowing temperature prior to entering the molds.
5. From the heaters, preforms are loaded into the custom-designed molds where three bottles are blown at a time. A pressurized liquid chiller keeps the mold temperature in a controlled range to ensure that consistently high-quality bottles are blown.
6. The blown bottles are conveyed out of the blow molder by robot arm and drop into collection receptacles and then moved to storage areas.

Pet Bottle Blowing Machine Features
Compact design minimizes space occupation.
Makes your own bottles when you need them, minimizing inventory storage and vendor delivery problems problems.
Produces up to 2600 bottles an hour
Handles multi-sized and shaped preforms
Produces bottles of up to 1500ml
Easy-to-change molds reducesdown-time for different container sizes
Easy-to-use PLC touch-screen controls

Pet Bottle Blowing Machine Specification:
