              Manual Olive Oil Big Bottle Make 5 Liter Plastic Pet Blow Molding Machine

              Model type: YCQ-5L-2EAutomatic PET Bottle Blow Moulding Machine is a high speed linear blow molding machine which is developed and manufactured by our Company using the most advanced bottle blowing technology in the world. Owing to the machine's high degree of automation, high production efficie......

              Send Inquiry

              Product Description

              Model type: YCQ-5L-2E

              Manual Olive Oil Big Bottle Make 5 Liter Plastic Pet Blow Molding Machine

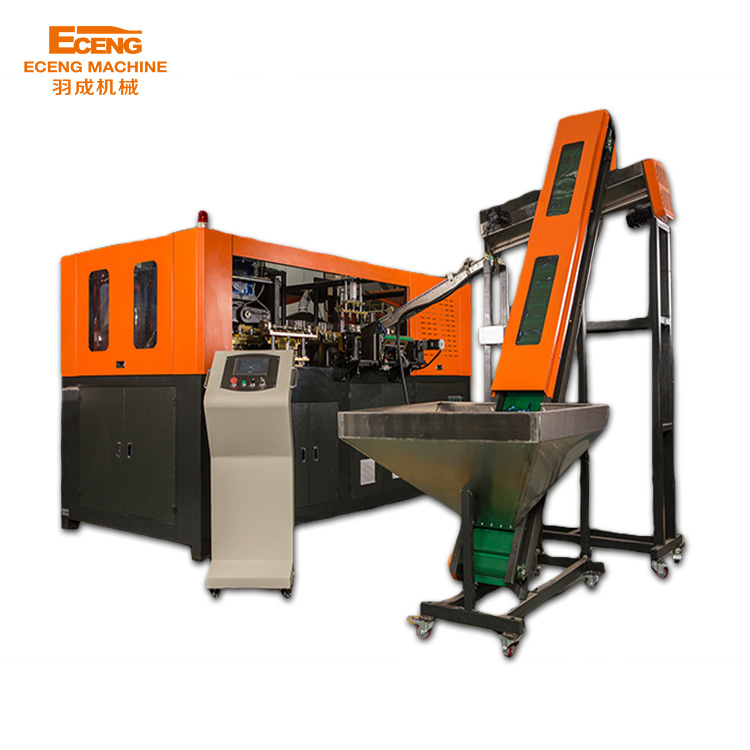

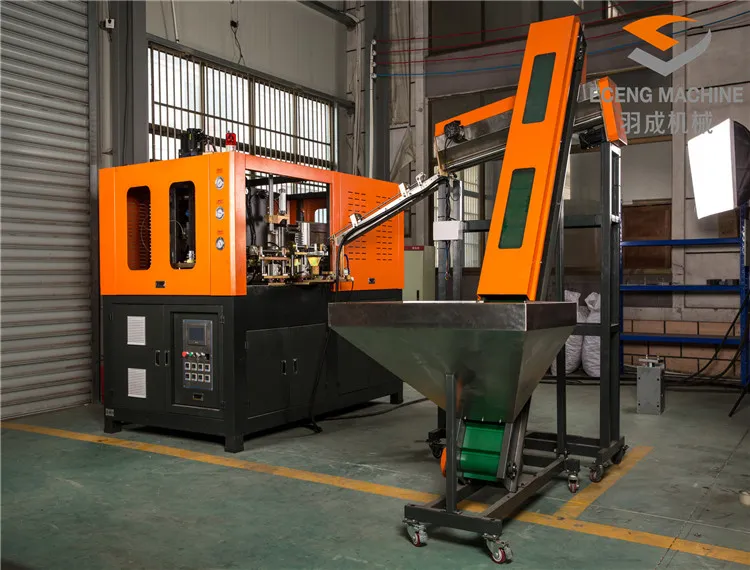

              Automatic PET Bottle Blow Moulding Machine is a high speed linear blow molding machine which is developed and manufactured by our Company using the most advanced bottle blowing technology in the world. Owing to the machine's high degree of automation, high production efficiency, high safety, high stability and reliability, the products made will not be contaminated in any intermediate steps, and it can be matched up directly with the production line of filling and can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle product.
              Machine Settings of PET Bottle Blow moulding machine
              1) PLC colour display: MITSUBISHI(JAPAN)
              2) Pneumatic parts: FESTO(GERMANY)
              3) Value: FESTO (Germany)
              4) Other electric parts are all world-famous brand
              Machine Featuers of PET Bottle Blow moulding machine
              1. Stable performance with advanced PLC.
              2. Conveying preforms automatically with conveyor.
              3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
              4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
              5. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
              6. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
              7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
              8. Strong clamping force with high pressure and double crank links to lock the mold.
              9. Two ways of operating: Automatic and manual.
              10. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
              11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
              12. Contamination is avoided for the bottle body.
              13. Ideal effect of the chilling with the chilling system.
              14. Easy installation and starting
              15. Low rejection rate: Less than 0.2 percent.

               itemYCQ-5L-2

              Bottle type specification

              cavity2
              theory output (PCS/HR)1500-2000
              Max. volume (L)5L
              Bottle mouth maximum overall diameter (mm)150mm
              Bottle biggest diameter180mm
              Bottle maximum height400mm

              Power specifications

              Light tube quantity32pcs
              Light tube power2kw
              Maximum heating power64kw
              All electric machine installation67kw
              Actual consumption46.9kw

              Air pressure specification

              Work pressure7-9kg/cm2
              Low-pressure gas consumption1600Ltr/min
              Blow bottle pressure25-35kg/cm2
              Higher -pressure gas consumption4000 Ltr/min

              Frozen water specification

              Work pressure5-6 kg/cm2
              Temperature range10
              Consumption8000kcal/hr
              Frozen water flow88Ltr/min
              Machine specificationSize of the machine4.7x1.6x1.9 (m)
              Weight of the machine3ton
