Pet Wide Mouth Preforms Blow Molding Machine
PET wide mouth preforms blow molding machine (By CE)ZQ-A1500-2, newly developed by our company, is a two-step automatic blow-molding machine, which requires labor to put performs into the preheater only. ZQ-A series is of one cavity and the maximum cavity of the bottles is 0.6L, 2.0L, 5L. It can blo......
Send Inquiry
Product Description

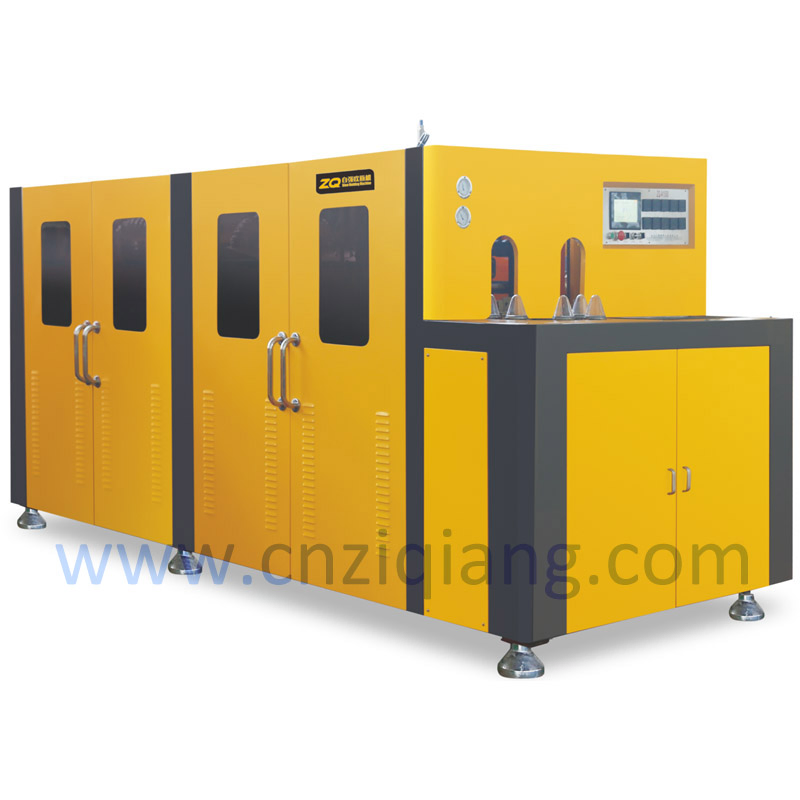

PET wide mouth preforms blow molding machine (By CE)

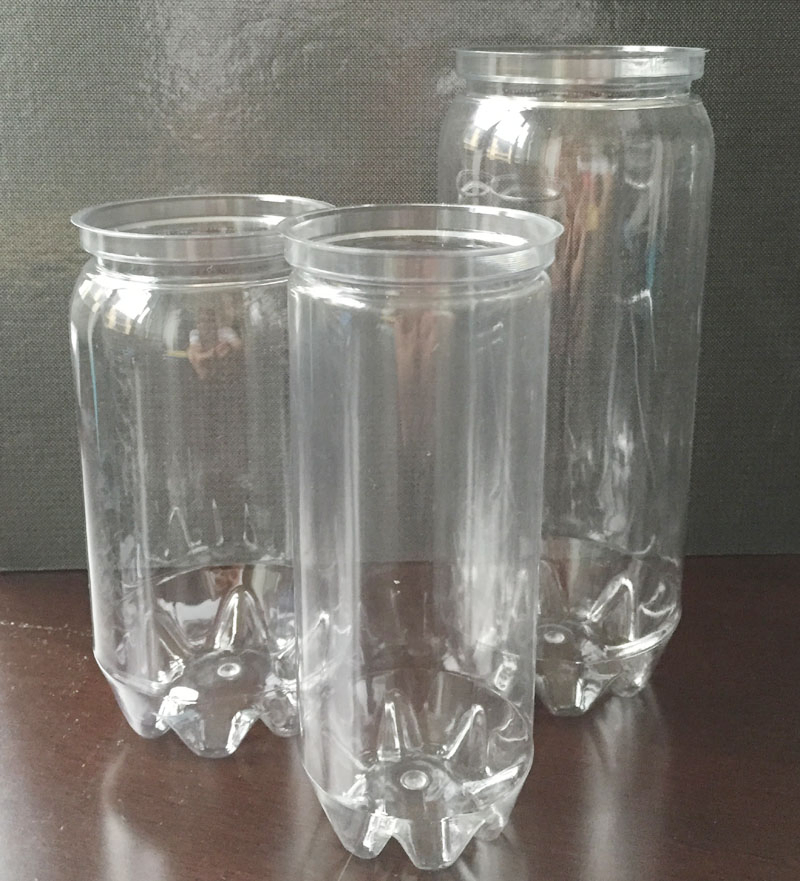

ZQ-A1500-2, newly developed by our company, is a two-step automatic blow-molding machine, which requires labor to put performs into the preheater only. ZQ-A series is of one cavity and the maximum cavity of the bottles is 0.6L, 2.0L, 5L. It can blow various bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
PET wide mouth preforms blow molding machine
Compared with other full-automatic series, ZQ-A series has no automatic conveyer, so it can't transfer performs automatically, but requires labors to put performs into preheater. The distinctive feature of the ZQ-A is as follows: It has saved the cost to the maximum extent; It has lower rejection rate, higher production, and more stable performance than the semi-automatic one, and moreover, it is easy to run. Therefore, it will take the place of the semi-automatic blow-molding machine.
PET wide mouth preforms blow molding machine,equipment information.
Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
ZQ-A1500-2, newly developed by our company, is a two-step automatic blow-molding machine, which requires labor to put performs into the preheater only. ZQ-A series is of one cavity and the maximum cavity of the bottles is 0.6L, 2.0L, 5L. It can blow various bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
PET wide mouth preforms blow molding machine
Compared with other full-automatic series, ZQ-A series has no automatic conveyer, so it can't transfer performs automatically, but requires labors to put performs into preheater. The distinctive feature of the ZQ-A is as follows: It has saved the cost to the maximum extent; It has lower rejection rate, higher production, and more stable performance than the semi-automatic one, and moreover, it is easy to run. Therefore, it will take the place of the semi-automatic blow-molding machine.
PET wide mouth preforms blow molding machine,equipment information.
| TYPE | ITEM | ZQ-A1500 | ZQ-A1500-2 | ZQ-A1500-3 | ZQ-A5000 | ZQ-A5000-2 |
| CONTAINER | Number of cavity | 1 | 2 | 3 | 1 | 2 |
| Output | 1000-1300 pcs/hr | 1700-2100 pcs/hr | 2800-3100 pcs/hr | 500-700 pcs/hr | 1200-1300 pcs/hr | |
| Max.container volume | 2.0L | 2.0L | 2.0L | 5L | 5L | |
| Max.neck diameter | 38mm | 38mm | 38mm | 100mm | 100mm | |
| Max.container diameter | 105mm | 105mm | 105mm | 180mm | 180mm | |
| Max.container height | 350mm | 350mm | 350mm | 350mm | 350mm | |
| ELECTRICAL SYSTEM | Number of lamp | 28 pcs | 28pcs | 40pcs | 28pcs | 48pcs |
| Max.heating power | 22kw | 42kw | 60kw | 42kw | 60kw | |
| Installation power | 25kw | 44kw | 65kw | 44kw | 63kw | |
| Actual power consumption | 16kw | 28kw | 40kw | 30kw | 40kw | |
| AIR SYSTEM | Operatating pressure | 7kg/cm² | 7kg/cm² | 7kg/cm² | 7kg/cm² | 7kg/cm² |
| Low pressure consuming | 900 Ltr/min | 1200 Ltr/min | 1600 Ltr/min | 1200 Ltr/min | 1600 Ltr/min | |
| Blowing pressure | ≤30kg/cm² | ≤30kg/cm² | ≤30kg/cm² | ≤30kg/cm² | ≤30kg/cm² | |
| High pressure consuming | 1200-1600Ltr/min | 2000-2500Ltr/min | 2800-3000Ltr/min | 2000-2500Ltr/min | 3000-3500Ltr/min | |
| CHILLER WATER | Operating pressure | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² |
| Temperatuer | 10°C | 10°C | 10°C | 10°C | 10°C | |
| Consuming | 3600kcal/hr | 5600kcal/hr | 7600kcal/hr | 5600kcal/hr | 5600kcal/hr | |
| Flow rater | 20Ltr/min | 30Ltr/min | 40Ltr/min | 30Ltr/min | 30Ltr/min | |
| MACHINE | Machine dimension | 2.9×1.7×1.85(m) | 3.1×1.45×1.85(m) | 4.20×1.60×1.9(m) | 3.3×1.75×1.9(m) | 4.35×2.0×1.9(m) |
| Machine weight | 1.6T | 1.8T | 2.3T | 2.0T | 3.0T |
Note: Custom production accepted. Any client idea tried.
