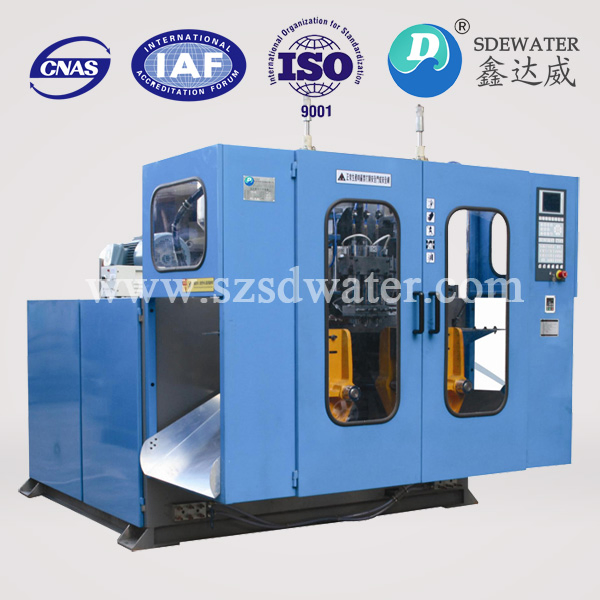

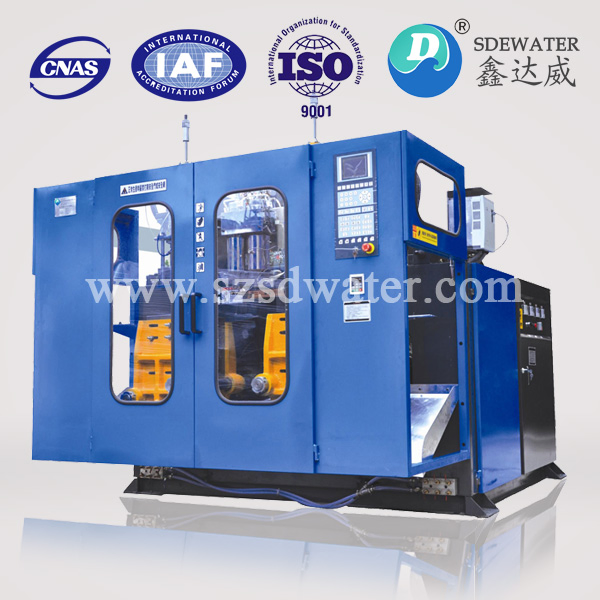

Plastic Blow Extrusion Machine for PE Bottle
Full Automatic Plastic Bottle Blowing MouldingMachine Product Description: (1) Our equipment passes CE certification, and equipped with many protective measures to make sure the personal safety. (2) Equiped qualified operator after training with key, so that he can choose the status of machine'......
Send Inquiry
Product Description
Full Automatic Plastic Bottle Blowing Moulding
Machine
Product Description:
(1) Our equipment passes CE certification, and equipped with many protective measures to make sure the personal safety.
(2) Equiped qualified operator after training with key, so that he can choose the status of machine's on-off. For the convenience of testing and maintance, he can relieve parts of safety protection when operation. (Because according the requirements of CE, equipment must be stop and then the safety door can be opened. Which cause inconvenience to the testing and maintance of machine. ) At the same time, other staff will not equipped with this key, so that to protect their personnel security
3. Adopt servo motor hydraulic system:
a. The hydraulic pump adopts servo motor control to save energy consumption and reduce noise during working.
b. The machine equipped with double pumps, and the two pumps can work together and speed up when operating. Only the small power pump will booster pressure during mould clamping step, and the high power pump will unload pressure. Such kind of design only needs less power consumption.
4. Adopt Siemens PLC control system of Germanny, and the Siemens touching type human-computer interface(other cotrol system is also acceptable)
5. The screw is complexing GGS with nitriding process, which has more reasonable design, bigger extrusion output, lower energy consumption, no temperature rise(lower temperature rise, better for mould cooling speed, and speed up the output of machine), and more durable.
Technical Parameter
| Item | SD60-DY-X | SD65-DY-X | |
| Screm Diameter(mm) | 60 | 65 | |
| Screm L/D ratio(L/D) | 1/25 | 1/25 | |
| Screw driver power(Kw) | 11 | 15 | |
| Screw heating capacity(Kw) | 6 | 6.5 | |
| Heaters Quantity | 4 | 4 | |
| Extrusion quantity(Kg/h) | 55 | 60 | |
| Extruding head | 1 | 1 | |
| Mould base quantity | 1 | 1 | |
| Platen distance(mm) | 165-445 | 165-445 | |
| Oil pump drive power(Kw) | 7.5 | 7.5 | |
| Maxmimum Mould clamping force(ton) | 4 | 4 | |
| Template parameter(mm) | 310*320*100 | 310*320*100 | |
| Blowing pressure | 0.6 | 0.6 | |
| Machine NET Weight(ton) | 3 | 3.2 | |
| Machine dimension(m) | 2.17*1.6*2.25 | 2.22*1.6*2.25 | |

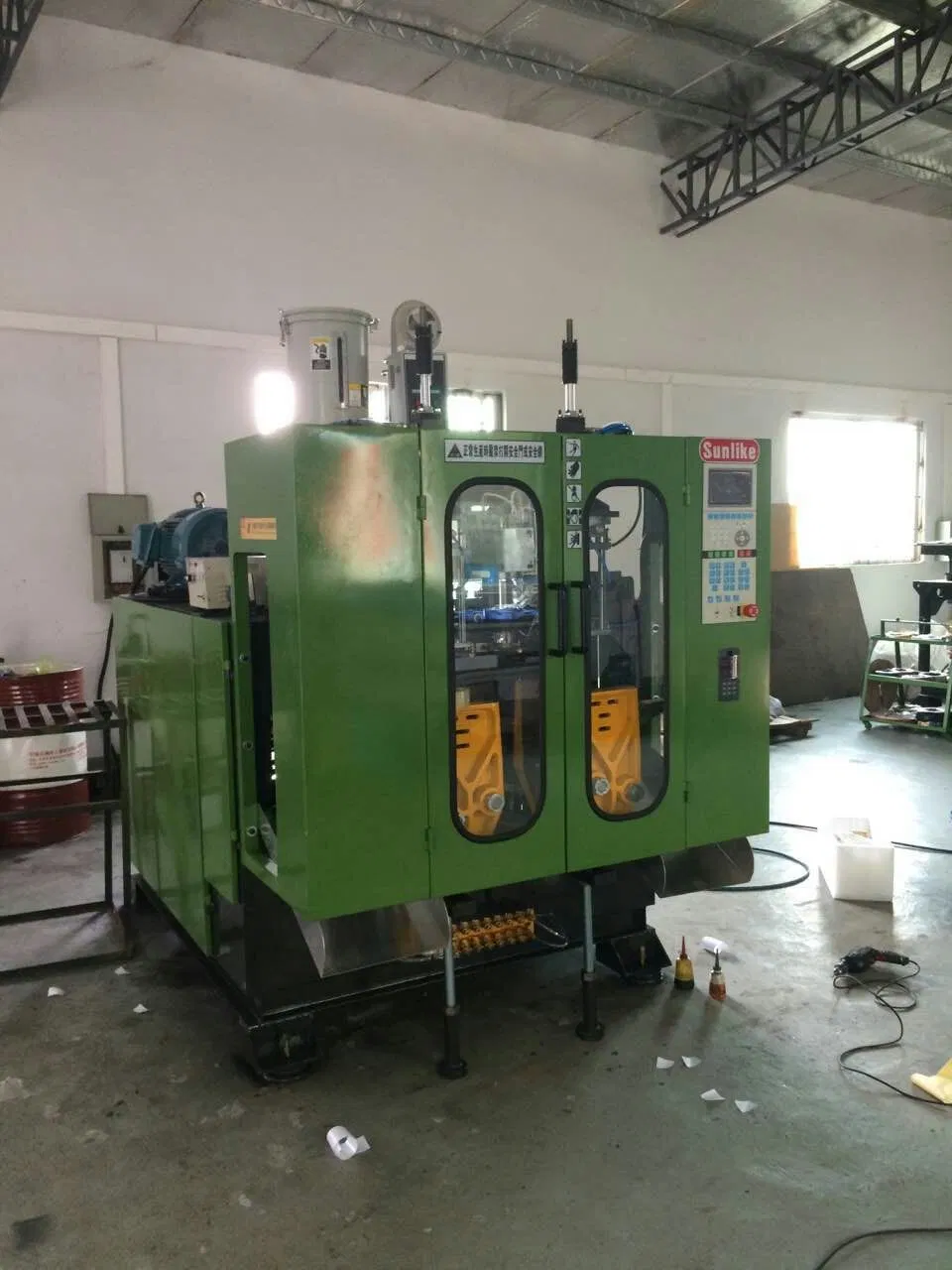

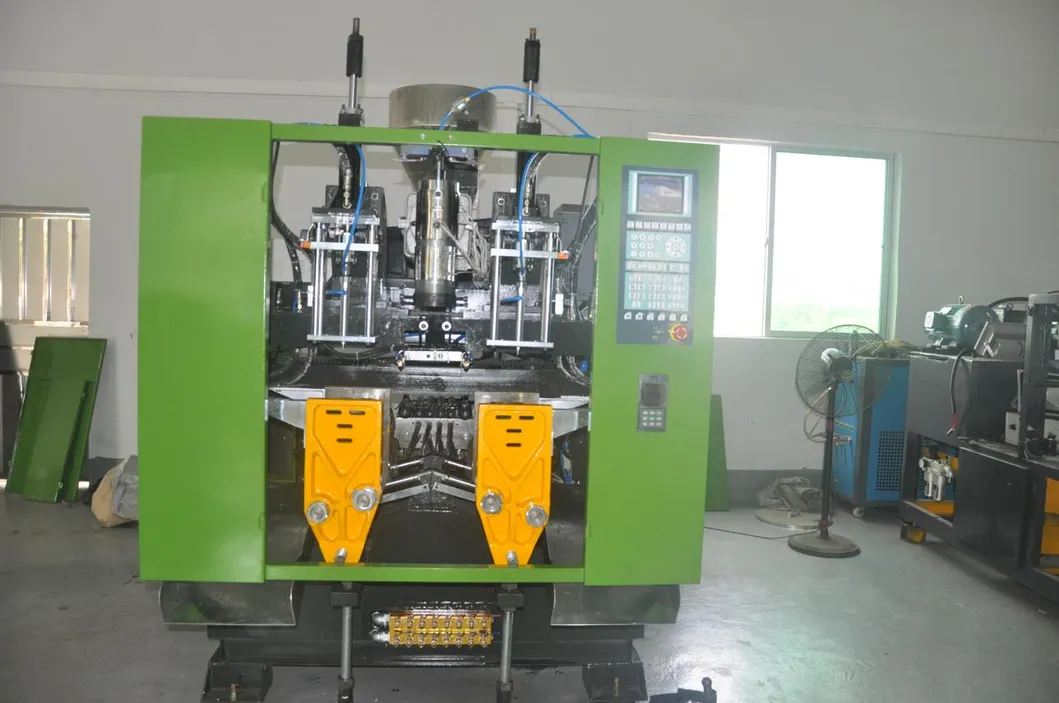

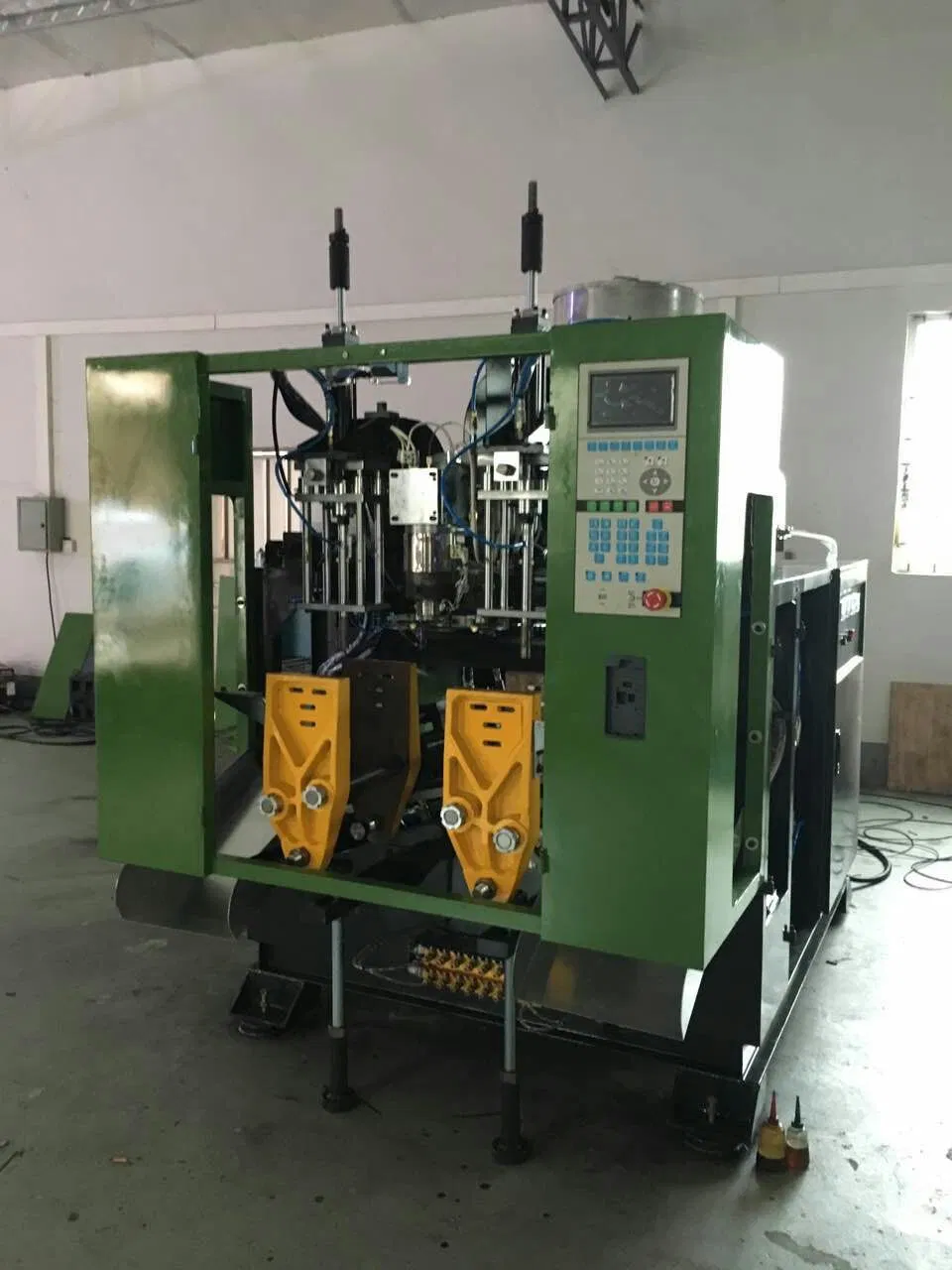

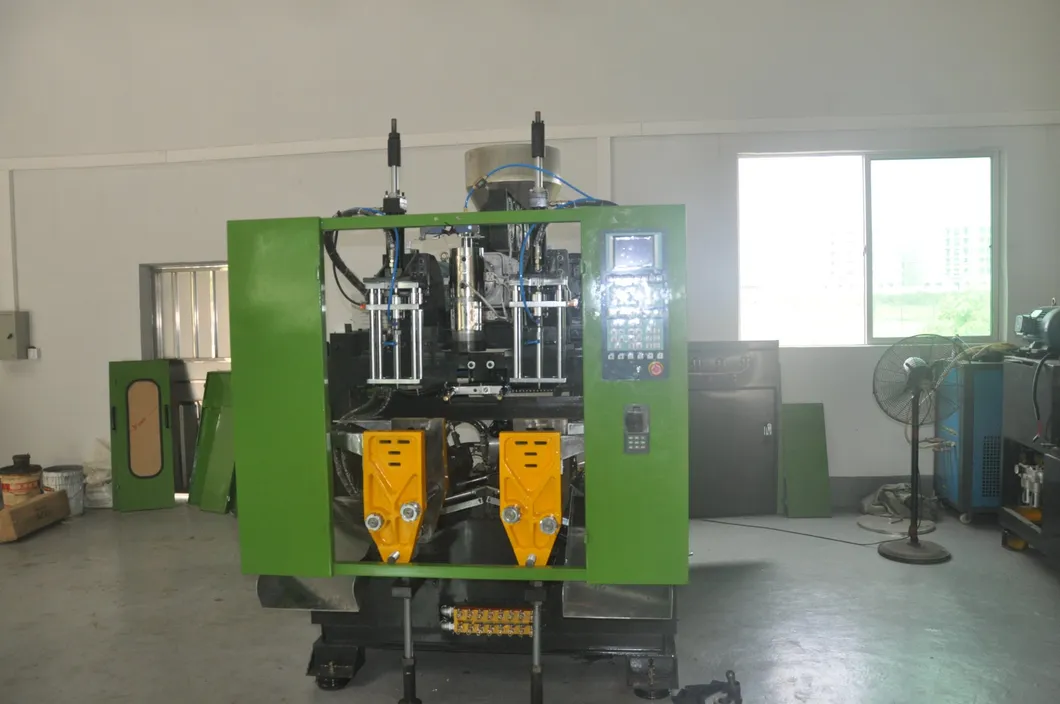

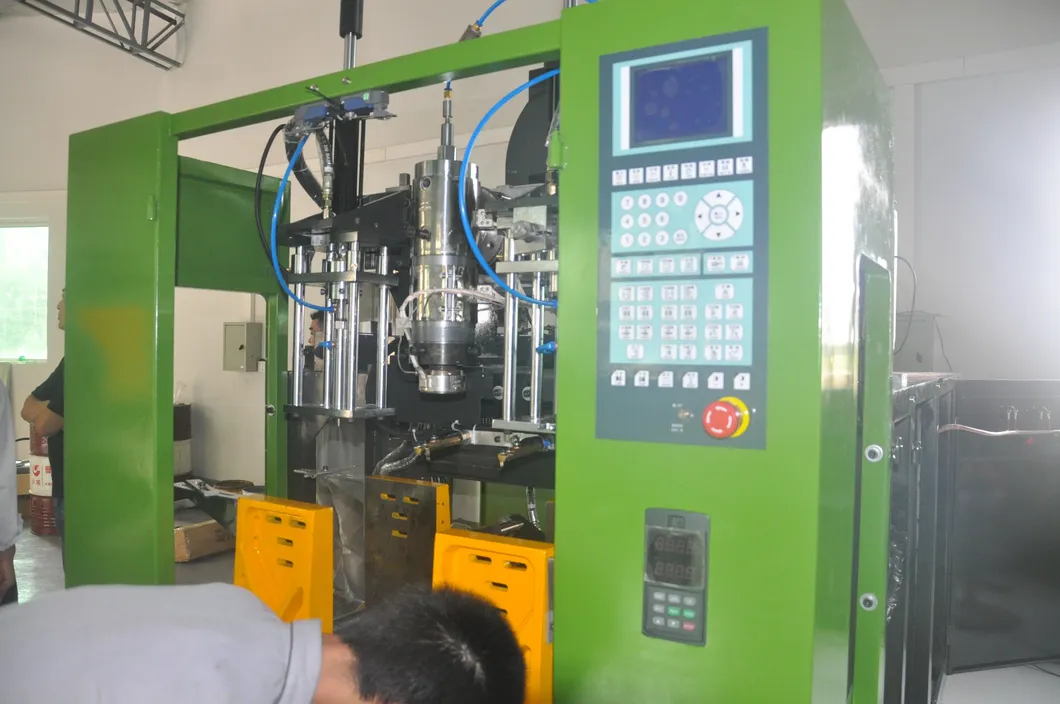

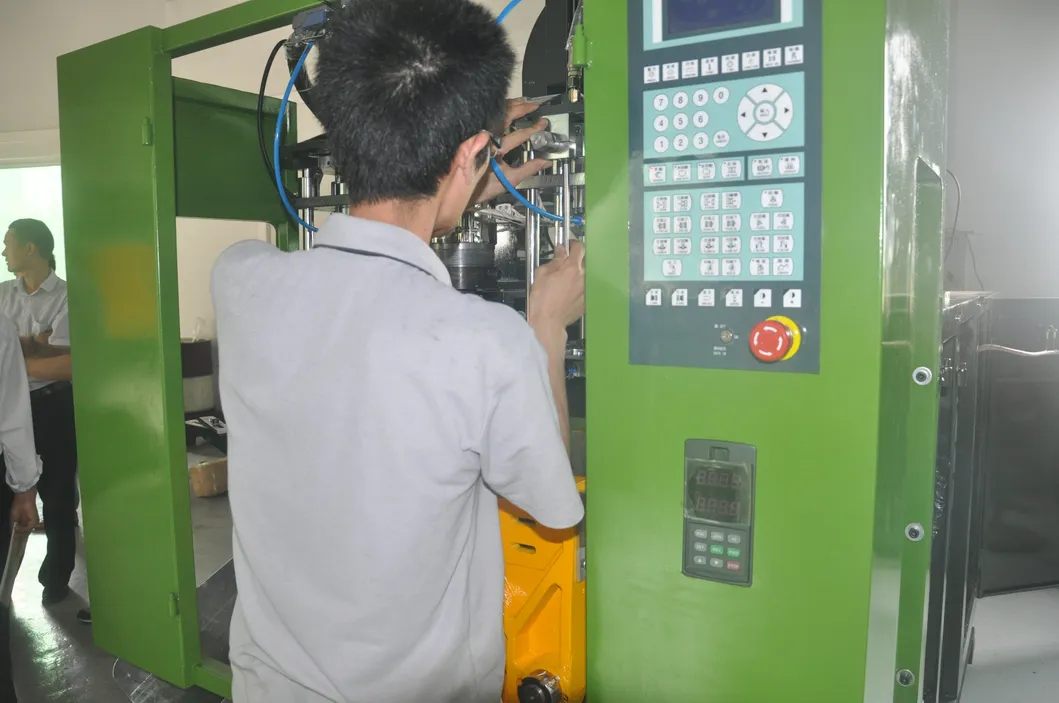

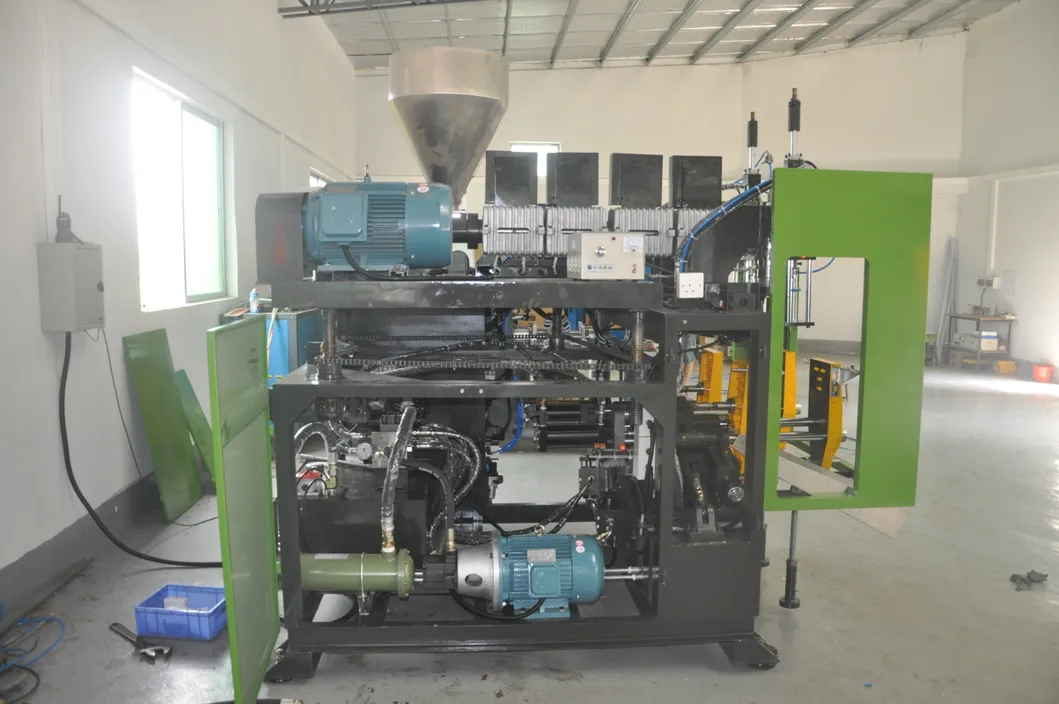

Pictures of PET Bottle Blowing Machine

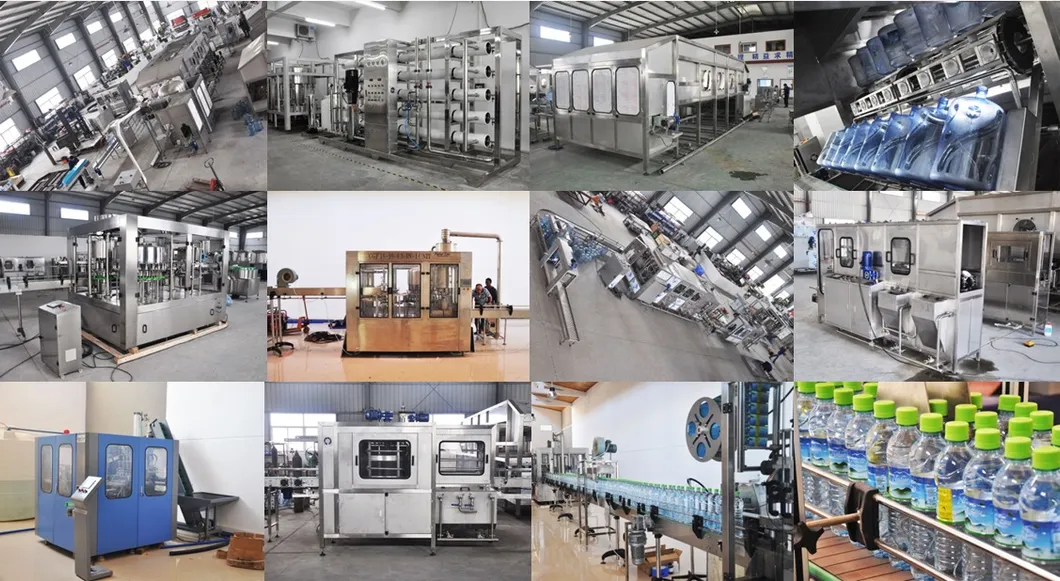

ShineDew Products:

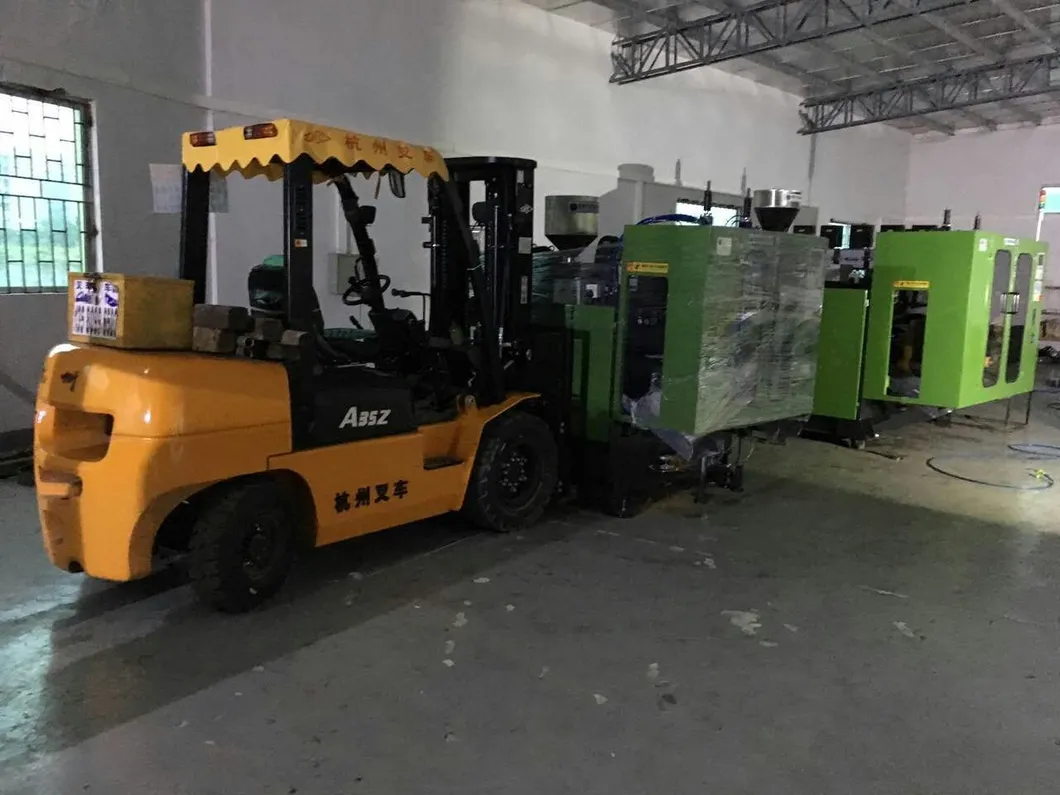

Bottle Extrusion Machine Packaging & Shipping
Inner: the machine was pallet with plastic film in case of wearing.
Outer: the outer was packed with strongly woodencase to make sure that the machine will not get damaged during the transport process.
Normally, in order to protect the machine well, we adopt wooden case to package the machine. Regarding shipping, we recommend sea shipping, due to the weight and volume is large.
I am a Machinist who from 21st century. This age is developing so fast, now my mom is the first economy in the world. More and more machineries instead of human, people feel free and enjoy holidays.
They say I don't know love, I don't know relax, I don't know enjoy the life. Once I asked myself many times, what is the most important in the world? Until I meet that.....
In a poor mountain village, there are many kind and innocent kids, they don't have good education, without hope, and drinking water is very difficult for them, so I bring water to them.can never forget those days, kids say I bring hope and future to them. I feel very satisfied when I see smiles in their face with full of happiness. Water give us life, water give us future.
Now I know the most important is sunshine, hope, water and life. Suddenly I understand why my mom named me ShineDew. Sunshine warm the world and bring vitality to all things, dew moisten the earth and make all life grow. Mom, I know what is LOVE!
FAQ
1. What kind of information should you provide before making proposal?
(1) What's your bottle size?
(2) What's the usage of the bottle? Is it drinking bottle, beverage bottle, cosmetic bottle or any other usage?
(3) What's your bottle material?
(4) What's your required production capacity? How many bottles per hour do you want to produce?
(5) What's your industrial power supply? Is it 3 phase, 380V, 50Hz?
2. What kind of service do you provide:
(1) Installation service
The engineers could install the machine overseras, and the client should pay for the realated charges.
When the engineers arrive at the client place, they will give the comprehensive trainning till the related operater could operate the machie correctly.
(2)After-sale service
Provide the one year warrant for the machines,(not include the damage caused by human factors and the natural disasters) lifelong time maintanence.
7*24 hours servide by mail,phone.
Engineers could availiabel oversea service.
(3)Trainning service.
When reached the order, the clietn could organise the operator to the supplier's factory.
We will provide the comprehensive trainning for the machines at supplier's factory.
