Plastic Pallet Extrusion Blow Molding Machine
DESCRIPTION OF BLOW MOLDING MACHINEPE plastic Road pyramid road block logistic insulation barrels Making Blow Molding Machine(We can offer complete solutions:bottom sealing ,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowes......
Send Inquiry
Product Description
DESCRIPTION OF BLOW MOLDING MACHINE
PE plastic Road pyramid road block logistic insulation barrels Making Blow Molding Machine(We can offer complete solutions:bottom sealing ,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Product Overview:
performace & advantages
·Suitable for producing different kinds of road pyramid, logistic
insulation barrels.
·Optional bottom sealing, product eject, core-pulling movement
elements.
·Adopt high output extrusion system, accumulating die head.
·Optional Hydraulic Servo control system.
Technical parameters of machine

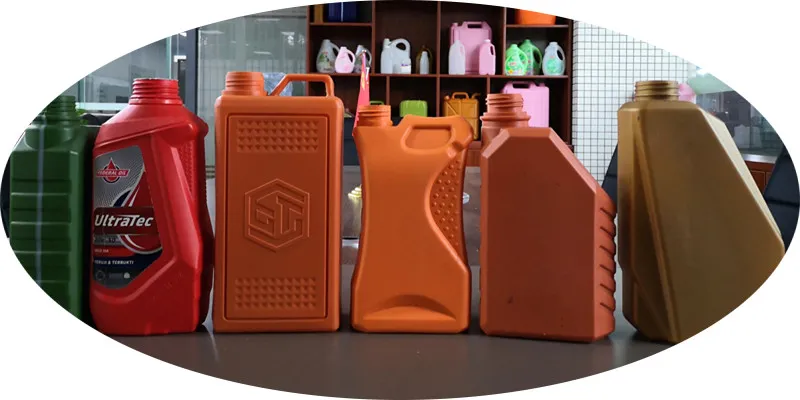

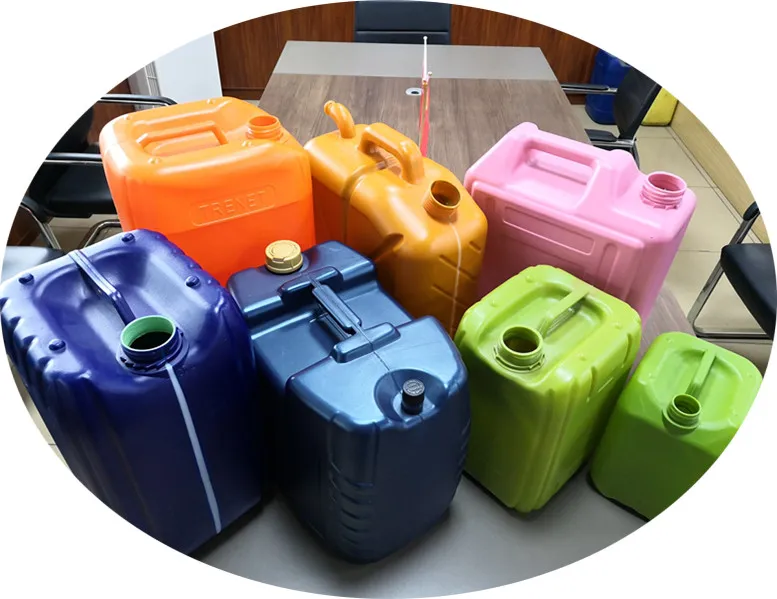

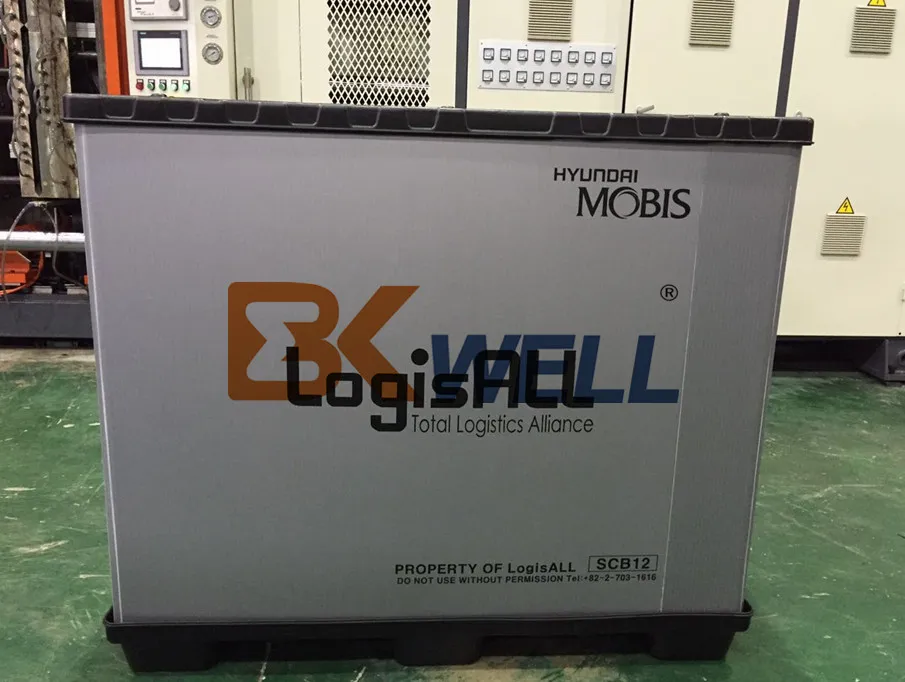

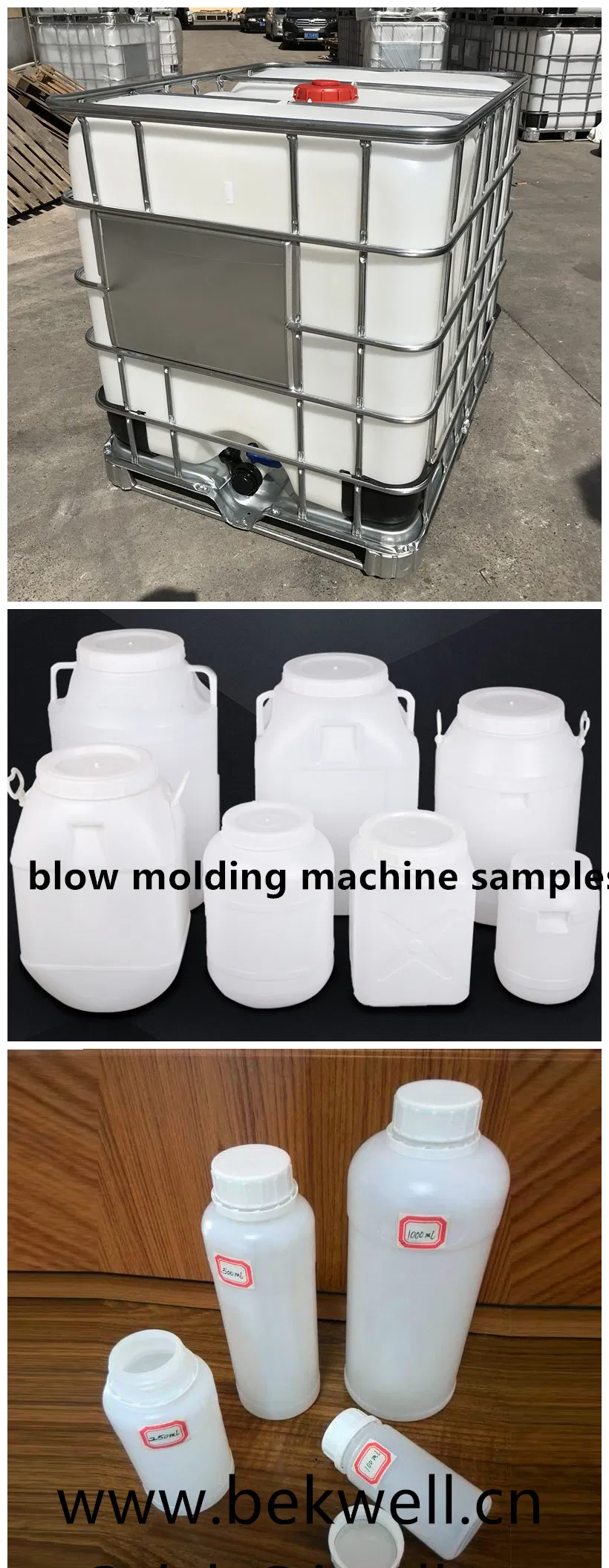

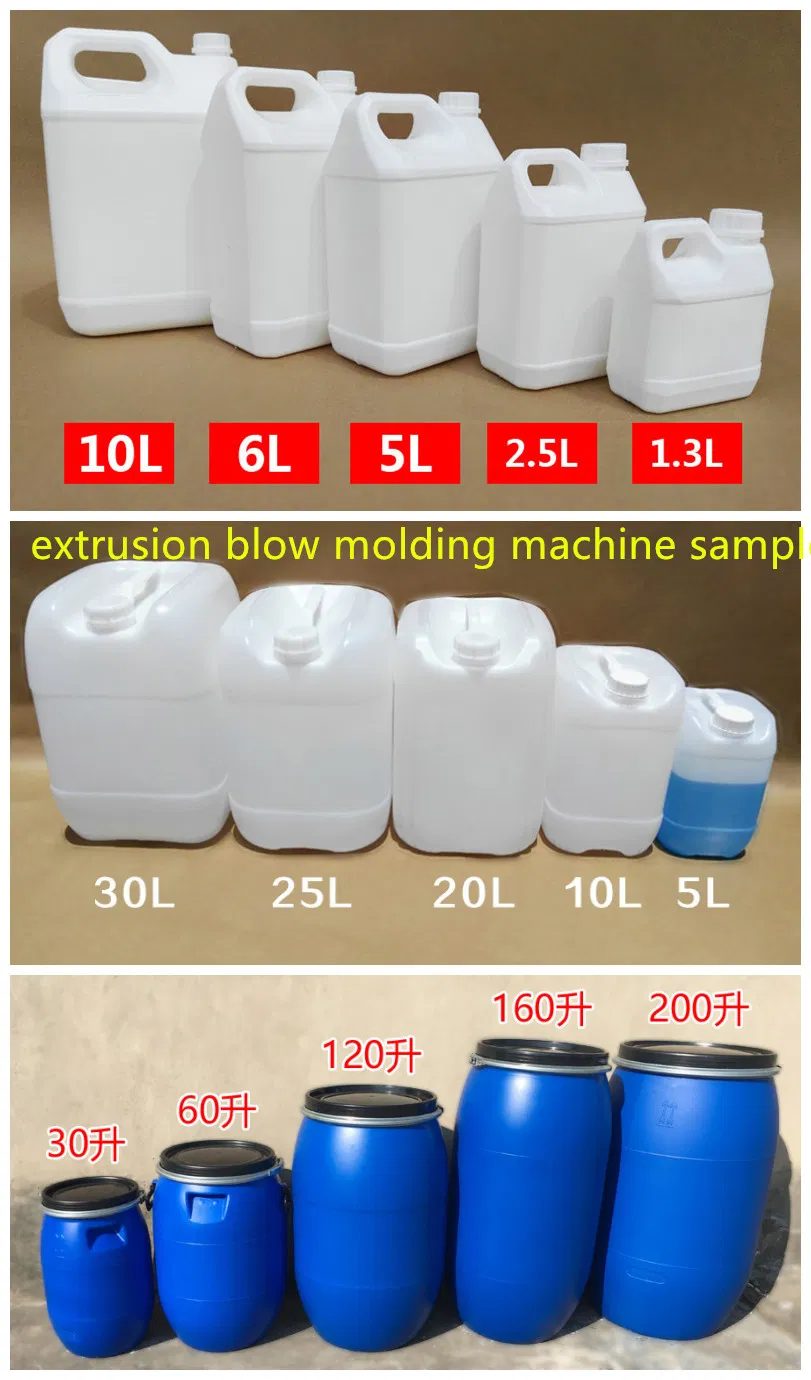

Blow moulding machine/extrusion blow molding machine samples:

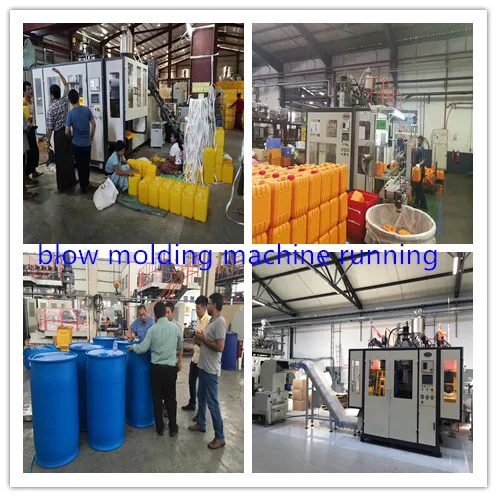

Extrusion Blow molding machine running in our customer workshop
Different kind of Control system of machine

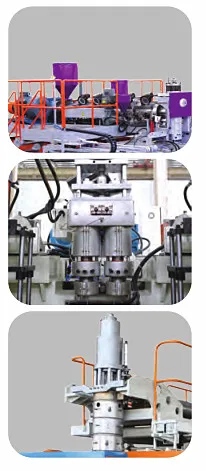

Blowpin system
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)

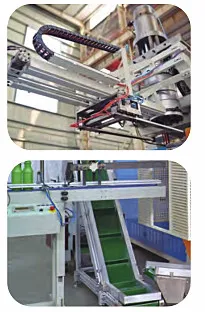

Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
Sales Service Networks
Contact us !!
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA
Web:jwellmachinery.en.made-in-china.com
jwellmachinery.en.made-in-china.com
FAQ
Q1. Is Jwell Machinery Manufacturer?
A1: Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo. After more than 40 years development, JWELL is one of the biggest extrusion machine supplier in China with 300 design&test engineer, 3000 employees. We own 5 manufacturing bases and sales center in Shanghai , Suzhou , Changzhou, Zhou Shan, Dongguan China. Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.
Q2: How many brands does Jwell Machinery own?
A2: Jwell Machinery owns more than 20 subsidiaries, China famous brand JINHAILUO, JWELL, BKWELL, DYUN are our Trade Marks.
Q3: If we don't find what we need from your website , What should we do ? Do you make extrusion lines as per customers' specific requirement?
A3: Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email. We will check if we can develop them. We develop new machinery every month, and some of them may not yet be updated on our website.
Q4: How do you ensure your machinery and service quality?
A4: Our machines taking the European standards and follow the Germany type of business, we cooperation with International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously imports over 1000 international first-class high precision processing equipment such as multistage machining centers, NC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification, IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the machine performances before each delivery. Jwell service engineers will always be here for anything you needed.
Q5: How can I order and make payments?
A5: Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.
Q6: If we find your bank account or email different as before, how should we respond?
A6: Please don't send the payment and double check with us before arrange payment (Bank details will be listed in every piece of proforma invoice. ) We are only responsible for email
Q7: How long is the delivery date?
A7: Usually it takes about 1 - 4 months depends on different machinery upon receipt of order advance payment.
Q8: What is your Minimum Order Quantity?
A8: One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical innovation or improvements for your future purchasing plan.
Q9: What is your production capacity?
A9: We produce more than 2000 advanced extrusion lines every year world wide.
Q10: What about shipping?
A10: We can send the small spare parts by air express for urgent matter. And the complete production line by sea to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest port is China Shanghai, Ningbo port, which is convenient for maritime transportation..
Q11: Is there any pre-after sale service?
A11: Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing, operation and maintenance service for a life time.
Q12:Are our business& money safe with Jwell Machinery ?
A12: Yes, your business is safe and your money is safe. If you check China company blacklist, you will see that it is not contain our name as we never crook our customer before. JWELL enjoys high reputation from the customers and our business and customers grows year by year.
PE plastic Road pyramid road block logistic insulation barrels Making Blow Molding Machine(We can offer complete solutions:bottom sealing ,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Product Overview:
performace & advantages
·Suitable for producing different kinds of road pyramid, logistic
insulation barrels.
·Optional bottom sealing, product eject, core-pulling movement
elements.
·Adopt high output extrusion system, accumulating die head.
·Optional Hydraulic Servo control system.
Technical parameters of machine
| Model | Unit | BM500 | BM1000 | ||
| Max product volume | L | 500 | 1000 | ||
| Dry cycle | Pc/h | 250 | 155 | ||
| Die head structure | ACCUMULATING type | ||||
| Main screw diameter | mm | 100*2 | 120*2 | ||
| Max plasticizing capacity (PE) | kg/h | 400 | 700 | ||
| Driving motor | Kw | 90*2 | 132*2 | ||
| Oil pump motor power | Kw | 40 | 60 | ||
| Clamping force | KN | 1300 | 1800 | ||
| Space between platen | Mm | 950-2000 | 1000-2700 | ||
| Platen size W*H | Mm | 1400*1800 | 1900*2300 | ||
| Max. mold size | Mm | 1200*1920 | 1750*2200 | ||
| Heating power of die head | Kw | 50 | 65 | ||
| Machine dimension L*W*H | m | 10.4*8.2*6.5 | 14*12*8.5 | ||
| Machine weight | T | 45 | 70 | ||
| Total power | Kw | 325 | 460 | ||

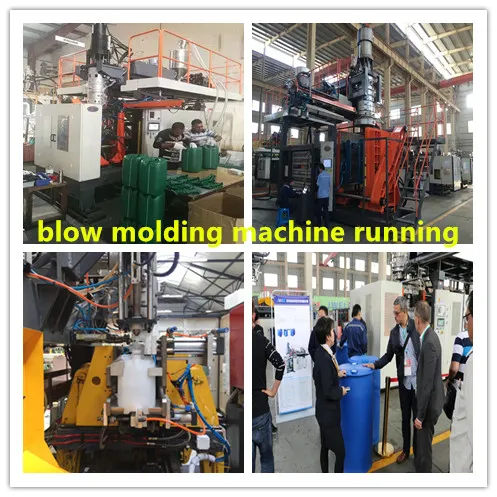

Extrusion Blow molding machine running in our customer workshop

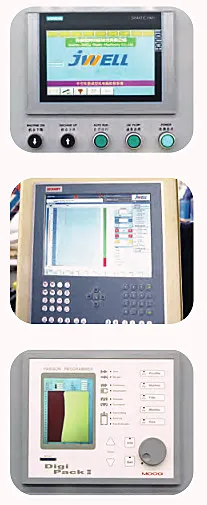

Different kind of Control system of machine
| parts name | country | Brand |
| PLC and touch screen | Germany/Austria | SIEMENS/B&R |
| Contactor | France | Schneider |
| Inverter | China/Germany | JWELL/Rexroth |
| Parison control system | Japan/Austria | MOOG100/B&R 300 |
| Pneumatic valve | China | Air TAC |
| Hydraulic Control System | China | Famous brand |
| hydraulic valve | China | Taiwai Yuken |
| Take out robot | China | JWELL |
| Accumulate type Die head | China | JWELL |
| Driving motor | Germany | SIEMENS-Beide MADE IN CHINA |
| Gearbox | China | Famous brand |
| Screw and Barrel | China |
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
Sales Service Networks
Contact us !!
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA
Web:jwellmachinery.en.made-in-china.com
jwellmachinery.en.made-in-china.com
FAQ
Q1. Is Jwell Machinery Manufacturer?
A1: Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo. After more than 40 years development, JWELL is one of the biggest extrusion machine supplier in China with 300 design&test engineer, 3000 employees. We own 5 manufacturing bases and sales center in Shanghai , Suzhou , Changzhou, Zhou Shan, Dongguan China. Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.
Q2: How many brands does Jwell Machinery own?
A2: Jwell Machinery owns more than 20 subsidiaries, China famous brand JINHAILUO, JWELL, BKWELL, DYUN are our Trade Marks.
Q3: If we don't find what we need from your website , What should we do ? Do you make extrusion lines as per customers' specific requirement?
A3: Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email. We will check if we can develop them. We develop new machinery every month, and some of them may not yet be updated on our website.
Q4: How do you ensure your machinery and service quality?
A4: Our machines taking the European standards and follow the Germany type of business, we cooperation with International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously imports over 1000 international first-class high precision processing equipment such as multistage machining centers, NC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification, IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the machine performances before each delivery. Jwell service engineers will always be here for anything you needed.
Q5: How can I order and make payments?
A5: Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.
Q6: If we find your bank account or email different as before, how should we respond?
A6: Please don't send the payment and double check with us before arrange payment (Bank details will be listed in every piece of proforma invoice. ) We are only responsible for email
Q7: How long is the delivery date?
A7: Usually it takes about 1 - 4 months depends on different machinery upon receipt of order advance payment.
Q8: What is your Minimum Order Quantity?
A8: One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical innovation or improvements for your future purchasing plan.
Q9: What is your production capacity?
A9: We produce more than 2000 advanced extrusion lines every year world wide.
Q10: What about shipping?
A10: We can send the small spare parts by air express for urgent matter. And the complete production line by sea to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest port is China Shanghai, Ningbo port, which is convenient for maritime transportation..
Q11: Is there any pre-after sale service?
A11: Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing, operation and maintenance service for a life time.
Q12:Are our business& money safe with Jwell Machinery ?
A12: Yes, your business is safe and your money is safe. If you check China company blacklist, you will see that it is not contain our name as we never crook our customer before. JWELL enjoys high reputation from the customers and our business and customers grows year by year.
