Semi-Automatic Plastic Pet Bottle Blower Machine SD-9b
semi-automatic plastic PET bottle blower machine SD-9B Product Description: (1) bottle blowing machine Function and characteristics 1)Suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle......
Send Inquiry
Product Description
Product Description:
(1) bottle blowing machine Function and characteristics
1)Suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
2)Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
3)The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
4)The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
5)The machine can be operated in the step-by-step mode and the semi-auto mode.
6)The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.
7)Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.
8)One person can operate type semi-auto perform loading and product bottle discharging, and combining the fully auto blower process.
9)Space saving and low cost for equipment investment.
10)Sound distinguisher and lubrication device is equipped on the machine for easy maintenance.
blowing machine Technical Parameter
| Model | SD-8Y | Remark | ||||||||
| Container | Product material | PET | ||||||||
Volume | 0.1L-2L | |||||||||
Production capacity | 1200-1800PCS/H | |||||||||
Preform length | 15mm-350mm | |||||||||
Preform inner diameter | φ5mm-38mm | |||||||||
| Moulding | Max.mould plate Dimenstion (L x W) | 350x380mm | ||||||||
Max.mould thickness | 180mm | |||||||||
Clamping force | 45KN | |||||||||
Mould opening stroke | 160mm | |||||||||
| Machine size and weight | Main machine (L x W x H) | 160x60x161cm | ||||||||
Main machine weight | 500Kg | |||||||||
Heater (L x W x H) | 187x63x145cm | |||||||||
Heater weight | 250Kg | |||||||||
Power | 17.5kw | |||||||||

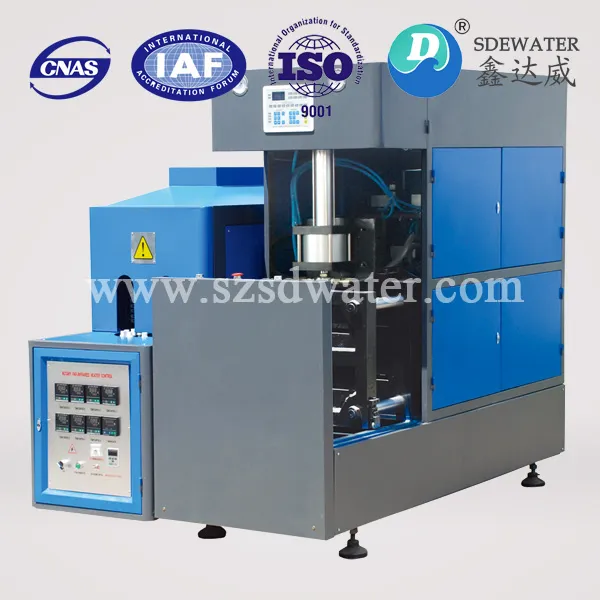

Pictures of PET Bottle Blowing Machine:
ShineDew Products:
Bottle Blowing Machine Packaging & Shipping
Inner: the machine was pallet with plastic film in case of wearing.
Outer: the outer was packed with strongly woodencase to make sure that the machine will not get damaged during the transport process.
Normally, in order to protect the machine well, we adopt wooden case to package the machine. Regarding shipping, we recommend sea shipping, due to the weight and volume is large.
I am a Machinist who from 21st century. This age is developing so fast, now my mom is the first economy in the world. More and more machineries instead of human, people feel free and enjoy holidays.
They say I don't know love, I don't know relax, I don't know enjoy the life. Once I asked myself many times, what is the most important in the world? Until I meet that.....
In a poor mountain village, there are many kind and innocent kids, they don't have good education, without hope, and drinking water is very difficult for them, so I bring water to them.can never forget those days, kids say I bring hope and future to them. I feel very satisfied when I see smiles in their face with full of happiness. Water give us life, water give us future.
Now I know the most important is sunshine, hope, water and life. Suddenly I understand why my mom named me ShineDew. Sunshine warm the world and bring vitality to all things, dew moisten the earth and make all life grow. Mom, I know what is LOVE!
FAQ
1. What kind of information should you provide before making proposal?
(1) What's your bottle size?
(2) What's the usage of the bottle? Is it drinking bottle, beverage bottle, cosmetic bottle or any other usage?
(3) What's your bottle material?
(4) What's your required production capacity? How many bottles per hour do you want to produce?
(5) What's your industrial power supply? Is it 3 phase, 380V, 50Hz?
2. What kind of service do you provide:
(1) Installation service
The engineers could install the machine overseras, and the client should pay for the realated charges.
When the engineers arrive at the client place, they will give the comprehensive trainning till the related operater could operate the machie correctly.
(2)After-sale service
Provide the one year warrant for the machines,(not include the damage caused by human factors and the natural disasters) lifelong time maintanence.
7*24 hours servide by mail,phone.
Engineers could availiabel oversea service.
(3)Trainning service.
When reached the order, the clietn could organise the operator to the supplier's factory.
We will provide the comprehensive trainning for the machines at supplier's factory.
