              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine

              2000-3000bph 2cavity automatic bottle blow moulding/pet plastic bottle making blowing machine ItemYCQ-2L-2EBottle type specificationCavity2Theory output (PCS/HR)2400-2700Max. Volume (L)2LBottle mouth maximum overall diameter (mm)80mmBottle biggest diameter100mmBottle maximum height330mmPower specif......

              Send Inquiry

              Product Description

              2000-3000bph 2cavity automatic bottle blow moulding/pet plastic bottle making blowing machine

              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine

              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine
                ItemYCQ-2L-2E

              Bottle type specification
              Cavity2
              Theory output (PCS/HR)2400-2700
              Max. Volume (L)2L
              Bottle mouth maximum overall diameter (mm)80mm
              Bottle biggest diameter100mm
              Bottle maximum height330mm

              Power specifications
              Light tube quantity32PCS
              Light tube power0.75kw
              Maximum heating power24kw
              All electric machine installation27kw
              Actual consumption8.1kw

              Air pressure specification
              Work pressure7-9kg/cm2
              Low-pressure gas consumption1000LTR/min
              Blow bottle pressure25-35kg/cm2
              Higher -pressure gas consumption1500 LTR/min

              Frozen water specification
              Work pressure5-6 kg/cm2
              Temperature range10
              Consumption5000kcal/hr
              Frozen water flow30LTR/min
              Machine specificationSize of the machine2.25X1.6X1.7 (m)
              Weight of the machine2.5ton
              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine
              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine
              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine
              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine
              Our Service

              Installation service
              When you finish the Preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee until they can operate the machine well.

              The sample service
              1. We can send you the video of the running machine.
              2. You are welcome to come to visit our factory, and see the machine running.

              Customized service
              1. We can design the machines according your requirements(materil, power, filling type, the kinds of the bottles, and so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.

              After-sales service
              1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
              2. When you finish the Preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee until they can operate the machine well.
              3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
              4. We provide one year warranty
              5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese
              6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
              7.12 Months guarantee and life-long technical support.
              8. Your business relationship with us will be confidential to any third party.
              9. Good after-sale service offered, please get back to us if you got any questions.

              Quality Control
              We have the single quality department, that make sure the material of the raw materials is good, and ensure the machine running smoothly.
              If you want to know more information about the product, You can send an inquiry, we will solve any of your problems and send you running video.

              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine
              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine
              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine
              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine






              Small Business 2 Cavity Automatic Bottle Blow Moulding Machine/ Pet Plastic Bottle Making Blowing Machine


              FAQ:

              Q1: Are you a trading company or a manufacturer?

              A1: We have our own factory for 10 years, will try our best to provide you service.

              Q2: What's your guarantee or the warranty of the quality if we buy your machines?

              A2: We offer you high quality machines with 1 year guarantee. We will give u spare part free in 1 year,
              Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition. We also have a technical team support for after service.

              Q3: When can I get my machine after I paid?

              A3: We will deliver the machines on time as the date we agreed both side.

              Q4: How can I install my machine when it arrives?

              A4: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.

              Q5: What's the delivery time?

              A5: 45 days after the T/T deposit or L/C.

              Q6: Where is your factory located?
              A6: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.

              Q7: How about quality control in your factory?
              A7: " Quality is the key point, do what customers need"
              Eceng machinery factory focuses on quality, quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.

              Q8: Do you provide bottle blow mould and air compresor?

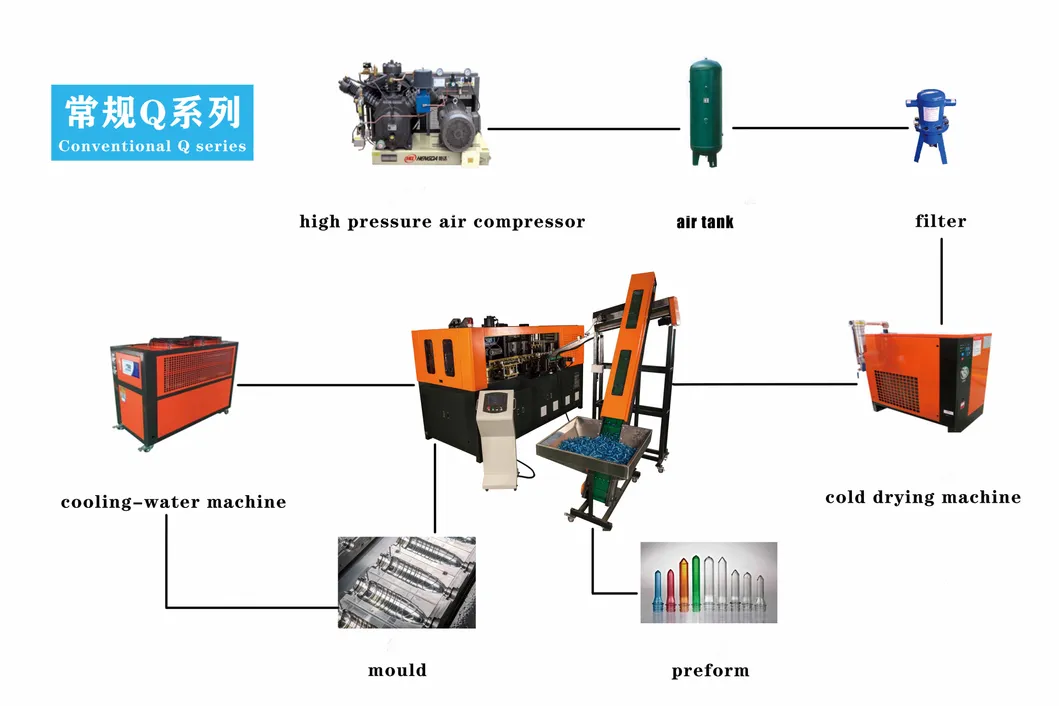

              A8: Yes, we provide complete system and you will no need to find the suitable air compressor and chiller...etc...

              Q9: What is the language of the PLC and touch panel?
              A9: Don't worry, we will translate the language in English, Spanish or any other language, to make sure you will have an easy operation.

              Q10: Do you have reference project?
              A10: We have reference project in most countries, If we get the permission of the customer who has brought the machines from us, we can tell you their contact information, you can go to visit their factory.
              And you are always welcome to come to visit our company, and see the machine running in our factory, we can pick you up from the station near our city.
              Contact our sales people you can get video of our reference running machine

              Q11: Do you have agent and after-service stations?
              A11: So far we have agent in ThailandVietnamColumbiaIndonesia. Welcome to join us!

              Q12: Do you provide customized service
              A12: We can design the machines according to your requirements(material, power, filling drinkdifferent bottle neck and bottle designlogo design and so on), give you suggestions for your unique needs.
