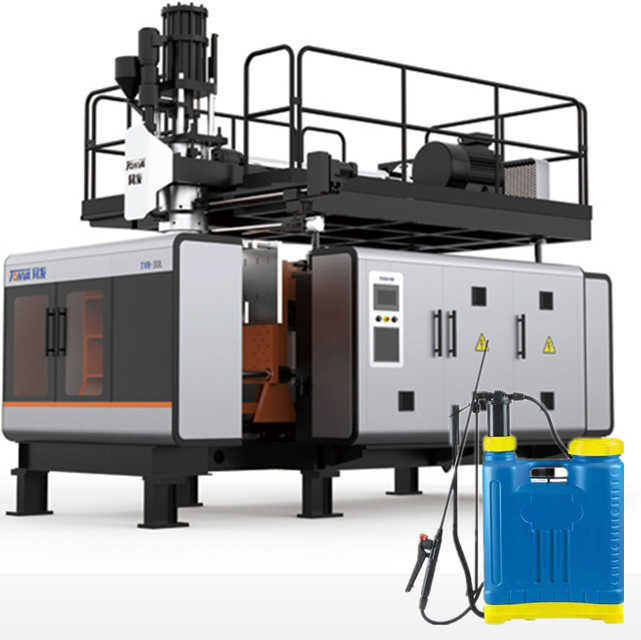

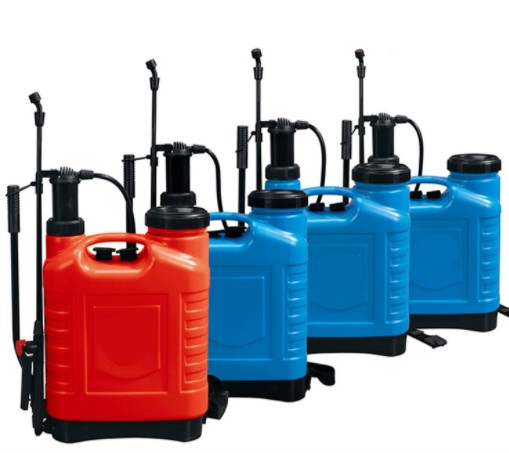

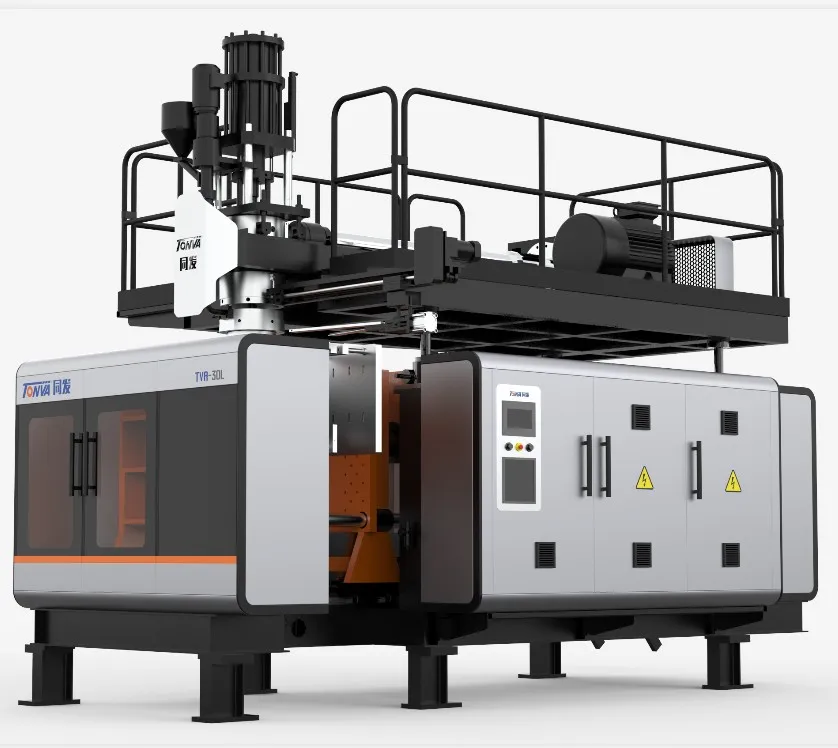

Tonva 16L 18L Knapsack Sprayer Barrel Blow Molding Machine
Double stationsOne cavity(20L)Single layer Automatic trimming: Neck/BottomOutput: around 80BPHPower supply: 380VAC 50HZWater cooling: 20ºC (5HP Water chiller)Air source: 0.6Mpa, 0.8m³/min(1.2 m³/min Air compressor)1UnitTVA-20L Raw MaterialPE/PP/PA/PVC/PETG/ABS/PS/EVA/TPU ......
Send Inquiry
Product Description
- Double stations
- One cavity(20L)
- Single layer
- Automatic trimming: Neck/Bottom
- Power supply: 380VAC 50HZ
- Water cooling: 20ºC
- Air source: 0.6Mpa, 0.8m³/min
| 1 | Unit | TVA-20L |
| Raw Material | PE/PP/PA/PVC/PETG/ABS/PS/EVA/TPU etc | |
| Machine Weight | T | 8.5 |
| Machine (L*W*H) | m | 4.2x2.2x3.0 |
| Extrusion System | ||
| Diameter of Screw | mm | 70 |
| Screw L/D ratio | L/D | 25:1 |
| Plasticizing Capacity | Kg/h | 80 |
| Heating Zones | pcs | 80 |
| Heating Power | kw | 18 |
| Screw Motor | kw | 18.5 |
| Die Head | ||
| Heating Zones | pcs | 4 |
| Heating Power | kw | 10 |
| Power Consumption | ||
| Air Pressure | Mpa | 0.6-0.8 |
| Air Consumption | m3/min | 1 |
| Cooling water | m3/h | 2 |
| Oil pump power | kw | 15 |
| Total Power | kw | 61.5 |
| Clamping System | ||
| Clamping Distance | m | 300 |
| Sliding Distance | mm | 400 |
| Open Stroke | mm | 400-750 |
| Mould Platen Size | mm | 800X800 |
| Clamping Force | kn | 200 |
| Working Condition | ||
| Piston Type Air Compressor | kw | 15 |
| Water Chiller | HP | 10 |
Dear manager
hi,how are you?thanks read our products information, i feel honored.
our company establish at 1993,so have stably good experienced.manufactur from 0.1ml-5000L hollow products,so hope we can help you choose which type of machine you want.if you interesting,pls contact with me.i'm rita
sincerely
Zhejiang Tonva Plastics Machine Co.,LTD.
Website:tonva-machine.en.made-in-china.com
Add:No.30,Huihai Road,Binggang Industrial Zone,Shamen,Yuhuan,Zhejiang,P.R.China.
