              Product Description

                 130ton Plastic Injection Molding Machine (Model: ZX-130)

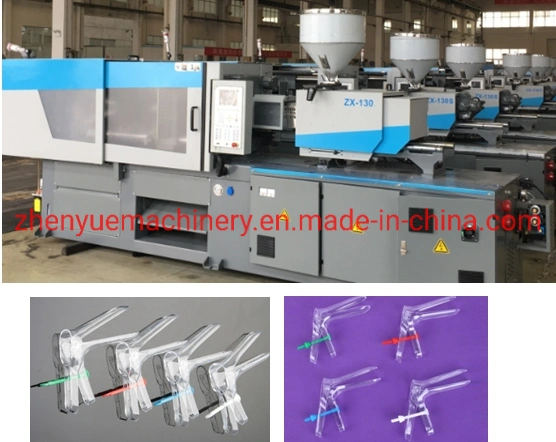

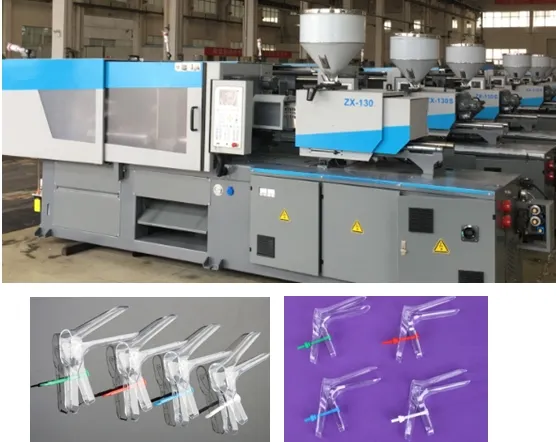

                            1,Photo of Plastic Injection Molding Machine
              130ton Injection Molding Machine for Dilator Vaginal Dilator Vaginal Speculum Medical Sterile Vaginal Speculum Disposable Dilator Single Use Vaginal Speculum


               2, Technical Parameter of Plastic Injection Molding Machine
              ZX-130Injection Unit Date ABC
              Screw diametermm364045
              Screw L/D ratio/222018
              Theoretical shot volumecm3204251318
              Shot weight(PS)g187231293
              Injection rateg/s99123155
              Max.screw speedrpm270

              Clamping Unit
              Clamping forceKN1300
              Toggle strokemm370
              Space bettween tie barsmm425x425
              Min.mold thicknessmm150
              Max.mold thicknessmm440
              Hydraulic ejection strokemm130
              Hydraulic ejection forceKN34

              Others
              Hydraulic system pressureMpa1705
              Pump motorkw16.9
              Heating capacitykw7.5
              Oil tank capacityL190
              Machine dimensionsm4.8x1.2x1.9
              Machine weightTon3.8

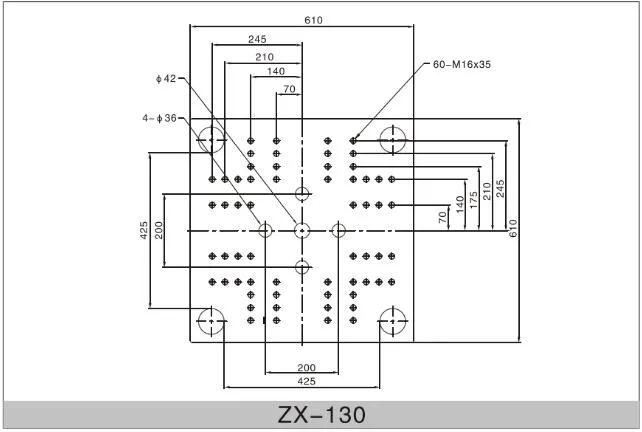

                3, Platen Dimension of Plastic Injection Molding Machine
              130ton Injection Molding Machine for Dilator Vaginal Dilator Vaginal Speculum Medical Sterile Vaginal Speculum Disposable Dilator Single Use Vaginal Speculum

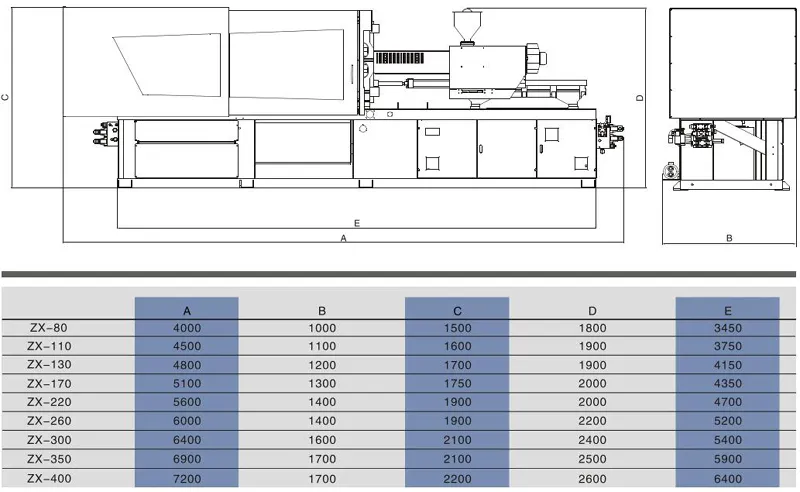

                      4, Dimension of Plastic Injection Molding Machine
              130ton Injection Molding Machine for Dilator Vaginal Dilator Vaginal Speculum Medical Sterile Vaginal Speculum Disposable Dilator Single Use Vaginal Speculum

              5, Technical Characteristics of Plastic Injection Molding Machine

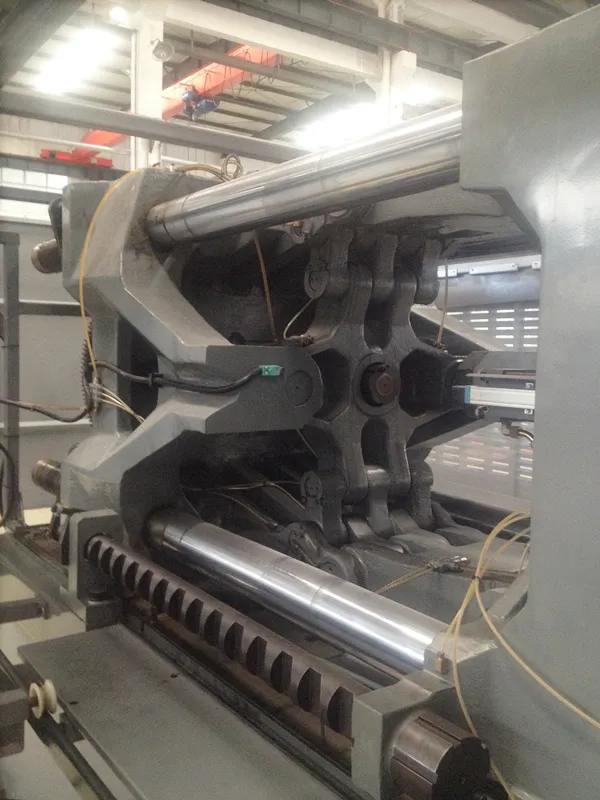

                            CLAMPING SYSTEM
              130ton Injection Molding Machine for Dilator Vaginal Dilator Vaginal Speculum Medical Sterile Vaginal Speculum Disposable Dilator Single Use Vaginal Speculum
                                            		-FEA designed double-toggle five-joint clamping machinery
              -High rigidity platen with enlarged space between tie-bar
              -Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie-bar and mould
              -Optimized lubrication system ensuring precision clamping and extending the life time of the clamping

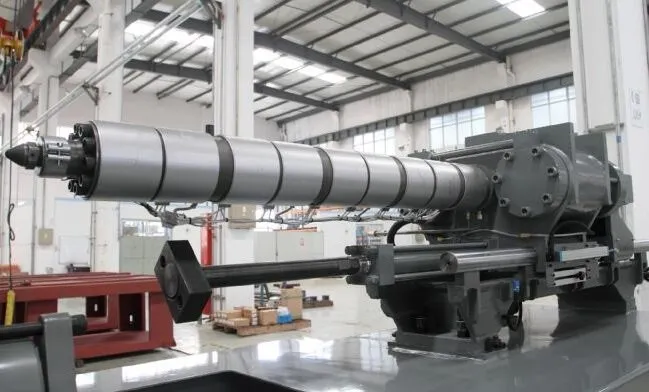

                                 INJECTION SYSTEM
              130ton Injection Molding Machine for Dilator Vaginal Dilator Vaginal Speculum Medical Sterile Vaginal Speculum Disposable Dilator Single Use Vaginal Speculum
                                  		-Double guide bracket structure, multipoint fixed ensure injection smoothly and accurately
              -High speed and high pressure adopt special injection design, improving injection speed
              -Injection cylinder, premold oil motor and plastic screw are in the same centreline, to enhance the injection pressure and injection speed, to achieve high precision, fast injection molding

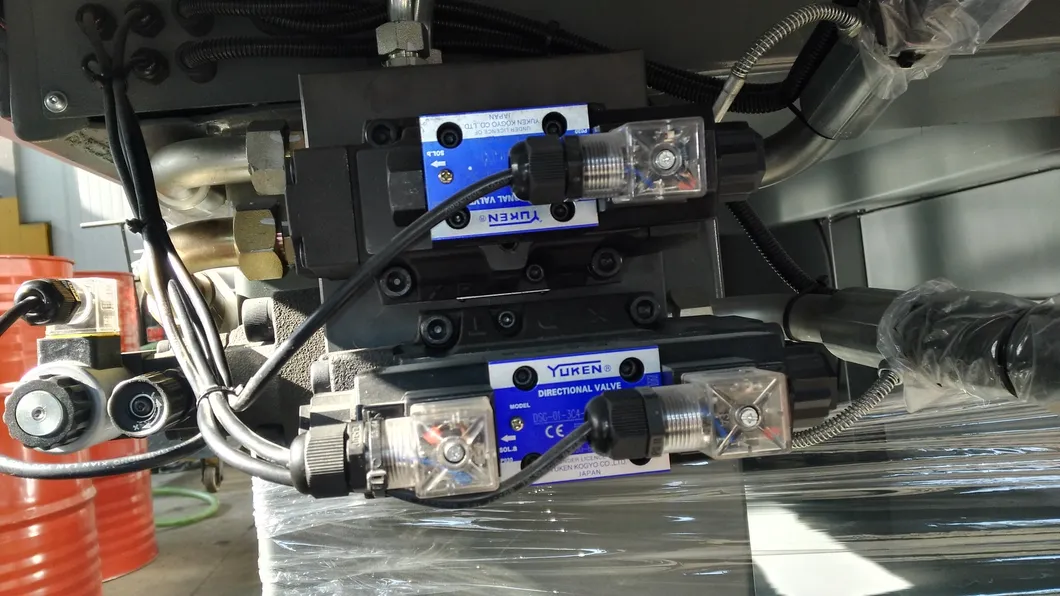

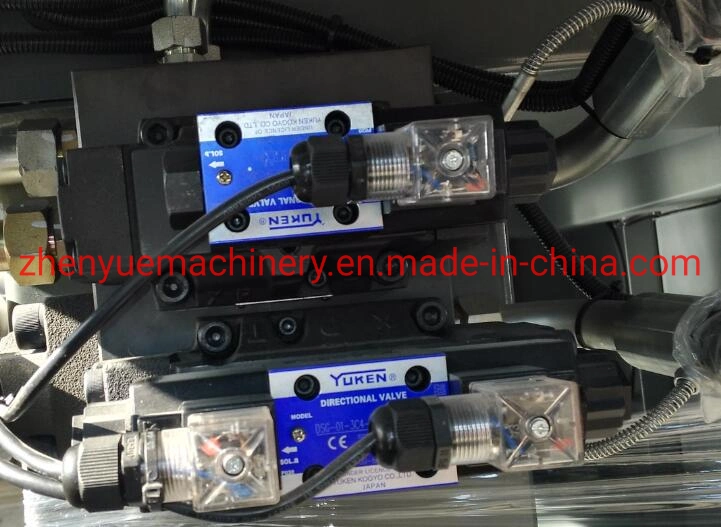

                                 HYDRAULIC SYSTEM
              130ton Injection Molding Machine for Dilator Vaginal Dilator Vaginal Speculum Medical Sterile Vaginal Speculum Disposable Dilator Single Use Vaginal Speculum
                                		-Adopt the imported pump, low noise, long lifetime, stable performance
              -High performance hydraulic valve, less failure, fast switch, convenient maintenance
              -Low pressure mould protect system, which is more suitable for the precision mould
              -Lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

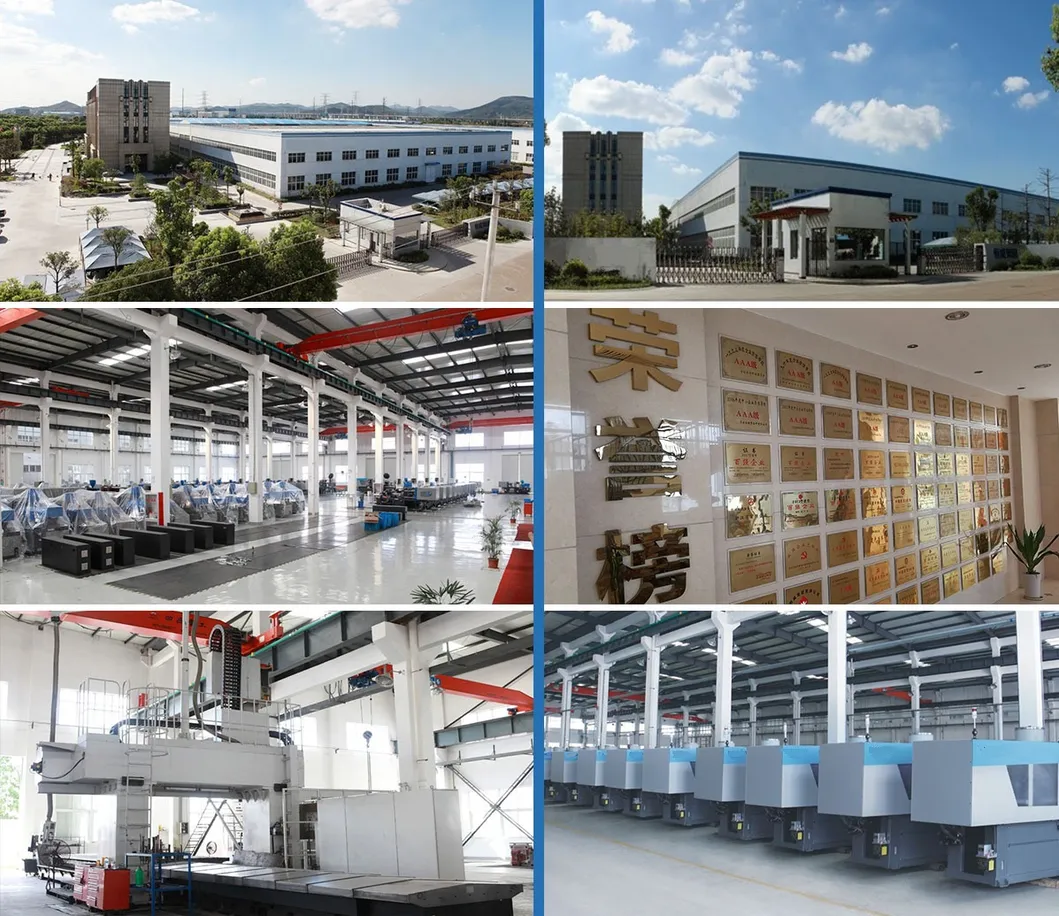

                   6, Manufacturer of Plastic Injection Molding Machine
              130ton Injection Molding Machine for Dilator Vaginal Dilator Vaginal Speculum Medical Sterile Vaginal Speculum Disposable Dilator Single Use Vaginal Speculum

                                     7, Contact Information
              Contact Person: Mr. Tony

              Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
              Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
              Zip Code: 315012


              Production:
              hosuehold plastic injection molding machine
              industrial plastic injection molding machine
              PVC pipe fitting plastic injection molding machine
              PET preform plastic injection molding machine
              fork plastic injection molding machine
              battery box plastic injection molding machine
              sanitary plastic injection molding machine
              medical plastic injection molding machine
              heat preservation nail plastic injection molding machine
              bobbin plastic injection molding machine
              cone plastic injection molding machine
              spool plastic injection molding machine
              reel plastic injection molding machine
              knife plastic injection molding machine
              coiling plastic injection molding machine
              spoon plastic injection molding machine
              basin plastic injection molding machine
              barrel plastic injection molding machine
              bucket plastic injection molding machine
              crate plastic injection molding machine

              Remark:
              1, the company reserves the right to revise all information (including word, photo) above.
              2, due to technology development, the machine design or specification would be changed without any prior notice.
              3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
