25 Ton USB Cable Making Machine Injection Moulding Machine
Small sized 15tons vertical plastic injection molding machine for small productsFunction:1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finis......
Send Inquiry
Product Description

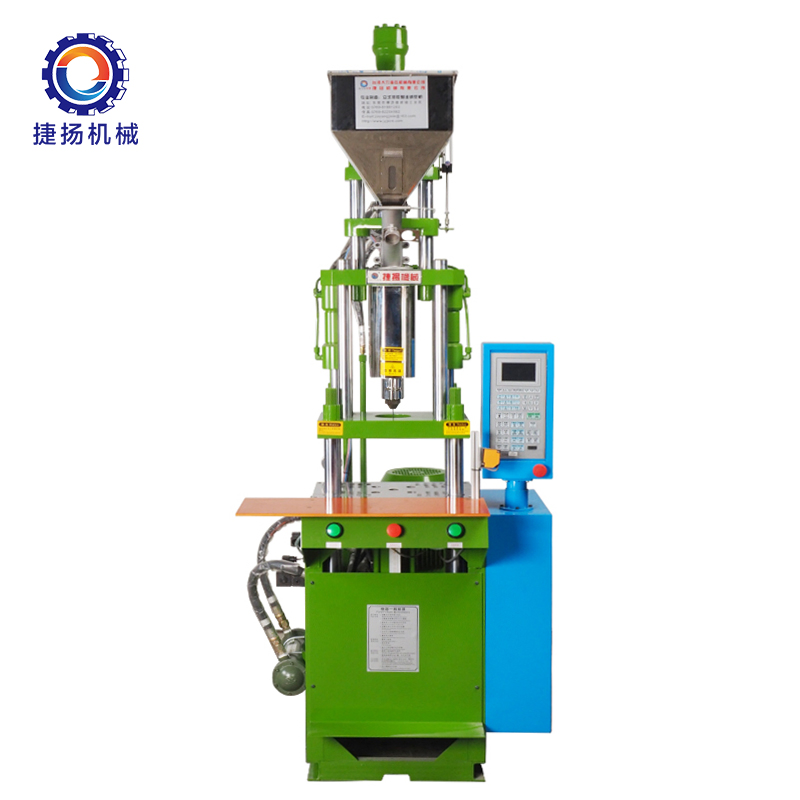

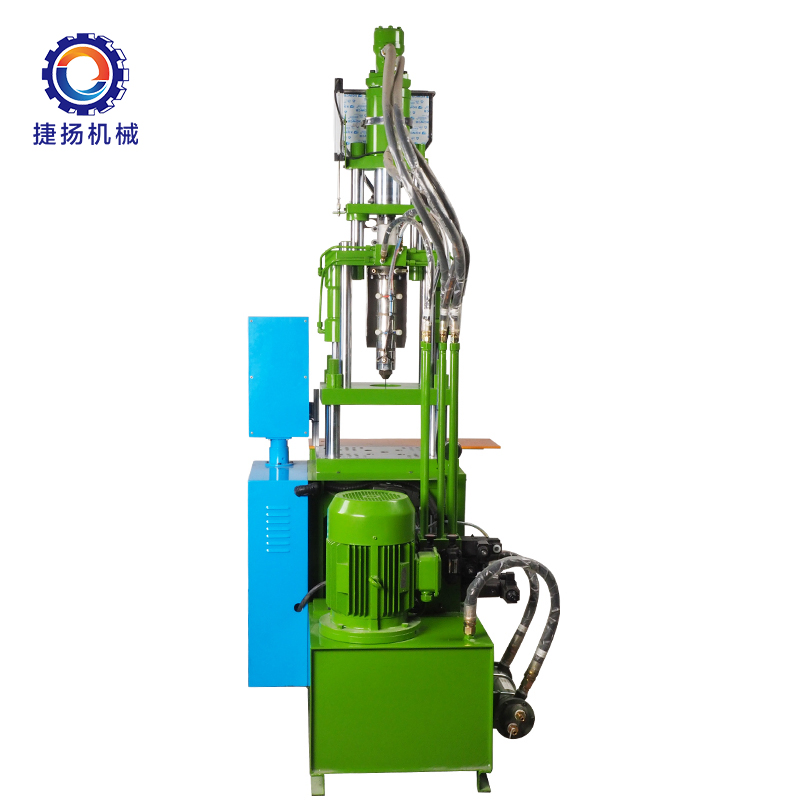

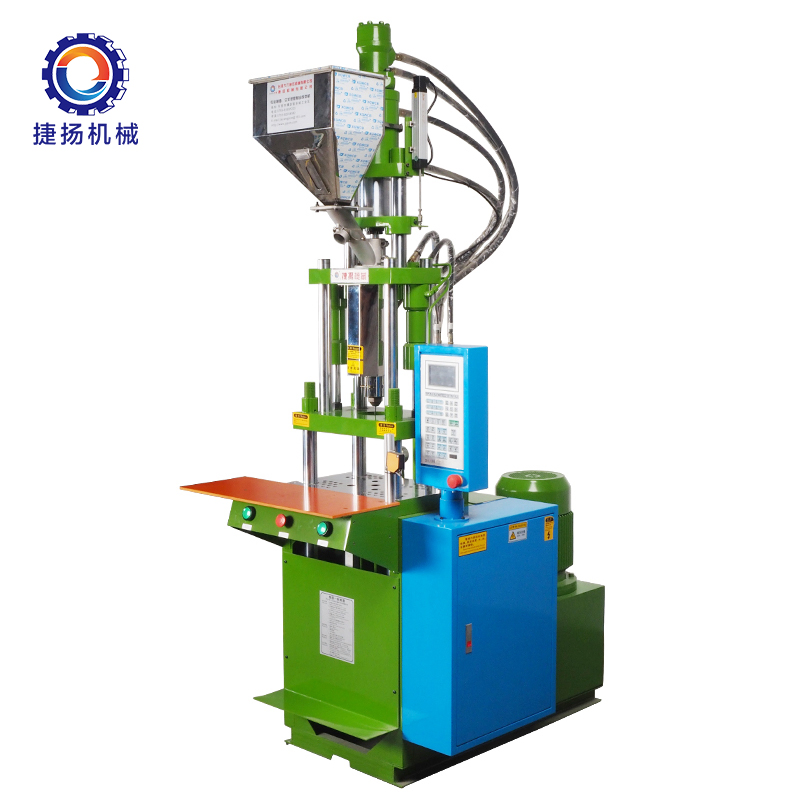

Small sized 15tons vertical plastic injection molding machine for small products
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish
at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Application :

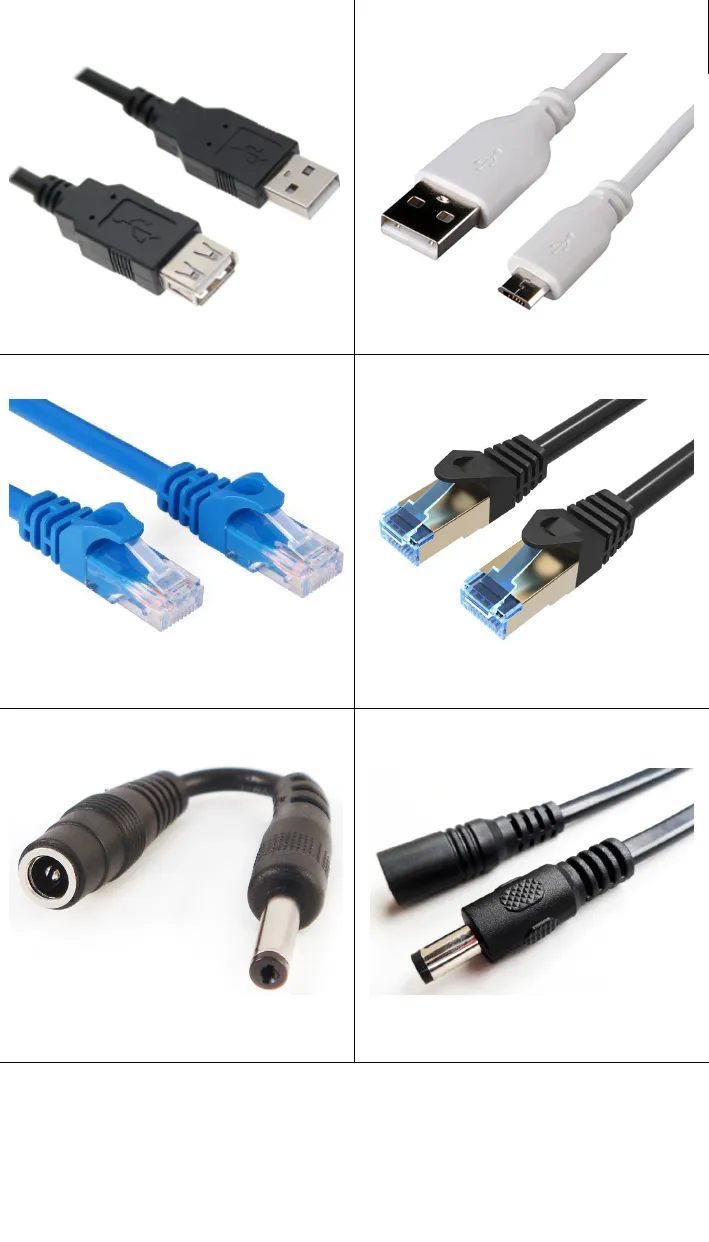

Vertical injection machine have the advantage of low-noise, low-energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.
Specification:
Packing & Shipping :
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
FAQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish
at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Application :
Vertical injection machine have the advantage of low-noise, low-energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.
Specification:
| JY-160S2/JY-200S2 Technique specification | ||||||
| Model | Units | JY-160S2 | JY-200ST | |||
Injection System | Screw Diameter | mm | Φ26 | Φ28 | Φ28 | Φ30 |
| Injection Pressure | Kg/cm2 | 1183 | 1019 | 1019 | 896 | |
| Theoretical Shot volume | cm3 | 55.7 | 64.6 | 64.6 | 74 | |
| Max. Shot Weight(P.S) | g/Oz | 50/1.7 | 58/2.0 | 64.6/58 | 74/67 | |
| Injection Rate | mm | 105 | 105 | |||
| Max.Screw speed | rpm | 0-215 | 0-200 | |||
| Temperature Control | ZONE | 2 | 2 | |||
Clamping System | Clamping Force | T | 15 | 30 | ||
| Platen Size | mm | 450*280 | 480*310 | |||
| Distance Between Tie Bare | mm | 265 | 285 | |||
| Min Mold Height | mm | 100/25 | 100/30 | |||
| Opening Stroke | mm | 190 | 180 | |||
| Max. Open Daylight | mm | 290/215 | 280/30 | |||
| Ejector Force | T | 1.3 | 1.3 | |||
| Ejector stroke | mm | 35 | 35 | |||
Hydraulic System | Max. Hydraulic Pressure | Kg/cm2 | 140 | 140 | ||
| Pump Output | L | 17.5 | 29.5 | |||
| Pump Motor Power | Kw | 2.2/3HP | 3.75/5HP | |||
| Barrel Heating Power | Kw | 1.8 | 1.8 | |||
| Total Wattage | Kw | 4.2 | 5.5 | |||
Others | Machine Dimensions (L*W*H) | m | 1.35*0.92*2.06 | 1.4*.90*2.37 | ||
| Shipping Measurement (L*W*H) | m | 1.6*1.0*2.23 | 1.7*1.1*2.23 | |||
| Machine Weight | T | 0.85 | 1.0 | |||
| Shipping Weight | T | 1.0 | 1.3 | |||
Packing & Shipping :
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
FAQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
