Product Description

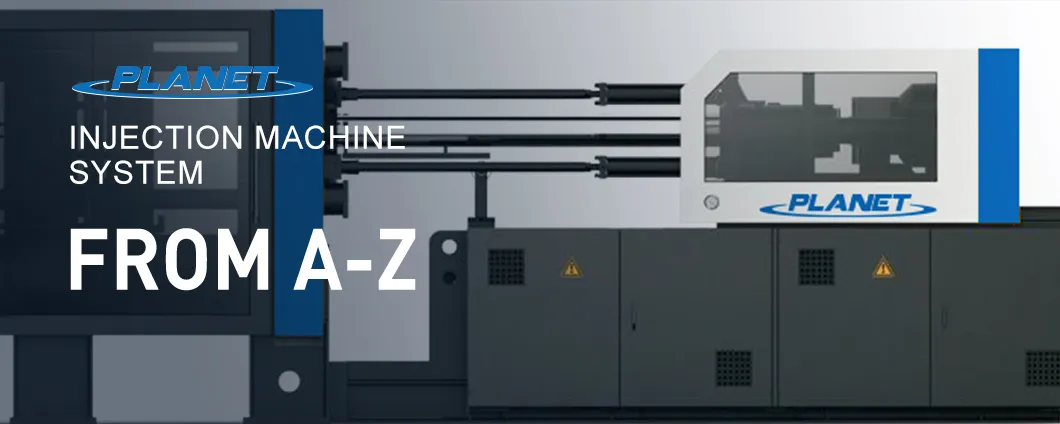

"Injection machine System from A-Z"

Planet Machinery Injection molding system includes injection molding machine, mold, robot arm, raw material feeding system, conveyor belt, chiller, air compressor, etc. Our solutions are designed for your individual needs and are composed of a wide range of product combinations.

These devices together constitute a complete and highly effective platform for collaborative work to help customers continuously improve productivity, profitability and competitiveness.

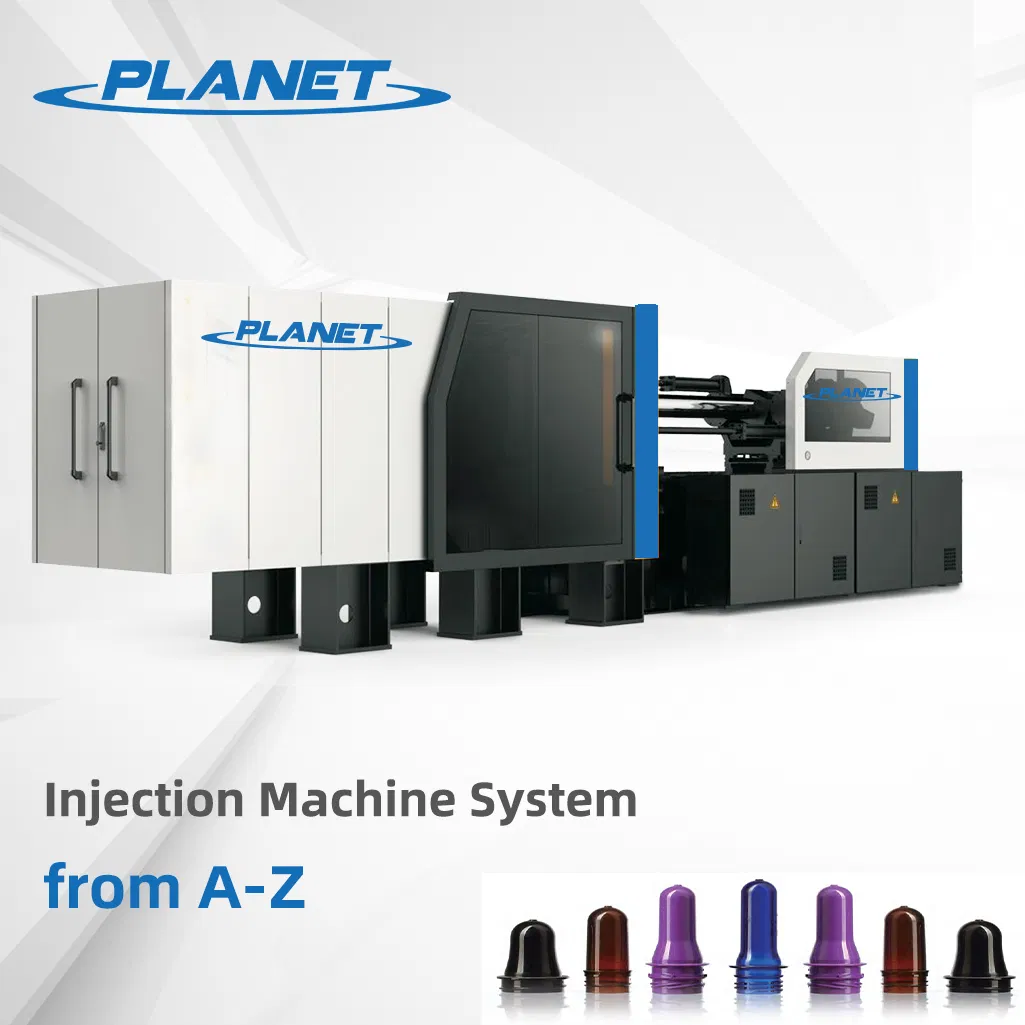

Injection machine

injection molding systems are to maximize productivity, minimize part variability and reduce maintenance to enable the lowest total cost to produce.

MODEL		UNIT	P-200	P-260	P-320
Injection Unit	Screw Diameter	mm	70	75	80
	Screw L/D Ratio		25	25	25
	Shot Volume	cm3	1016	1378	1689
	Injection Weight PET	g	1087	1474	1807
	Injection Rate	g/s	482	496	605
	Injection Pressure	Mpa	105	127	130
	Screw Speed	rpm	110	120	120
Clamping Unit	Clamping Force	kn	2000	2600	3200
	Moving Plate Stroke	mm	490	550	585
	Max.Mould Height	mm	540	580	720
	Min.Mould Height	mm	200	200	300
	Tie Bars Space(W×H)	mm	530×530	580×580	660×760
	Ejector force	kn	80	126	180
	Ejector Stroke	mm	140	150	180
	Ejector Number	n	5	5	9
Others	Max.Pump Pressure	Mpa	16	16	16
	Pump Motor Power	kw	30	37	44
	Heating Power	kw	28	32	37
	(L×W×H)Size	M	6×1.5×1.6	6.8×1.6×1.8	7.7×1.8×2
	Machine Weigh	T	7	8.5	13

Injection unit

Big diameter screw and barrel, special design for PET material.
320t Top Quality Plastic Fruit Baskets Injection Molding Machine / Making Plant

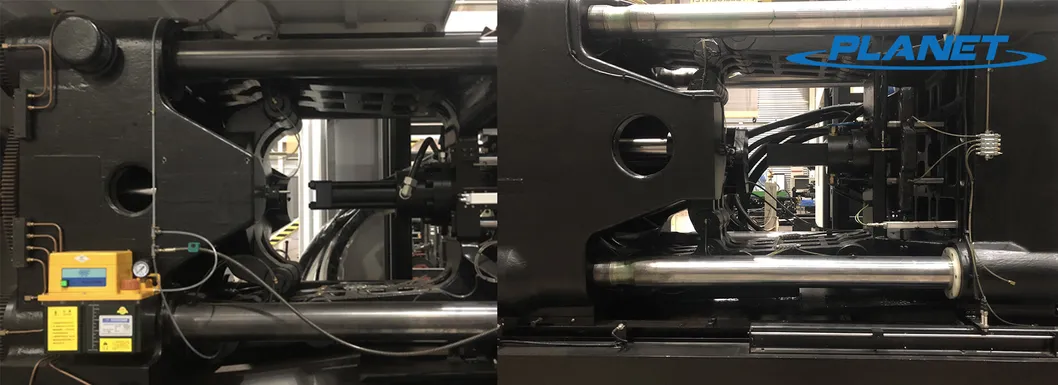

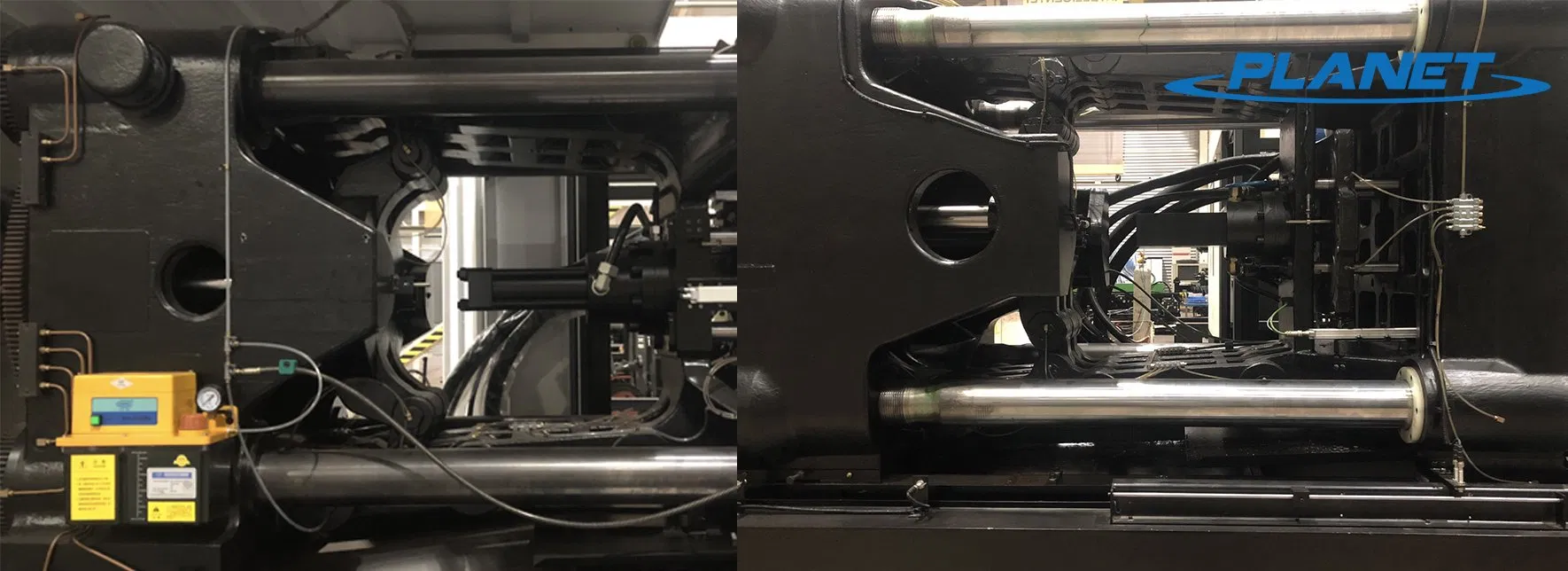

Mold clamping unit

Special design for PET preform mold, which ensure the fast clamping movement and uniformly forced of the mold.
320t Top Quality Plastic Fruit Baskets Injection Molding Machine / Making Plant

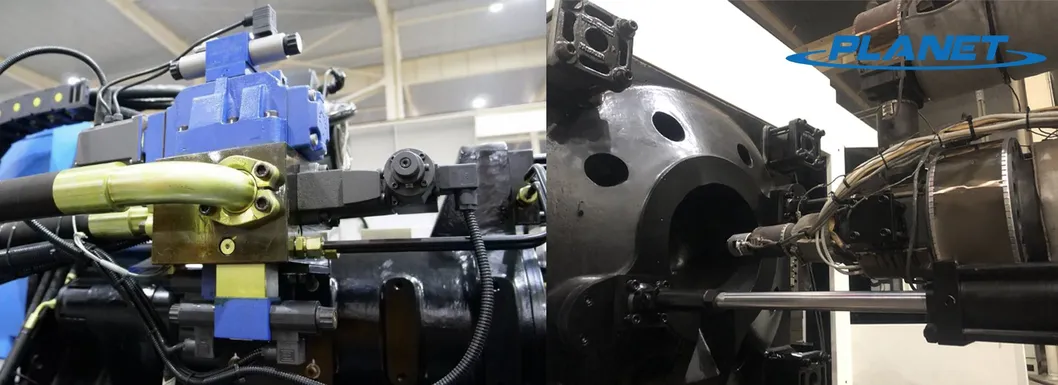

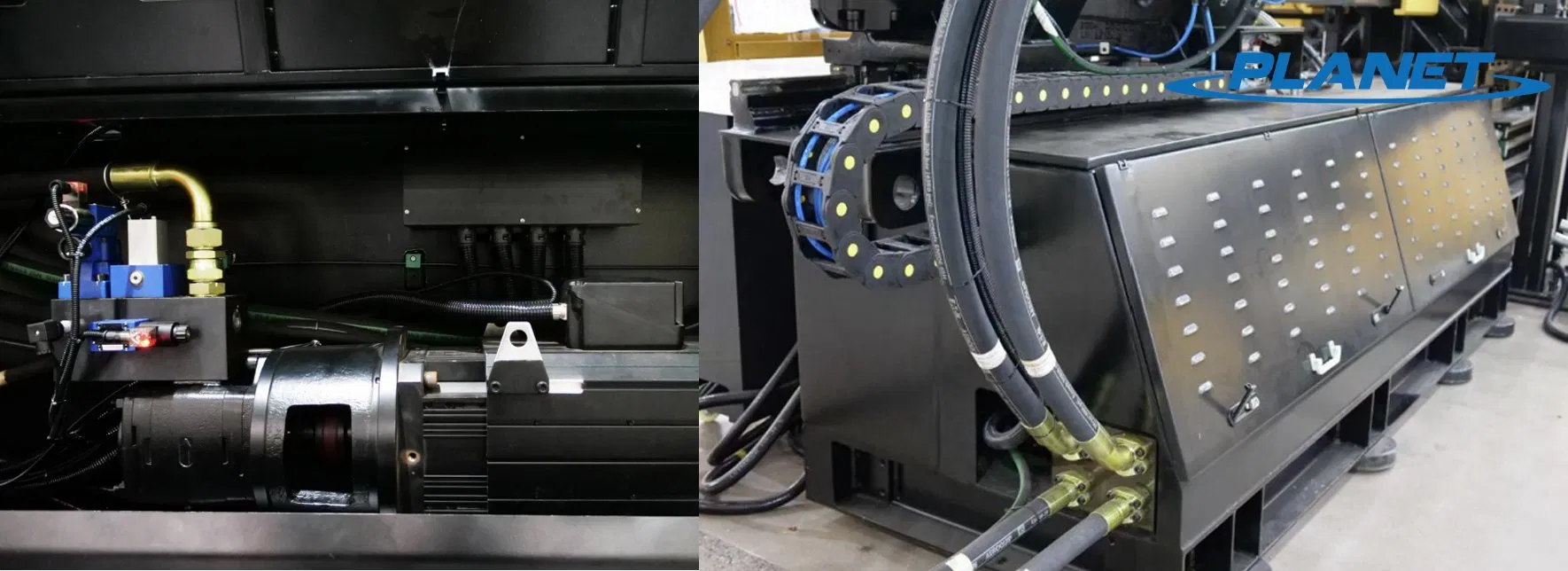

Dynamic system

servo motor drive hydraulic system
320t Top Quality Plastic Fruit Baskets Injection Molding Machine / Making Plant

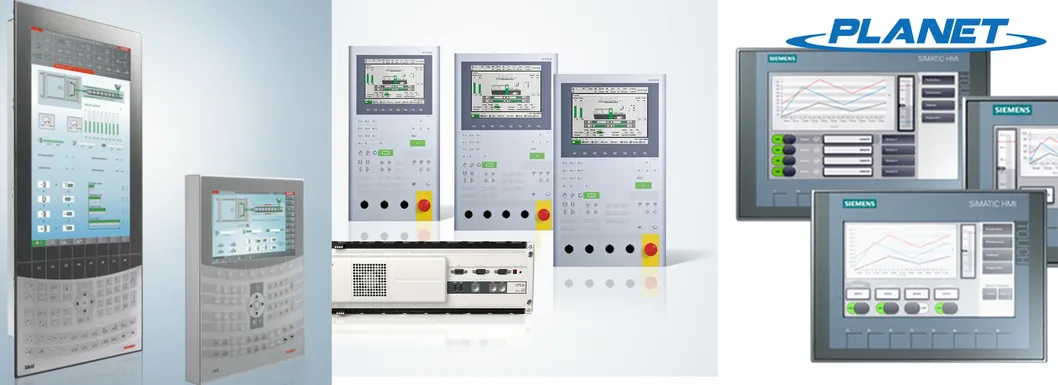

control system

brand new HMI control system

Fast PCL execution time

High performance PC and fast I/O capability

Quick communication thought all control components. Self-adjustment and self-adaption.

Friendly user interface design.

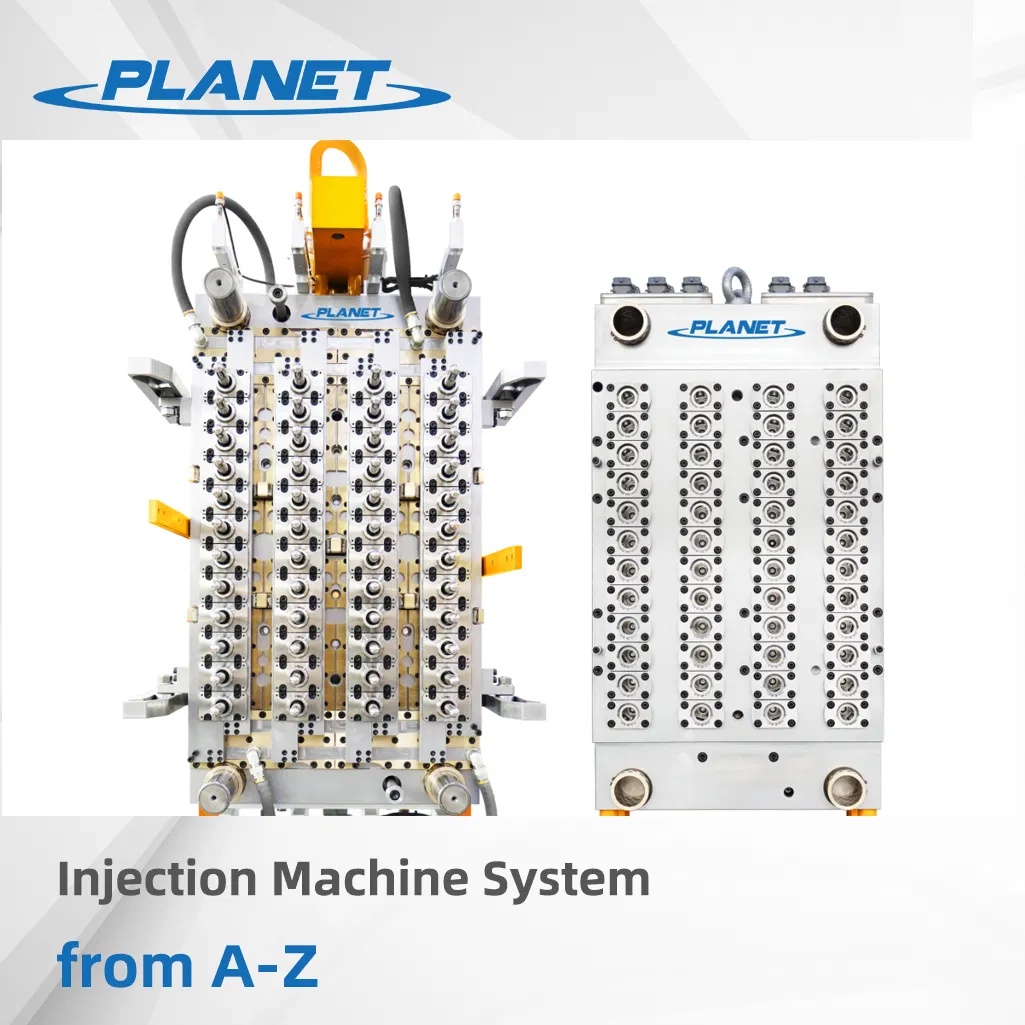

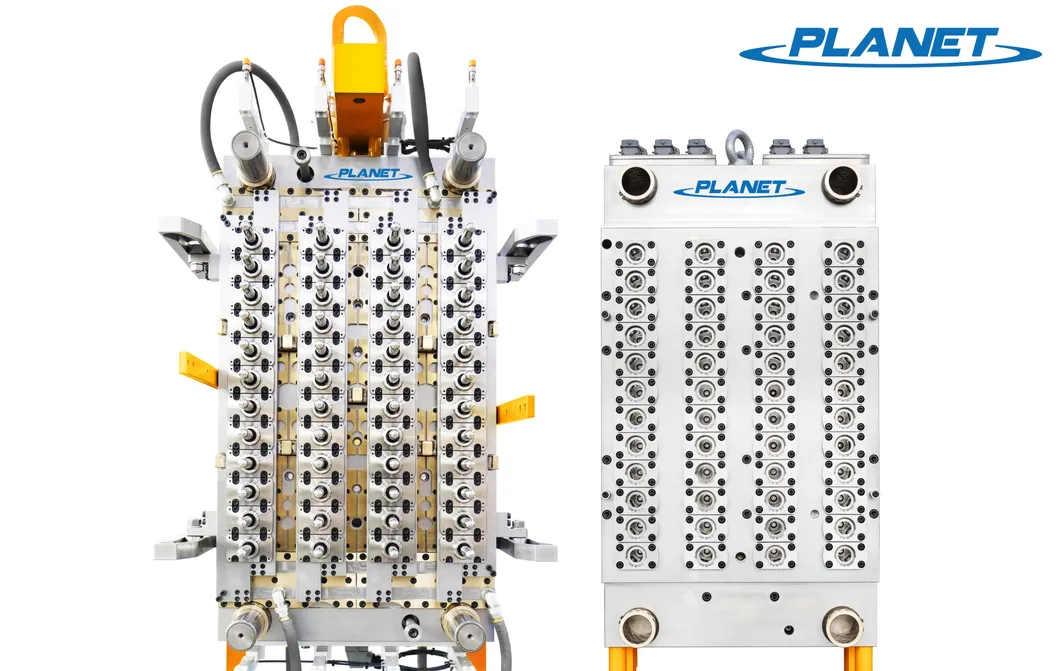

molds

The high quality mold is because we have chosen the top mold material, using world-class simulation software; world-class processing equipment.

Material and Structure 4Cr13 stainless steel plate for plastic mold, excellent anti-rust and anti-corrosion performance, plate hardness HRC35-40, aging treatment, stress relief, long-term use will not be deformed, surface grinder accuracy of 0.01mm. The mold base is used for processing all the templates in one time, ensuring the concentricity of the forming holes and the guide sleeve, and the overall mold frame has high precision.

Mold molding parts Adopting Sweden's ShengBai S136 mold steel, domestic original heat treatment and aging treatment.

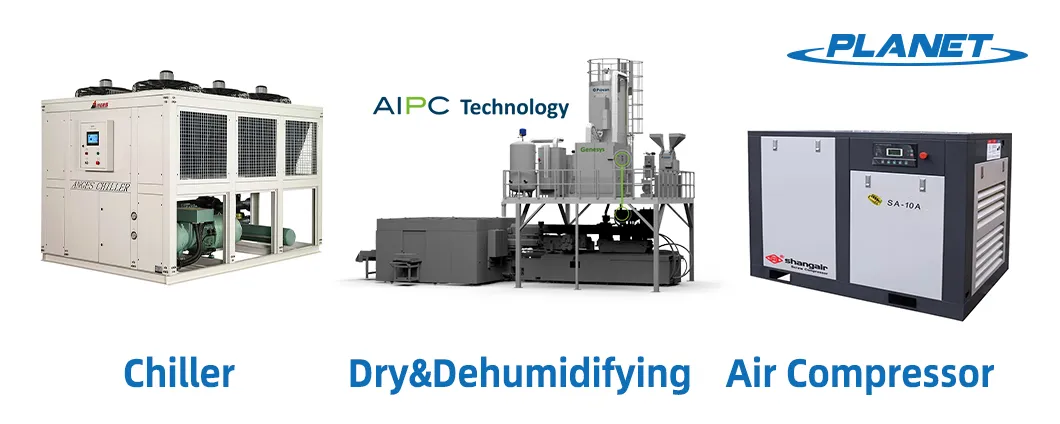

Auxiliary machine

According to the characteristics of preform production, we specially customize corresponding auxiliary machines and have more experience. Auxiliary equipment includes drying system, chiller, air compressor, grinder, testing machine, and maintain long-term strategic cooperation relationship with auxiliary equipment manufacturers to ensure sufficient supply capacity and lower purchase prices.

Features:

The whole injection system is energy-saving and high production efficiency.

Small clamping unit with large shot weight, suitable for different PET preform mold requirements.

Equip with low speed and high torque hydraulic motor which is good for charging material stably and fast.

Standardized modules, easy to operate.

Wide range of adaptation,can be used to produce preforms, handles etc.

Customer value and advantage:

Complete solution

In Planet Machinery you can find complete solution for your ideal liquid packaging production, not only various packaging machinery but also production line building advisory service.

Rich industry experience

Our experienced engineer support you from bottle design, line speed selection, line setting up, installation and commssioning, onsite training, and after sales service.

Affordable price

We know it's not easy to open a new business, so we try our best to provide a quality products and service with a cost-effective price.

Fast delivery and installation

We design our machine and line in a simple and reliable way so that it's easy to install and save time on the production. Usually machine production time can up to 30days and production line up to 60days.

320t Top Quality Plastic Fruit Baskets Injection Molding Machine / Making Plant

Q: How to solve the machine problems before they transport to customer's factory?

A: We will make 100% test in factory before we do the package, to make sure there is no big problems, also we have people to check all goods without any Omission.

Q: Because of the epidemic, how you will arrange the after-sales service?

A: We still have to send our engineer to help you install lines, and make sure your project can be finished in time.

We also can have a video call to help you on daily maintenance.

We send spares parts within 24 hours.

We can have zoom meeting or video call to discuss the project, so we will have close relationship with our clients.

Q: Finance and transportation.
A: We accept flexible payment terms, like T/T, L/C etc. If you face some difficult on finance, we are glad to help you.
We have cooperated freight company who have rich experience in sea shipping, to make sure you can get high quality shipping service with good price.
