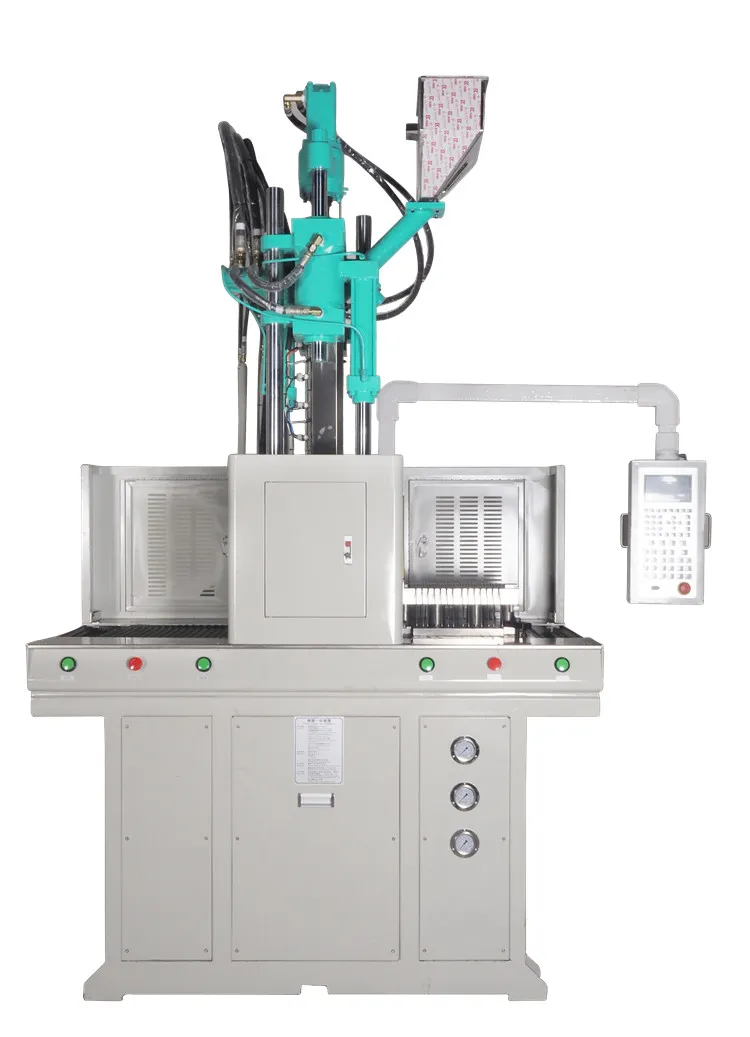

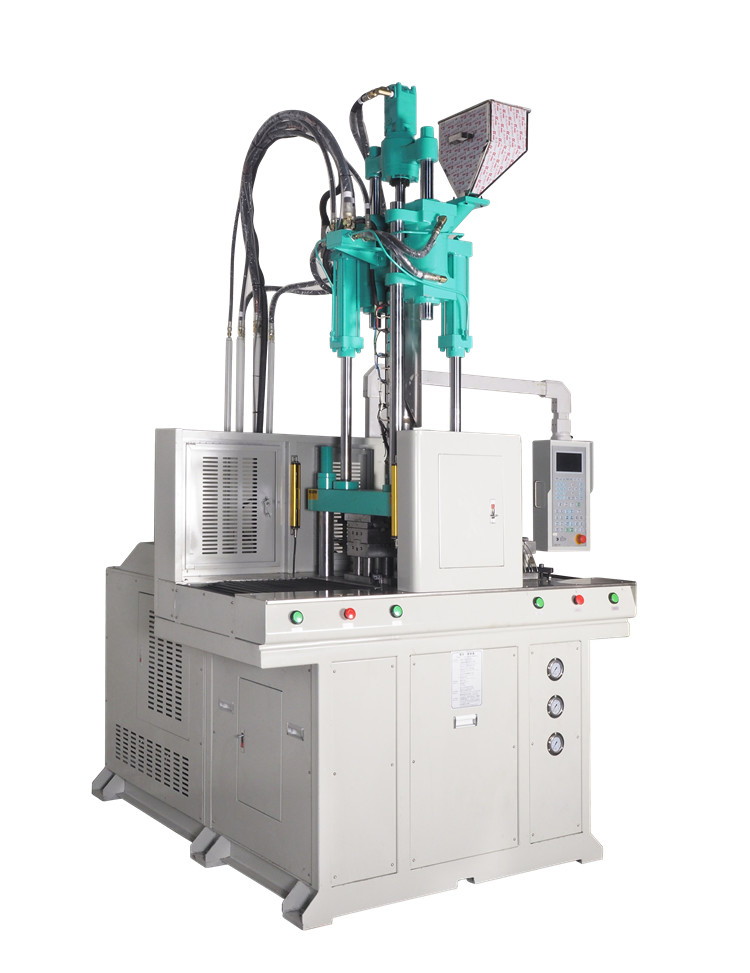

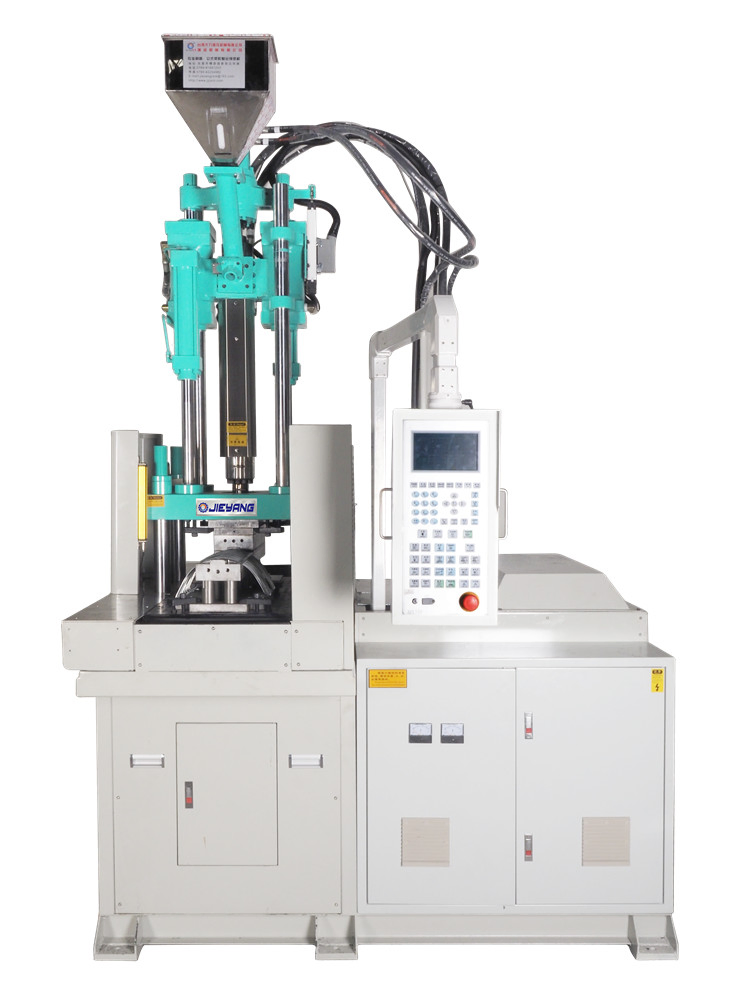

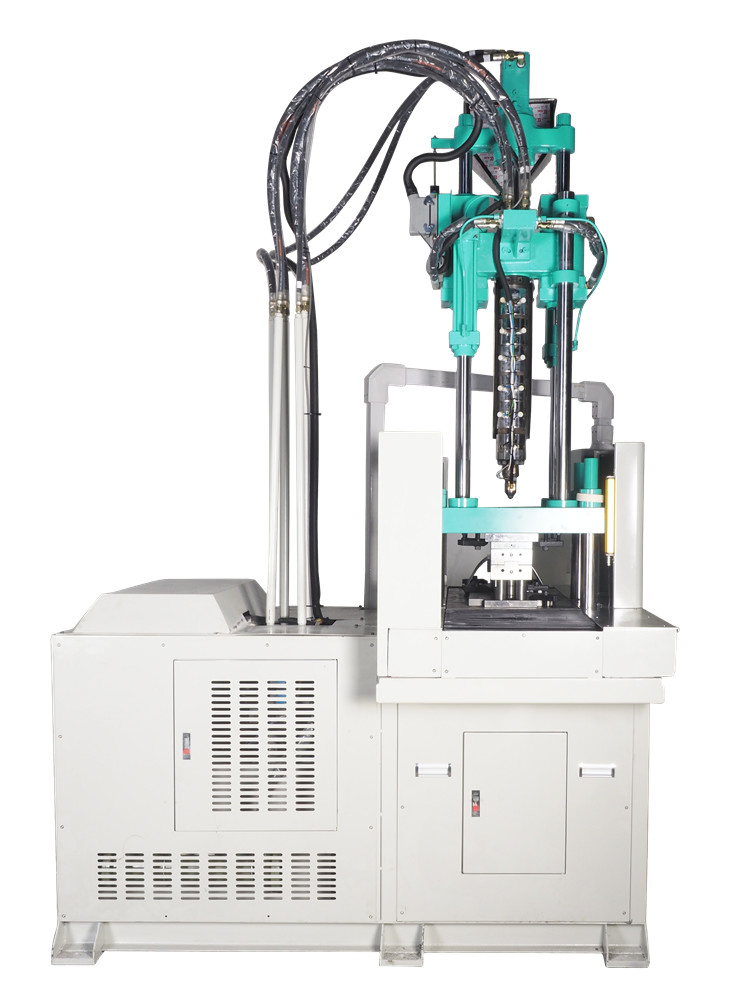

Cosmetic Tube Shoulder Making Vertical Plastic Injection Machine
Product DescriptionMain Features1)Chinese/English LCD display, can memorize 60 groups of mold data.2)Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor.3)It is safe because the product and ......
Send Inquiry
Product Description
Product Description
2)Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor.
3)It is safe because the product and delivery and inserting is not performed in molding station but the same work station. Moreover, automatic device can be used onto the machine.
4)Adopting double(pressure,flux)proportional control, the machine runs with low noise and at a high speed, it is equipped with low-voltage protective function.
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Our Service
* View our Factory.
* Engineers available to service machinery overseas.
Packing & Delivery
Main Features
1)Chinese/English LCD display, can memorize 60 groups of mold data.2)Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor.
3)It is safe because the product and delivery and inserting is not performed in molding station but the same work station. Moreover, automatic device can be used onto the machine.
4)Adopting double(pressure,flux)proportional control, the machine runs with low noise and at a high speed, it is equipped with low-voltage protective function.
| Model | Unit | JY-550ST-DM | ||
| Screw Barrel Diameter | mm | 32 | 34 | 42 |
| Injection Pressure | kg/cm2 | 1642 | 1385 | 960 |
| Max. Shot Weight | gram | 102 | 123 | 176 |
| Max. Shot Weight | cm3/sec | 49 | 59 | 84 |
| Screw Barrel Route | mm | 140 | ||
| Screw Barrel Rotary Speed | rpm | 0-175 | ||
| Nozzle Contact Force | tons | 5.5 | ||
| Nozzle Retraction Nozzle | mm | 210 | ||
| Number of Temperature Control | pcs | 3 | ||
| Clamping Force | tons | 55 | ||
| Platen Size | mm | 900*450 | ||
| Distance Between Tie Bere | mm | 470*280 | ||
| Min. Mold Height | mm | 250/200 | ||
| Opening Stroke | mm | 200 | ||
| Max. Opening Mold Distance | mm | 450/400 | ||
| Ejetor Force | tons | 1.5 | ||
| Ejetor Stoke | mm | 135 | ||
| Max. Hydraulic Pressure | kg/cm2 | 140 | ||
| Pump Output | L/min | 40 | ||
| Oil Resservoir Capacity | Liter | 150 | ||
| Cooling Water Consumption | L/hr | 800-1000 | ||
| Pump Motor Power | kw/hp | 7.5/10HP | ||
| Barrel Heating Power | kw | 4.5 | ||
| Total Power | kw | 12 | ||
| Machine Weight | tons | 3.3 | ||
| Machine Dimension(LxWxH) | meter | 2*1.4*3.3 | ||
| Shipping Weight | tons | 3.6 | ||
| Shipping Measurements(LxWxH) | meter | 2.2*1.5*2.6 | ||
Machine Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.Our Service
Pre-Sales Service
* Inquiry and consulting support.* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.* Engineers available to service machinery overseas.
Packing & Delivery
1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
FAQ
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
