Customized Plastic Bucket Injection Making Machine/Manufacturing Machine for Sale

Product Description

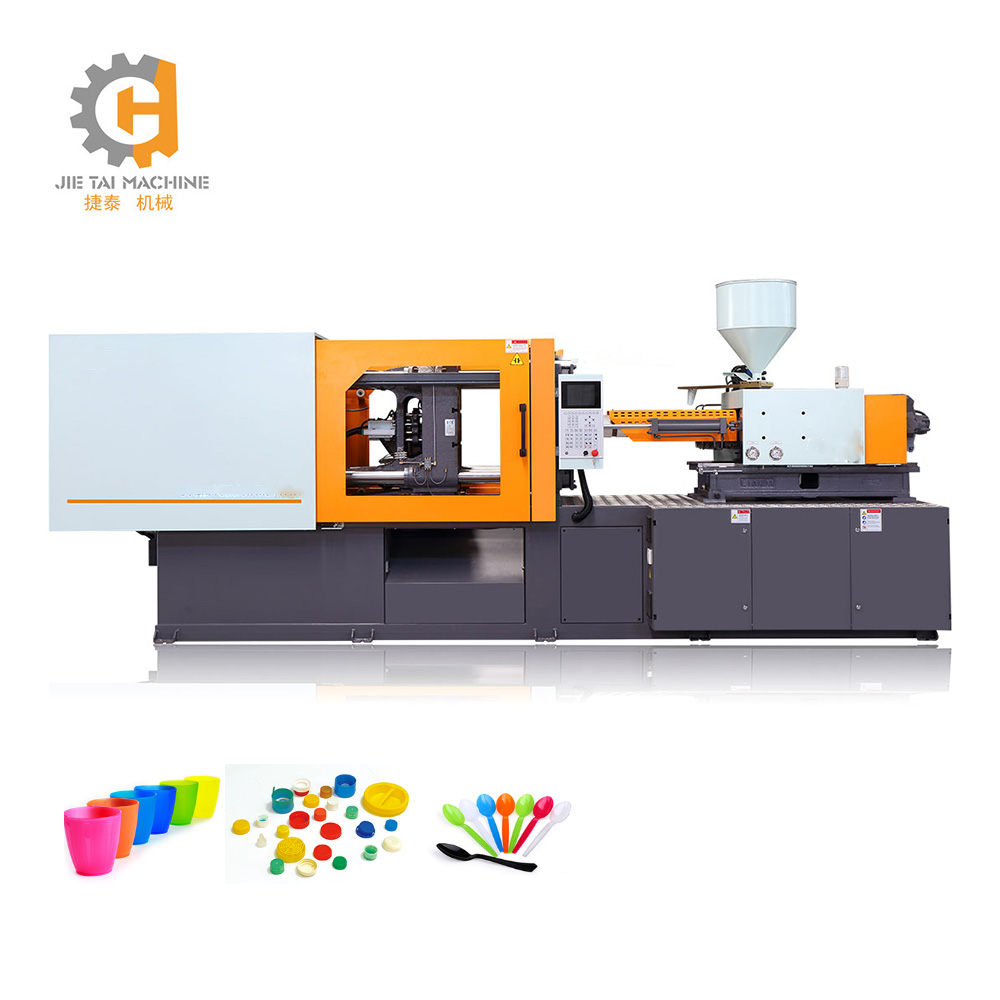

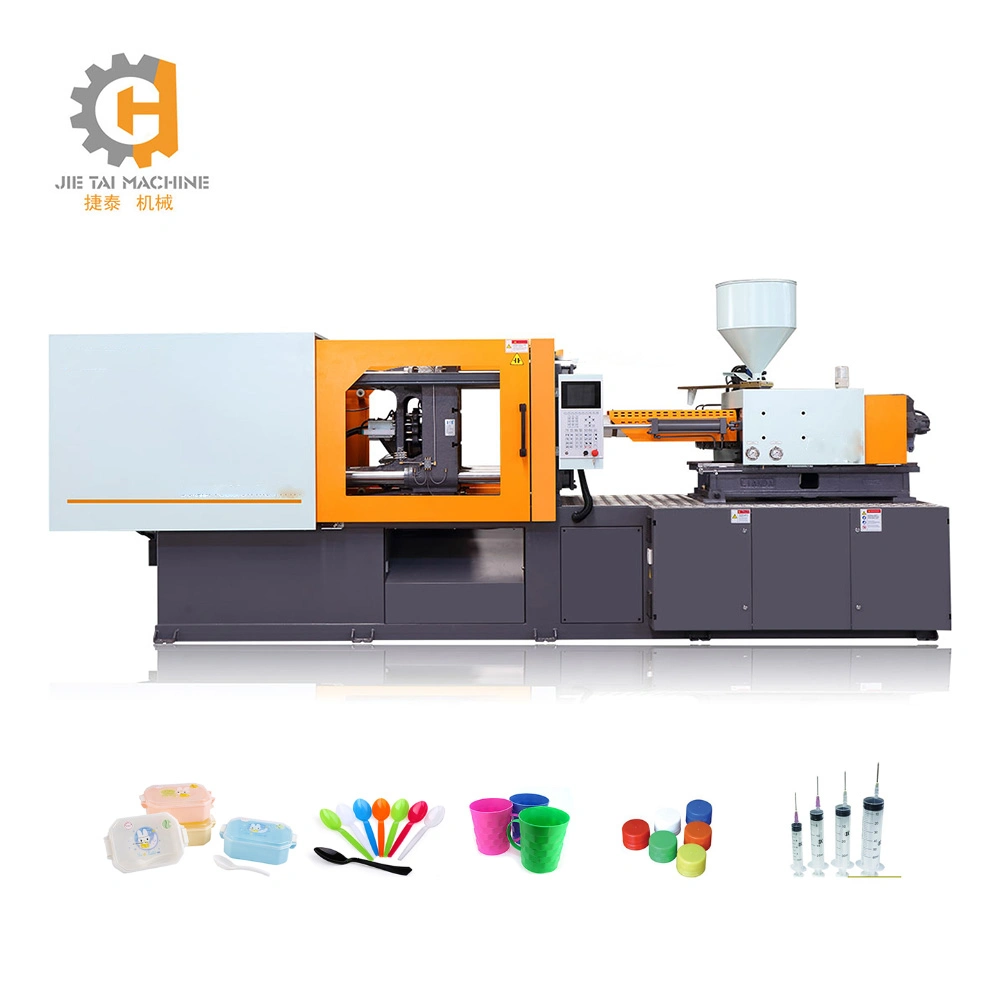

Customized Plastic Bucket Injection Making Machine/Manufacturing Machine for Sale

Features of Product :
1.Strong Technical design ability, Stable quality, and large production capability, Famous brand.
MSTX servo energy saving Injection Molding Machine, equipped with high performance servo motor controlling system, the machine's output power can vary in accordance with the loading changes,which reduce energy consumption and noise. The motor rotates at lower speed in holding pressure stage, an doesn't work in cooling time.

2.- Servo motor can optimize the match of energy demand and realize automatic adjustments.
- It can improve injection precision
- It can greatly save power and water, resulting in environment-protection and energy-saving
- Quick response and low noise.

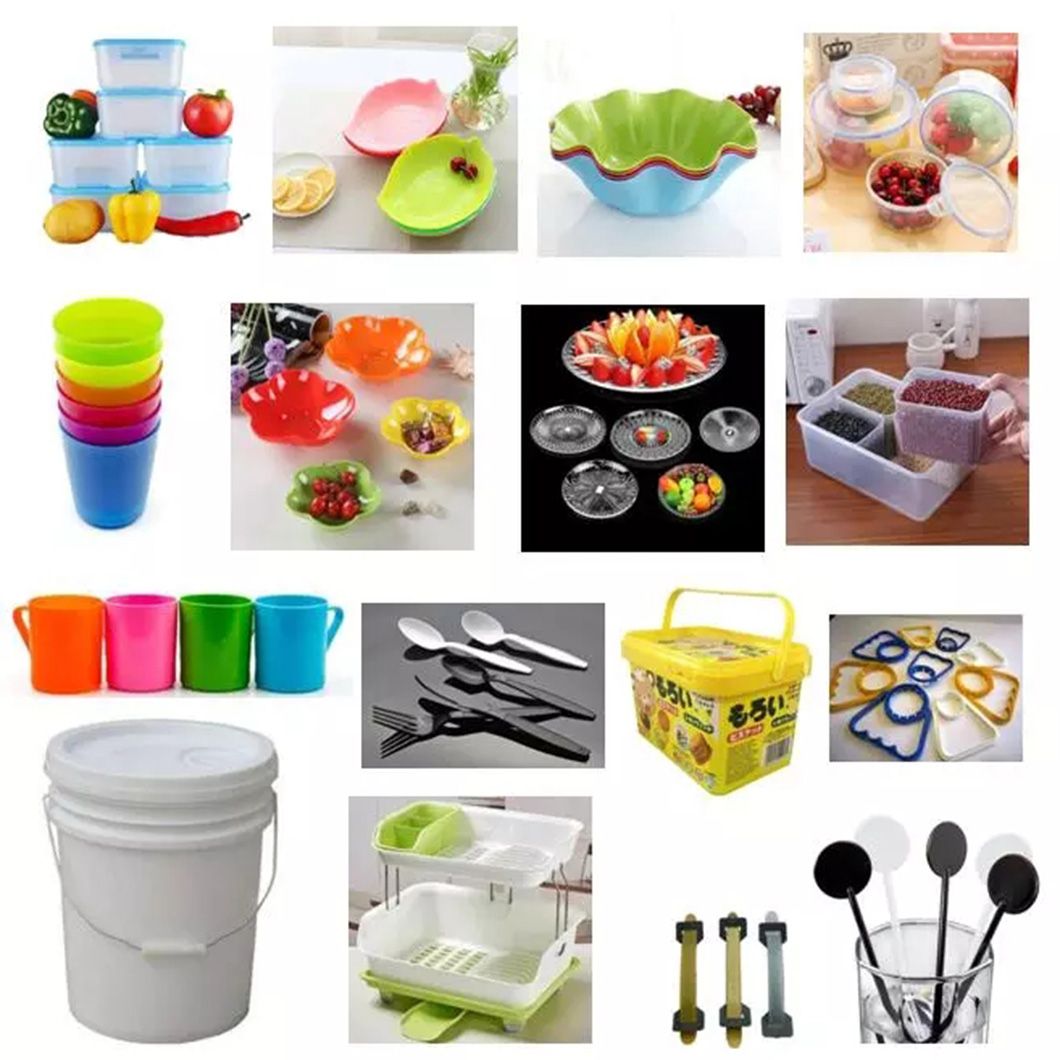

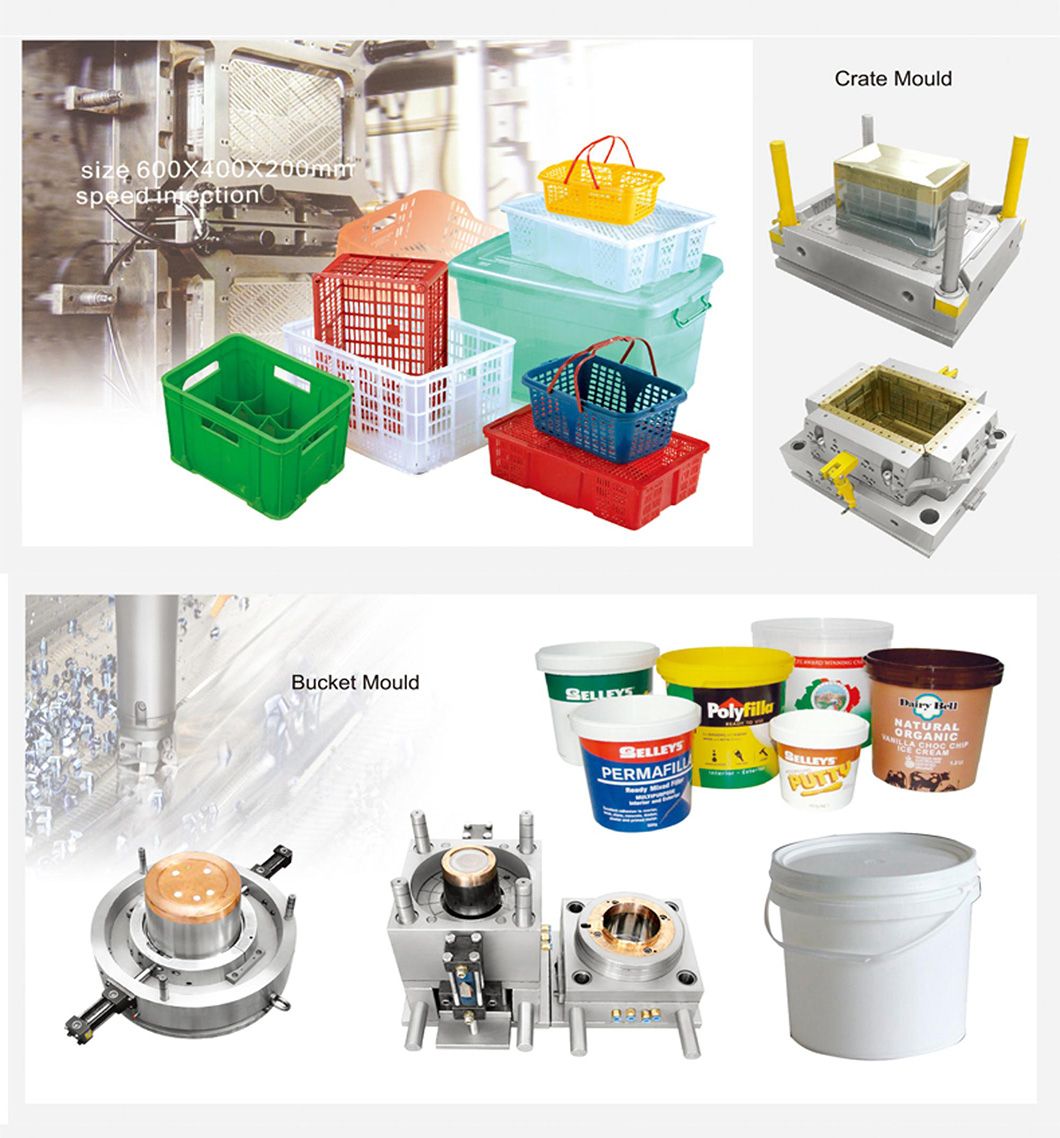

3.JT-STW series Plastic Injection Molding Machine is suitable to using PET Preform Mold, Plastic Cap Mold, Plastic Bottle Mold, Plastic Chair Mold, Plastic Fork Mold, Plastic Spoon Mold, Preform Mold for Jars, Transportation Plastic Pallet Mold to make all kinds of plastic products.
Our Injection molding machine ranges from 90T-1200T, with high precision and rigidity, fast respons and energy efficiency.

4.CONTROL SYSTEM:All-digital control system uses dedicated controller, multiple CPU processing division, a multi-functional automatic fault detection, alarm system, certificates 99 mold of processing procedures, with remote control interface. System is of high stability and responsiveness. System uses color LCD, man made interface for easy operation and with a number of peripheral interfaces.

Specifications:

	Model	Unit	JT-1200STW			JT-1400STW
Injection Unit	Screw Barrel Diameter	mm	38	42	46	42	45	50
	Screw L/D ratio	L/D	22.1	20	18.6	23.5	22	19.8
	Shot Volume	cm3	226	277	318	311	357	441
	Injection Weight(ps)	g	206	252	289	283	325	402
	Injection rate	cm3/sec	94	115	132	138	160	196
	Injection pressure	MPa	208	171	148	203	177	143
	Screw speed	rpm	220			190
Clamping Unit	Clamping Force	tons	120			140
	TOGGLR stroke	mm	380			435
	Space between tie bars(WxH)	mm	420*420			470*470
	Max.Mold hwig	mm	450			520
	Min.Mold Height	mm	160			180
	Ejector stroke	mm	120			135
	Ejector tonnage	kn	50			50
Other	Max.pump pressure	MPa	16			16
	Heater powre	KW	12			18.2
	Heater powre	KW	9.3			12.3
	Oil Tank Capacity	L	270			300
	Machine Weight	tons	4			5
	Machine Dimension(LxWxH)	m	4.481.331.9			5.041.432.12

Customized Plastic Bucket Injection Making Machine/Manufacturing Machine for Sale

Our Service(24hours online services for you !)

Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ:
Q1: Are you a trading company or a manufacture?
A1: We own a factory ourselves, and we can assure the good quality of the machine for you.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year
warranty of the spare parts, free of charge.

Q3: Why choose our company?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.

Q4: Where is your factory? How can visit you?
A4: Our factory is near to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: What's your Delivery Time?
A5: Usually it is 3-5 working days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
