Fce160-Pet Preform Injection Moulding Molding Machine IMM
Technical Parameter FCE 160 INJECTION UNIT ABCScrew Diametermm414551Theoretical Shot Volumecm2277334429Actual Shot Werght(PS)g255307395Injection Pressurempa223185144Screw L:D ratio 22.1;120.2;117.8;1Screw Strokemm210 CLAMPING UNIT Clamping ForceKN1600Opening Strokemm420Platen Sizemm*mm670*670S......
Send Inquiry
Product Description
Technical Parameter
Technical Characteristics

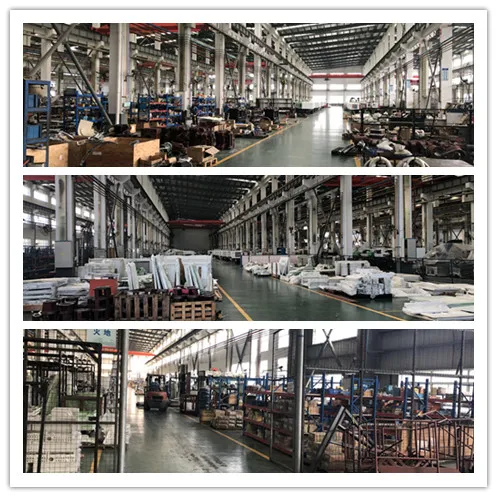

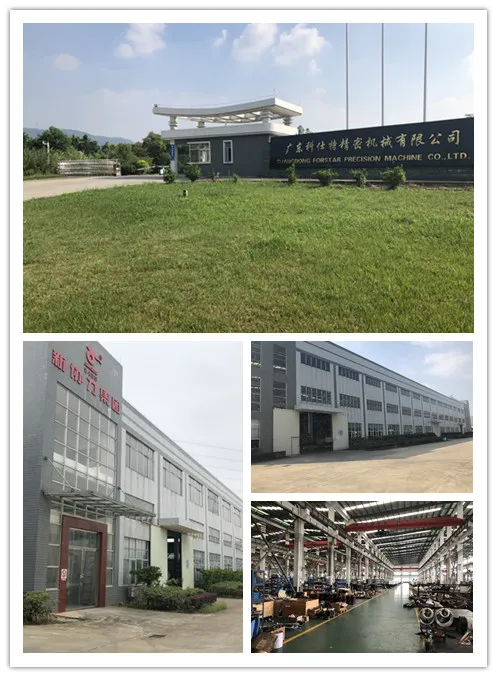

Our Factory

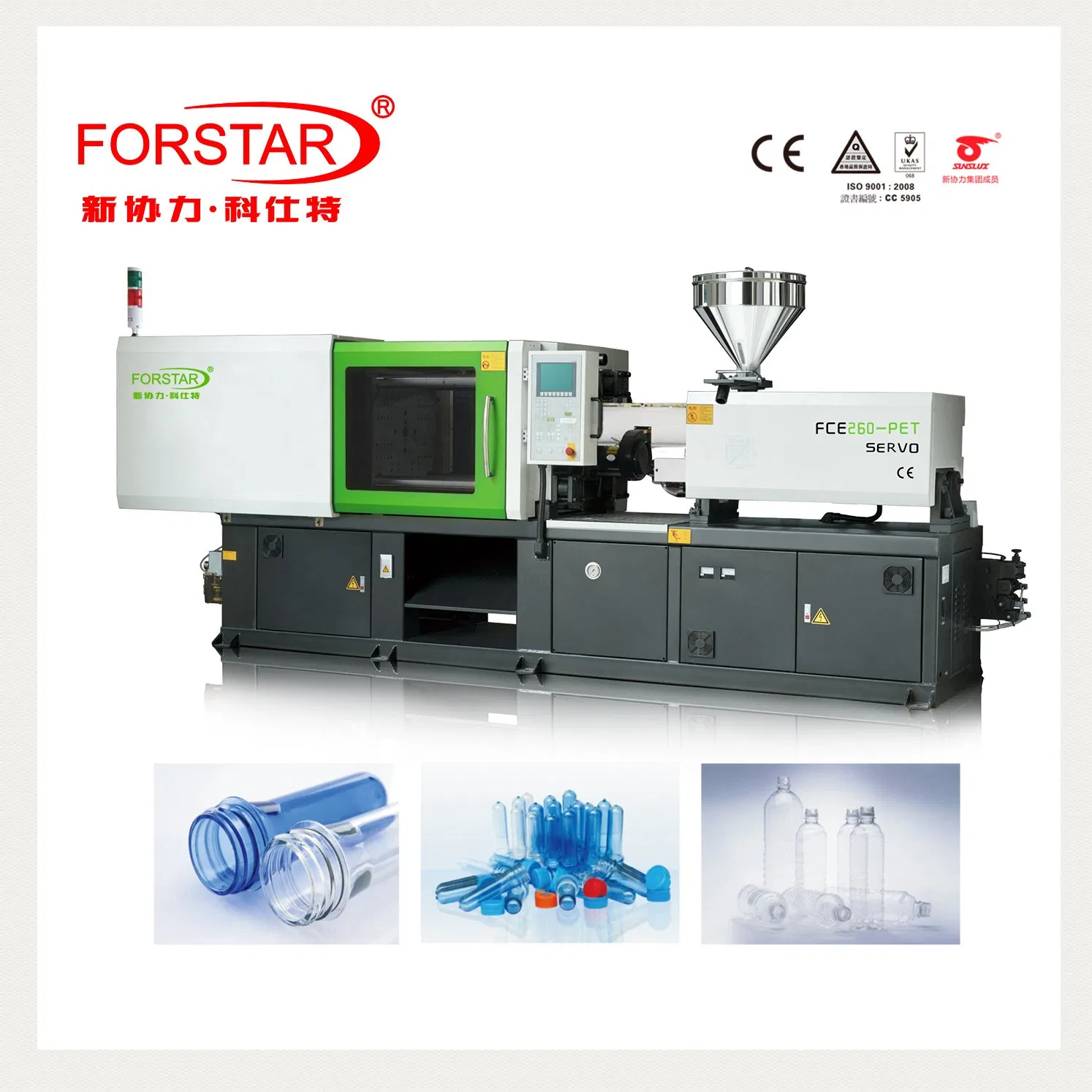

FORSTAR Injection Moulding Machine for PET Preform
Since 2007, Forstar has been dedicated on the research and development of special machines for PET bottle embryos. We have a professional technician who works on PET machine engineering for over 30 years , developed the fast normal FCE-PET series and high-speed FCE-PET series for your options. Special plasticizing system and power system guarantee the high efficiency, high speed, energy conservation during the production processing.
Forstar focuses on details of bottle embryos and make sure that the AA value and IV value of all moulded products are conforming to standard. The PET special machines made by Forstar are worth choosing and will bring you great benefit.
Feature includes,
* equipped with an advanced load sensitive proprotional variable pump which reduces 30% - 50% power consumption, comparing to regular hydraulic systems.
* Larger ejection stroke and ejection force, suitable for long PET preform production.
* High precision linear transiducer controlled the tolerance within 0.1mm
* PET special screw ensures excellent plasticizing quality
Latest Information--2019
Our Services & Other
1. Reply the email and take action in 24 hours.
2.100% Quality inspection before the shipment.
4. Auxiliary machines for complete line.
5. Customized design as requirements
| FCE 160 | ||||
| INJECTION UNIT | ||||
| A | B | C | ||
| Screw Diameter | mm | 41 | 45 | 51 |
| Theoretical Shot Volume | cm2 | 277 | 334 | 429 |
| Actual Shot Werght(PS) | g | 255 | 307 | 395 |
| Injection Pressure | mpa | 223 | 185 | 144 |
| Screw L:D ratio | 22.1;1 | 20.2;1 | 17.8;1 | |
| Screw Stroke | mm | 210 | ||
| CLAMPING UNIT | ||||
| Clamping Force | KN | 1600 | ||
| Opening Stroke | mm | 420 | ||
| Platen Size | mm*mm | 670*670 | ||
| Space Between Tie Bars | mm*mm | 460*460 | ||
| Max.Daylight | mm | 920 | ||
| Mold Thickness(Min.Max) | mm | 160-500 | ||
| Hydraulic Ejection Strike | mm | 140 | ||
| Hydraulic Ejection Force | kn | 42 | ||
| Unmber of Ejector | 5 | |||

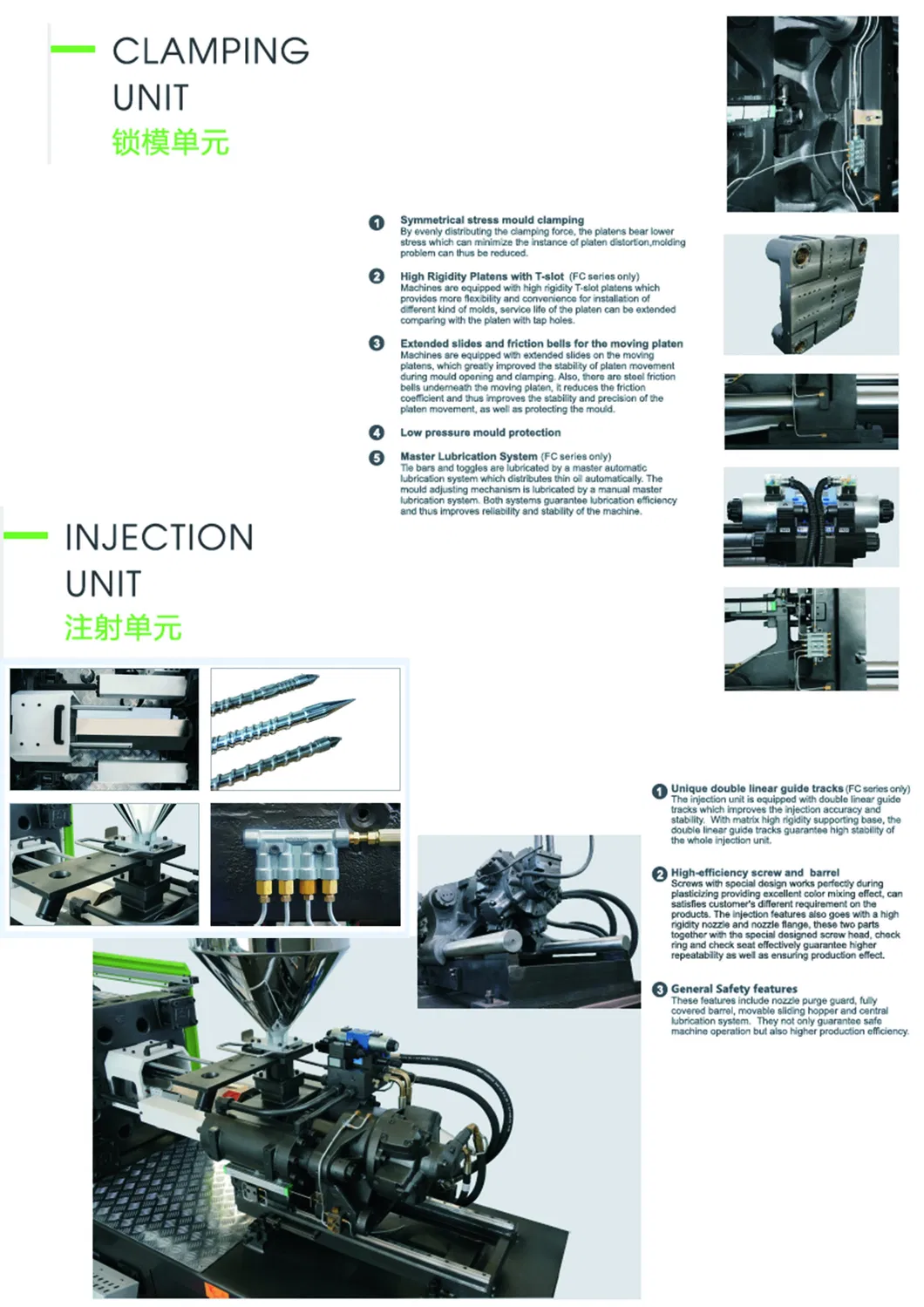

Technical Characteristics
Our Factory
FORSTAR Injection Moulding Machine for PET Preform
Since 2007, Forstar has been dedicated on the research and development of special machines for PET bottle embryos. We have a professional technician who works on PET machine engineering for over 30 years , developed the fast normal FCE-PET series and high-speed FCE-PET series for your options. Special plasticizing system and power system guarantee the high efficiency, high speed, energy conservation during the production processing.
Forstar focuses on details of bottle embryos and make sure that the AA value and IV value of all moulded products are conforming to standard. The PET special machines made by Forstar are worth choosing and will bring you great benefit.
Feature includes,
* equipped with an advanced load sensitive proprotional variable pump which reduces 30% - 50% power consumption, comparing to regular hydraulic systems.
* Larger ejection stroke and ejection force, suitable for long PET preform production.
* High precision linear transiducer controlled the tolerance within 0.1mm
* PET special screw ensures excellent plasticizing quality
Latest Information--2019
Our Services & Other
1. Reply the email and take action in 24 hours.
2.100% Quality inspection before the shipment.
4. Auxiliary machines for complete line.
5. Customized design as requirements
