Forstar FC120V Injection Moulding Molding Machine 120ton IMM
FORSTAR Injection Moulding Machine (FC, FCE series)FC, FCE series is a high-end plastic injection moulding machine newly developed by Forstar after uears of R&D and practical experiment. It is developed on the basis of the FST series with introduction of advanced European technique and apperance......
Send Inquiry
Product Description
FORSTAR Injection Moulding Machine (FC, FCE series)
FC, FCE series is a high-end plastic injection moulding machine newly developed by Forstar after uears of R&D and practical experiment. It is developed on the basis of the FST series with introduction of advanced European technique and apperance style. It keeps the advantages of efficiency, precision, energy conservation and stability of FST series while optimized thoroughly.
The features includes,
* Advance Control system
* High Rigidity Platens with T-slots (FC series)
* Extended slides fand friction bells for the moving platen
* Symmetrical Stress Mould Clamping
* Master Lubrication System (FC series)
Some photos and specification is attached below, Please contact us for more information.

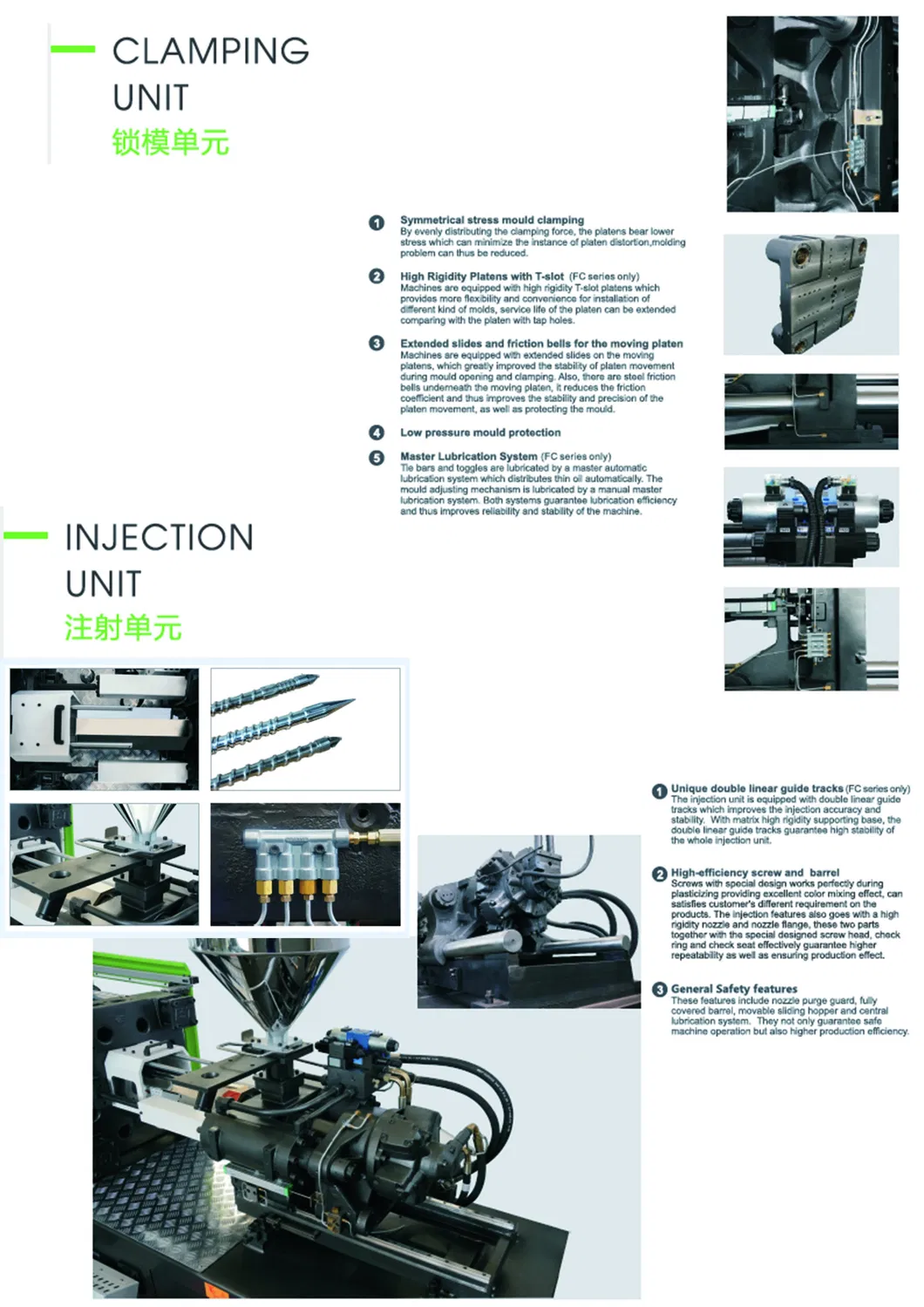

Technical Characteristics

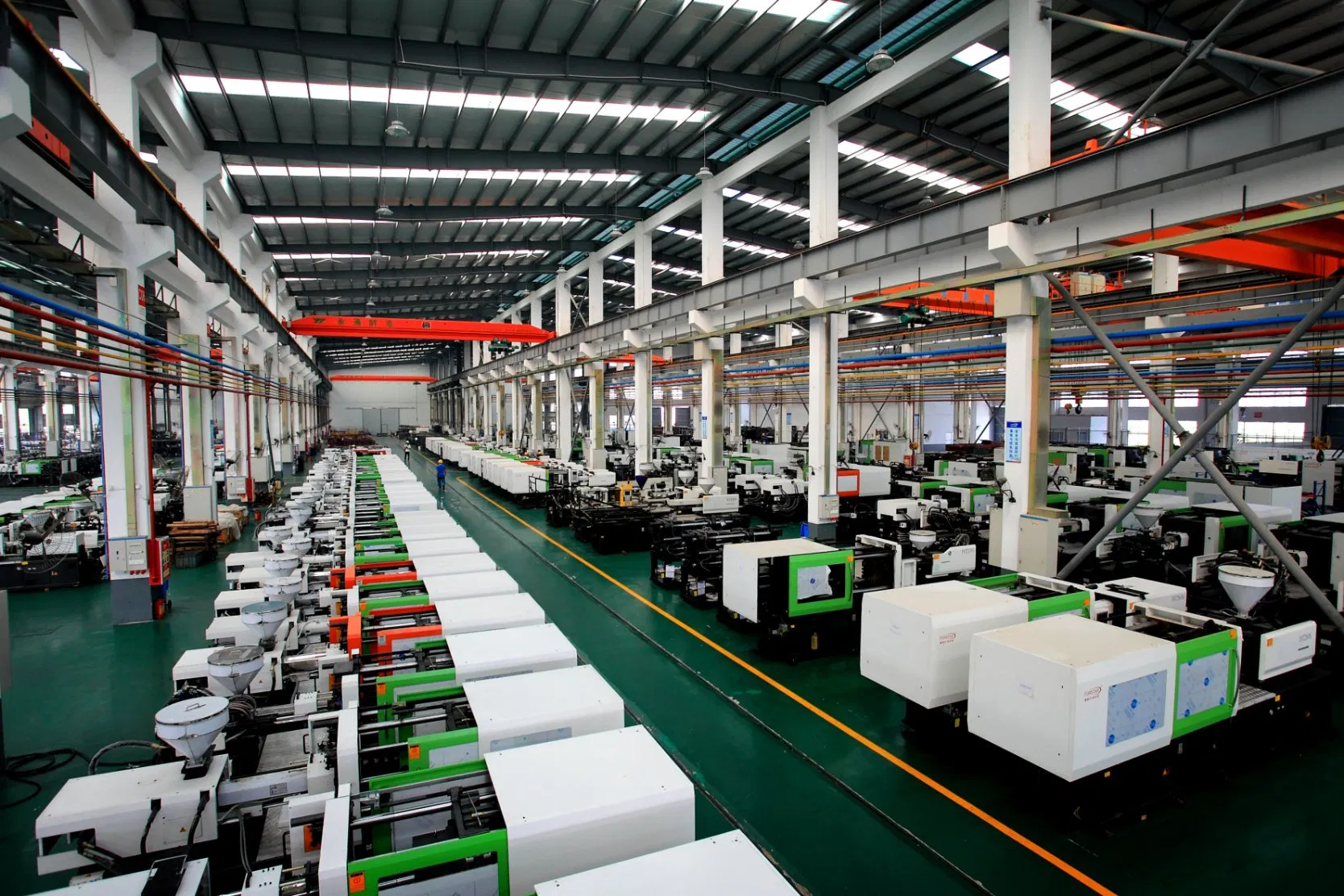

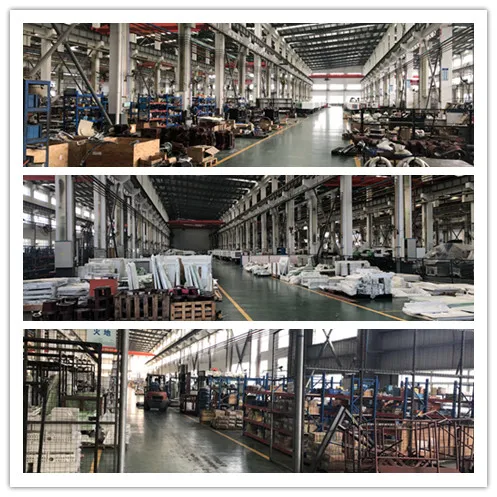

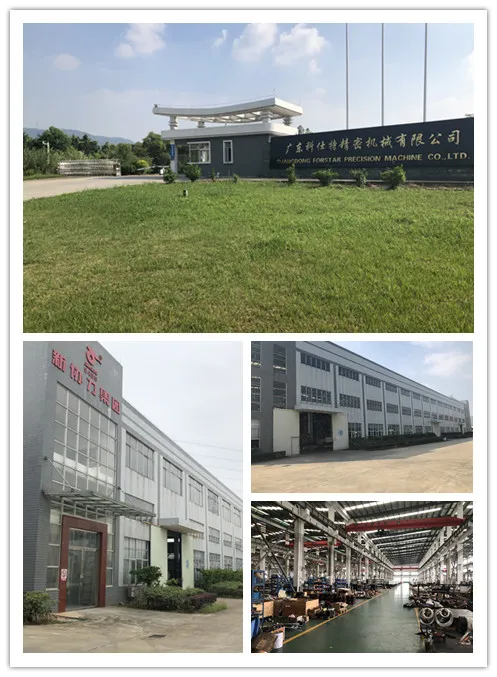

Our Factory
Latest Information--2019
Our Services & Other
1. Reply the email and take action in 24 hours.
2.100% Quality inspection before the shipment.
4. Auxiliary machines for complete line.
5. Customized design as requirements
FC, FCE series is a high-end plastic injection moulding machine newly developed by Forstar after uears of R&D and practical experiment. It is developed on the basis of the FST series with introduction of advanced European technique and apperance style. It keeps the advantages of efficiency, precision, energy conservation and stability of FST series while optimized thoroughly.
The features includes,
* Advance Control system
* High Rigidity Platens with T-slots (FC series)
* Extended slides fand friction bells for the moving platen
* Symmetrical Stress Mould Clamping
* Master Lubrication System (FC series)
Some photos and specification is attached below, Please contact us for more information.
Technical Parameter
| FC 120 V | ||||
| INJECTION UNIT | ||||
| A | B | C | ||
| Screw Diameter | mm | 35 | 41 | 45 |
| Theoretical Shot Volume | cm2 | 180 | 247 | 297 |
| Actual Shot Werght(PS) | g | 165 | 227 | 273 |
| Injection Pressure | mpa | 227 | 166 | 138 |
| Screw L:D ratio | 23.7;1 | 20.2;1 | 18.4;1 | |
| Screw Stroke | mm | 187 | ||
| CLAMPING UNIT | ||||
| Clamping Force | KN | 1200 | ||
| Opening Stroke | mm | 360 | ||
| Platen Size | mm*mm | 600*600 | ||
| Space Between Tie Bars | mm*mm | 410*410 | ||
| Max.Daylight | mm | 810 | ||
| Mold Thickness(Min.Max) | mm | 145-540 | ||
| Hydraulic Ejection Strike | mm | 120 | ||
| Hydraulic Ejection Force | kn | 42 | ||
| Unmber of Ejector | 5 | |||
Technical Characteristics
Our Factory
Latest Information--2019
Our Services & Other
1. Reply the email and take action in 24 hours.
2.100% Quality inspection before the shipment.
4. Auxiliary machines for complete line.
5. Customized design as requirements
