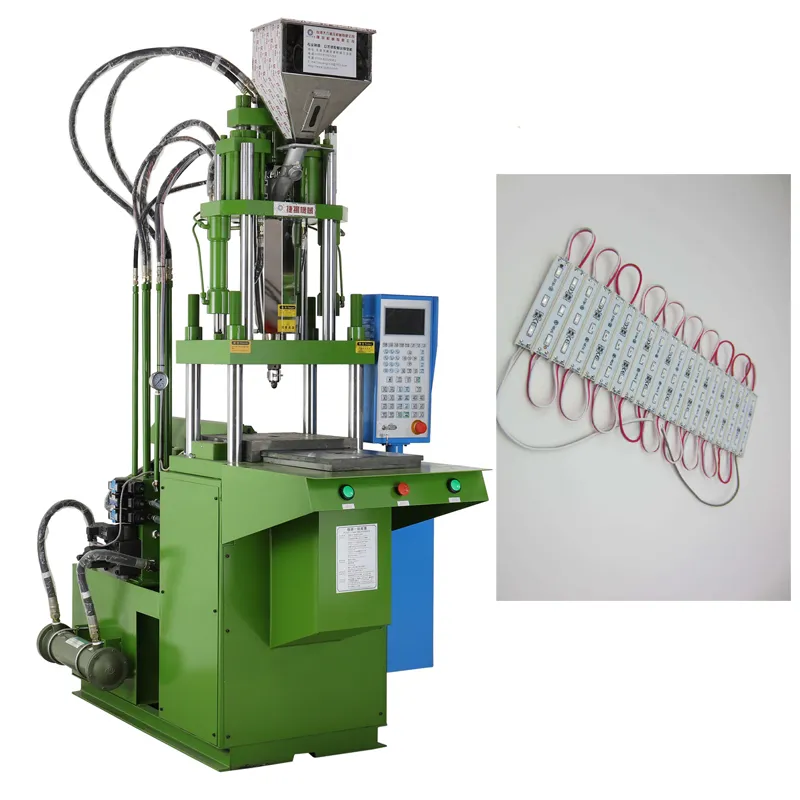

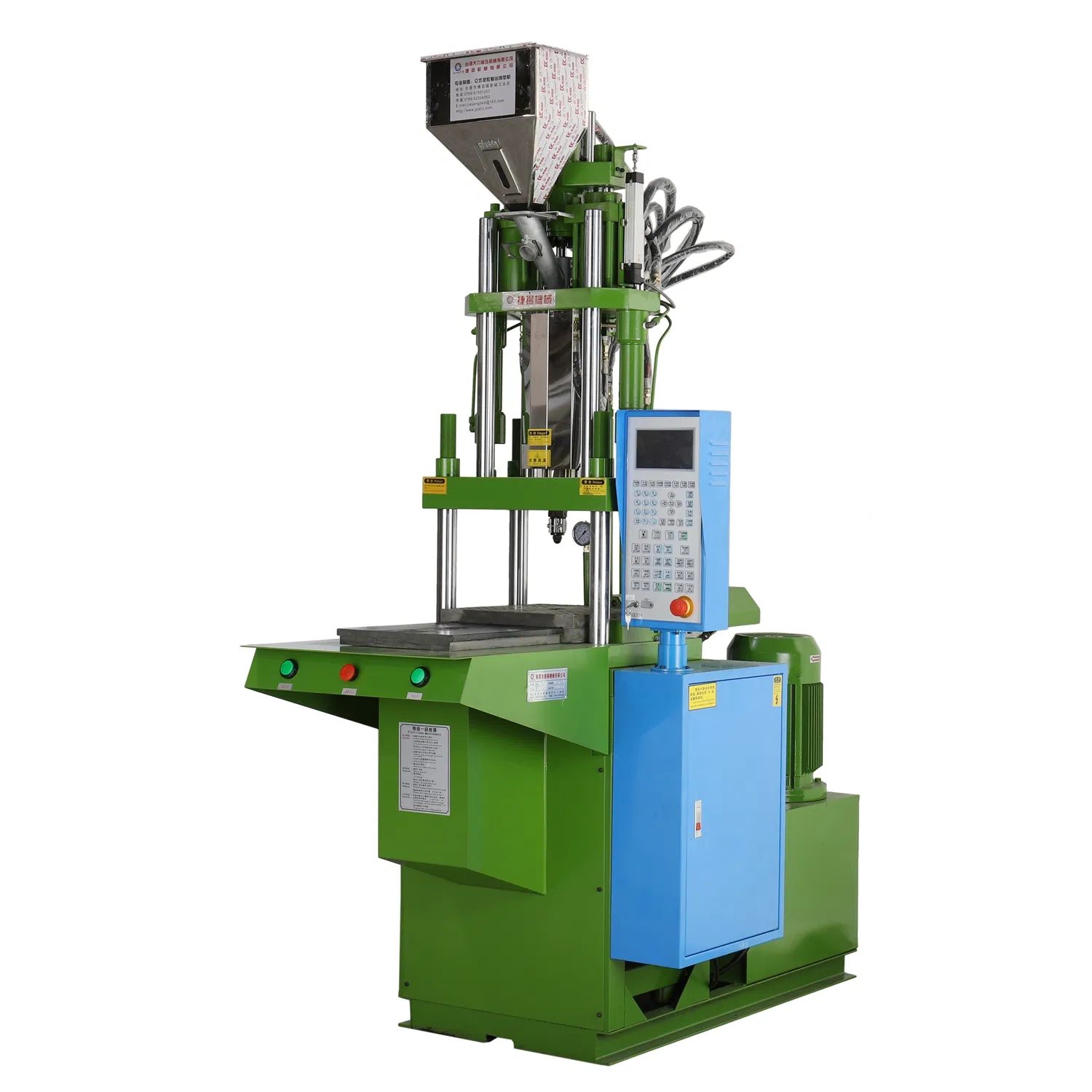

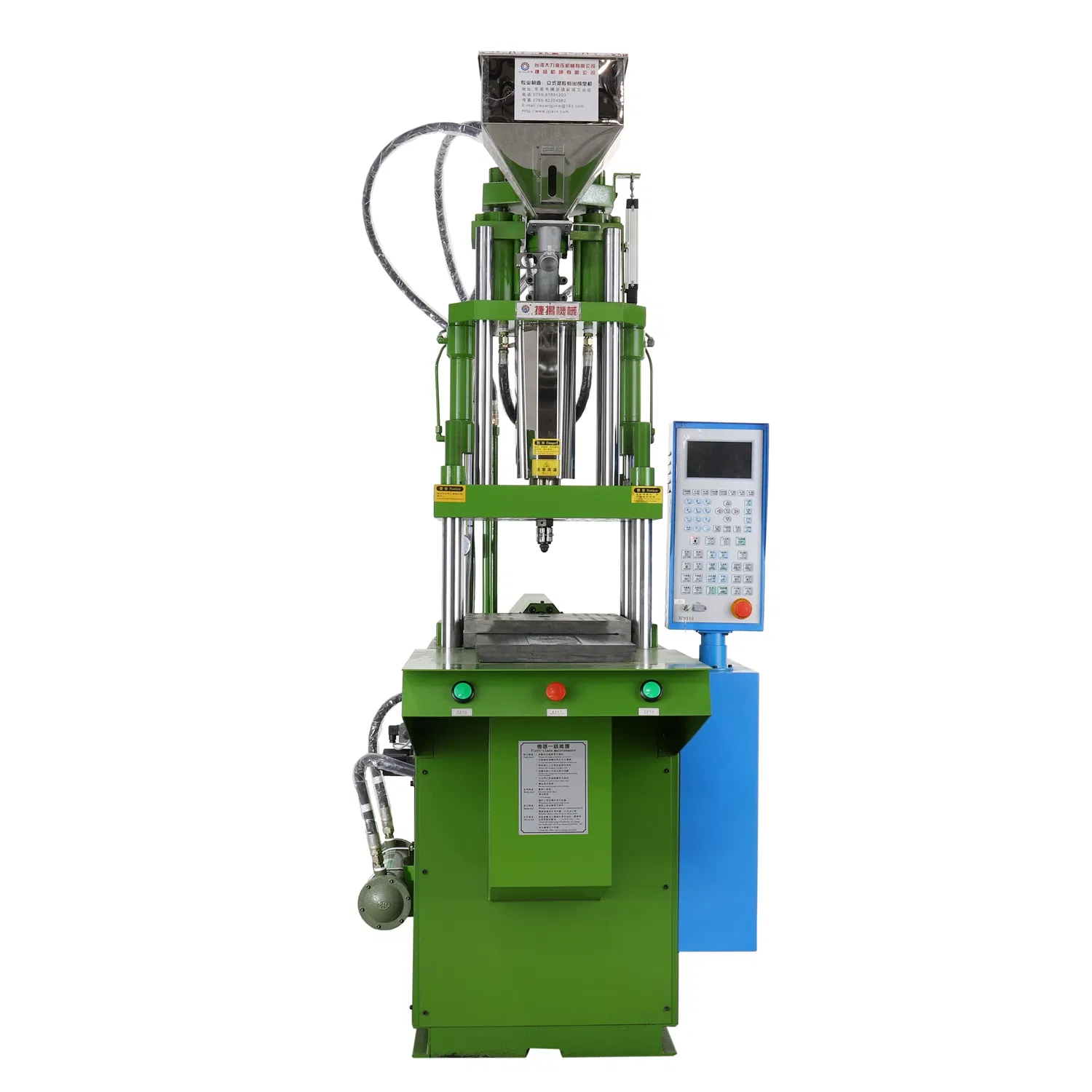

Full Automatic 85ton Module Injection Molding Machinery Equipment

Dongguan JieYang Machinery Co., Ltd is established in 2010, located in the Xinsi Industrial Zone of Hengli Town with a planted area of 3,500 square meters. We are specialized in manufacturing the vertical injection molding machines with proficient skills and professional team for more than 20 years.
With the rapid growth of the business, JieYang created the 1^st overseas office in Vietnam in order to offer best service in 2015. Our machines are mainly sold in Southeast Asia, South Asia, Middle East, Russia, Africa, South America, Europeans and North America. We have established a reliable brand in the industry.
"Customer Satisfaction, Continual Improvement & Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
We have professional engineers team who can design suitable vertical injection molding machines according to your requests. If you need us to customize the machine for you, please tell us some information about this:
1) the size of the mold/mould? the product pictures?
2) How many products are made in one mold / mould ? how many gram per product ?
3) What's the material will be used for the products: Plastic, Rubber, PP,ABS, PE, PVC, Silicon, etc ?





Machine Features:
1.In standard machine installs single sliding mold.After operates the mold to complete,the satamping die automatically slips to the operator front,is goes against also completes in exterior.
2.The multistage temperature control,the multistage projects the pressure with to project the speed,projects the back pressure not to have the section adjust ment,suits each kind of precise revertex compnoents taking shape
3.The screw rod L/D ratio is big,is suitable the sepcial engineering plastics.
4.May expand the computer formula and the automation takes out inserts the equipment segment,may achieve the entire automation the design.
5.Closed mold the straight pressure formula under lock mold cylinder design can fast drop gathers the mold and the idling speed lowly press fits the mold,to the mold service life,can be lasting.
6.Projects uses the two cylinder balance like to project the system,projects steadily is powerful.
7.Electrically controlled may move the gang to bond the demonstration,the convenient gang bonds removes with the service.
8.Servo motor series can be selected according to the customer needs.
9.Screw and clamping force can be selected to use.

Parameter of Machine:

JY-450ST-D Technique specification
Model			Units	JY-450ST-D
Injection  System	Screw Diameter		mm	30	32	34
	Theoretical Injection Volume		cm3	98.9	112.5	127
	Injection Weight(PS)		g(oz)	93.5(3.3)	106.3(3.75)	120(4.23)
	Max.Injection Pressure		Mpa(kgf/cm2)	170.8(1742)	150(1531)	133(1356)
	Injection Rate		cm3/s	53	60.3	72
	SInjection Speed		mm/s	75
	Injection Stroke		mm	140
Clamping  System	Clamping Force		KN(tf)	441(45)
	Clamping Stroke		mm	200
	Min.Mold Thickness		mm	120/220
	Max,Opening		mm	200
	Distance Between Tie Bars		mm	410*250
	Max.Mould Size		mm	350*350
	Slide Size		mm	390*420
	Ejector Distance		mm	85
Others	System Pressure		Mpa(kgf/cm2)	13.7(140)
	Oil Tank Capacity		L	120
	Electric Power		KW(HP)	5.5(7.5)
	Heater Power		KW	3.4
	Machine Dimensions		m	1.72*1.1*2.26
	Machine Weight		tf	1.8

Application:
Electronic Components, power cords electronic connectors plugs and cables .Auto industry Lamp reflector - Large parts of hood ,and rear doors,electric heating box,engine hood,horn box,big lamp shell and branch electric head . .Precision parts etc

Packing & Shipping:
1.  Before shipping,we will check and test the machine carfully.
2.  We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3.  According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us.


RFQ:
Q1: Are you a trading company or a manufacturer?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have  one year  warranty of the spareparts, free of charge.

Q3: Why choose Jieyang  Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
