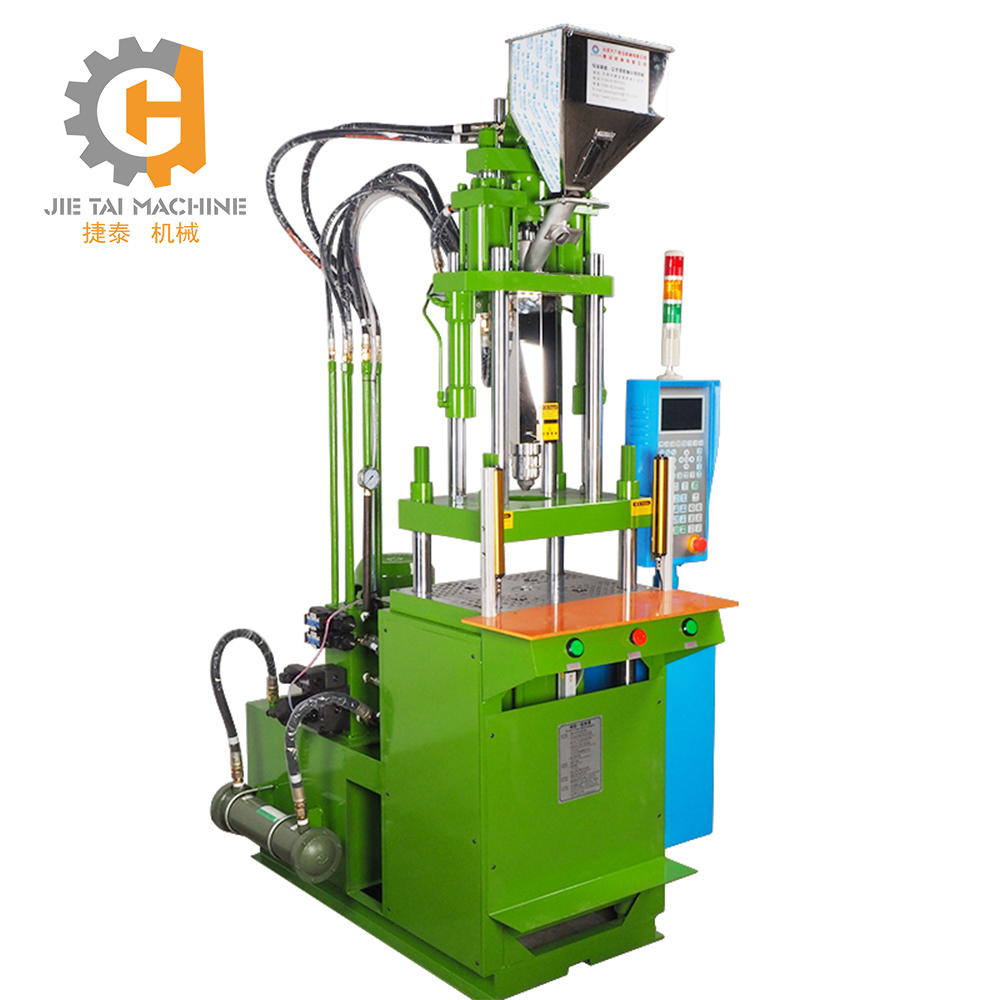

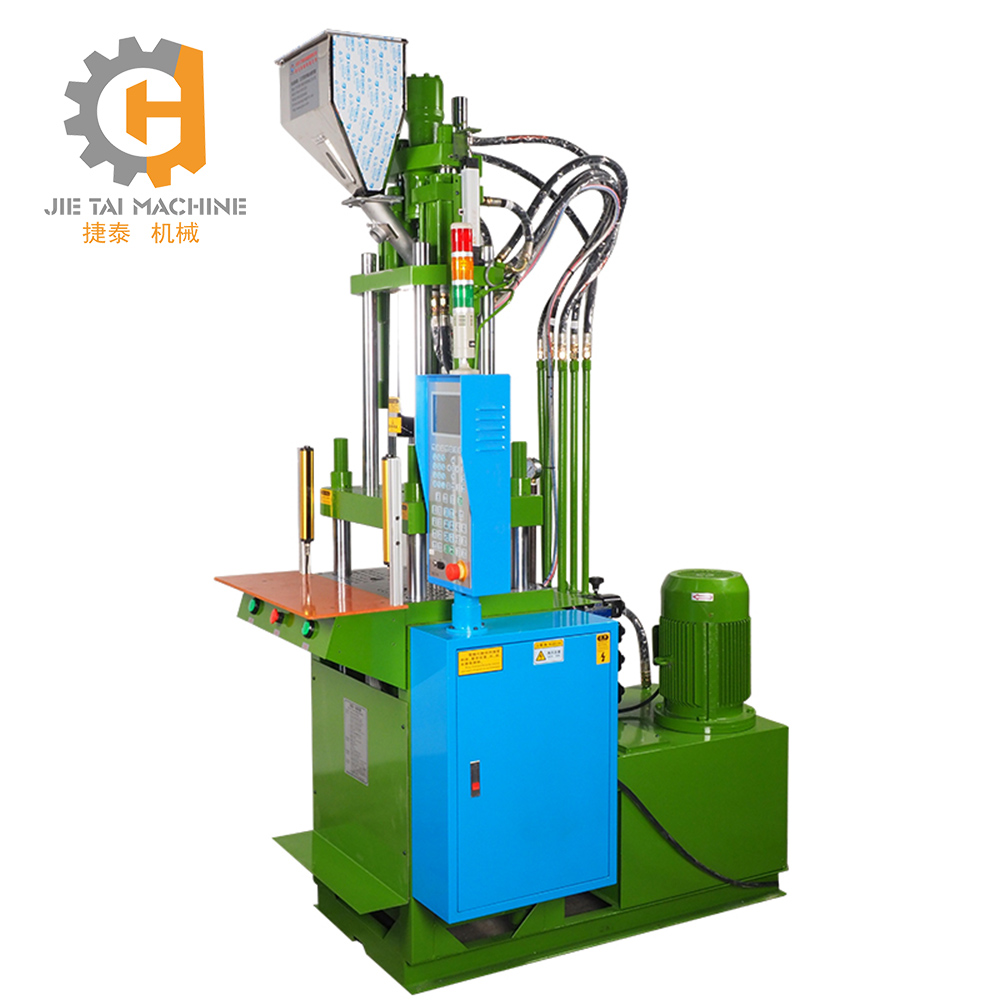

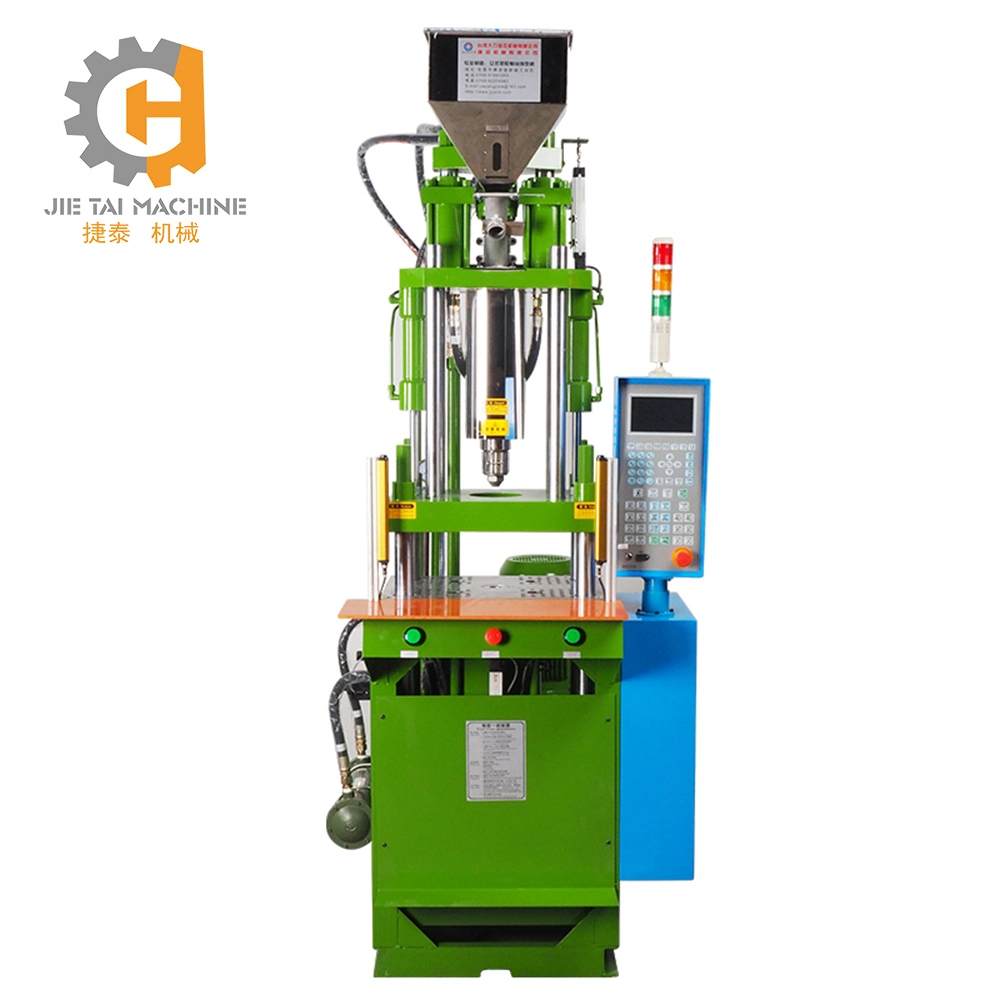

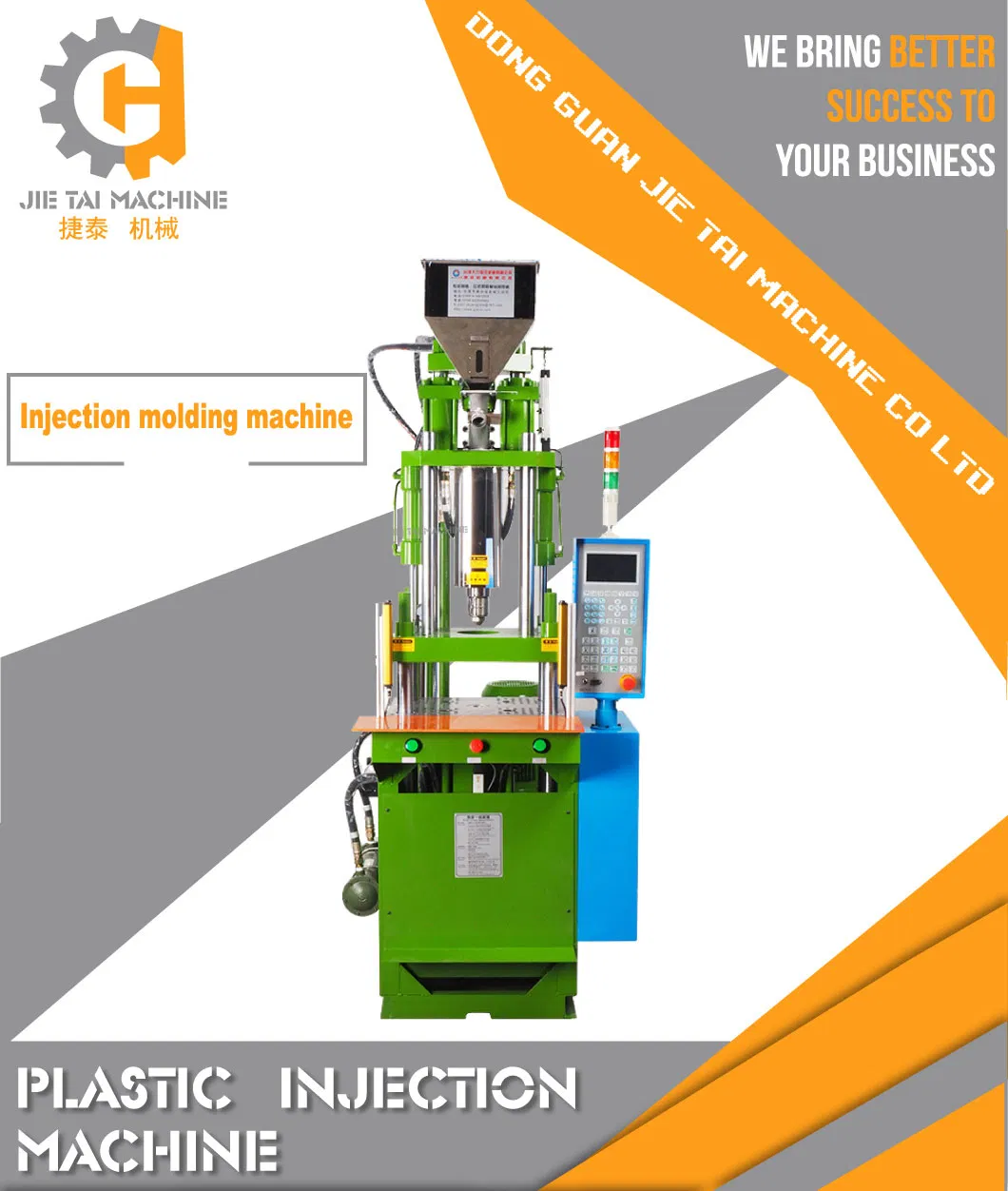

Micro/USB Plastic Injection Moulding Molding Machine

Product Description

Micro/USB/Mini Plastic Injection Moulding Molding Machine

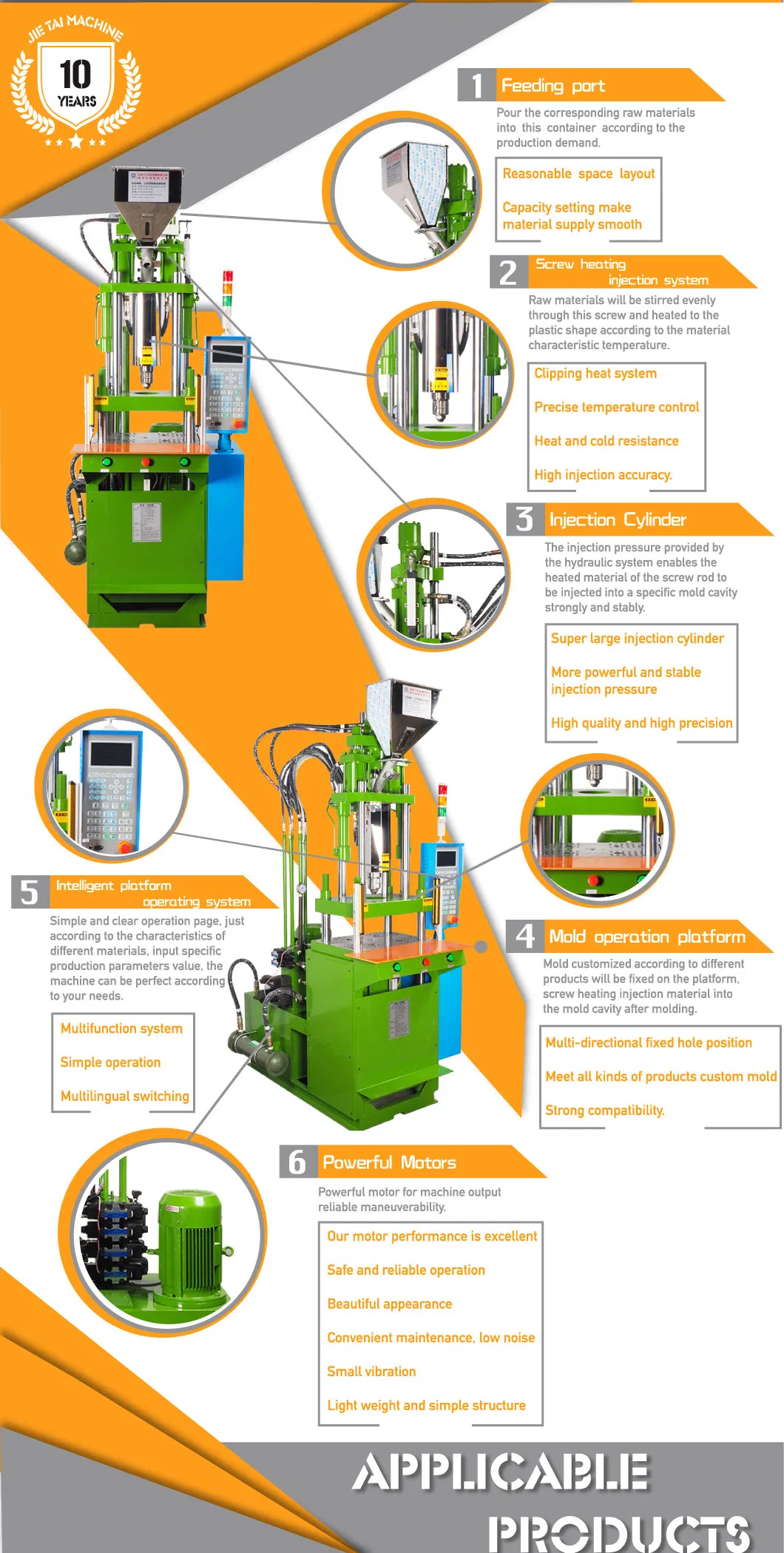

The features of USB cable plug molding machine as followings :
1.Straight screw ejected assembly.
2.Two(three)-phase temperature ejected speed,backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes instered objecteds excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the saety of die.
5.Adopting LCD display.

Specifications:

	Model	Unit	JT-200ST
Injection Unit	Screw Barrel Diameter	mm	26	28
	Injection Pressure	kg/cm2	1019	896
	Max. Shot Weight	gram	58	67
	Max. Shot Weight	cm3/sec	67	76.7
	Screw Barrel Route	mm	105
	Screw Barrel Rotary Speed	rpm	0-200
	Nozzle Contact Force	tons	4.45
	Nozzle Retraction Nozzle	mm	130
	Number of Temperature Control	pcs	2
Clamping Unit	Clamping Force	tons	25
	Platen Size	mm	480*310
	Distance Between Tie Bere	mm	310*170
	Min. Mold Height	mm	100/60
	Opening Stroke	mm	180
	Max. Opening Mold Distance	mm	280/80
	Ejetor Force	tons	1.3
	Ejetor Stoke	mm	35
Power/Heading Unit	Max. Hydraulic Pressure	kg/cm2	140
	Pump Output	L/min	29.5
	Oil Resservoir Capacity	Liter	100
	Cooling Water Consumption	L/hr	400-600
	Pump Motor Power	kw/hp	3.75/5HP
	Barrel Heating Power	kw	1.8
	Total Power	kw	5.5
Other	Machine Weight	tons	0.68
	Machine Dimension(LxWxH)	meter	1.40.902.37
	Shipping Weight	tons	0.88
	Shipping Measurements(LxWxH)	meter	1.491.082.25

Micro/USB Plastic Injection Moulding Molding Machine

Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ:
