The Price of a Used Injection Molding Machine 20 Ton

Product Description

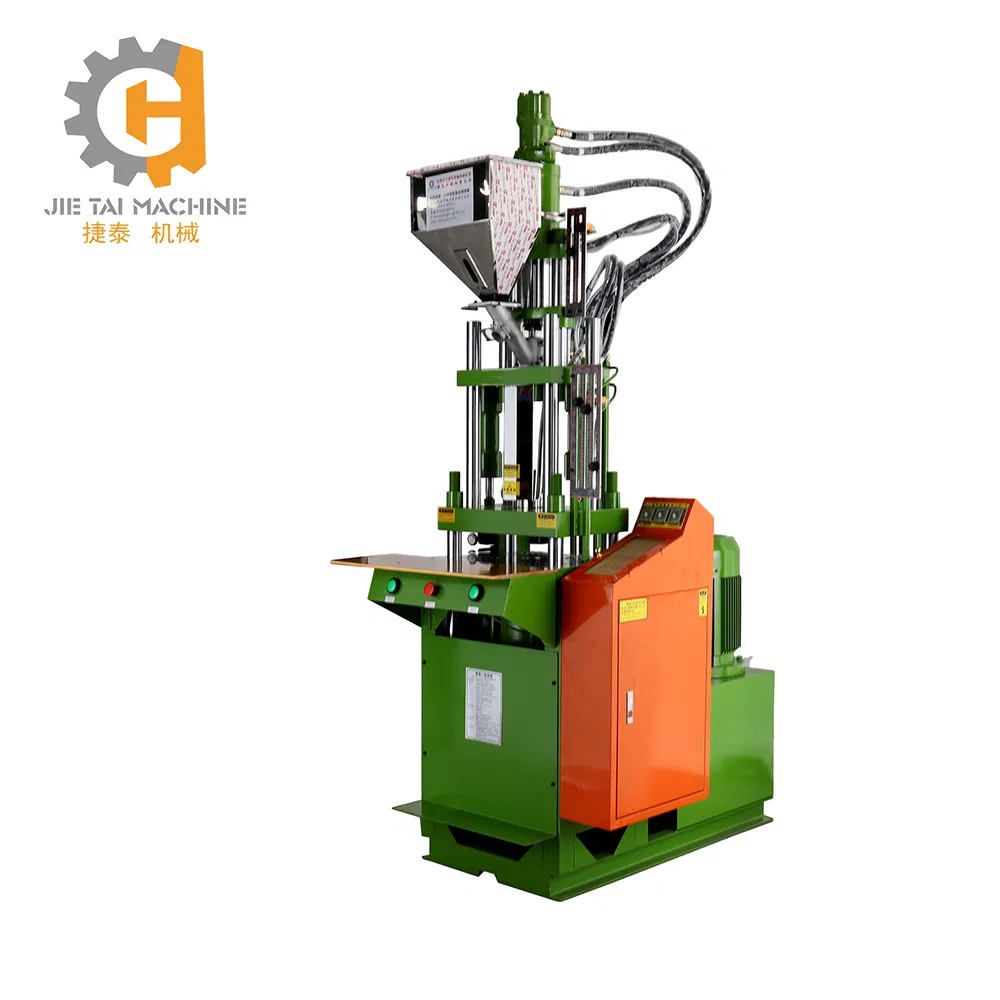

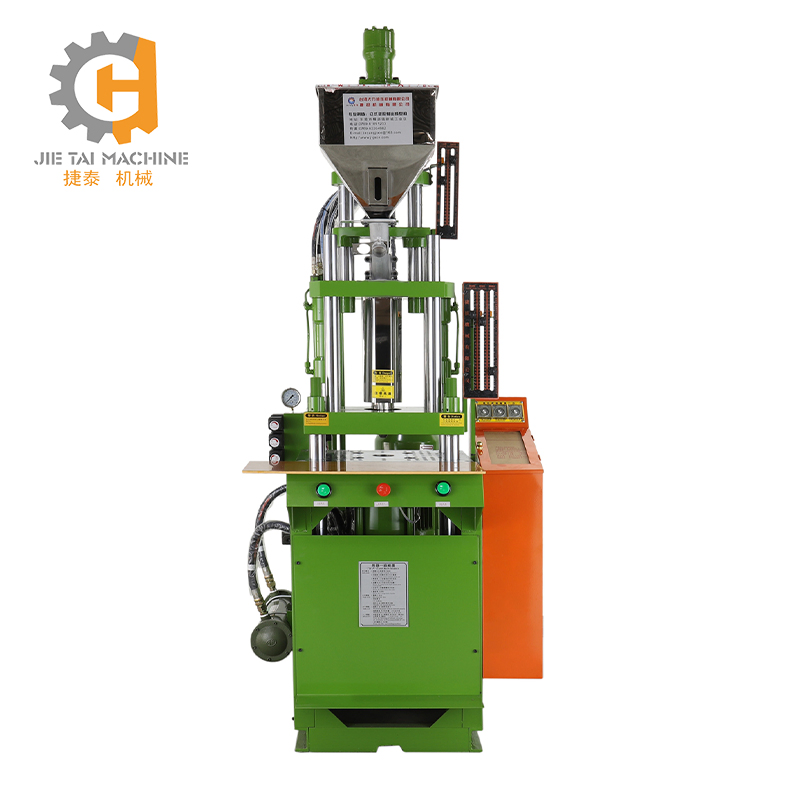

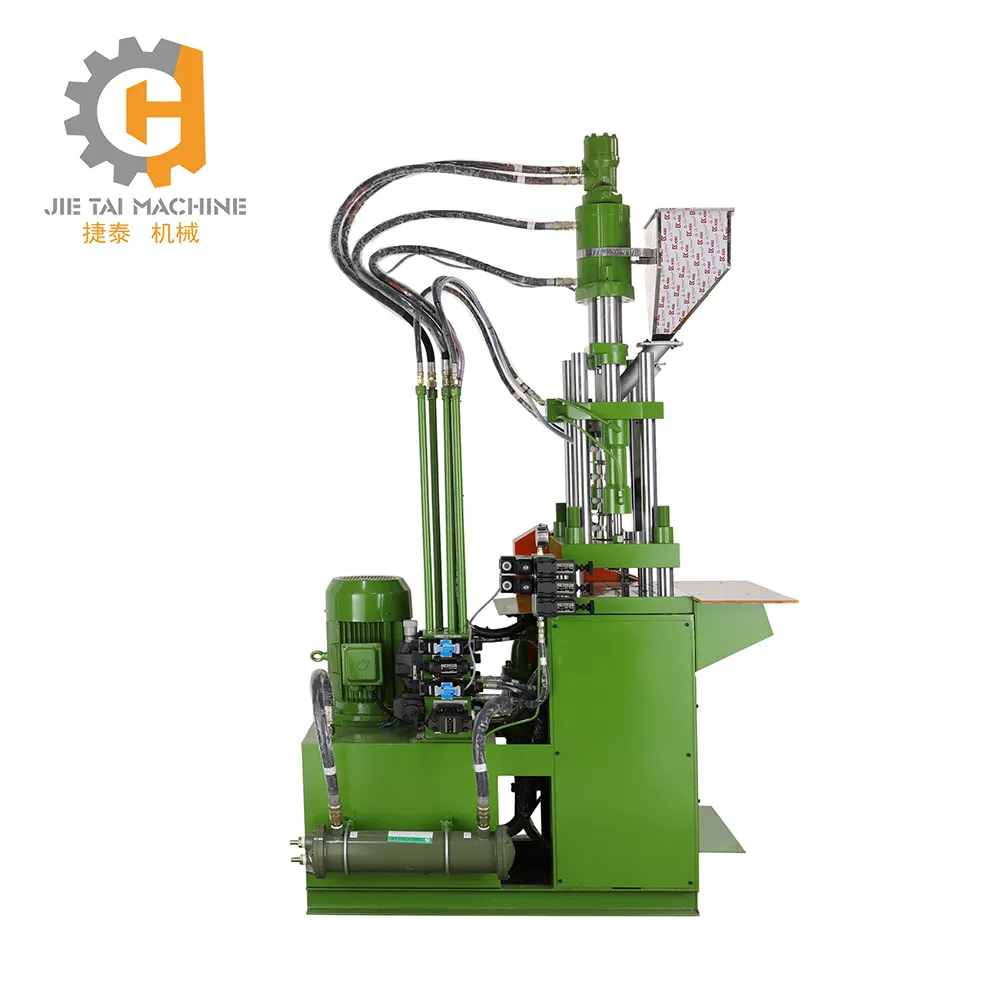

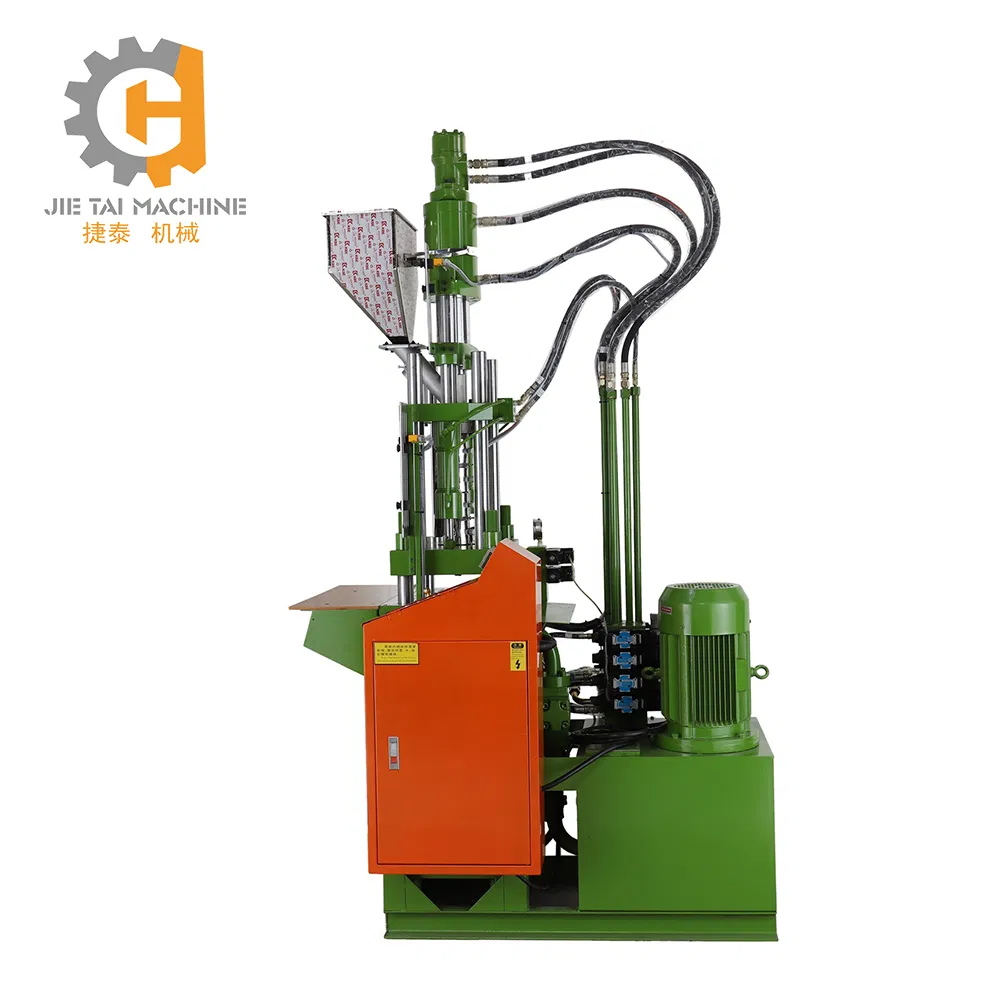

The price of a used injection molding machine 20 ton

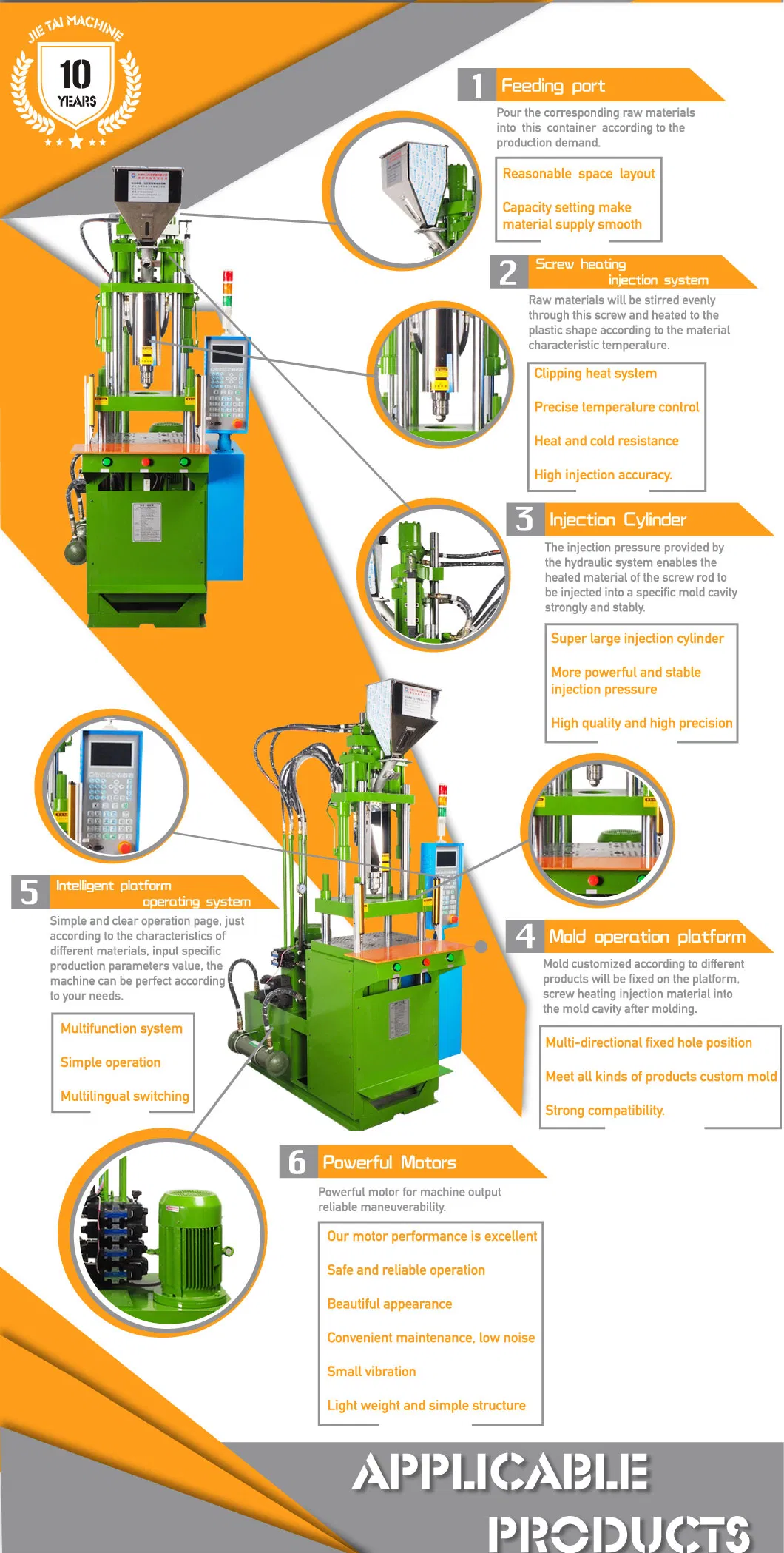

The features of USB cable plug molding machine as followings :
1.Straight screw ejected assembly.
2.Two(three)-phase temperature ejected speed,backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes instered objecteds excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the saety of die.
5.Adopting LCD display.

Specifications:

	Model	Unit	JT-200ST		JT-250ST
Injection Unit	Screw Barrel Diameter	mm	26	28	26	28
	Injection Pressure	kg/cm2	1183	1019	1019	896
	Max. Shot Weight	gram	50	58	58	67
	Max. Shot Weight	cm3/sec	34.6	40	67	76.7
	Screw Barrel Route	mm	105		105
	Screw Barrel Rotary Speed	rpm	0-215		0-200
	Nozzle Contact Force	tons	4.45		4.45
	Nozzle Retraction Nozzle	mm	130		130
	Number of Temperature Control	pcs	2		2
Clamping Unit	Clamping Force	tons	20		25
	Platen Size	mm	450*280		480*310
	Distance Between Tie Bere	mm	265		310*170
	Min. Mold Height	mm	100/25		100/60
	Opening Stroke	mm	190		180
	Max. Opening Mold Distance	mm	290/215		280/80
	Ejetor Force	tons	1.3		1.3
	Ejetor Stoke	mm	35		35
Power/Heading Unit	Max. Hydraulic Pressure	kg/cm2	140		140
	Pump Output	L/min	17.5		29.5
	Oil Resservoir Capacity	Liter	80		100
	Cooling Water Consumption	L/hr	400-600		400-600
	Pump Motor Power	kw/hp	2.2/3HP		3.75/5HP
	Barrel Heating Power	kw	1.8		1.8
	Total Power	kw	4.2		5.5
Other	Machine Weight	tons	0.45		0.68
	Machine Dimension(LxWxH)	meter	1.350.922.06		1.40.902.37
	Shipping Weight	tons	0.6		0.88
	Shipping Measurements(LxWxH)	meter	1.31.02.23		1.491.082.25

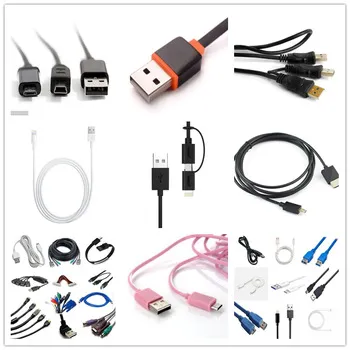

Application:

The Price of a Used Injection Molding Machine 20 Ton

Our Service(24hours online services for you !)

Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

RFQ:
Q1: Are you a trading company or a manufacture?
A1: We own a factory ourselves, and we can assure the good quality of the machine for you.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year
warranty of the spare parts, free of charge.

Q3: Why choose our company?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.

Q4: Where is your factory? How can visit you?
A4: Our factory is near to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5:When can I get my machine after I paid?
A5:We will deliver the machines on time as the date we agreed both side.
