Top 10 PVC Injection Molding Machine Manufacturers From China
top 10 pvc injection molding machine manufacturers from chinaFunction:1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time,......
Send Inquiry
Product Description
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.

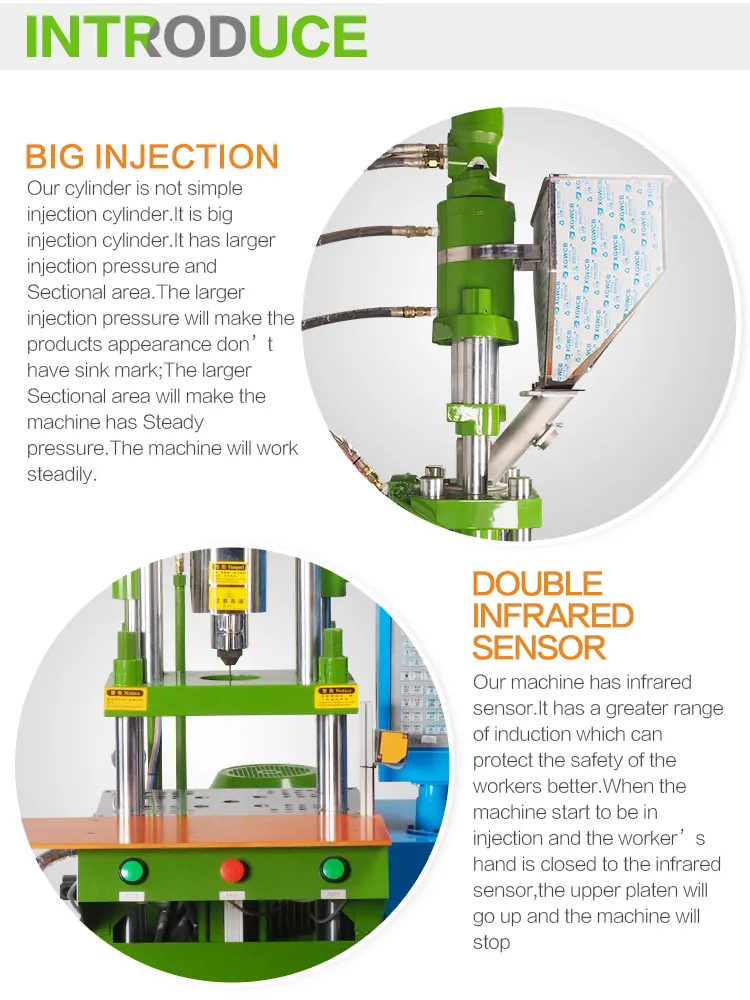

3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.

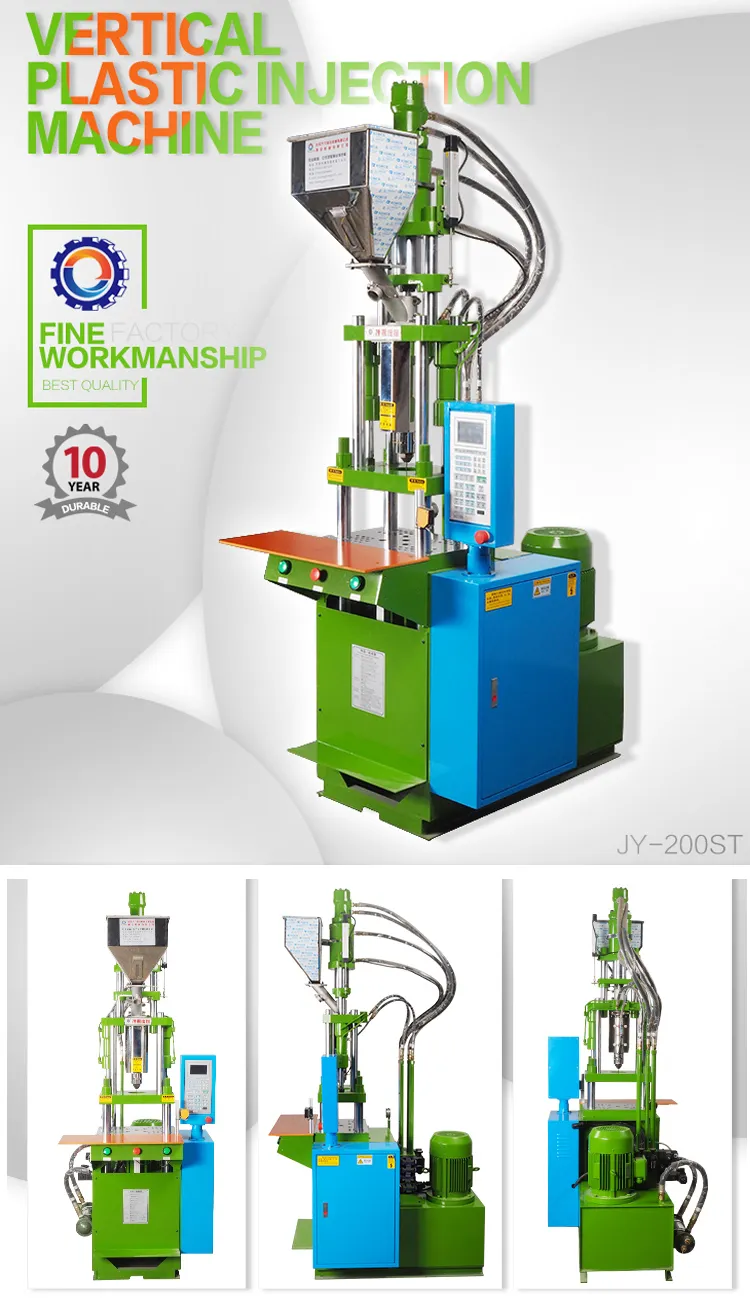

Machines Details:
top 10 pvc injection molding machine manufacturers from china
Parameter of Machine:
| JY-200ST Technique specification | |||||
| Model | Units | JY-200ST | |||
Injection System | Screw Diameter | mm | Φ22 | Φ26 | Φ28 |
| Injection Pressure | Kg/cm2 | 1648 | 1180 | 1017 | |
| Theoretical Shot volume | cm3 | 44 | 61.5 | 71.4 | |
| Max. Shot Weight(P.S) | g | 41.6 | 58 | 67.5 | |
| Injection Stroke | mm | 116 | |||
| Max.Screw speed | rpm | 0-190 | |||
| Temperature Control | ZONE | 2 | |||
Clamping System | Clamping Force | T | 20 | ||
| Platen Size | mm | 440*280 | |||
| Distance Between Tie Bare | mm | 315*165 | |||
| Min Mold Height | mm | 60/160 | |||
| Opening Stroke | mm | 185 | |||
| Max. Open Daylight | mm | 245/345 | |||
| Ejector Force | T | 1.3 | |||
| Ejector stroke | mm | 25 | |||
Hydraulic System | Max. Hydraulic Pressure | Kg/cm2 | 140 | ||
| Pump Motor Power | Kw | 3 | |||
| Barrel Heating Power | Kw | 2.2 | |||
| Total Wattage | Kw | 5.2 | |||
Others | Machine Dimensions (L*W*H) | m | 1.28*0.85*2.1 | ||
| Machine Weight | T | 0.8 | |||
| Key Parts List | |||
| Part Name | Brand | Original of Country | Features |
| Computer | Star Denshi | Japan | High Precise Control, sensitive response, TFT Color display |
| Servo Motor | YASKAWA | Japan | Energy Saving |
| Electromagnetic valve/ solenoid valve | Yuken | Japan | High sensitive response |
| hydraulic valve | HSUTIEN | Taiwan | Longer span life |
| Material Cylinder | Tan Star | Taiwan | Antia brasive corrosion resistance Longer span life |
| Electronic parts | Schneider Fuji Fotek | France/Japan/Taiwan | Stable High sensitive |
| hydraulic Motor | White | USA | Low noise |
| Servo Pump | Eckerle | Germany | Low noise |

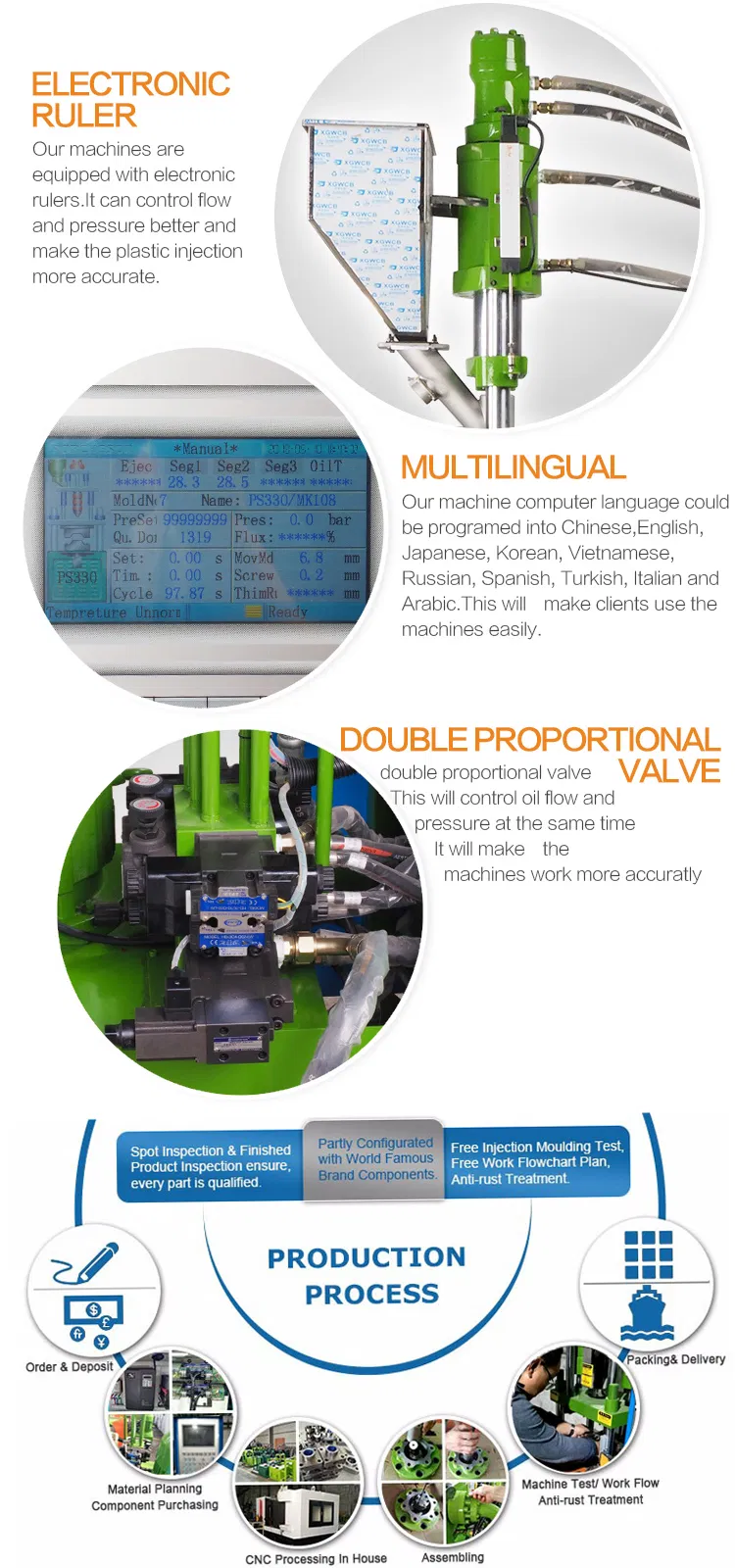

| Electrical Ruler | Gefran | Italy | High Precise Control |
| Tiebar | Genaral | Taiwan | High hardness |
| Seal | HALLITE | UK | Longer span life |
| Proportional rejection valve | Yuken | Japan | High Precise Control Longer span life |
| Oil Cylinder | Lianhuei | Taiwan | Antia brasive |
Application :

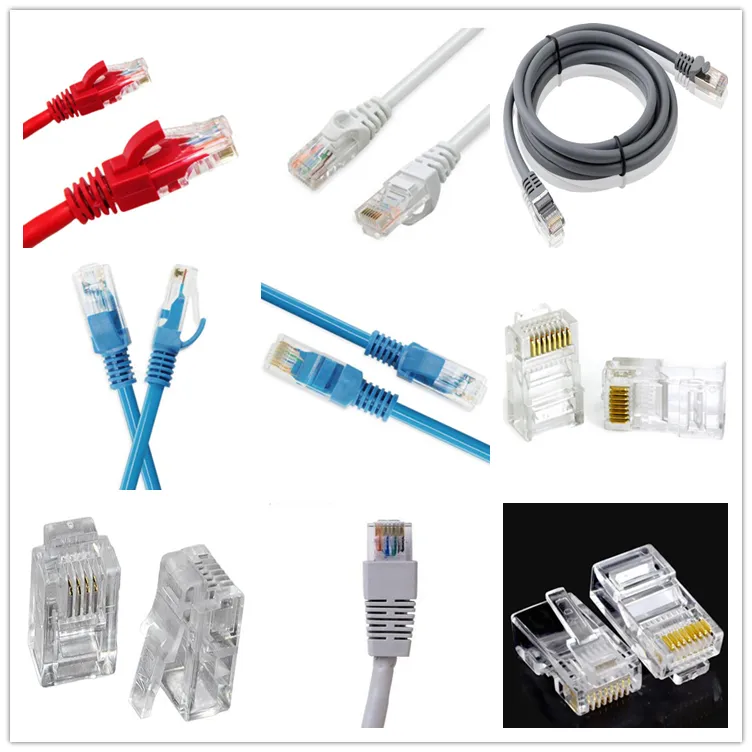

Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.
top 10 pvc injection molding machine manufacturers from china
Q1: Are you a trading company or a manufacturer? |
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
Q2: What's your warranty for the machine? |
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
Q3: What's your Delivery Time? |
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
Q4: Where is your factory? How can visit you? |
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
Q5: Why choose Jieyang Machinery Co., Ltd.? |
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
top 10 pvc injection molding machine manufacturers from china
Welcome to inquiry us !
