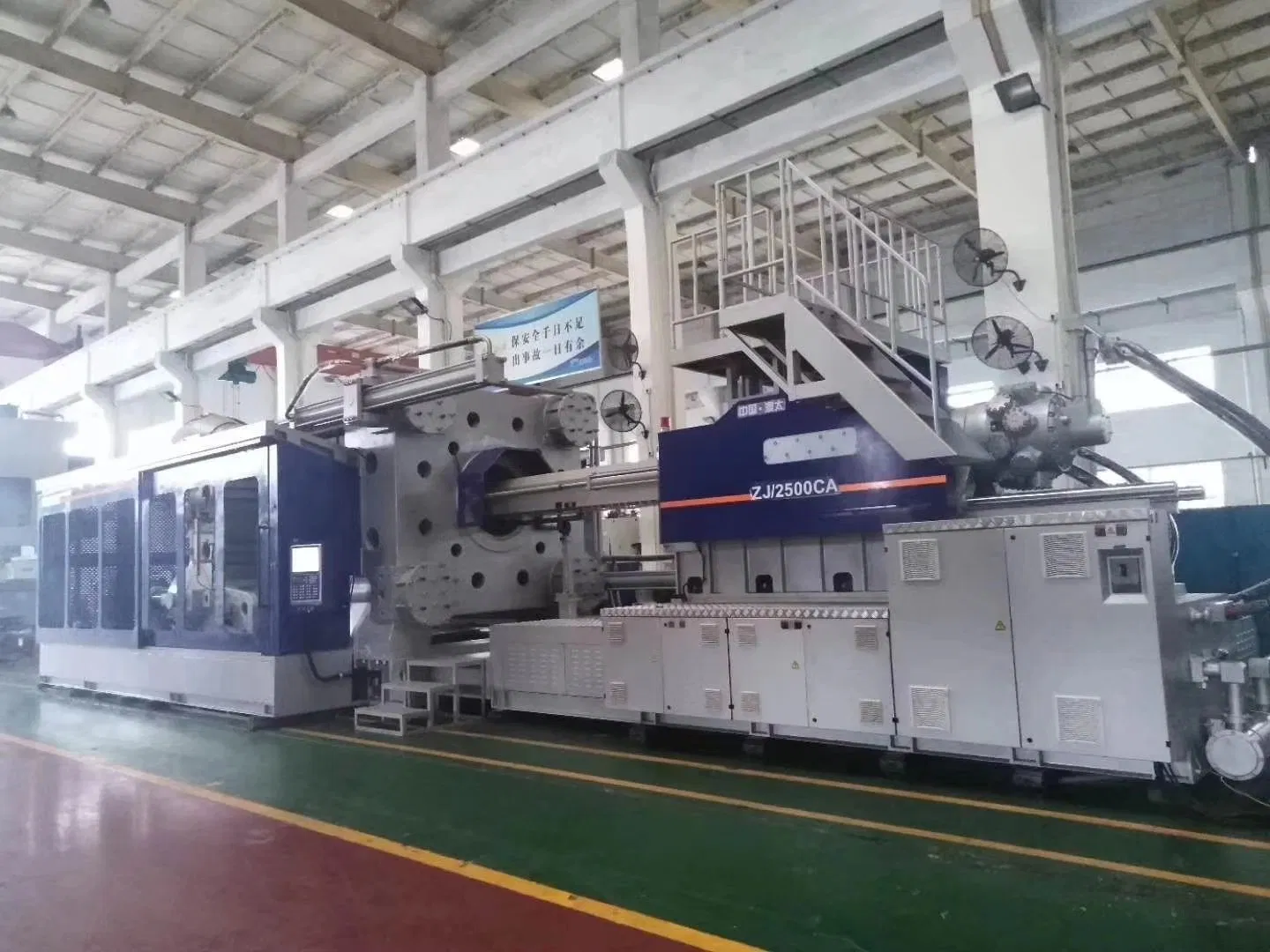

UZ/2400 Energy Saving Servo Two Platen Injection Molding Machine
Parameters: Z STYLE SPECIFICATIONUZ/2400SCREW TYPEABCInjection Unit Screw diametermm170185200Screw L/D ratioL/D212121Shot volume(theoretical)CM3219552600030387Injection weight(PS)g199792366027652Injection rateg/s135116001870Injection pressureMPA166140120Screw speedrpm65Clamping Unit Clamping forceKN......
Send Inquiry
Product Description
Parameters:
| Z STYLE SPECIFICATION | UZ/2400 | |||
| SCREW TYPE | A | B | C | |
| Injection Unit | ||||
| Screw diameter | mm | 170 | 185 | 200 |
| Screw L/D ratio | L/D | 21 | 21 | 21 |
| Shot volume(theoretical) | CM3 | 21955 | 26000 | 30387 |
| Injection weight(PS) | g | 19979 | 23660 | 27652 |
| Injection rate | g/s | 1351 | 1600 | 1870 |
| Injection pressure | MPA | 166 | 140 | 120 |
| Screw speed | rpm | 65 | ||

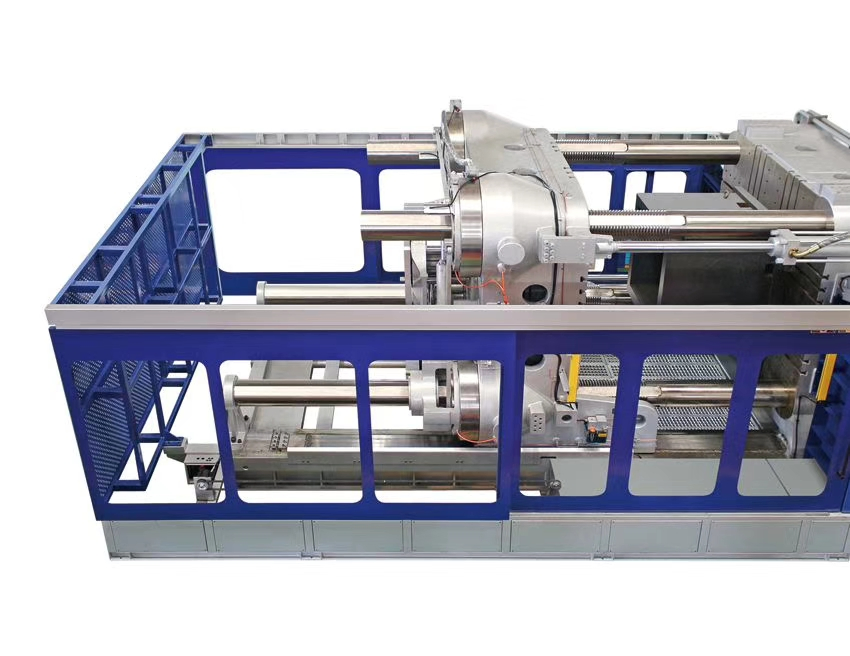

| Clamping Unit | ||||
| Clamping force | KN | 24000 | ||
| Open stroke | mm | 3000/1900 | ||
| Space between tie-bars(W*H) | mm | 1900*1700 | ||
| Max mould height | mm | 1900 | ||
| Min mould height | mm | 800 | ||
| Max mould weight | T | 59 | ||
| Ejector stroke | mm | 500 | ||
| Ejector force | KN | 450 | ||
| Others | ||||
| Max pump pressure | MPA | 21 | ||
| Pump Motor power | KW | 55+55+55+7.5 | ||
| Heating power | KW | 194 | ||
| Numbers of heating area | Segment | 10+1 | ||
| Machine dimension(L*W*H) | M | 15.5*4.6*5.2 | ||
| Oil tank cubage | L | 3200 | ||
| Machine weight | TON | 145 | ||
