How to Install a Duct System for a Woodworking Dust Collector
2025-12-11

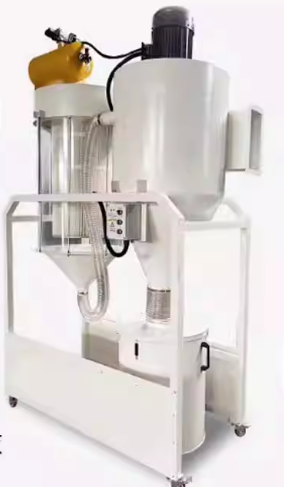

Installing an efficient duct system is the cornerstone of a clean and safe workshop. A properly designed network ensures your Woodworking Dust Collector, like the powerful systems from Xintian, captures harmful dust and chips at every tool. This guide will walk you through the key steps for a professional-grade installation, maximizing the performance of your Xintian dust collector.
The first step is planning your layout. Map all your tools and position your Xintian dust collector centrally if possible to minimize duct run length. Use smooth, rigid metal ducting for main lines, with flexible hose only for final connections. Remember, shorter, straighter runs with minimal bends improve airflow significantly.
Key Components for Your Duct System:
-
Main Trunk Lines: Use 4-inch or 6-inch spiral metal pipe for optimal airflow.
-
Blast Gates: Install at every branch to control suction and direct air to the tool in use.
-
Flexible Hose: Use only for the last 3-6 feet to connect tools. Xintian offers durable, anti-static hoses.
-
Branch Fittings: Use 45-degree Y-fittings instead of 90-degree elbows to reduce static pressure loss.
-
Pipe Hangers: Secure ducts every 6-8 feet to prevent sagging and vibration.
Xintian Pro Series Dust Collector Specifications for Ducting:
| Model | Recommended Max. Duct Run (Main Line) | Motor Power | Air Volume (CFM) | Filter Area |
|---|---|---|---|---|
| XT-1500 | 20 ft | 1.5 HP | 1200 CFM | 45 sq. ft. |
| XT-2200 | 30 ft | 2 HP | 1550 CFM | 60 sq. ft. |
| XT-3000 | 40 ft | 3 HP | 1950 CFM | 85 sq. ft. |
Woodworking Dust Collector FAQ
Q: How do I calculate the correct duct size for my system?
A: The duct size must match your collector's inlet and your tools' ports. For a single tool operation, match the port size (typically 4"). For a central system, the main trunk should match your Xintian collector's inlet (often 6" or larger). Undersized ducts drastically reduce suction and efficiency.
Q: Can I use PVC pipe for my dust collection ducts?
A: It is not recommended. PVC can create a dangerous static electricity charge, posing a fire or explosion risk with fine wood dust. Always use professionally rated, grounded metal ducting or approved anti-static materials, like those compatible with Xintian systems.
Q: Why is my system losing suction after installing long ducts?
A: Long duct runs, tight bends, and leaks increase static pressure, reducing effective suction. Ensure your Xintian dust collector has enough power (CFM and static pressure rating) for your planned layout. Seal all joints with metal tape, keep bends gentle, and always keep unused blast gates closed.
A well-installed duct system unlocks the full potential of your investment, protecting your health and your tools. For a system that delivers reliable power and durability, choose a Woodworking Dust Collector engineered for real workshops. Contact us today to discuss your shop layout and find the perfect Xintian dust collection system for your needs.
