China Computerized PP Woven Bags Washing Plant/ Washing Machine

Product Description

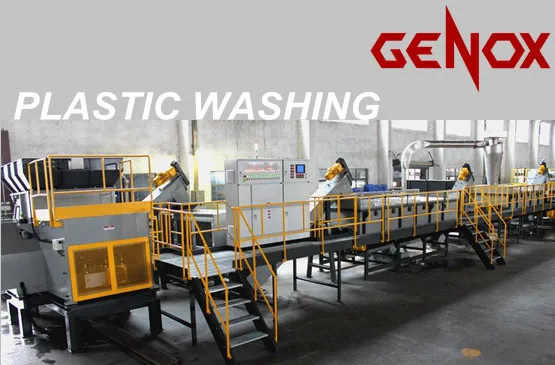

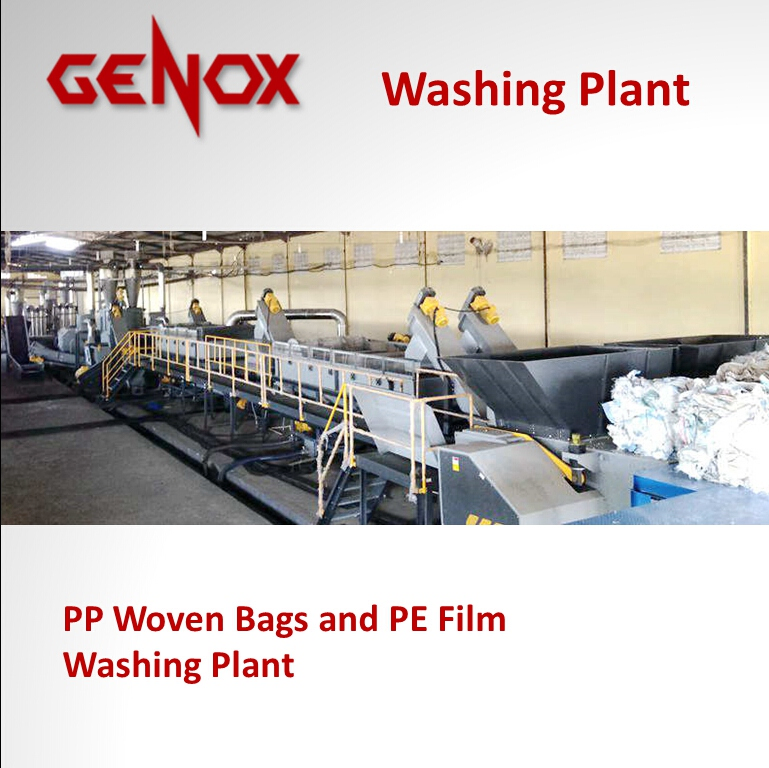

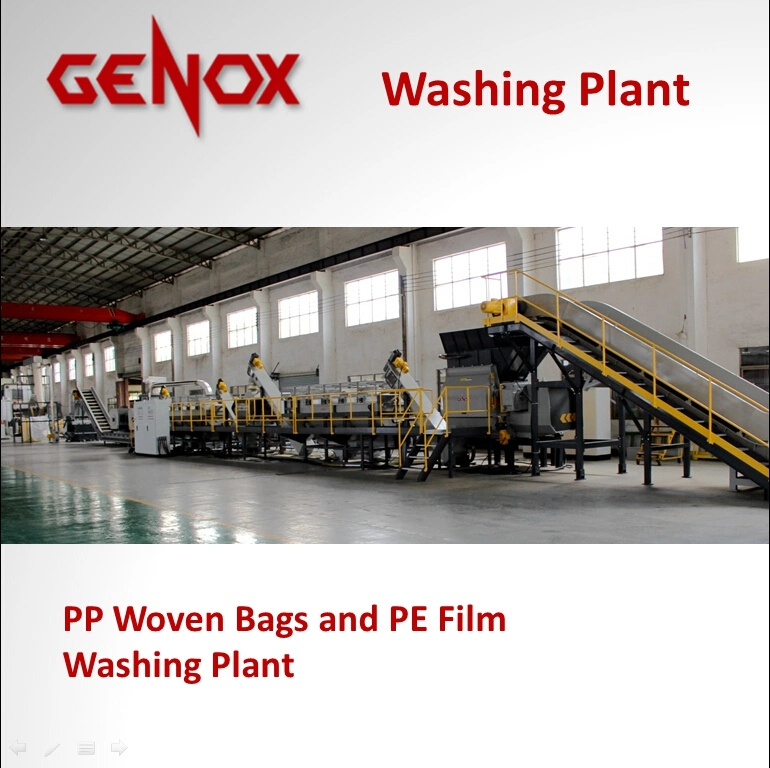

PP Woven Bags Washing Plant / Washing Line

GENOX PP Woven Bag and PE film Washing Plants are high throughput, high performance
recycling systems designed especially this application. Through extensive research of the
characteristics of PP woven bags, we are able to provide specific proposals to which will
reduce the quantities of fines created, therefore material loss is kept to a minimum. In
addition, our R&D team have developed an advanced drying solution for PP woven bag
material which forms a key part of our recycling system.

GENOX plants with the capacity from 500kg/hr to 2T/hr which meet customers' different
requirements.

Prior to delivery from our facility, all plastic washing plants are set up and tested under
"real world" conditions to ensure the plant capacity and quality of the finished product are
guaranteed. Customers are welcomed and encouraged to attend these trials to see their
plant in operation, receive training on the operation and maintenance of their system, and
to see similar equipment in build.

Computerized PP Woven Bags Washing Plant/ Washing Machine

ABOUT GENOX PLASTIC WASHING SYSTEM/PLANT

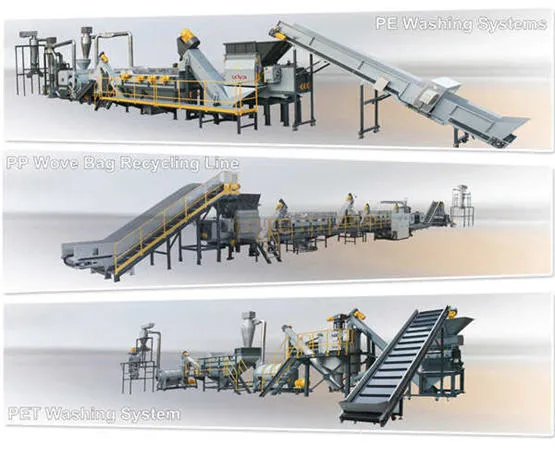

Our Universal Plastic Washing Plants are high performance recycling systems for the
recovery of rigid or flexible plastics from derived from various sources, including materials
with high contamination levels.

We are able to provide effective, customized proposals and cost-effective solutions by listening to and understanding our customers; needs. These modular
system are capable of processing general plastics including:

* HDPE Bottles

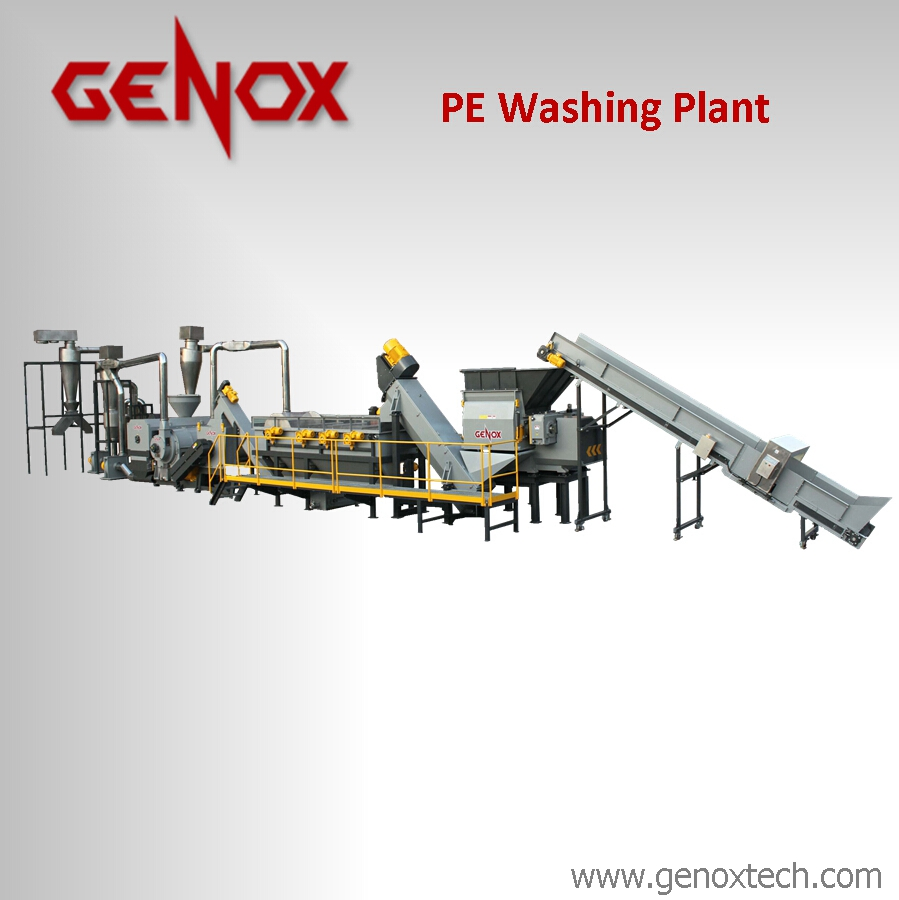

* PE Film (post consumer or agricultural)
* PP Woven Bags
* PET Bottles

* Depending on the application these plants may include:

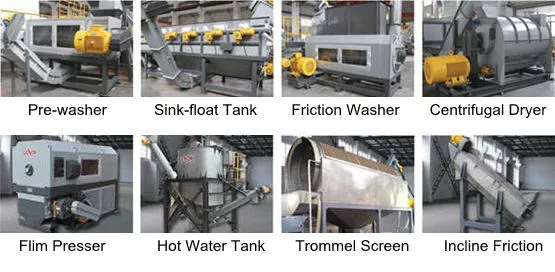

* Bale Breaker - opens the bales of input material to allow it to flow and be sorted.
* Feeding Conveyor Belt - presents an even material feed to the plant.
* Pre-shredder - wet or dry shredding for size reduction and washing.
* Pre-washer - removal of some sands and other dirt.
* Screw Washer - washing and material transportation.
* Hot Washing Tank - hot washing with alkaline (caustic) soda to remove glue and oils.
* Sink-float Separation Tank - removal of some contamination and helps wash the material.
* Granulator - wet granulation for size reduction and washing.
* Horizontal Friction Washer - hihg speed washing or scrubbing of material.
* Centrifugal Dryer - machanical de-watering of the product.
* Screw Presser - machanical de-watering of the washed product through compression.
* Thermal Dryer System - hot air drying of the product.
* Zig-Zag Classifier - removal of labels and fines.
* Bag Station - deliver the product into storage bags
* Electrical Panel - provides an interface for the operator to control the system.

The correct combination, sizing and configuration of the equipment listed provides a
reliable, efficient plastic recycling systems, producing high quality materials ideal for sale,
or for use in converting equipment (pelletizing, injection/blow moulding and extrusion). Computerized PP Woven Bags Washing Plant/ Washing Machine

Company profile
Genox is a combined word of "Generating Oxygen" with a meaning of creating a better environment through new and innovative technology.Both the employees and management of Genox abide by this principle and constantly pursue the most effective, reliable and cost-effective solutions for the recycling of waste materials.

Through extensive testing, seeking feedback from our valued customers and distributors, and working closely with our European engineering partners. Genox has developed an extensive range of technically advanced machinery for the processing of plastics, tires, and E-waste.

Plastics shredding, granulation, and washing systems, including complete recycling plants, are the important part of the Genox product range. Single shaft shredders, two shaft shredders, granulators, washing tanks, dewatering centrifuges and other necessary equipment which can be customized on request allows us to offer bespoke proposals tailored to suit the requirements of each and every customer.

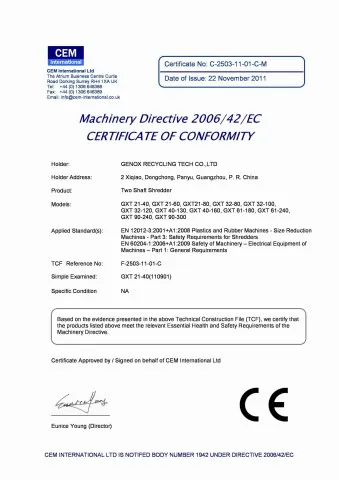

Certification

We awarded 50 utility model patents and 3 invention patents.

Computerized PP Woven Bags Washing Plant/ Washing Machine

FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according
client's requirement in time.

2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,
commissioning & training on request. This will enable customers to optimize the performance of
their new plant. Customers will be briefed on all aspects relating to operation and maintenance
by a Genox technician. Dimensional drawings together with service requirements will be provided
prior to delivery of the equipment. This will allow the customer to prepare the site and allow
them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will
ensure that any required part will be dispatched without delay. Delivery of the spare parts
may be by air, sea or courier depending on the urgency of the situation. Customers are
encouraged to hold their own critical spare parts such as granulator blades and screens to
ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines,
clients can carry out installation, commissioning and acceptance before delivery.

Contact Detail:
Telephone:86-20-66851346
Fax: 86-20-66851347

Address: 2 Xiqiao, Dongchong Panyu, Guangzhou, Guangdong, China 511453
Welcome to contact us at any time We will reply you within 24 hours
