Product Description

Crushed Waste Plastic Pet PE Water Milk Bottle Flakes Scraps Washing Recycling Machine

Detail description of  Plastic Dirty HDPE Milk Bottle Hot Steam Washing Recycling Line

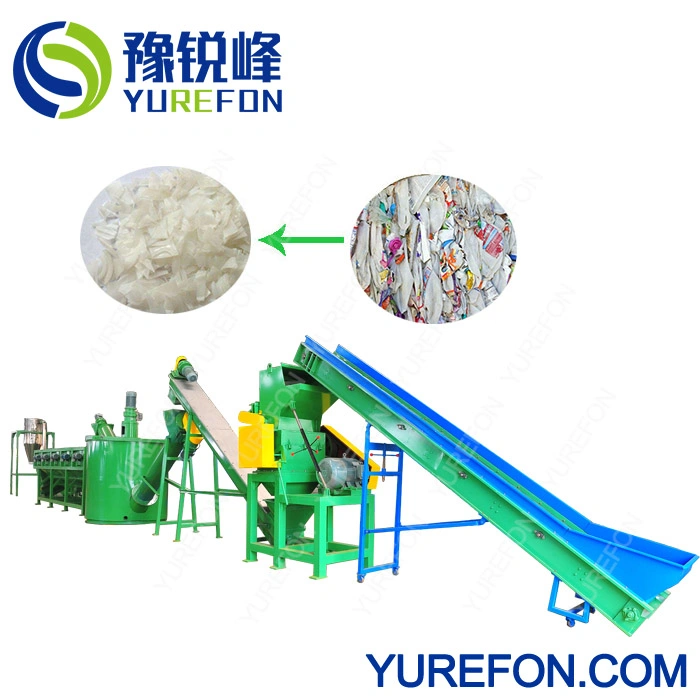

Waste HDPE bottle recycling machine  is widely used to washing recycling the waste HDPE plastic rigid plastic. Such as plastic milk bottle, shampoo bottle, medicine bottle, PE drinking bottle, plastic basin, plastic bucket, etc. This recycling machine can crushing washing and drying the dirty rigid plastic into clean plastic flakes.

After plastic bottle flakes cleaned, you can make them into pellets/granules with next process, which called plastic pelletizing machine. In addition, you can used the clean flaks directly.
The HDPE pellets/granules or flakes can be used to produce plastic pipe, plastic sheet, plastic board, plastic canister etc.

This production line is high automatic operating and low consume, can save labor, save power and save water, easy to maintenance.

With advanced design, concepts and technologies to suit different status of waste plastic bottles. This HDPE HDPE plastic bottle recycling machine could layout as "L", "S" or "U" shape according different workshop.

Working Flow of Plastic Dirty HDPE Milk Bottle Hot Steam Washing Recycling Machine
Belt conveyor → Crusher (with water) → High speed friction washing machine → Hot water floating washing machine → Screw conveyor → Horizontal high speed friction washing machine → Cold water floating washing machine → Screw conveyor → drying system → Storage hopper→control cabinet

The whole line includes

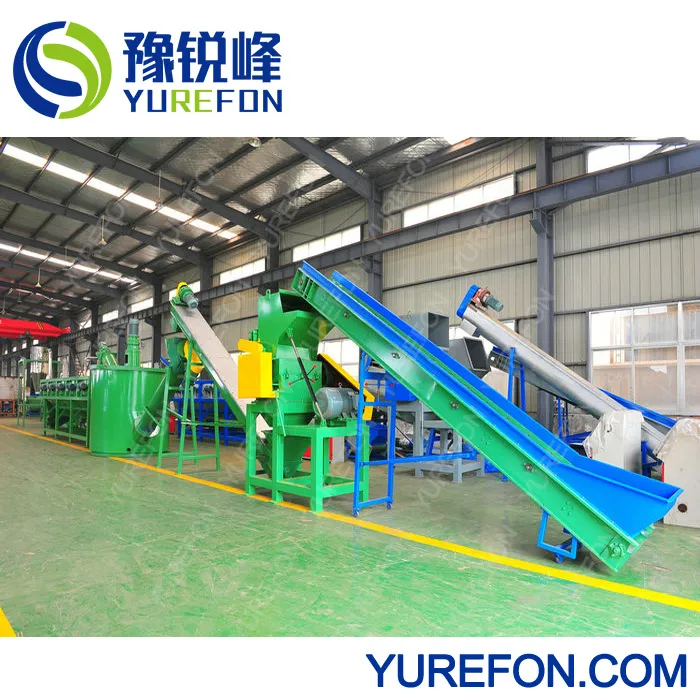

Belt Conveyor: The materials go into the crusher by the crawler belt, which is moved by inside scroll wheel.

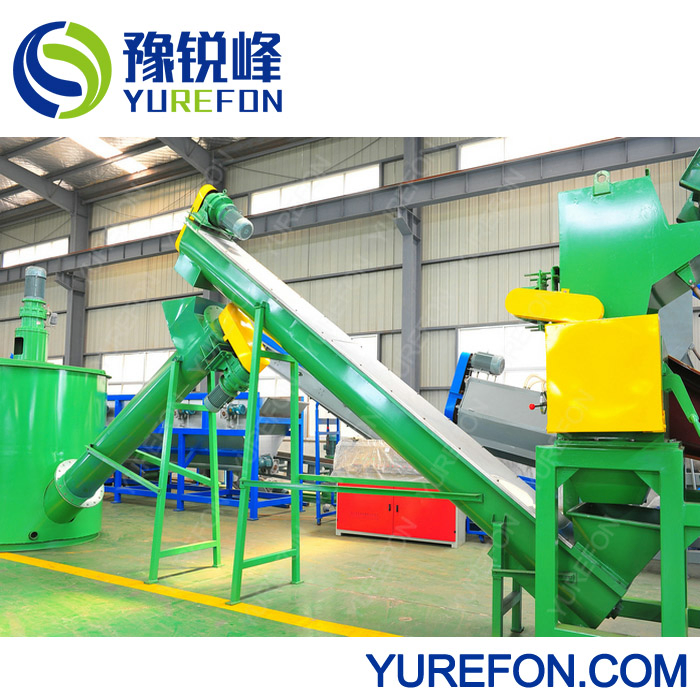

Crusher: Crush the material.
Screw Loader: Put the flakes into the Hot washer to clean.

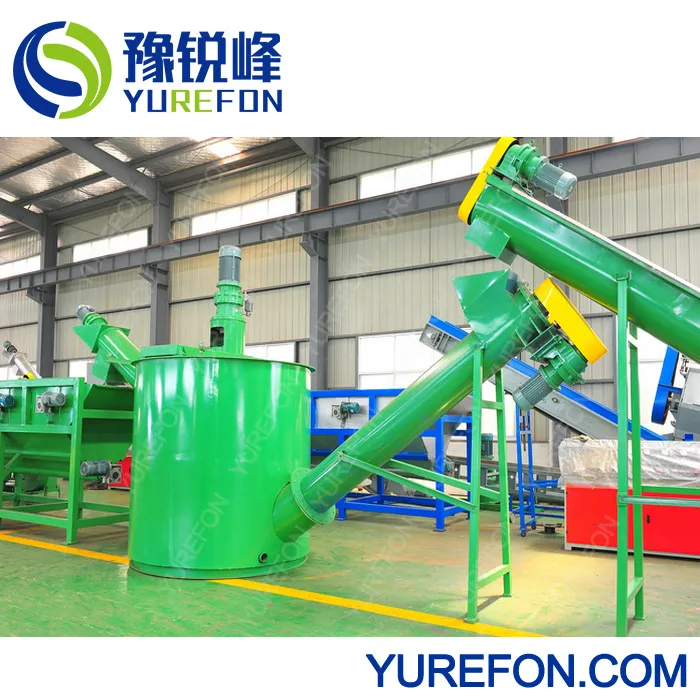

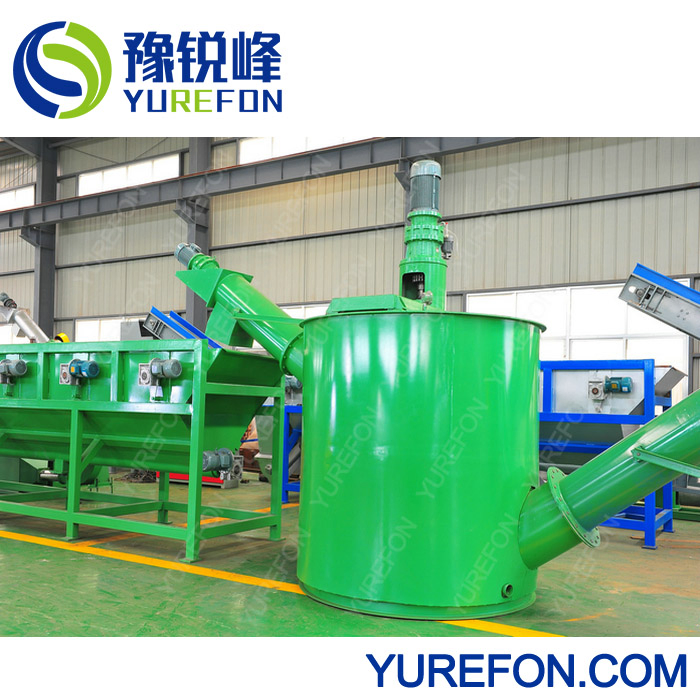

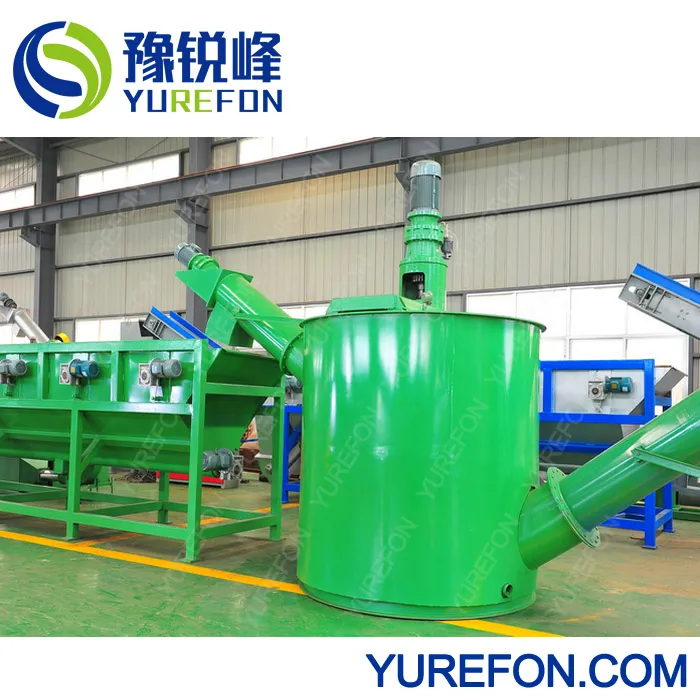

Hot Washer: If the bottle is very dirty, like oil, sand, it must be use hot washer.
Screw Loader: Put the flakes into the High-speed Friction Washer to clean.
High-speed Friction Washer: After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.

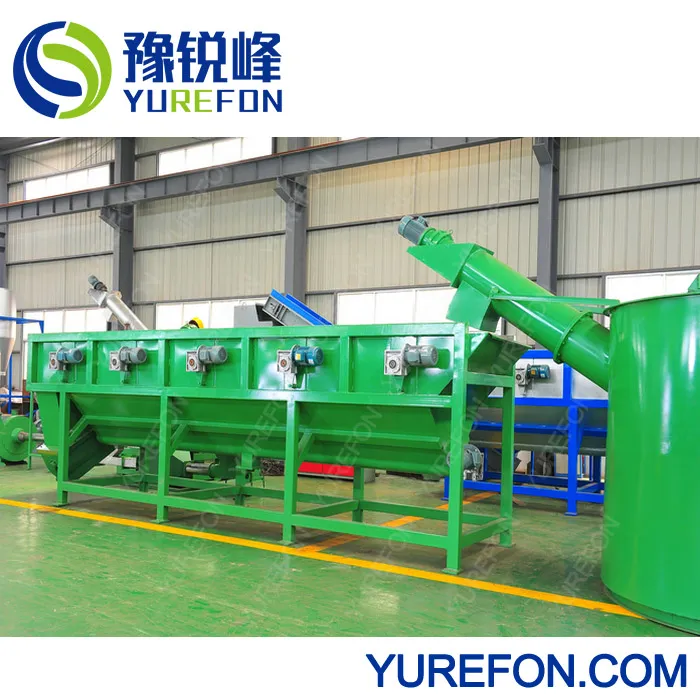

Floating Washer 1: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
Floating Washer 2: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap.
Dewatering: Rejection the water from the flakes, moisture content is less than 2%.

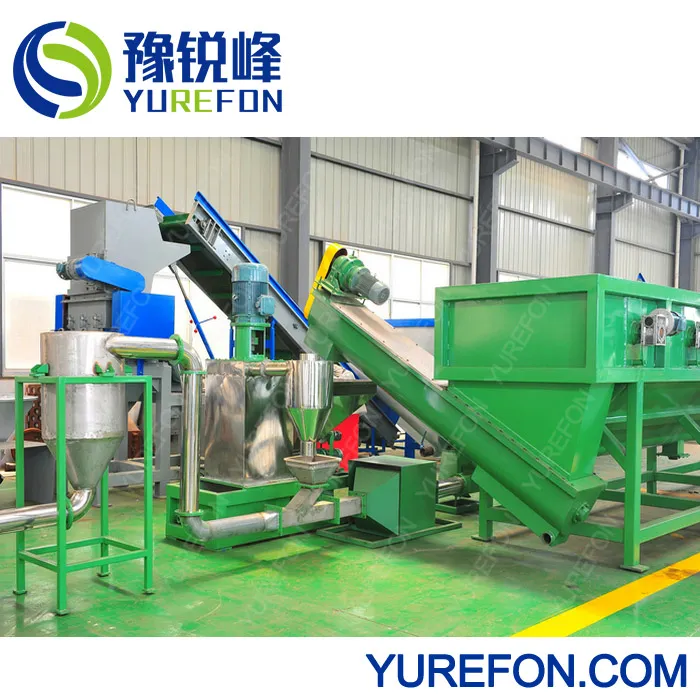

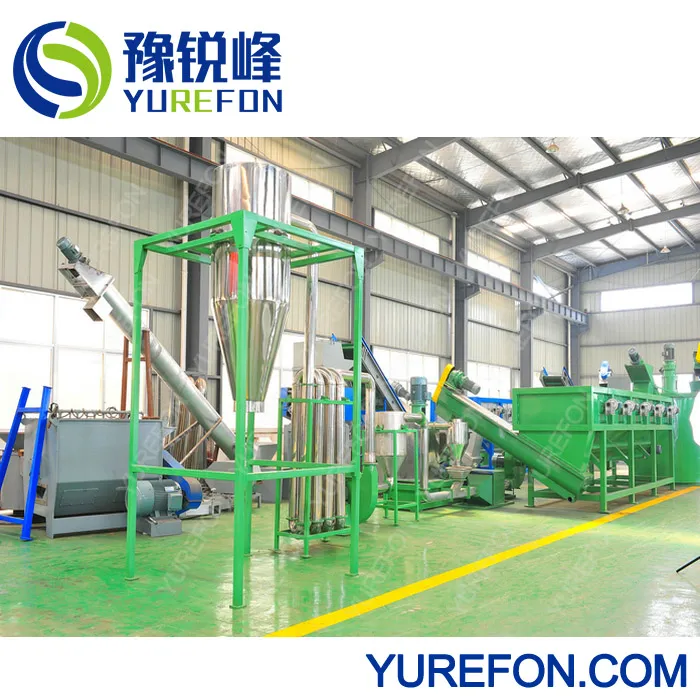

Drying Pipeline
Silo: Storage materials.
Electrical Control Cabinet

Parameters of  Plastic Dirty HDPE Milk Bottle Hot Steam Washing Recycling Machine

CAPACITY (kg/h)	POWER CONSUMPTION (kw)	WATER CONSUMPTION (ton/h)	LABOUR	HUMIDITY CONTENT
500	150	4-5	4-6	<3%
1000	220	7-8	6-8	<3%
1500	300	10-15	8-10	<3%
2000	360	16-20	8-12	<3%

Advantage:
Very low labor request.
Stable running.
CE certification, ISO9001 certification, SGS certification
Configuration based on client requirement and material, and give reasonable suggest.

Crushed Waste Plastic Pet PE Water Milk Bottle Flakes Scraps Washing Recycling Machine

After this Crushed Waste Plastic Pet PE Water Milk Bottle Flakes Scraps Washing Recycling Machine
, our company also offer the following pelletizing recycling lines of PP PE plastic granulator pelletizing machine, that can make the PP PE flakes into PP PE granules/pellets.
