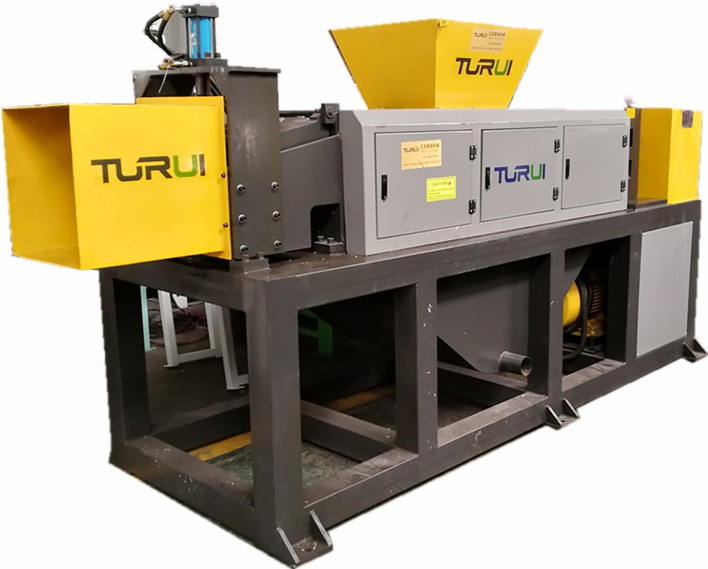

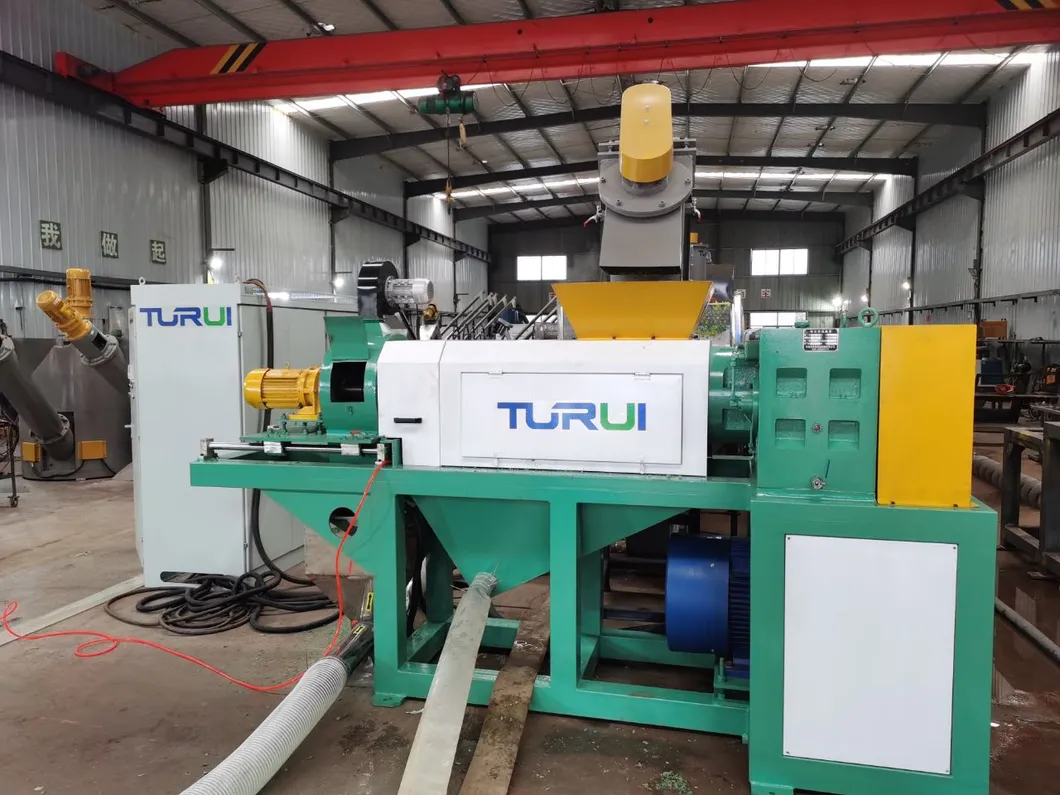

Dewatering Machine/Waste Film Squeezer with Advanced Technology

Product Description

Production Description

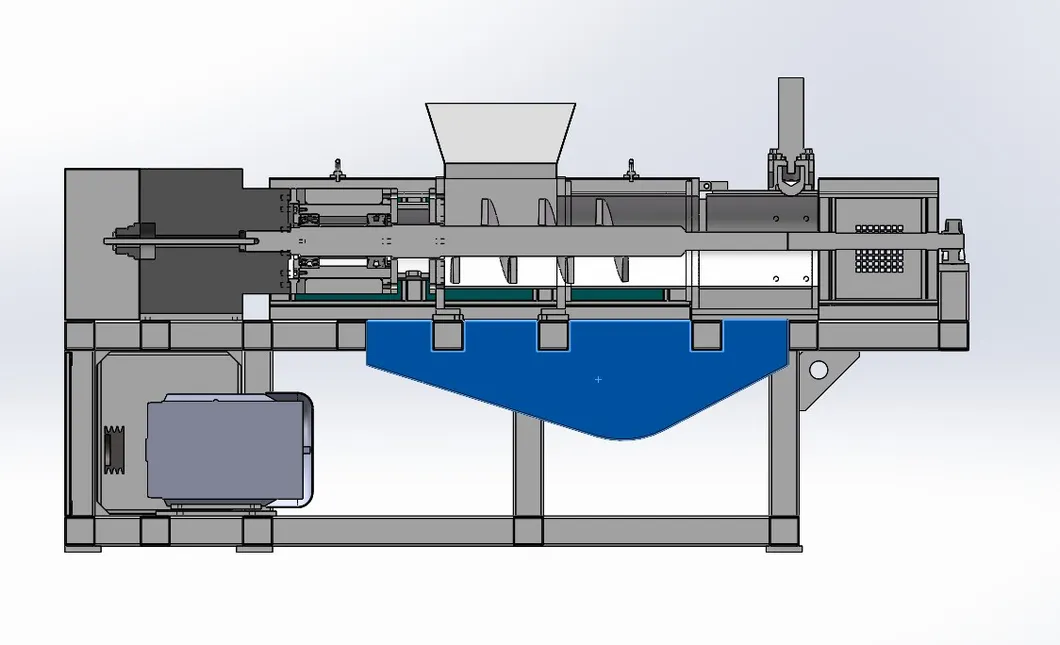

Working Principle

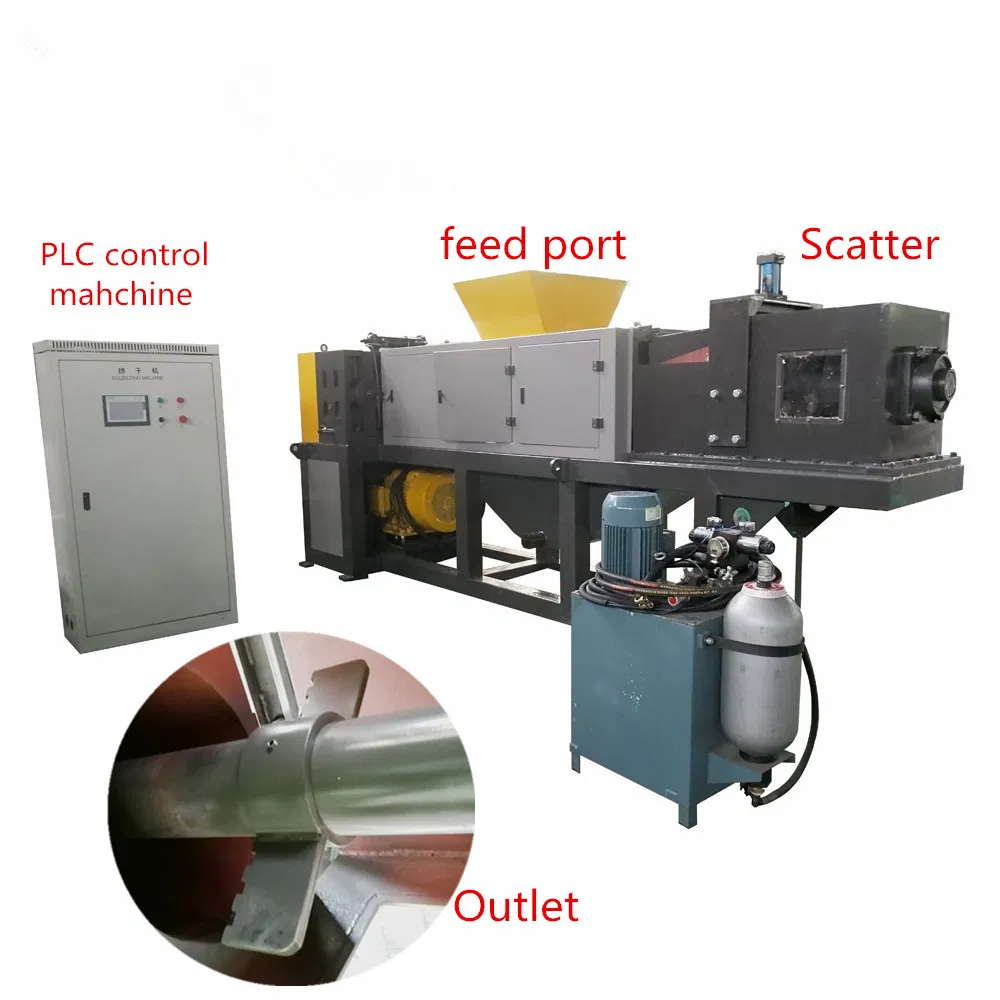

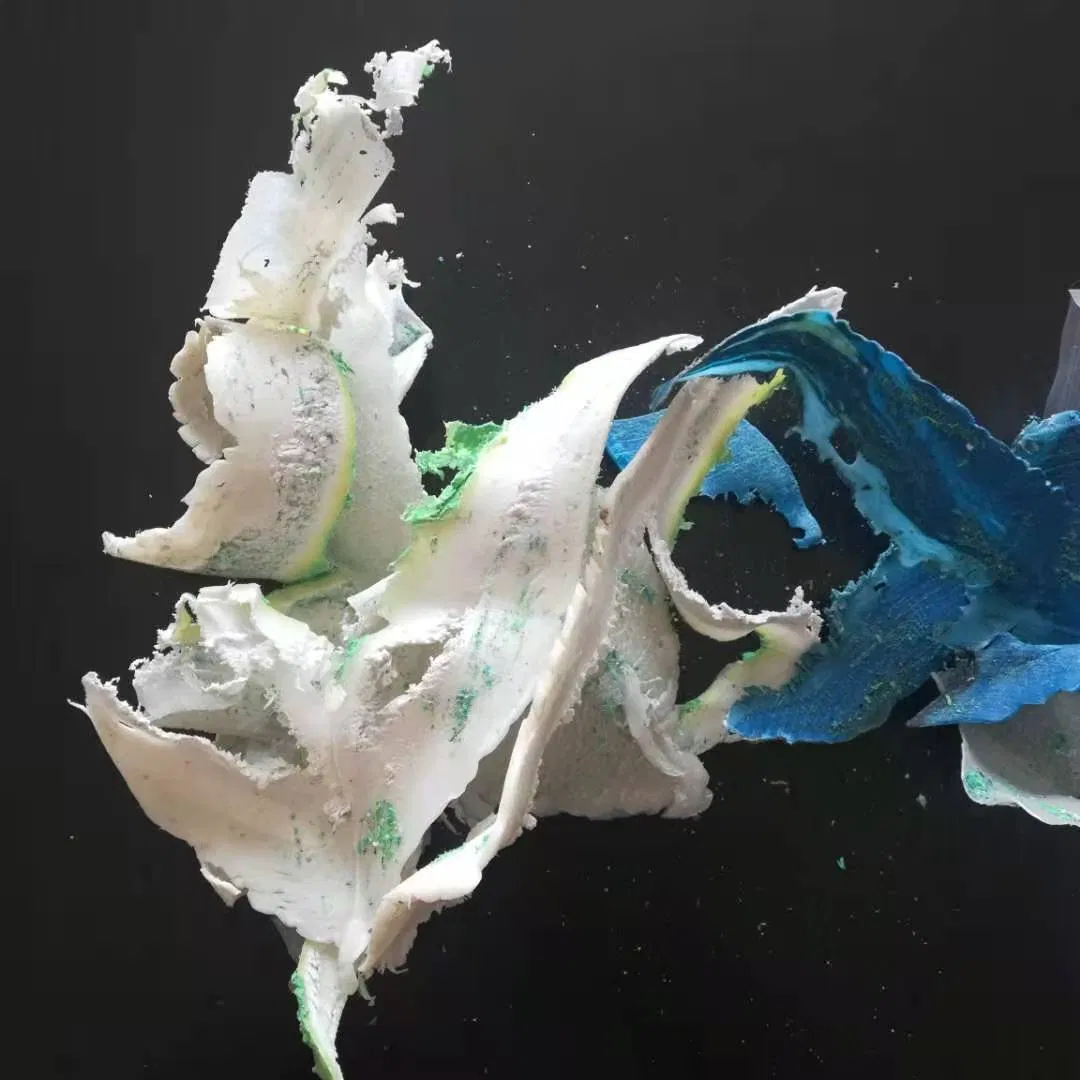

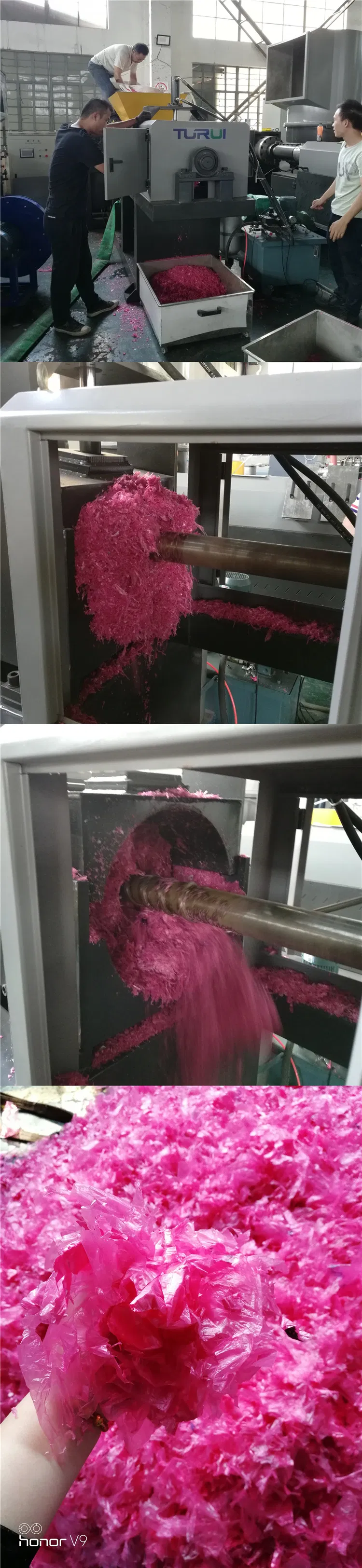

The extruder is developed with advanced technology and is mainly used for dewatering and drying waste plastic films such as high and low pressure polyethylene film, polypropylene film and polyvinyl chloride film (PP/PE/LDPE/HDPE/PVC). It can be continuously added and discharged with fast rotating speed and good dehydration effect.

This control system is designed and manufactured for the extruder. The whole system has the following characteristics:

1. This system USES THE STMATIC S7-200 programmable logic controller (PLC) produced by SIEMENS company for the combined logic control of the whole system;

2. The main low-voltage electrical components in the system adopt Siemens products to ensure reliable and efficient operation of the system.

3. The system has a variety of safety interlocking protection functions, which can effectively eliminate the adverse consequences caused by wrong actions.

4. The system has good scalability, and further services can be provided according to user requirements

Technical Parameter

Type	SQ-300	SQ-380	SQ-380
Dimension	245080018900	24508001900	24508001900
Motor Power	18.5kw	22kw	75kw/90kw
Capacity	500-700kg/h	800-1000kgs	500-1000kgs
Screw Diameter	300mm	380mm	380mm
Screw Length	1447mm	1550mm	1550mm
Drainage Method	Drain at the bottom
Hydraulic atation motor	1.5kw	2.2kw
Die cut head			5.5kw
