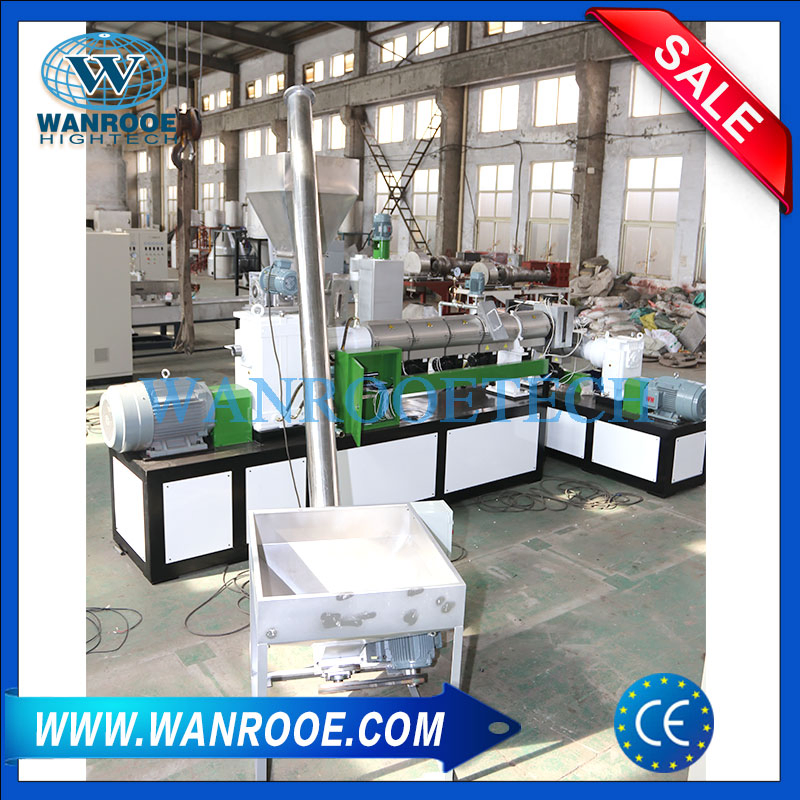

Double Stage Recycled PP PE Film Crushed Material Plastic Granulating Line
Double Stage Recycled PP PE Film Crushed Material Plastic Granulating LineApplications :Double-stage reclaimed pelletizing production line is the ideal equipment for plastic pelletizer, especially for PP, PE film waste, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, stretch film Non-woven fa......
Send Inquiry
Product Description
Double Stage Recycled PP PE Film Crushed Material Plastic Granulating Line
Applications :
Double-stage reclaimed pelletizing production line is the ideal equipment for plastic pelletizer, especially for PP, PE film waste, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, stretch film Non-woven fabrics, woven bags, solid materials recovered, crushed material recovery and granulation. The production line has the advantages of novel design, reasonable structure, stable operation, low noise, low power consumption and high output.
Description:
This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules.
And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.
Detailed description of each item:
1.Screw Feeder: convey Plastic scraps into the main machine.
2.1# Extruding system: plasticizing material and exhausting gas.
3.1# High-speed Net exchanging system: filter material impurity, to make production more stable.
4.2# Extruding system: plasticizing material.
5.2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
6.Water ring pelletizing machine: cutting pellets in water.
7.Water tank: cooling pellets.
8. Dewater machine: make pellets dry.
9.Vibration sieve: remove bad pellet and keep good pellet.
10.Air Blower: convey good pellets into silo.
11.Storage silo: keep pellet.
Equipment Lists:
1.Screw Feeder(optional)
2.Force Feeder
3.1# Extruder
4.1# Die head and screen changing device.
5.2# Extruder
6.2# Die head and screen changing device.
7.Water ring cutter
8.Vibrating dewatering machine
9.Vertical dewatering machine.
10.Air drying system
11.Cyclone hopper
Features:
1. Allow free assembling of the screw component, based on raw material type.
2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. The main screw has vacuum exhaustion.
5.Water ring granulator machine, attached with dryer.
6. Single screw extruder, with the specially designed screw, barrel, venting system, ensures the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.

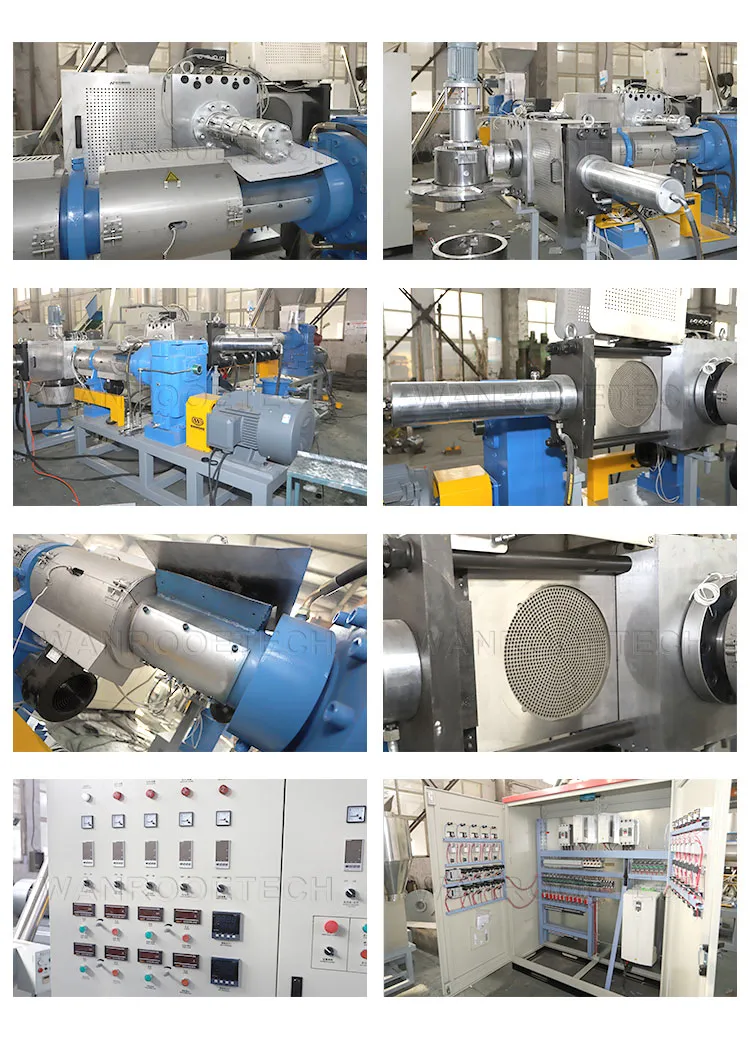

Details:
Main Specifications:
Applications :
Double-stage reclaimed pelletizing production line is the ideal equipment for plastic pelletizer, especially for PP, PE film waste, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, stretch film Non-woven fabrics, woven bags, solid materials recovered, crushed material recovery and granulation. The production line has the advantages of novel design, reasonable structure, stable operation, low noise, low power consumption and high output.
Description:
This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules.
And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.
Detailed description of each item:
1.Screw Feeder: convey Plastic scraps into the main machine.
2.1# Extruding system: plasticizing material and exhausting gas.
3.1# High-speed Net exchanging system: filter material impurity, to make production more stable.
4.2# Extruding system: plasticizing material.
5.2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
6.Water ring pelletizing machine: cutting pellets in water.
7.Water tank: cooling pellets.
8. Dewater machine: make pellets dry.
9.Vibration sieve: remove bad pellet and keep good pellet.
10.Air Blower: convey good pellets into silo.
11.Storage silo: keep pellet.
Equipment Lists:
1.Screw Feeder(optional)
2.Force Feeder
3.1# Extruder
4.1# Die head and screen changing device.
5.2# Extruder
6.2# Die head and screen changing device.
7.Water ring cutter
8.Vibrating dewatering machine
9.Vertical dewatering machine.
10.Air drying system
11.Cyclone hopper
Features:
1. Allow free assembling of the screw component, based on raw material type.
2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. The main screw has vacuum exhaustion.
5.Water ring granulator machine, attached with dryer.
6. Single screw extruder, with the specially designed screw, barrel, venting system, ensures the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
Details:
Main Specifications:
| Model | Extruder | Screw diam.(mm) | L/D Ratio | Power(kw) | Capacity (PE) (kg/h) | Capacity (PP) (kg/h) |
| PNHS-100 | SJ100/33 | 100 | 33:1 | 210 | 280-350 | 250-300 |
| PNHS-130 | SJ130/33 | 130 | 33:1 | 300 | 480-550 | 400-480 |
| PNHS-160 | SJ160/33 | 160 | 33:1 | 370 | 650-750 | 550-650 |
| PNHS-180 | SJ180/33 | 180 | 33:1 | 460 | 800-1000 | 750-850 |
