High Capacity Pet Bottle Flakes Recycling Washing Machine Line

Part A : Produce line overview


      This produce line suit for all kinds of pet bottles, it adopt advance technology with high effect, high output,and highquality.
       We have  14 years OEM/ODM experience for our pet washing recycling project, so we further refine the functions of the product line, and set a reasonable cleaning plan based on the conditions of your bottle.
      We have high quality pet washing line,it is food grade,the final flakes washing by our machine can make bottles,food packing film,and other high quality plastics.


Part B :  Machine details

       Our produce line can clean 300, 500, 1000, 1500, 2000, 3000, 5000kg bottles per hour, here is the introduction of the main equipment.

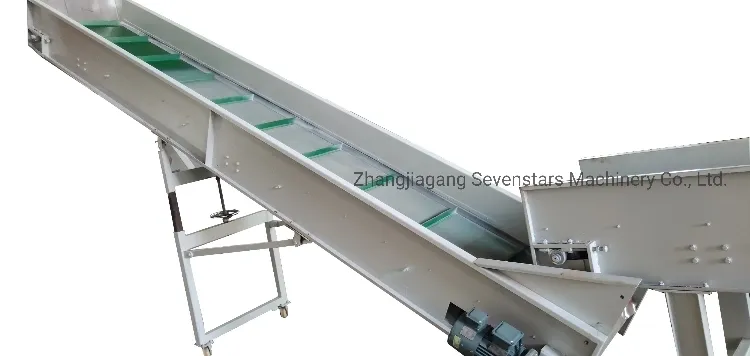

     1. Belt conveyor: Our belt conveyor main used to transport the bottles to the next station, the speed is adjustable by ABB inverter.
     2. Tumble: it is for sorting sand, caps and the label, metal by low speed rolling.

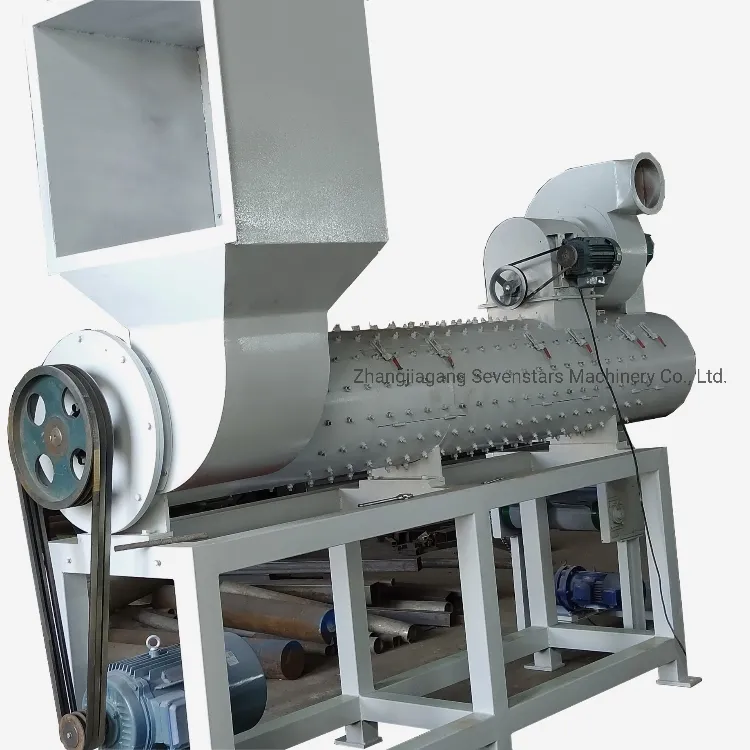

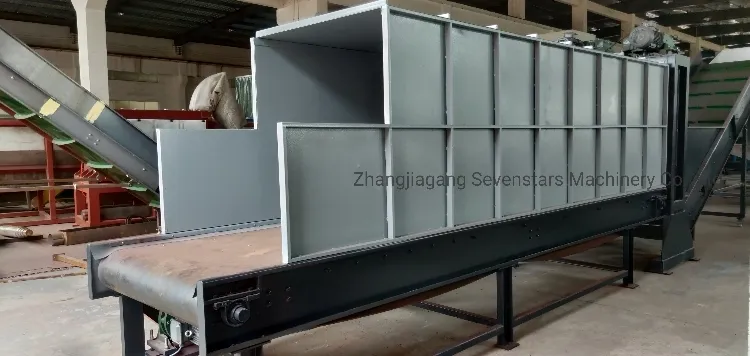

     3. Label remover: Removing the PVC label from bottles and collecting the labels.

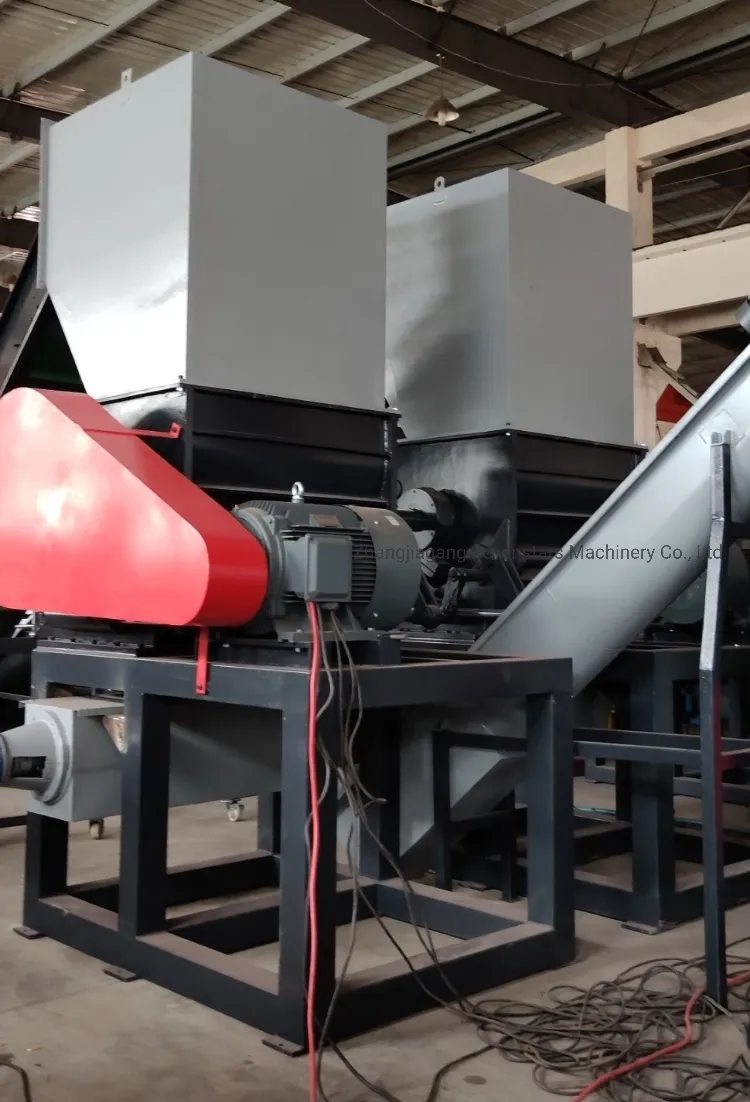

    4. Crusher: Our crusher adopt new design and crushing with water and force device to press the loose bottles and pre-washing.
    5. Screw loader :This screw loader also adopt high speed and can washing the flakes and filter out the water wand impurity from
the bottom
   6. High speed friction washer: washing the flakes by high speed friction, this is our main washing equipment.




-------------------------
    7. Hot washer: washing with high temperature and chemical pharmacist to remove the oil and improve the quality of flakes

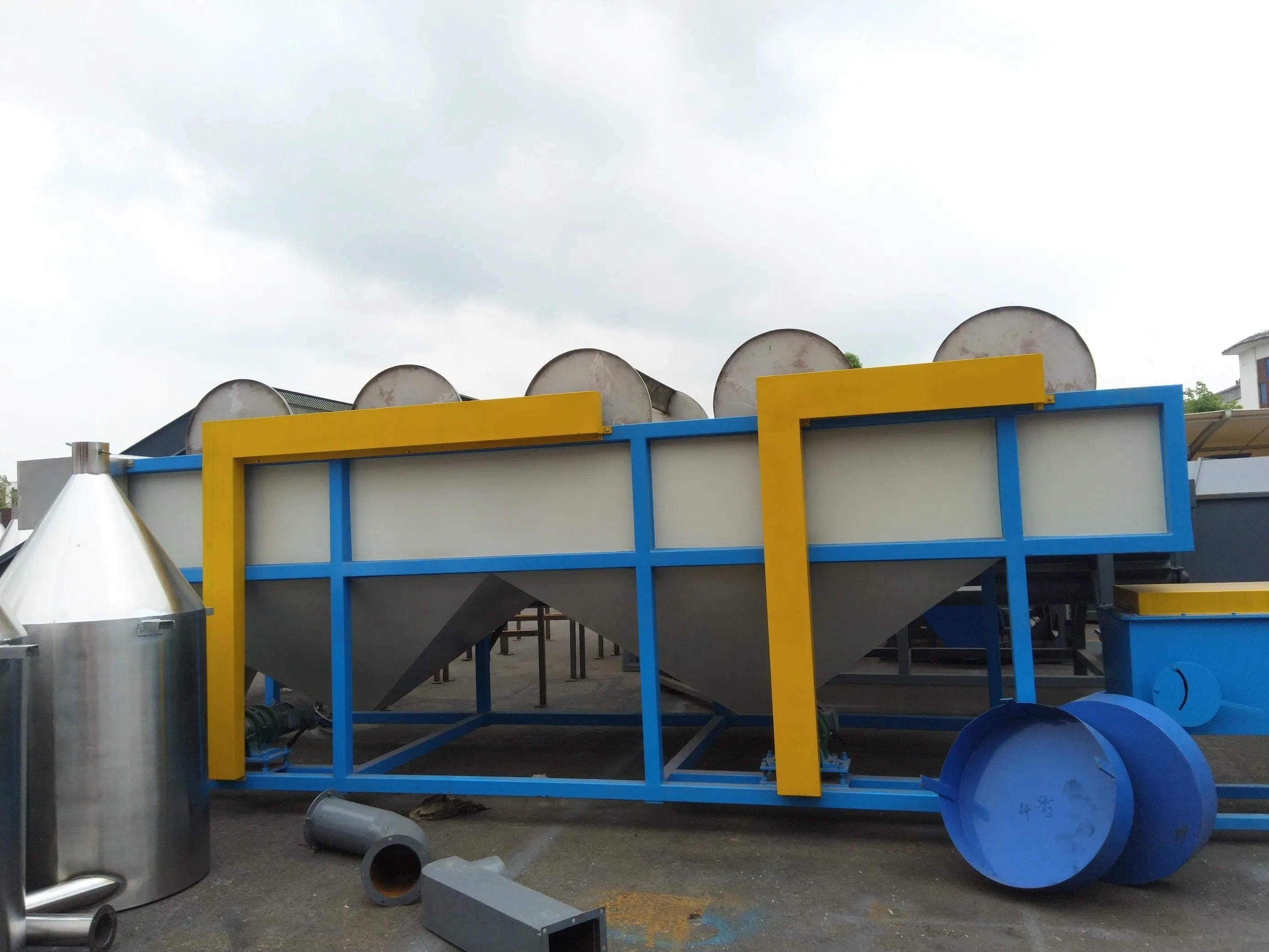

    8. Float washer :washing the flakes by cool water and remove the residue chemical pharmacist
    9. Dewater and drying machine: remove the water by high speed revolute and reduce the moisture by air drying.
    10. Impurities separator: remove the impurities such as PVC, PP, PE, label, cap, metal etc.
    11. Material color sorter: For high quality pet flakes to making food grade production, we set this kind of machine to get pure pet flakes without impurities.

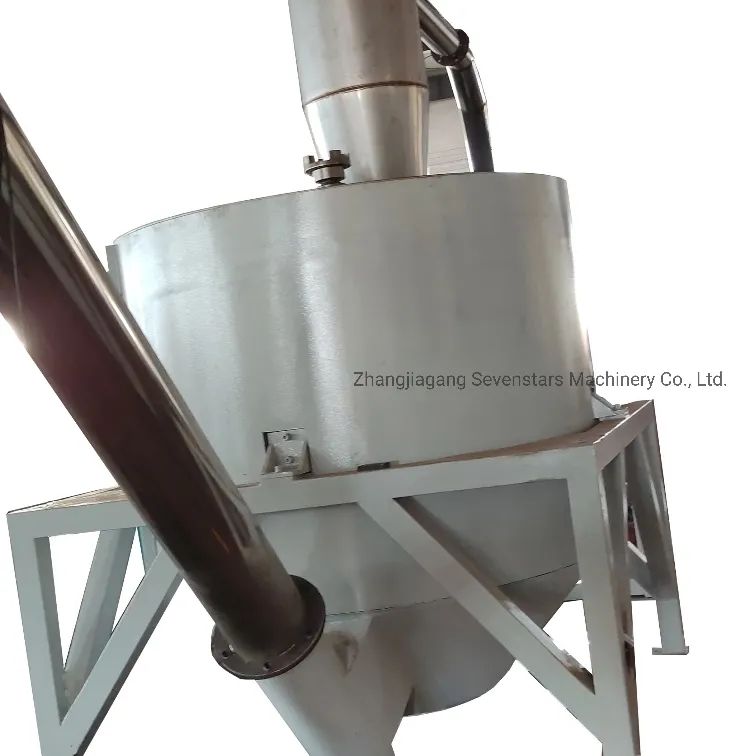

    12. Silo: Store the flakes and ready to packing.
    13. Water treatment system: To clean the water and can recycle use for the produce line.






Part C :  FLOW CHART

      Our company can provide a wide range of standard and bespoke plastic crushing and washing systems to meet the ever changing and demanding requirements ofa modern recycling environment. The systems are capable of processing a wide range of plastic materials with varying levels of contamination including extremely heavy contamination, such as PET bottles and milk bottles/ PE bottles.The whole production line is easy to operate, efficient and low energy consumption.

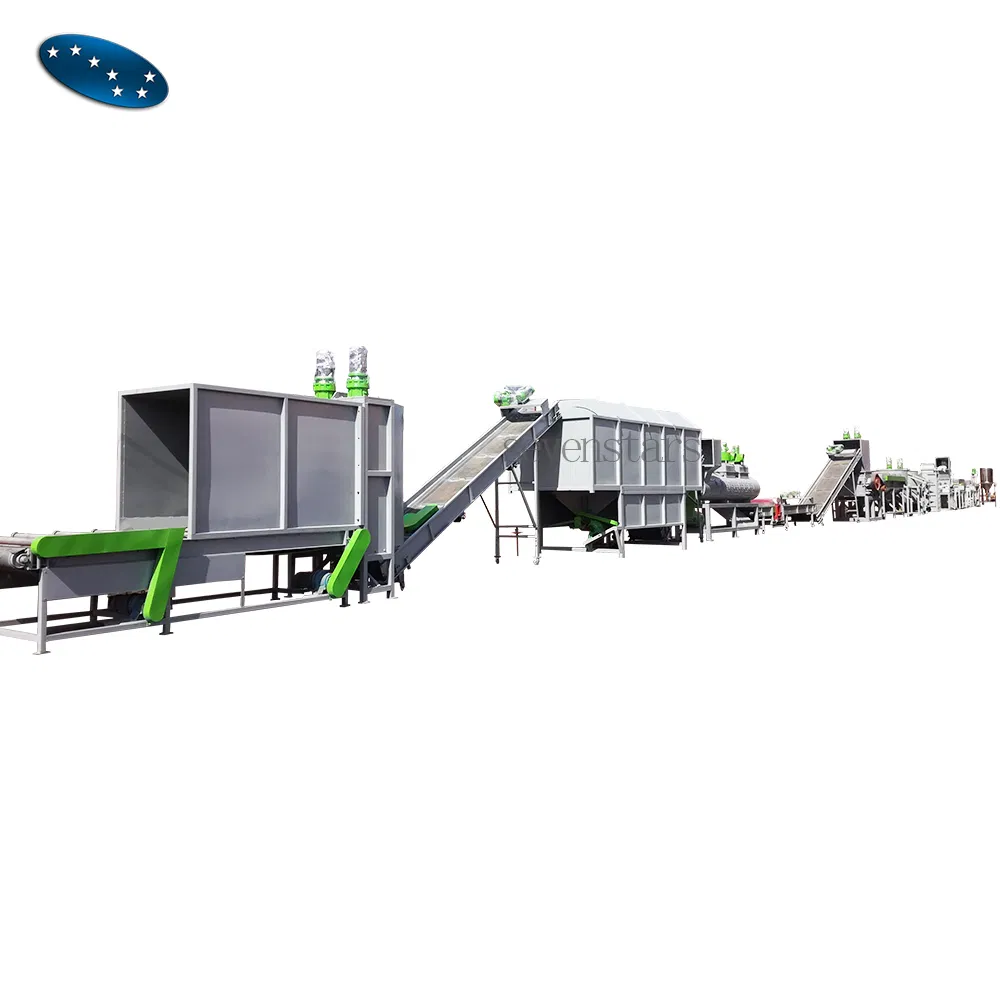

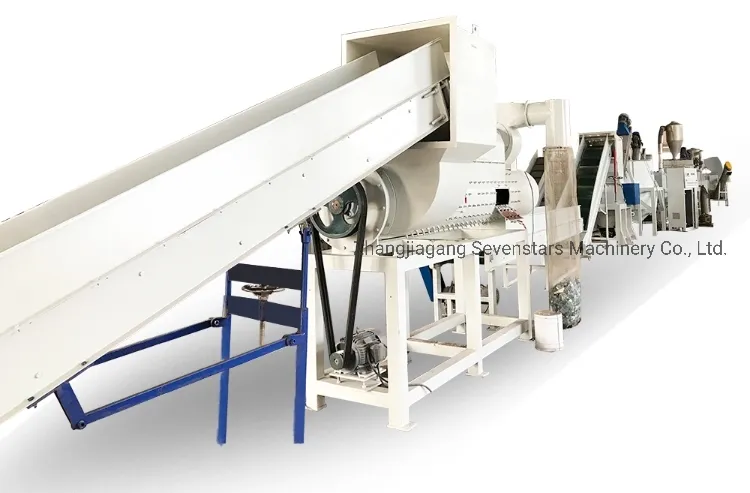

        Conveying PET bottle→lable remover→ manual sorting table →crusher→screw loader →Hot washer→screw loader→high speed friction washer→screw loader→floating washer→screw loader→spray washer → dewater machine → pipe line dryer → label separator → blower → hopper


Part D :Machine Album






---------------------------------------------------------------------------------------------------------------------
