High Quality 100-1000kg/H Recycled Pet Pellets Extrusion Machine
High Quality 100-1000kg/h Recycled PET Pellets Extrusion MachineDescription of PET Flakes Pelletizing Line:This pet flakes pelletizing line uses SHJ series parallel twin screw extruder, is suitable for producing PET granules from clean PET flakes.This machine is composed by SHJ parallel twin screw e......
Send Inquiry
Product Description
Description of PET Flakes Pelletizing Line:

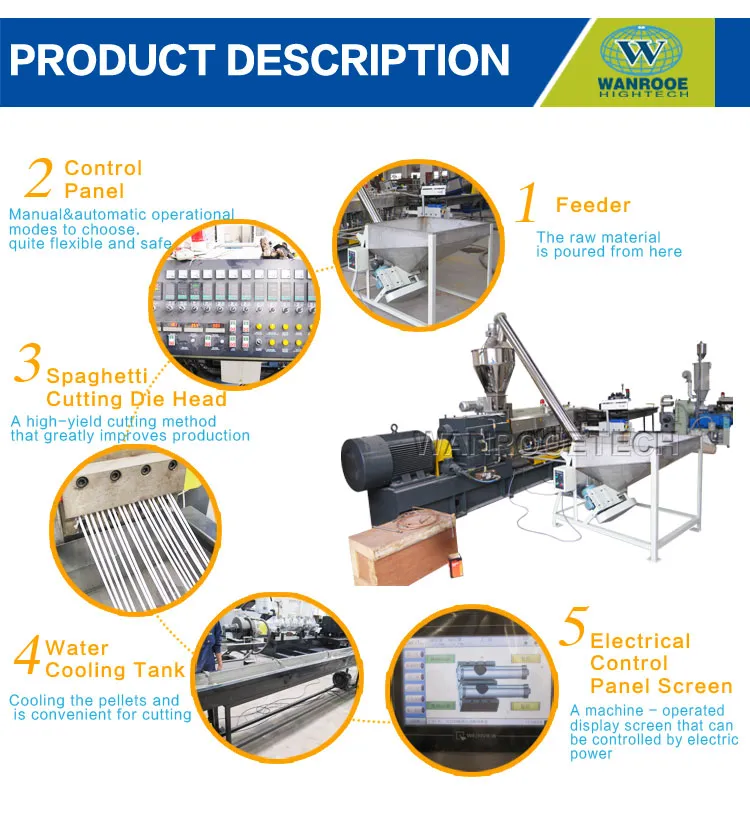

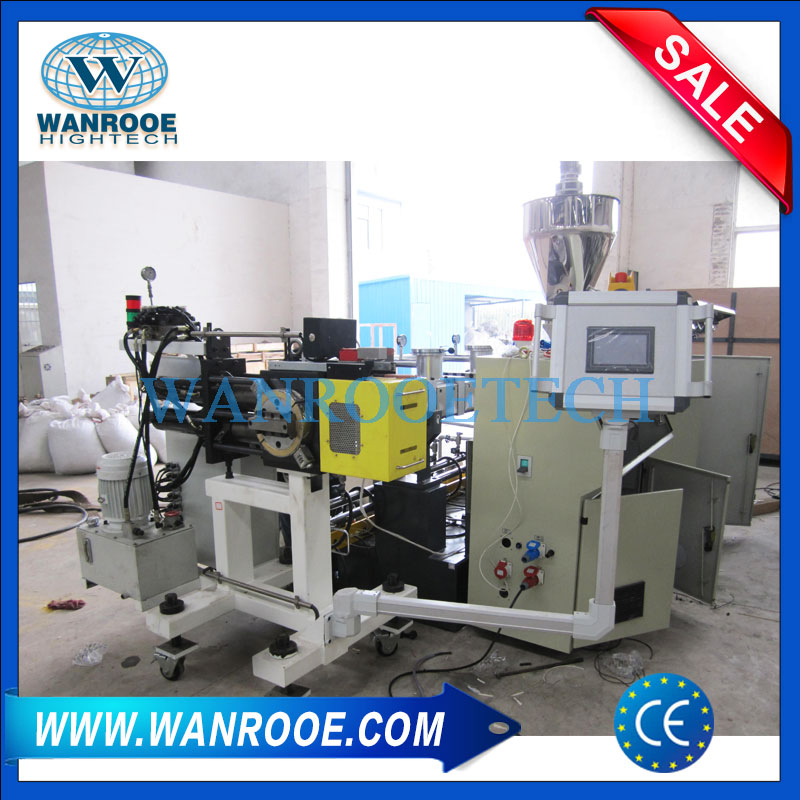

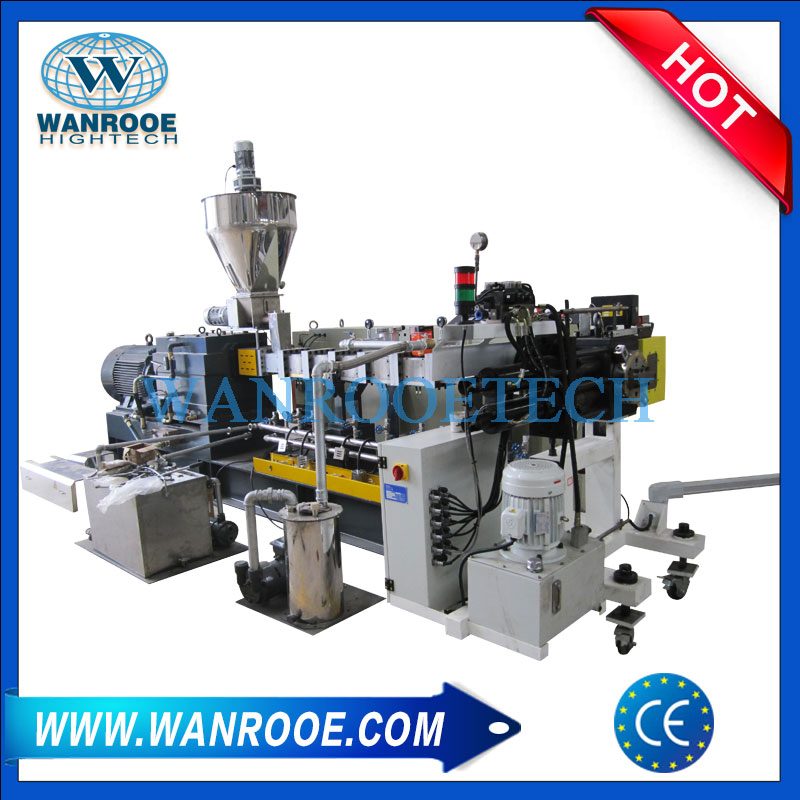

This pet flakes pelletizing line uses SHJ series parallel twin screw extruder, is suitable for producing PET granules from clean PET flakes.This machine is composed by SHJ parallel twin screw extruder, die, hydraulic screen exchanger, cooling flume, air dryer, cutter, silo, and could also be applied to other material like PET PP PE PA ABS etc.The SHJ series extruders are specially designed for PET bottles, flakes, PVC, Plastic sheets and other crushed materials, with good performance, high output, less power consumption cost per kilogram, and easy operation.
Stuctrure of PET Flakes Pelletizing Line:
Stage 1 is single screw extruder
Stage 2 is SJ low speed single screw extruder. Two machines are placed vertically
Advantages of PET Flakes Pelletizing Line:
1. Increasing the operation variables and realizing the process because of two-stage machine.
2. High effective and production capacity.
3. Good at process heat-sensitive material and devolatilization operation, Such as PVC, XLPE.
4. Zero halogen cable, shield material, carbon black etc.
Main parameters of PET Flakes Pelletizing Line:
| Model | SHJ20 | SHJ30 | SHJ50 | SHJ65 | SHJ72 | SHJ92 |
| Screw diameter(mm) | 21.7 | 30 | 50.5 | 62.4 | 71.2 | 91 |
| Rotate speed(mm) | 600 | 400 | 400/600 | 500/600 | 400/500 | 400/500 |
| Motor power (kw) | 4 | 11 | 11/15 | 55/75 | 90/110 | 220/250 |
| L/D | 32-40 | 28-48 | 28-48 | 28-48 | 28-48 | 28-40 |
| Output(kg) | 2-10 | 5-30 | 40-80 | 100-300 | 300-600 | 600-1000 |
