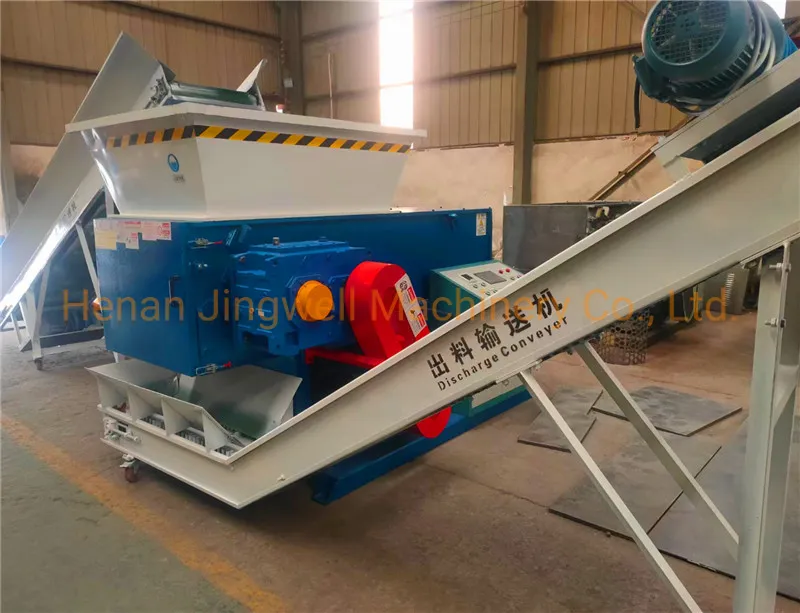

Hot Sale Single Shaft Shredder Polycarbonates PP PE Plastic Block Shredding Machine
Hot Sale Single Shaft Shredder Polycarbonates PP PE Plastic Block Shredding MachineProduct DescriptionPlastic block shredding machine belongs to single shaft shredder, it is specially used to shredding hard plastic waste into smallpieces under 20--40mm. Suitable Shredding Applications: - Plastic lum......
Send Inquiry
Product Description
Hot Sale Single Shaft Shredder Polycarbonates PP PE Plastic Block Shredding Machine
Product Description

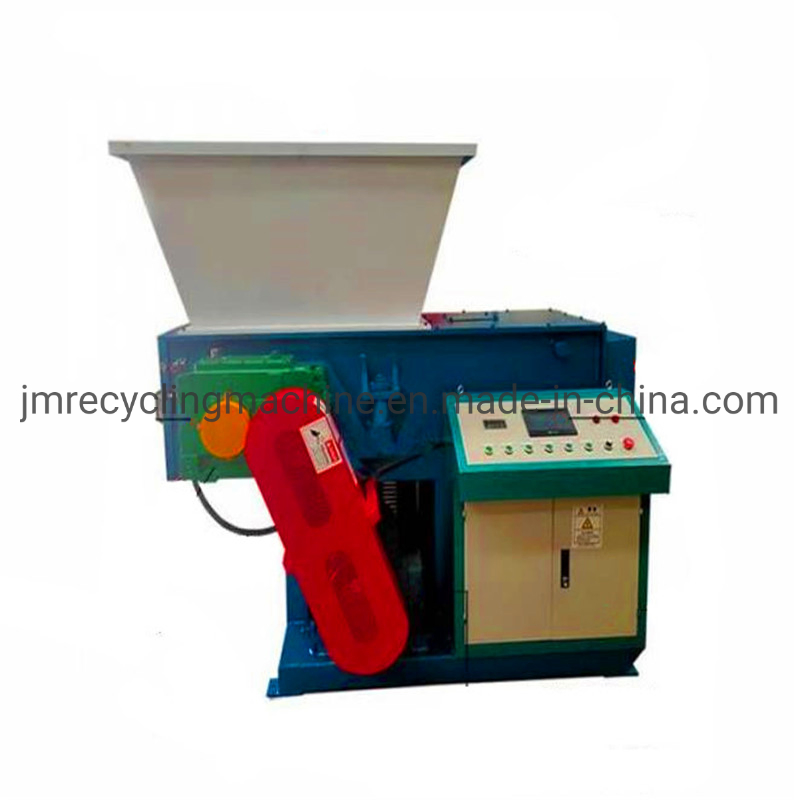

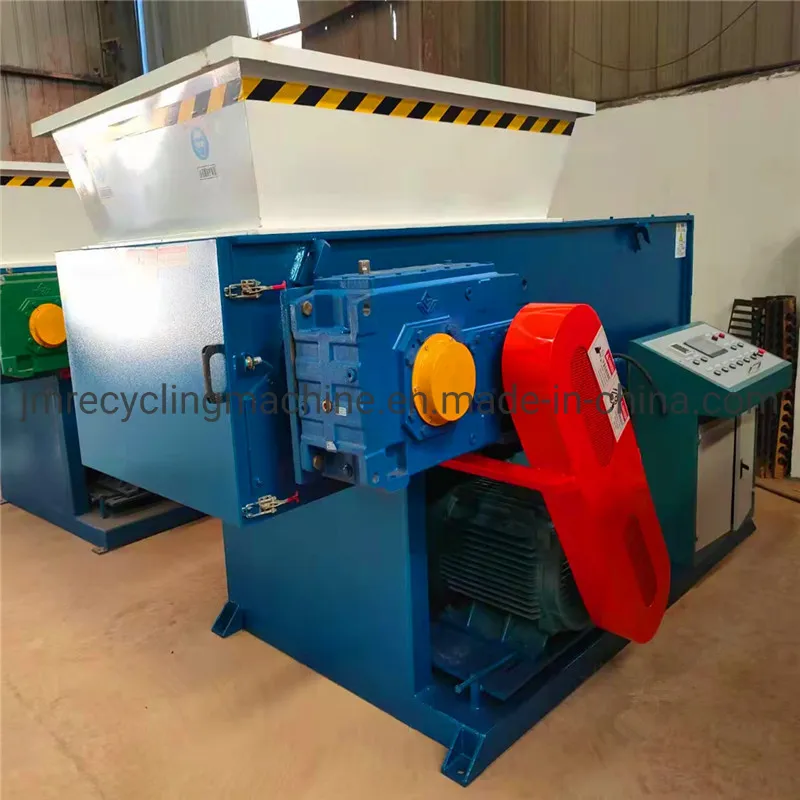

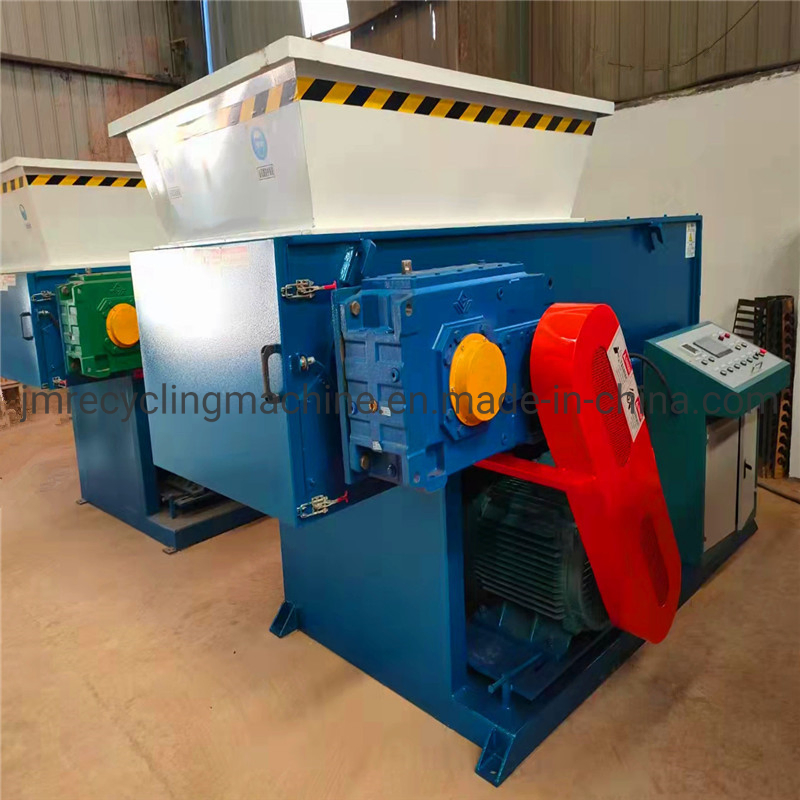

Plastic block shredding machine belongs to single shaft shredder, it is specially used to shredding hard plastic waste into small
pieces under 20--40mm.
Suitable Shredding Applications:
- Plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon,etc.
- Plastic pipes, Plastic barrel, Toe gum
- Film, Woven bags,Fiber
- Electronic Waste,Electrical board
- Copper Cable, Aluminum Cable
- Paper, hardboard
Working process of single shaft shredder:
The material enters the chassis from the hopper, the pusher box pushes the material to the rotating knife roller under the push of the
hydraulic cylinder, the rotating movable knife and the fixed knife crush the material, the crushed material falls through the screen, and

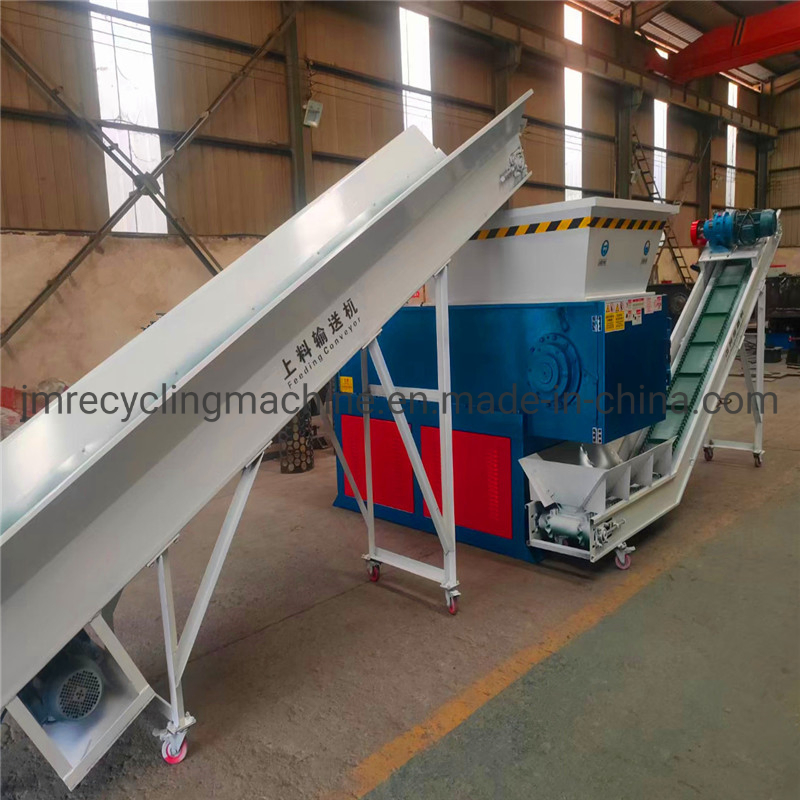

then is transported by the auxiliary conveying equipment go to the next process or collect and pack.

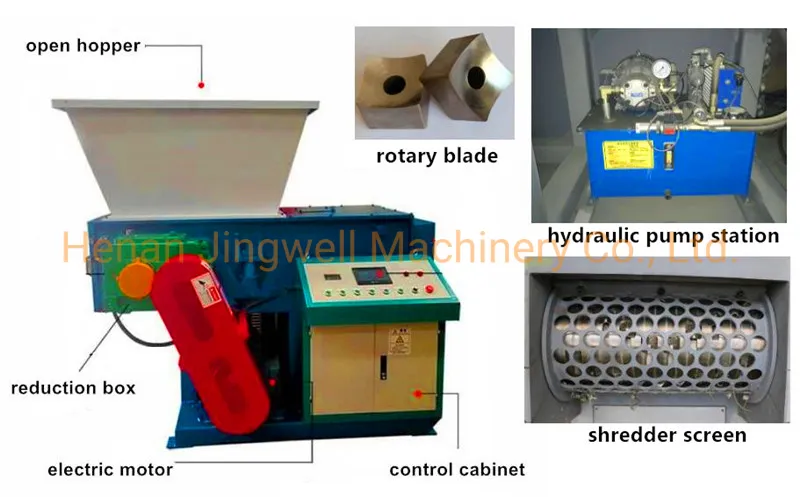

Main characteristic of single shaft shredder:
1. Hopper:open hopper for easy feeding. The machine is fitted with a large filling hopper and can be loaded by conveyor belt, fork lift,
crane or wheel-loader. This funnel can be adapted to suit individual requirements and guarantees a continuous and economical supply
of material without any need for manual assistance.
2. Hydraulic System: Separate hydraulically-operated pusher pushes the material towards the rotor automatically inside the cutting chamber.
3. Rotor bearings : The extremely robust pedestal bearing housings are mounted outside the machine and separate from the cutting
chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a longer life and minimum maintenance.
4. Screen: The screen mounted beneath the rotor determines the size of the required granulate . The screen is also easily accessible by a
separate flap and can be changed easily.
5. PLC control system, automatic overload protection and auto reverse switch.
6. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation.
7. Good shaft structure design, low noise,blades easy changeable.

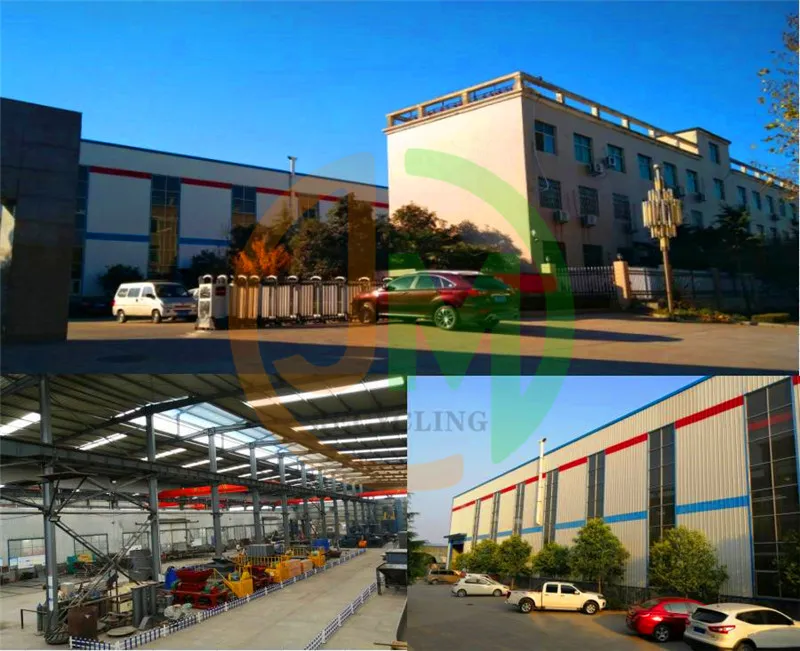

Company information
> 10+ years equipment manufacturing experience;
> 30+ well-trained employees;
> 20000+ square meter of standardized heavy industrial factory
FAQ
Q1: What is the Warranty for the machines ?
A1: 100% brand new when leaving the factory. We guarantee quality of the machines (excluding wearing parts) for a period of 12months
from the date of trial run,but not exceed 18 months from date on which machine leaves the factory.
Q2: How about the price ?
A2: Everything is negotiable and we are glad to offer you the best price to satisfy your reasonable budget.
Q3: How about the after-sale service ?
A3: We do our best to ensure every machine in good quality before leave factory and let our clients don't have after-sale problem for quality issue.
We company offer forever technical support for clients without any charges.
In case the machine has problem, we will response in 24 hours and offer technical support to solve it.
Product Description
Plastic block shredding machine belongs to single shaft shredder, it is specially used to shredding hard plastic waste into small
pieces under 20--40mm.
Suitable Shredding Applications:
- Plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon,etc.
- Plastic pipes, Plastic barrel, Toe gum
- Film, Woven bags,Fiber
- Electronic Waste,Electrical board
- Copper Cable, Aluminum Cable
- Paper, hardboard
Working process of single shaft shredder:
The material enters the chassis from the hopper, the pusher box pushes the material to the rotating knife roller under the push of the
hydraulic cylinder, the rotating movable knife and the fixed knife crush the material, the crushed material falls through the screen, and
then is transported by the auxiliary conveying equipment go to the next process or collect and pack.
Main characteristic of single shaft shredder:
1. Hopper:open hopper for easy feeding. The machine is fitted with a large filling hopper and can be loaded by conveyor belt, fork lift,
crane or wheel-loader. This funnel can be adapted to suit individual requirements and guarantees a continuous and economical supply
of material without any need for manual assistance.
2. Hydraulic System: Separate hydraulically-operated pusher pushes the material towards the rotor automatically inside the cutting chamber.
3. Rotor bearings : The extremely robust pedestal bearing housings are mounted outside the machine and separate from the cutting
chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a longer life and minimum maintenance.
4. Screen: The screen mounted beneath the rotor determines the size of the required granulate . The screen is also easily accessible by a
separate flap and can be changed easily.
5. PLC control system, automatic overload protection and auto reverse switch.
6. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation.
7. Good shaft structure design, low noise,blades easy changeable.
| Technical Parameters | ||||
| Model | 600 | 800 | 1000 | 1200 |
| Motor Power (kw) | 22 | 37 | 55 | 75 |
| Hopper Size (mm) | 600*1100 | 800*1100 | 1000*1300 | 1200*1400 |
| Output Capacity (kg/h) | 300-600 | 500-700 | 600-800 | 700-1000 |
| Equipment Size (m) | 1.85*1.4*1.8 | 2.4*1.6*2.0 | 2.7*1.8*2.2 | 2.9*2.3*2.2 |
Company information
> 10+ years equipment manufacturing experience;
> 30+ well-trained employees;
> 20000+ square meter of standardized heavy industrial factory
FAQ
Q1: What is the Warranty for the machines ?
A1: 100% brand new when leaving the factory. We guarantee quality of the machines (excluding wearing parts) for a period of 12months
from the date of trial run,but not exceed 18 months from date on which machine leaves the factory.
Q2: How about the price ?
A2: Everything is negotiable and we are glad to offer you the best price to satisfy your reasonable budget.
Q3: How about the after-sale service ?
A3: We do our best to ensure every machine in good quality before leave factory and let our clients don't have after-sale problem for quality issue.
We company offer forever technical support for clients without any charges.
In case the machine has problem, we will response in 24 hours and offer technical support to solve it.
