Product Description

Plastic single-shaft recycling shredder pipe crushing machine

1.Product Description:
Single shaft shredder for plastic pipe/lump/block/wood/film
Single shaft shredder/shredding machine is used to pre-crush different kinds of plastic materials, especially shredding very large and hard plastics such as lumps,barrels,pipes wood, die material, big block material, film to small pieces for easy reprocessing, storage and transportation, creating new value from reusable wastes.
Our company has many years experience in manufacturing the plastic shredder machine, we can produce shredder machine according to your requirement.

2.Features

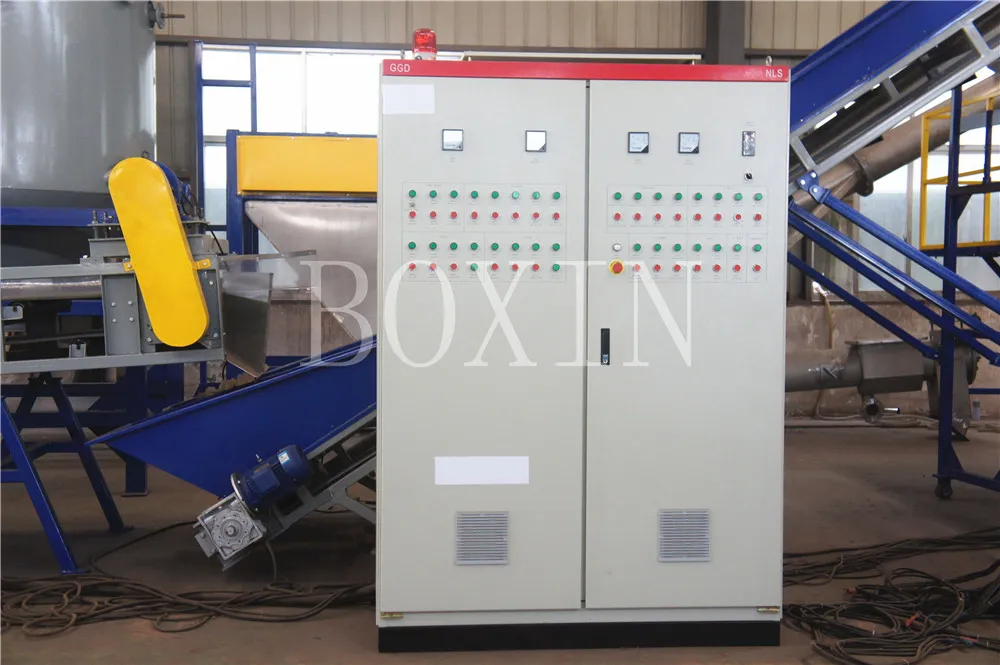

1. It adopts PLC control system, automatic overload protection and auto reverse switch
2. Good shaft structure design, low noise, blades easy changeable
3. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation
4. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

3.Single-Shaft Shredder
Suitable for all kinds of hard plastics, such as, large diameter plastic pipes, plastic waste, ABS Blocks, plastic pallets, wood, housing of air conditioner or fridge and other hard plastic, oversized HDPE die material and so on

1. Shredding with speed of 85r/pm; Low noises; Low power consumption; Well-proportioned in length of shredded materials.

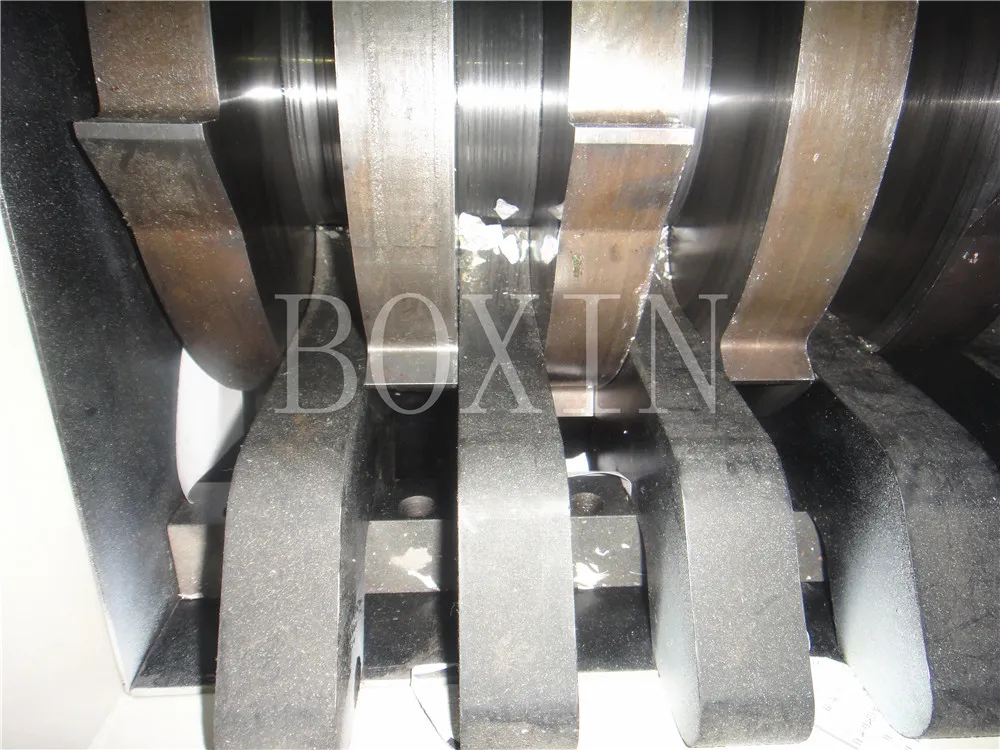

2. Rotary kives are with four angles, can change the angle when one is blunt, need to sharpen only after four angles are blunt, normally replace the baldes after shredding over 1000 tons.
3. The hopper is moving forward and backward to enable fully shredded of the materials. Higher efficiency, higher output.
4. Material of the blades adopt imported material SKD 11, after treatment the hardness can be over 65 to enable their longer sevice life.

Welcome to quote our single-shaft shredder and wish to jion hands with you to grow together.

Shredder Model	BX-2455	BX-3063	BX-3980	BX-48100	BX-57120	BX-75160
Diameter of Rotating(mm)	255	255	255	300	300	300
Number Rotary	24	30	39	48	57	75
Rotating Shaft Speed(rmp)	90	90	87	87	87	87
Fixed Knife	1	1	2	2	2	2
Hydraulic Station Power(kw)	4	4	5.5	5.5	7.5	7.5
Oil cylinder travel length(mm)	750	850	1050	1200	1400	125*2000
The use of pressure(Mpa)	6~12	6~12	6~12	6~12	6~12	6~12
Crushing capacity(kg/h)	250~400	250~450	300~600	500~1000	600~1200	1200~2000
Feeding caliber(mm)	550*650	700*900	880*1100	1070*1150	1280*1300	1650*2000
Power of main motor(kw)	18.5	22	30	45	55	75
Host weight(kg)	2500	3500	4800	5600	6000	8000
Dimension(LWH)	330016002200	330018002400	385020002700	400022002800	450025002800	700030003000

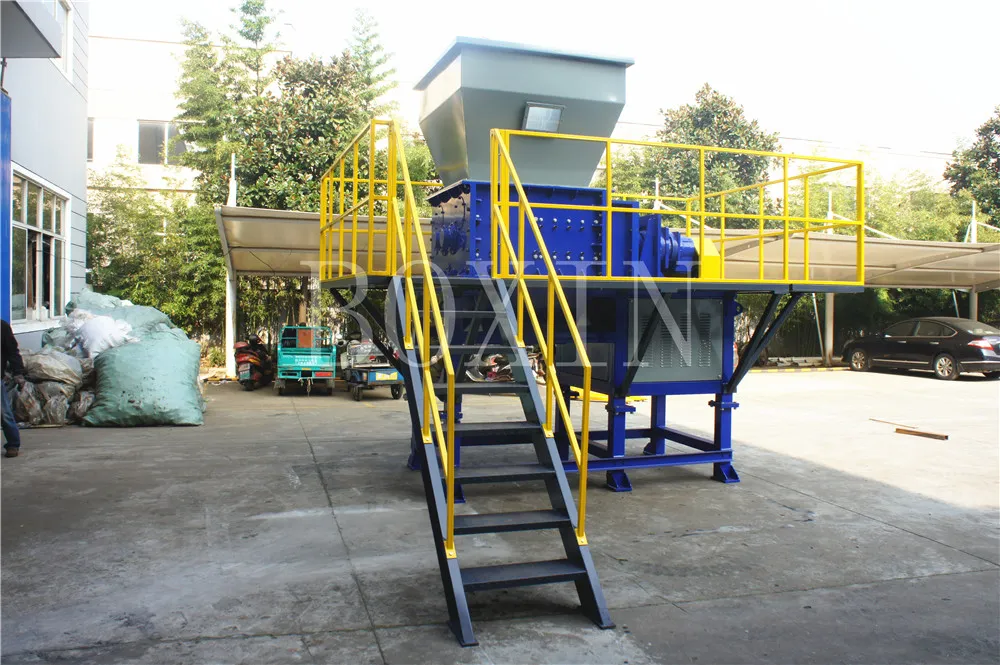

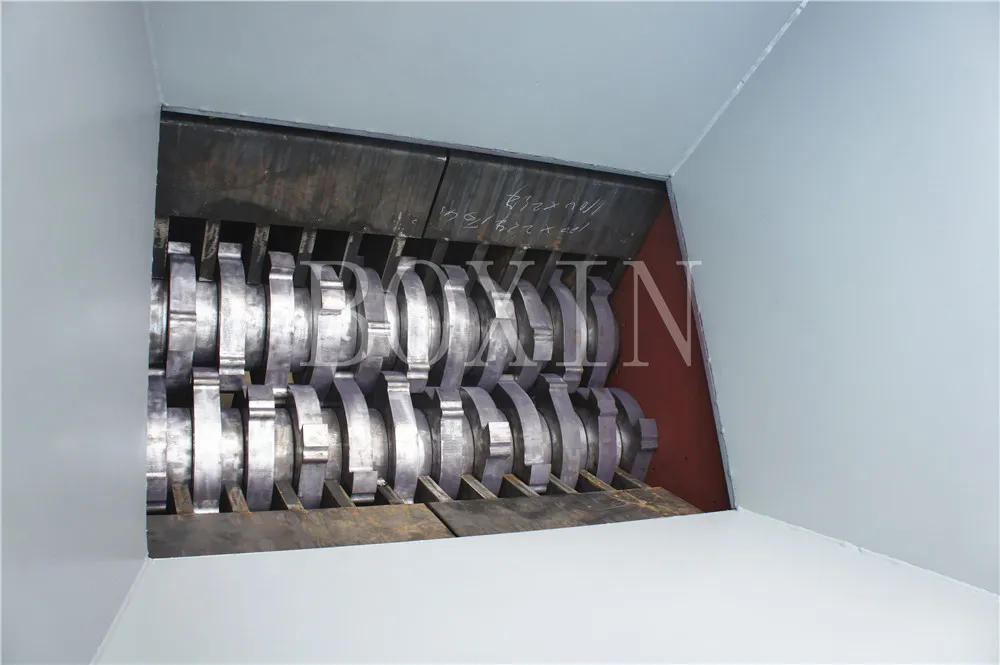

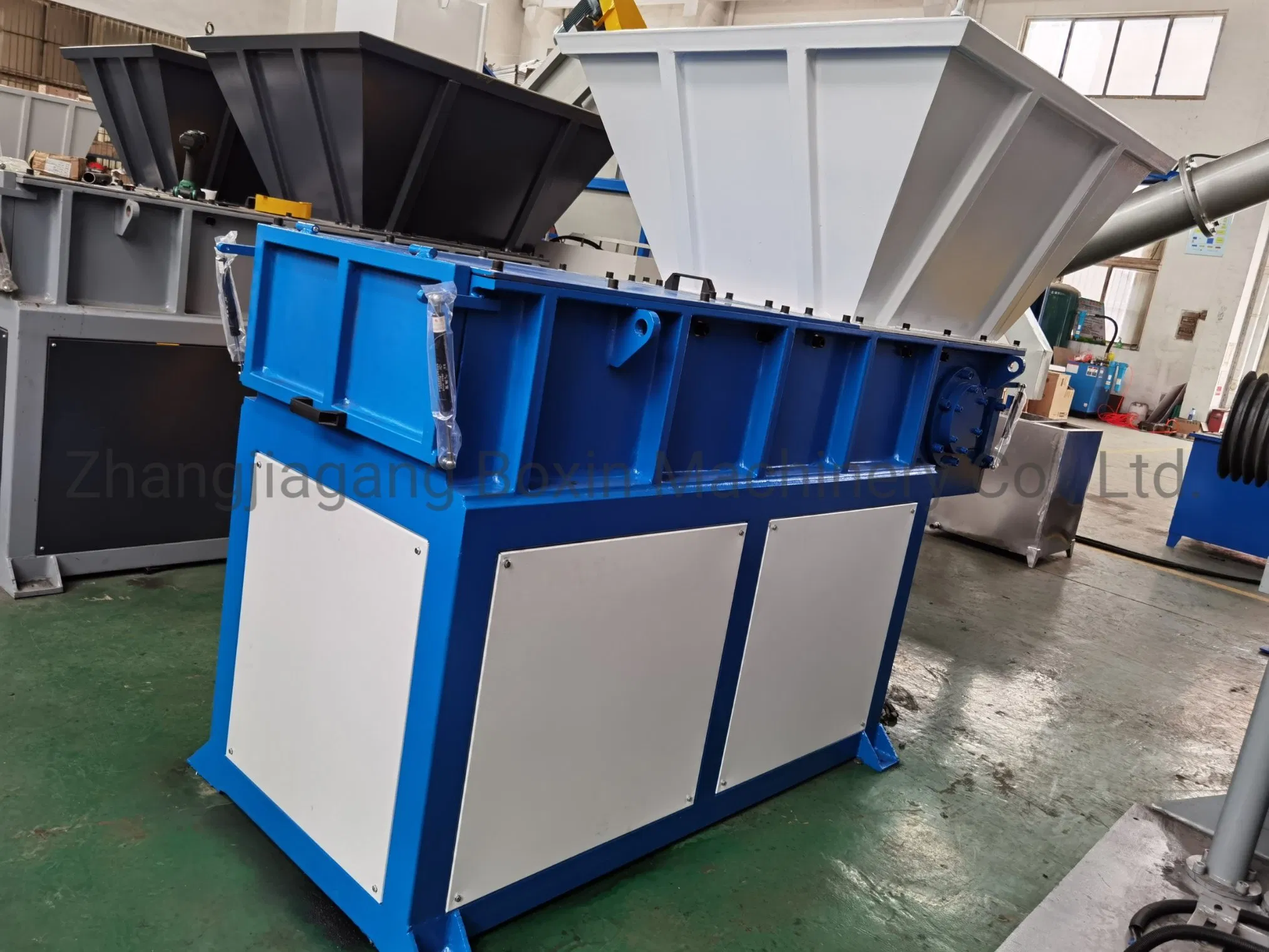

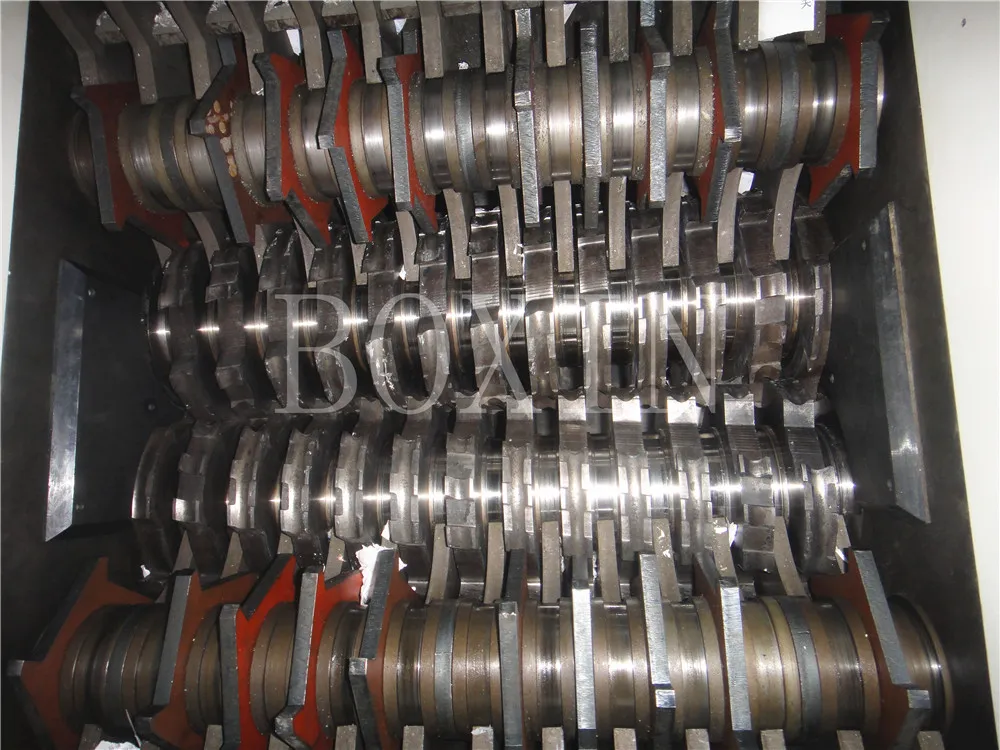

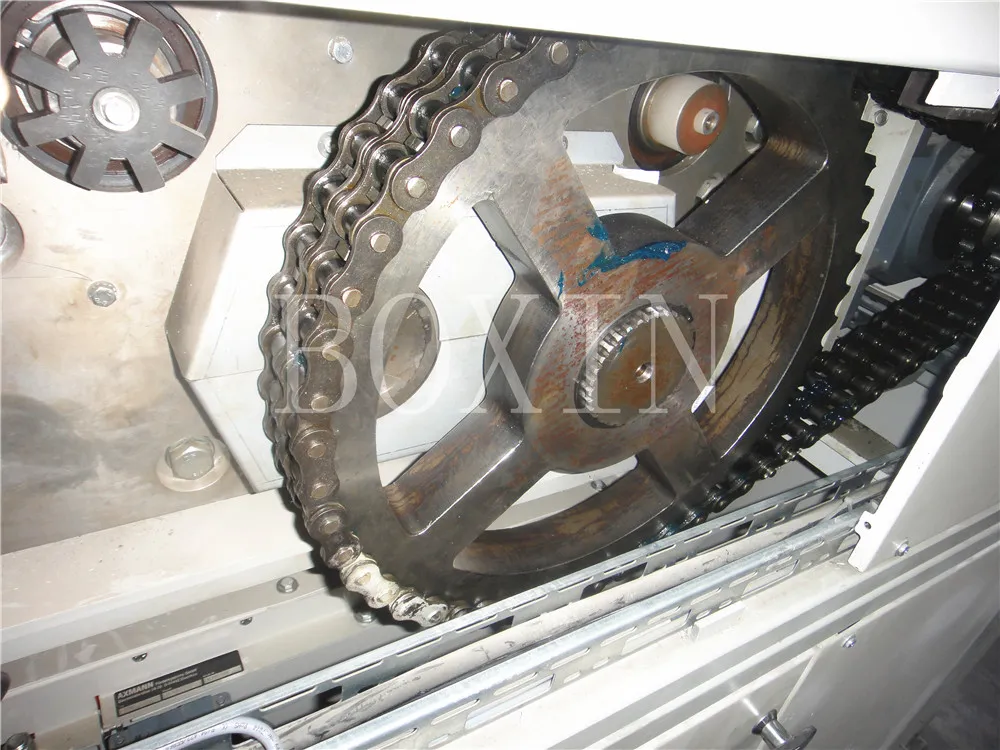

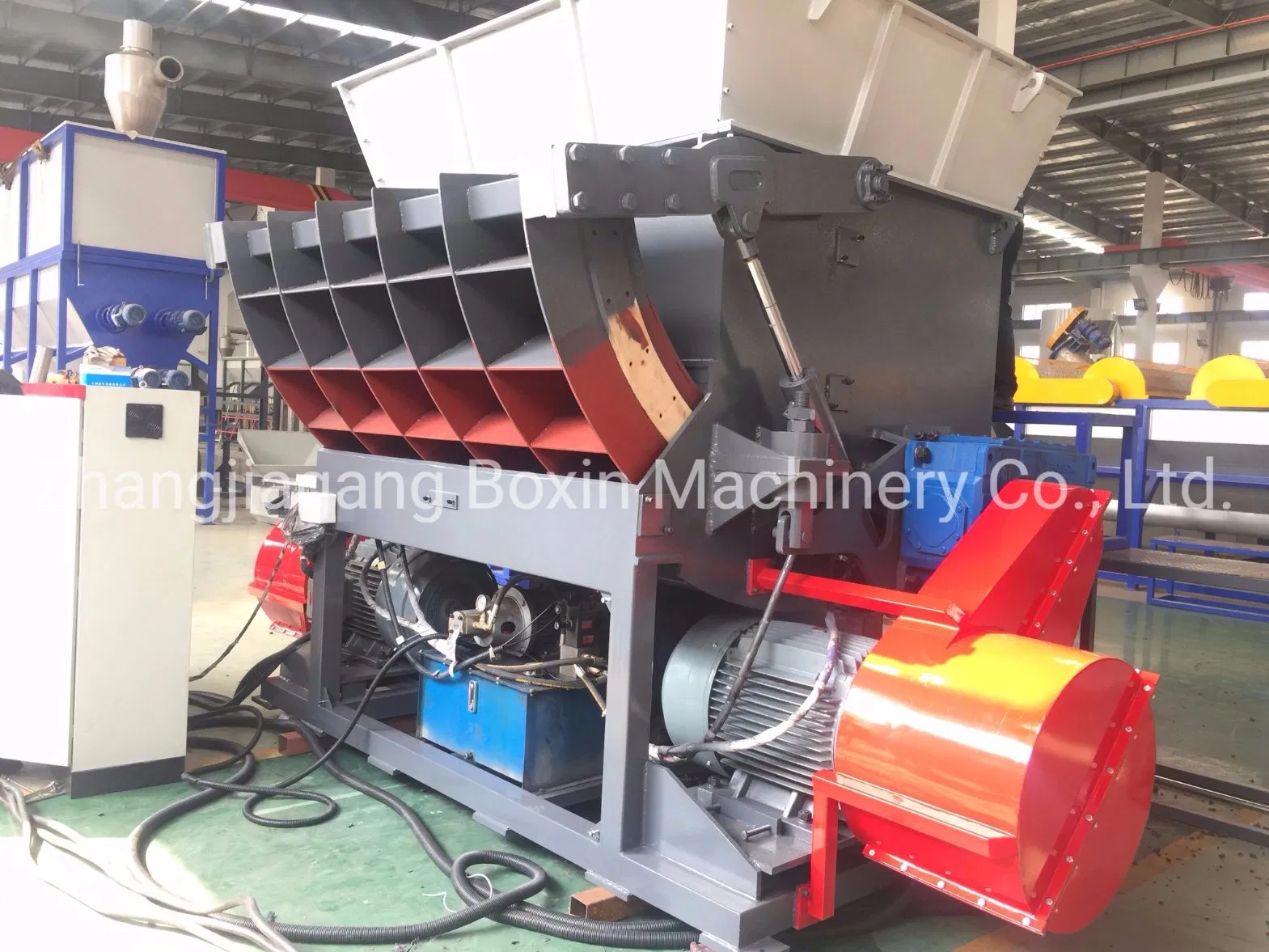

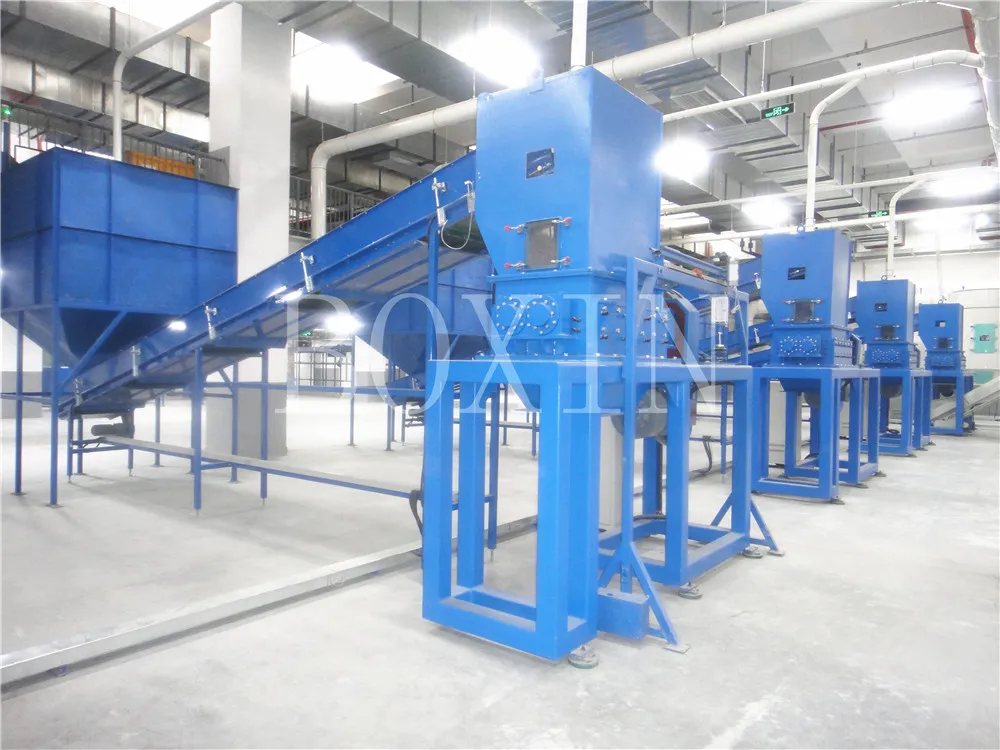

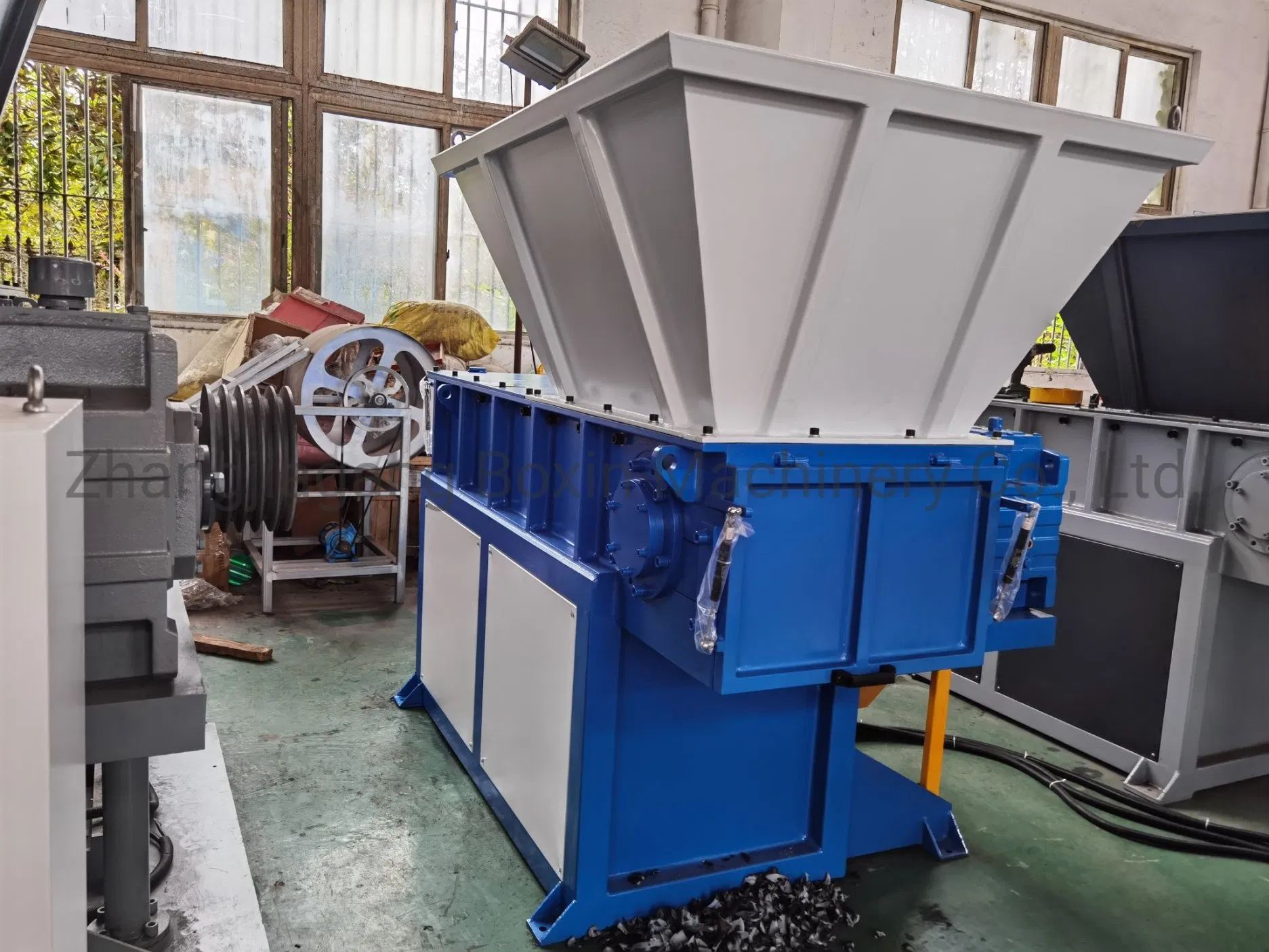

4.Machine pictures

5.Quality Control(plastic machine):
· We have technical, engineer team design the sample machinery before enter into market
· Production QC team ensure the machine manufacturing quality
· We will running every machine after finished before shipment
· Optional choose by client running the machinery by material

6.Service System(plastic machine):
· Pre-sale: We given client the details technician offer, sign the sales contract etc.
· In-sales: We supply the details layout, installation instruction, technician support for the clients;
· After sales: We arrange engineer to install the machinery and training the workers for client;
· We have 24hours team to solve the after sales problem;
· We have free spare parts with the machine;
· We supply long term spare parts for every customer
· We always up date the new technology to every customer

7.Package and Loading

Industrial Cables Including Bx Series Shredder

8.Certificates

Industrial Cables Including Bx Series Shredder

9.FAQ

YOU MIGHT INSTERESTED IN FOLLOWING QUESTIONS

1. Are you manufacturer or trading company?

We are a professional recycling machines manufacturer for more than 15years we supplying full technical support and solutions, timely and professional service, always effort on quality, honest, win-win business for every client.

2. How do you assistant to install the machine on worksite?

We are experienced on turn-key project, engineer and technicians will assistant client on construction, installation, commissioning.

3. How can I get spare parts for replacement in other countries?

Wearing parts like blades, it is necessary to buy with machine, other parts in stock could be delivery out by express if urgent or by sea within 5days.

4. Can I use mark machine with different LOGO and color?

Yes, please confirm details with sales.

5. Can your customers test the machines?

Before buying and after production before leaving factory, we test machine you interested or paid with specified materials, free of charge.

If you have any need ,pls feel free to contact with us.
