Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Product Description

RETECH 1000kg/h HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Product Application:
HDPE bottle/container,PP/PE film etc
HDPE milk bottle, PP tube.

The HDPE bottle flakes scrap washing recycling machine is used to recycling the waste HDPE/LDPE/PP/PE bottles, and buckets, hollow containers and so on. which can be used to make granules directly or pipe production. The whole line is full automatic and with high efficiency. Low noise and easy operation.

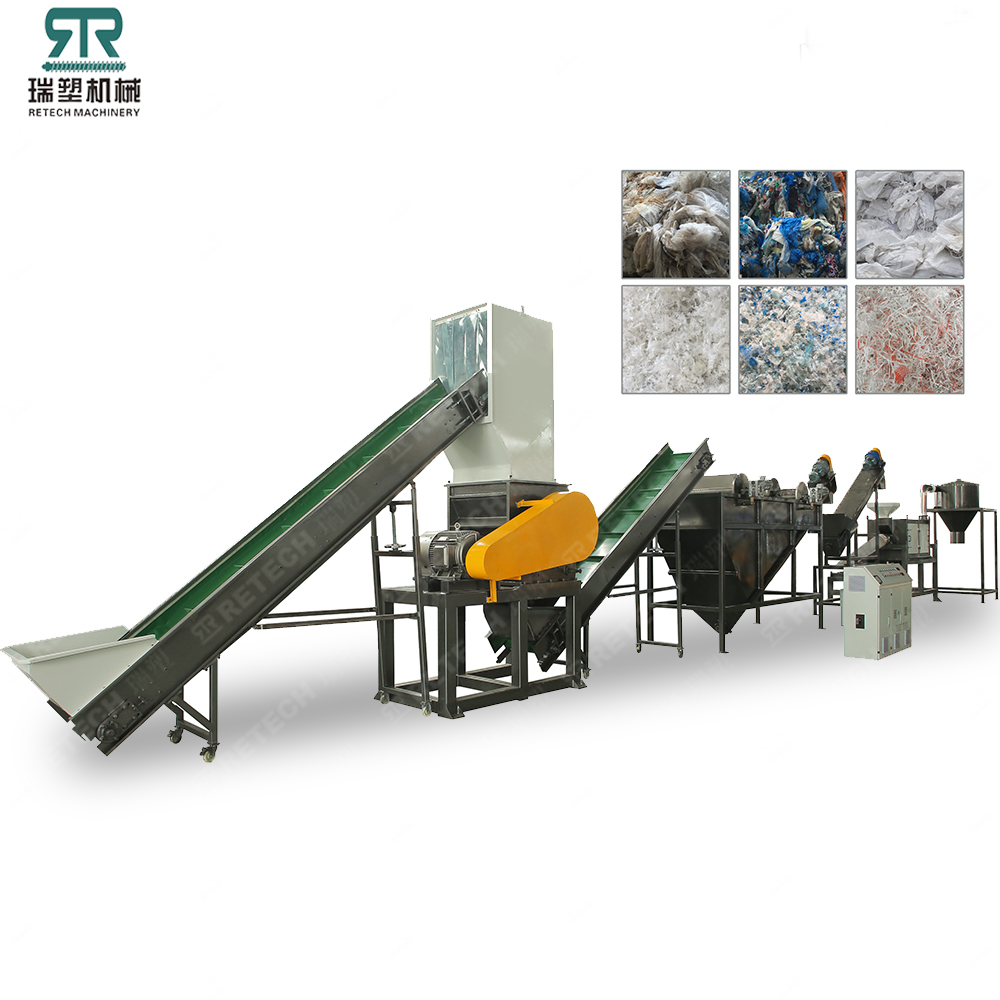

Waste HDPE Bottle Washing & Recycling Machine Line

Working Flow:
Belt conveyor → Roll separator → Belt conveyor → Mechanical label remover → Manual separating table → Metal detector →Belt conveyor → Crusher → Screw conveyor → High speed friction machine → Screw conveyor → Floating washer → Screw conveyor → Hot washer → Screw conveyor → Floating washer → Screw conveyor → Vertical dewatering machine → Drying pipe system → Zig zag air classification system → Storage hopper → Control cabinet

Technical Date

Model	Capacity	Power	Hot Washing	Water Supply	Man Power	Area Required
WT-500	500kg/hr	120kW	Optional	4-5 m3/hr	1-2	25m6m5m
WT-1000	1000kg/hr	215kW	Optional	7-8 m3/hr	2-3	35m6m5.5m
WT-2000	2000kg/hr	450kW	Optional	10-12 m3/hr	4-5	50m6m5.5m

Detailed images

Machine Parts

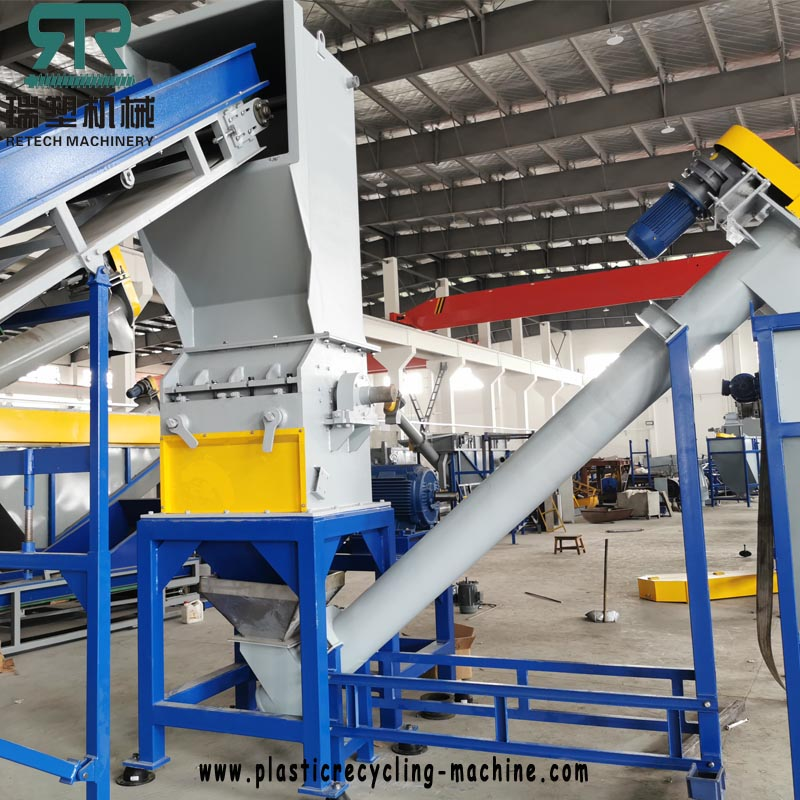

Name: Crusher
Brand: RETECH
Function:to crush raw plastic materials (waste HDPE bottle, PE/PP film bags) into small pieces. Blade are made of SKD-11.

Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Machine Parts

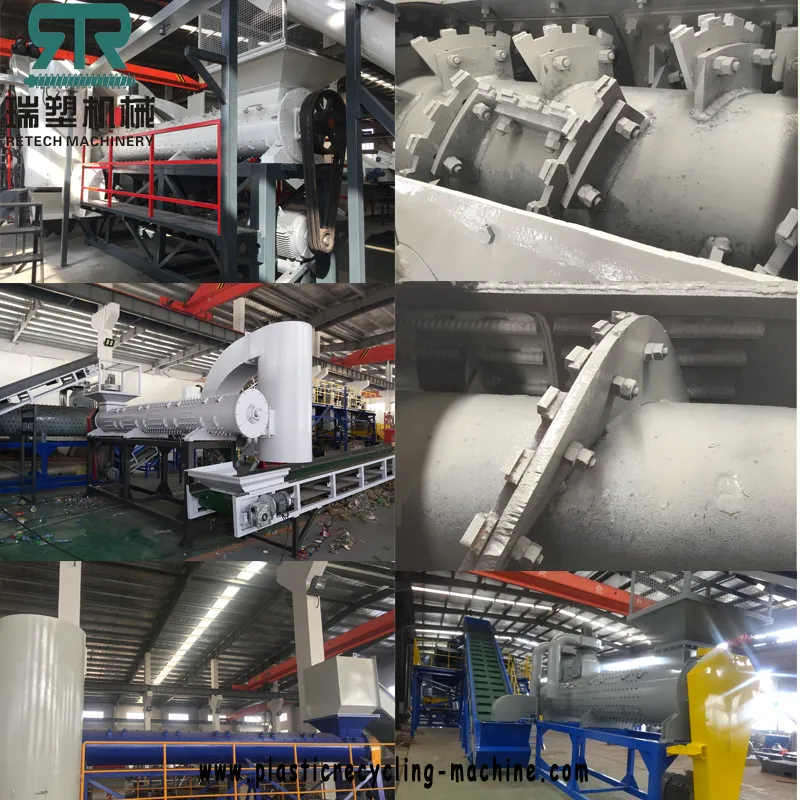

Name:Label Remover
Brand: RETECH
Function:
To remove the plastic labels, dry process/ or process with water for options. label remove rate reach 95%.

Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Machine Parts

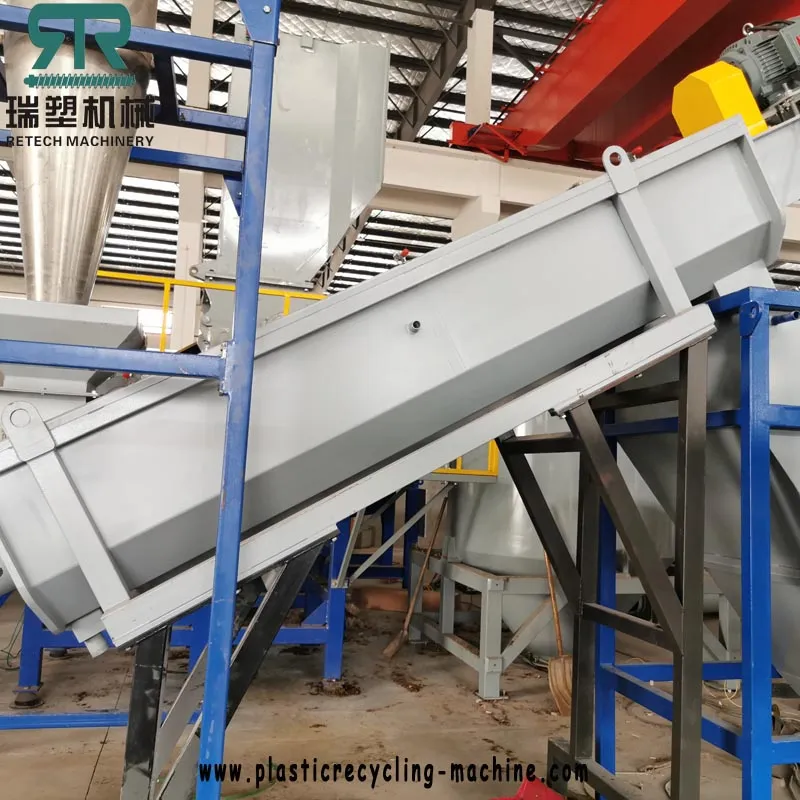

Name:High speed friction washer
Brand: RETECH
Function:High speed friction washer to cleaning the flakes by 1200 rpm high speed friction, process with water.

Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Machine Parts
Name: Sinking Floating washer
Brand: RETECH
Function:To remove impurities from materials,separation and clean.

Machine Parts

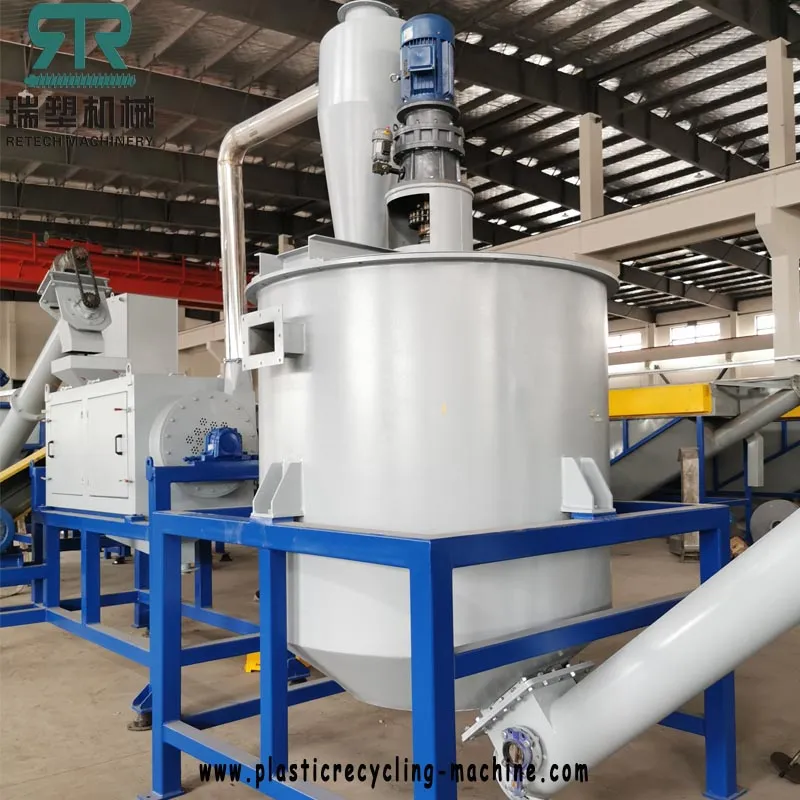

Name: Hot washer
Brand: RETECH
Function: Hot washer chamber add some chemicals (e.g. soda) to remove the oil/grease, etc...

Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Machine Parts

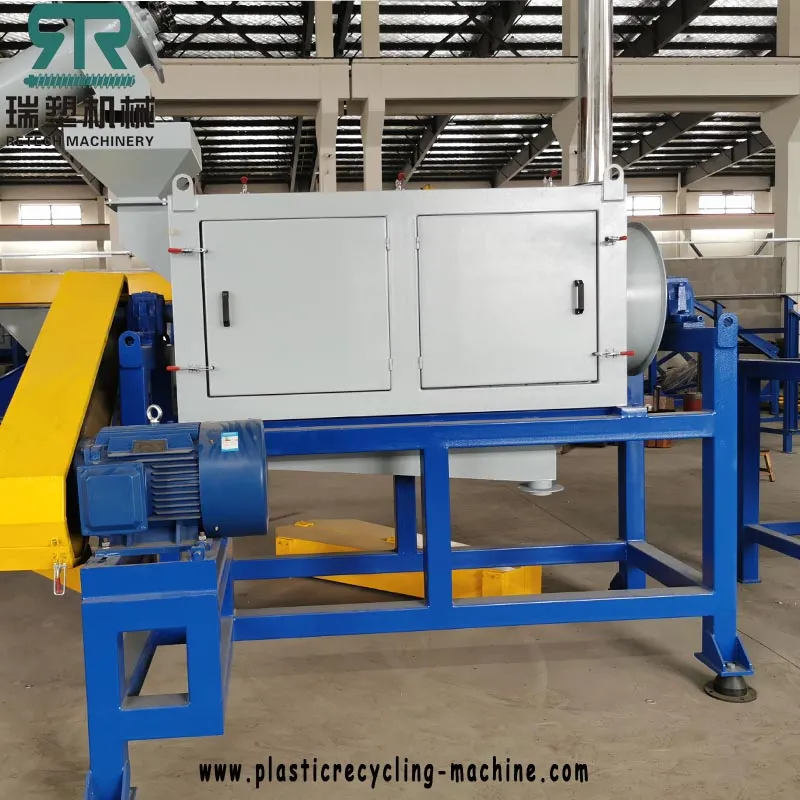

Name: Dewatering machine
Brand: RETECH
Function:
Dewatering machine to remove the water , rotation speed reach 1440rpm.

Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Machine Parts
Name: Zigzag air classification label removing system
Brand: RETECH
Function:
Zigzag air classification system to remove the labels on the last step.

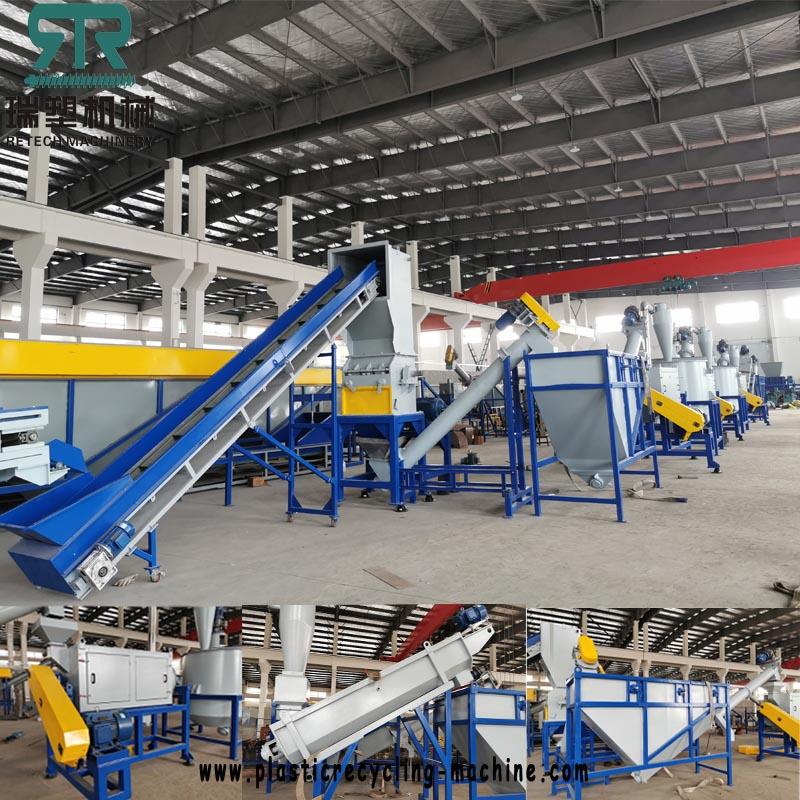

HDPE Bottle Washing & Recycling Machine Line
Name	Power
Belt conveyor	2.2 kw
Crusher	22 kw
Manual separating table	1.5 kw
Metal detector	0.4 kw
Screw conveyor	3 kw
Floating washer	2.2 kw+2.2 kw+2.2 kw
High speed friction machine	22kw
Dewatering machine	75 kw +1.5 kw
Drying system	36 kw+7 kw
Zig Zag air classification system	11 kw
Storage hopper
Control cabinet

Related Products:

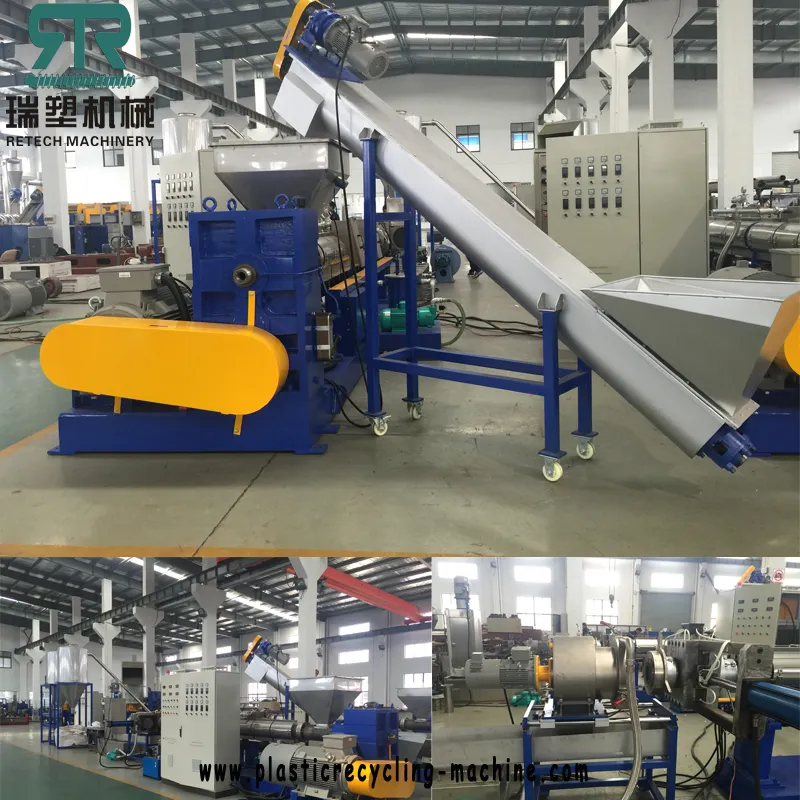

RCSJ series double-stage PP HDPE flakes PP PE film granulator machine(with side feeder)
The machine is consist of:
Side Feeder → Main extruder → Hydraulic screen changer →Second extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage

Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Product Application:
Applicable materials for plastic pelletizer machine: PP,PE, LDPE, LLDPE, HDPE, BOPP, EPS,etc.
Material shape: Woven bags, PP PE film,printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and raffia, etc.

FAQ:
For choosing proper machine and saving your time, please read these bellow guides carefully:

1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastics
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.

Turnkey Project Service:
1. We will provide all the machines for the complete production according to customer's requirements.
2. We will provide complete service for factory layout and other information to help customer to build the factory.
3. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.

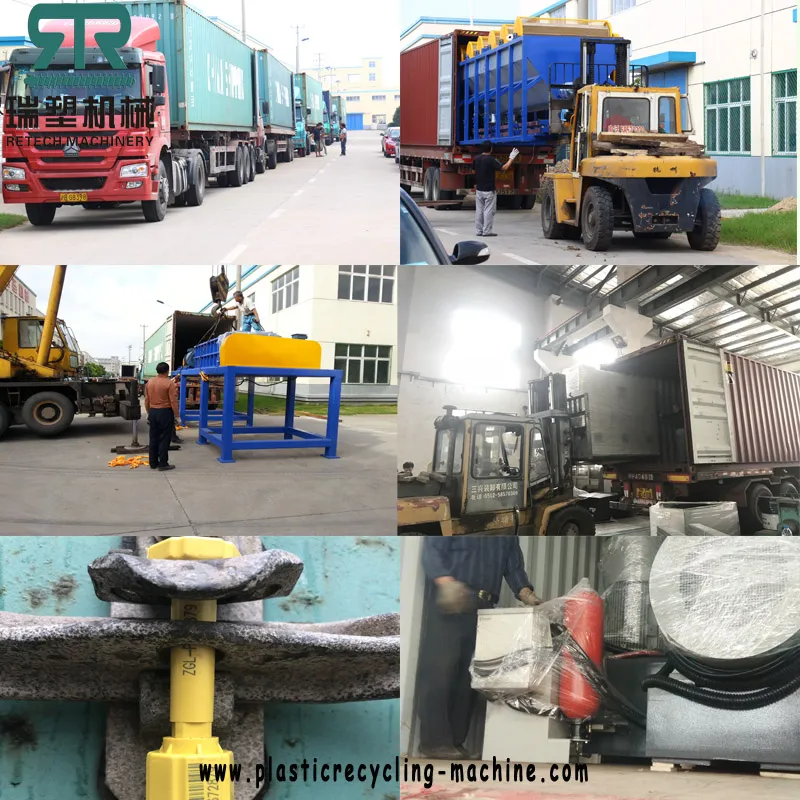

Package and Loading:

Retech 1000kg/Hr HDPE Bottle PP Tube Shred Crush Wash Machine Recycling Production Line

Contacts:

RETECH Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including ET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
